Rotary Parking System

BACK TO LIST

Floor Plate Two Post Lift QDSH-F400E/F450E/F850E

PARAMETER

Introduction

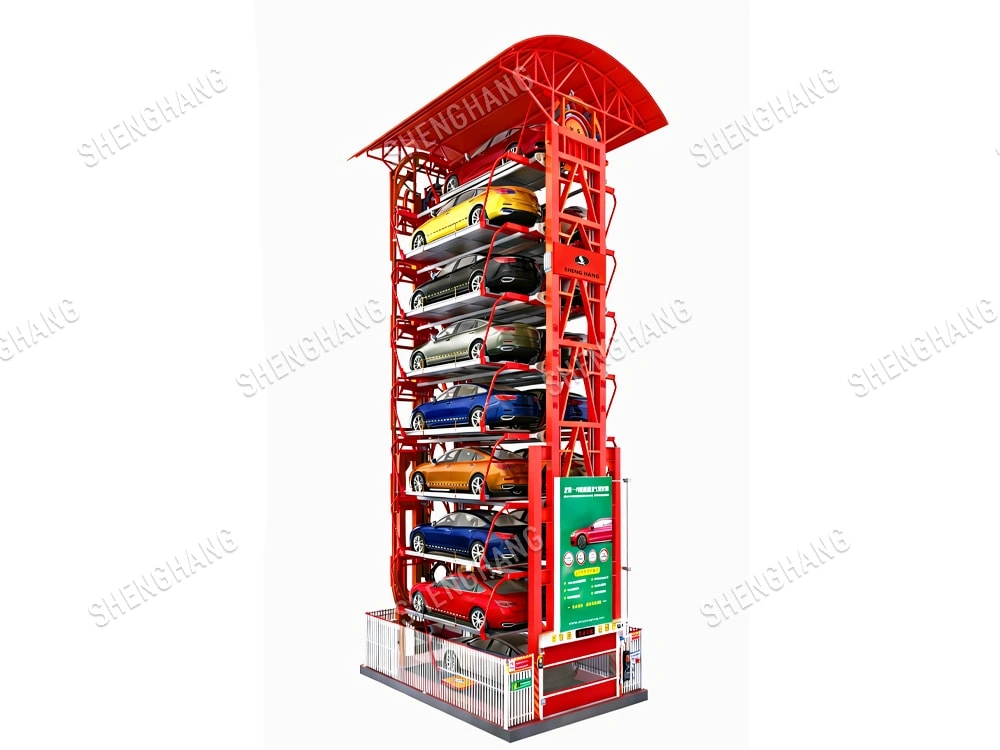

This is rotary parking system. It has Double-Rotation Mechanism Technology. It tackles criticaltechnical shortcomings and challenges related to transmission, safety, functionality, and lifespan found in existing models, a giant technological leap in the field of Vertical Rotary Parking Systems. It's one of a kind in the global market, surpassing the traditional Dial-Wheel and Dial-Shaft methods. This is equipped with 23 core technologies, particularly the AutomaticChain-Break Emergency Braking System and Intelligent Weight LimitSystem. With 147 patented technologies, it stands out for its exceptional quality, exemplifying the new heights of innovation technology led by our company

Features
1.Max.20 sedans or 18 SUVs
2.Allowing vehicle weight up to 2500kg
3.Covering area as small as 35.75㎡
4.Less maintenance and longer service life with Double-Rotation Mechanism technology
5.Short waiting time driving by German motor
6.Shorter installation period with modular design
7.Lower operational noise
8.20+core safety technologies
9. Possible relocation & reinstallation
10.Wide range of applications including public areas, office buildings,hotels, hospitals,shopping malls, and car showrooms,etc.

Inquiry now Download

MACHINE SIZE

Model Number		PCX-8	PCX-10	PCX-12	PCX-14	PCX-16	PCX-18	PCX-20
Parking Capacity		8 sedans	10 sedans	12 sedans	14 sedans	16 sedans	18 sedans	20 sedans
System Dimension	Length	6400 mm	6400 mm	6400 mm	6400 mm	6500 mm	6500 mm	6500 mm
	Width	5200 mm	5200 mm	5200 mm	5200 mm	5200 mm	5200 mm	5200 mm
	Height	10275 mm	12115 mm	13955 mm	15795 mm	17635 mm	19475 mm	21315 mm
New weight		19.5 ton	22.1 ton	24.96 ton	31.1ton	33.6 ton	40.02 ton	44.91 ton
Available Car	Length	5300 mm	5300 mm	5300mm	5300 mm	5300 mm	5300 mm	5300 mm
	Width	2100 mm	2100 mm	2100 mm	2100 mm	2100 mm	2100 mm	2100 mm
	Height	1600 mm	1600 mm	1600 mm	1600mm	1600 mm	1600mm	1600 mm
	Weight	2000 kg	2000 kg	2000 kg	2000 kg	2000 kg	2000 kg	2000 kg
Geared Motor(380V 50HZ)		7.5 kw	7.5 kw	11kw	15 kw	15kw	24.2kw	24.2 kw
Max.Speed		5 m/min	5 m/min	5.3 m/min	6 m/min	6 m/min	7.5 m/min	7.5 m/min
Max. RetrievalTime		89s	120s	126s	130s	1485	135s	150s
Motor Control		Inverter control
Operation		Touch Screen/IC Card /Button
Temperature Range		-40C ~+55C
Power Supply		AC 480V/415V/380V/220V,3PH,50/60HZ
Finishing		Powder coating/Hot-dipped galvanizing (optional)

Model Number		PCX-SUV8	PCX-SUV10	PCX-SUV12	PCX-SUV14	PCX-SUV16	PCX-SUV18
Parking Capacity		8SUVs	10 SUVs	12SUVs	14 SUVs	16 SUVs	18SUVs
System Dimension	Length	6500 mm	6500 mm	6500 mm	6500mm	6500mm	6500 mm
	Width	5400 mm	5400 mm	5400 mm	5400 mm	5400 mm	5400 mm
	Height	12676 mm	14976 mm	17275 mm	19575 mm	21800 mm	24175 mm
New weight		23.95 ton	29.5 ton	35.02 ton	39.95 ton	44.84ton	48.28 ton
Available Car	Length	5300 mm	5300 mm	5300 mm	5300mm	5300mm	5300 mm
	Width	2100 mm	2100 mm	2100 mm	2100 mm	2100 mm	2100 mm
	Height	2000 mm	2000 mm	2000 mm	2000 mm	2000 mm	2000 mm
	Weight	2300 kg	2300 kg	2300 kg	2300 kg	2300 kg	2300 kg
Geared Motor(380V 50HZ)		9.2 kw	11kw	15kw	24.2 kw	24.2 kw	30kw
Max.Speed		5.1 m/min	5.3 m/min	6 m/min	7.5 m/min	7.5 m/min	7.55 m/min
Max. RetrievalTime		110s	131S	1405	130s	150s	165s
Motor Control		Inverter control
Operation		Touch Screen/IC Card /Button
Temperature Range		-40C ~+55C
Power Supply		AC 480V/415V/380V/220V,3PH,50/60HZ
Finishing		Powder coating/Hot-dipped galvanizing (optional)

FEATURES

Introduction

This is rotary parking system. It has Double-Rotation Mechanism Technology. It tackles criticaltechnical shortcomings and challenges related to transmission, safety, functionality, and lifespan found in existing models, a giant technological leap in the field of Vertical Rotary Parking Systems. It's one of a kind in the global market, surpassing the traditional Dial-Wheel and Dial-Shaft methods. This is equipped with 23 core technologies, particularly the AutomaticChain-Break Emergency Braking System and Intelligent Weight LimitSystem. With 147 patented technologies, it stands out for its exceptional quality, exemplifying the new heights of innovation technology led by our company

Features

1.Max.20 sedans or 18 SUVs

2.Allowing vehicle weight up to 2500kg

3.Covering area as small as 35.75㎡

4.Less maintenance and longer service life with Double-Rotation Mechanism technology

5.Short waiting time driving by German motor

6.Shorter installation period with modular design

7.Lower operational noise

8.20+core safety technologies

9. Possible relocation & reinstallation

10.Wide range of applications including public areas, office buildings,hotels, hospitals,shopping malls, and car showrooms,etc.
