Product advantages

1.Small land occupation, large capacity and high parking density.

2.The layout is flexible, and the space can be fully utilized according to the size of thesite and the height of the space.

3.The main body of the parking system can be made of concrete or steel structure.

4.Forward to enter and out of garage, It' s convenient and comfortable to use.

5.Intelligent management, license plate recognition, clear parking records, and thedata exchange with urban parking platforms.

6.Both above ground and underground and a combination of both can be built.

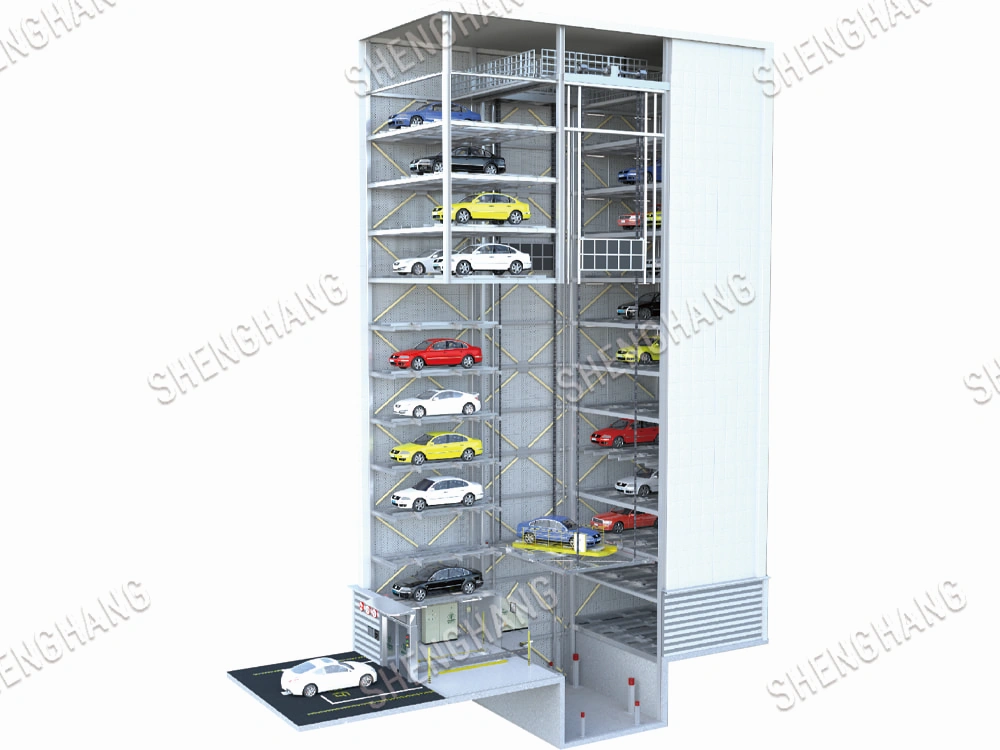

Working principle

Combined with the advantages of multi storey stacker parking systemand vertical lifting parking system, the lift platform change floors bylifting. During the lifting process, it moves horizontally or rotates atthe same time, and carrier are used to transport vehicles to achievethe purpose of storing and retrieving vehicles.

Application Scenario

Urban public parking lots, hospitals,banks, shopping malls, officebuildings, etc. The place which have complex vehicle models andvaried driver.
