Floor Plate Two Post Lift QDSH-F300/F350/650

BACK TO LIST

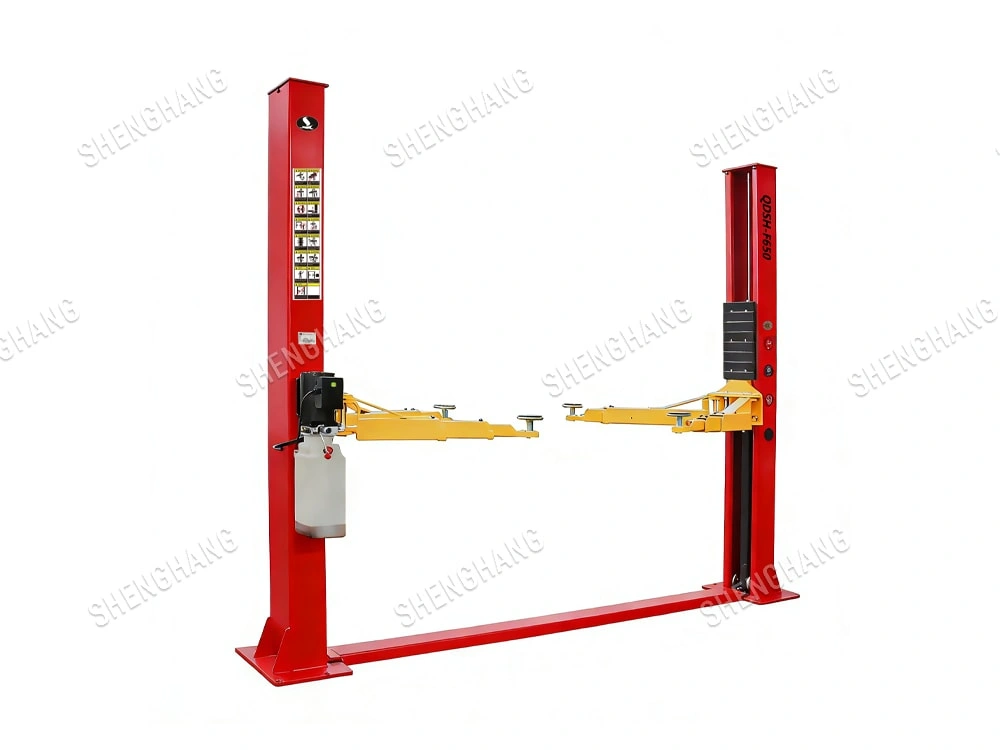

QDSH-F650

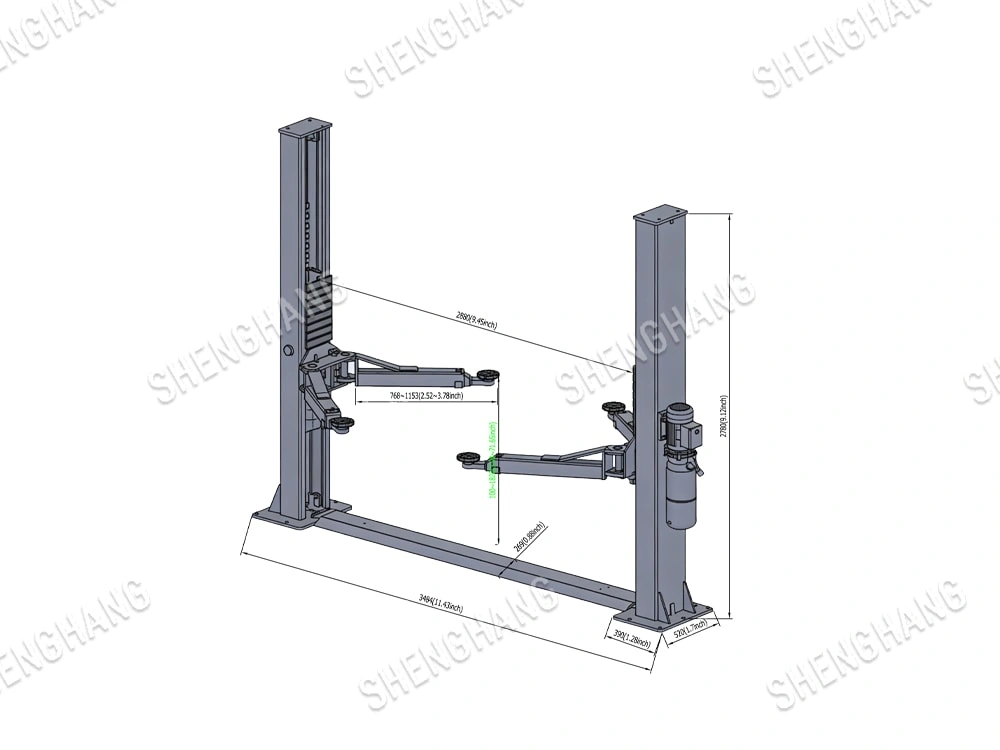

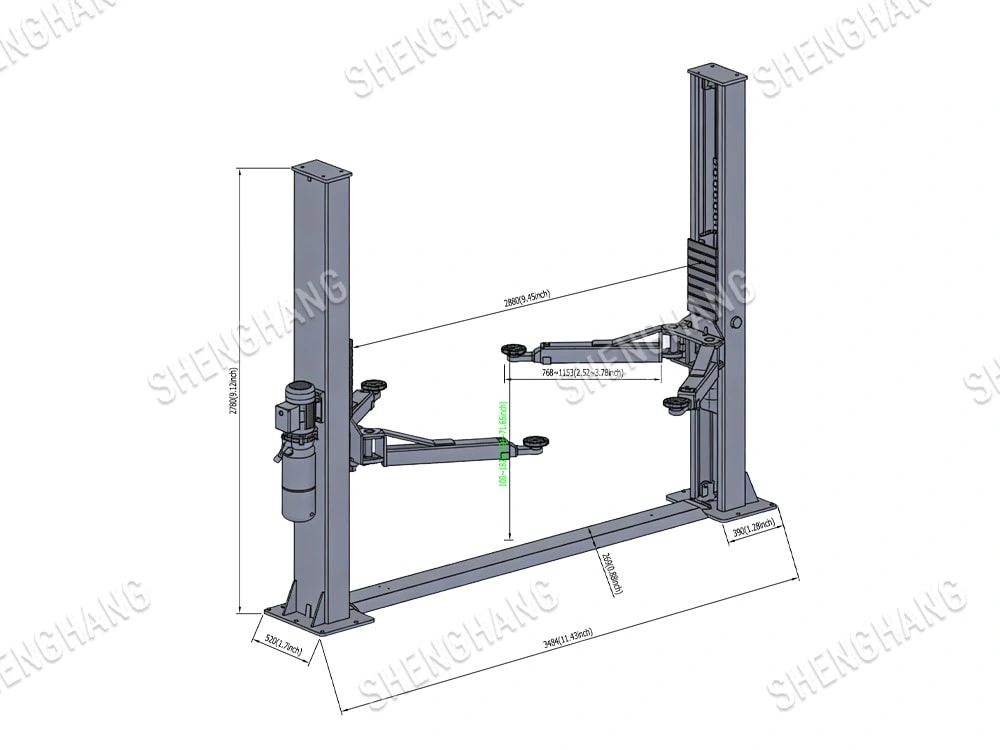

C650&300
C650&300

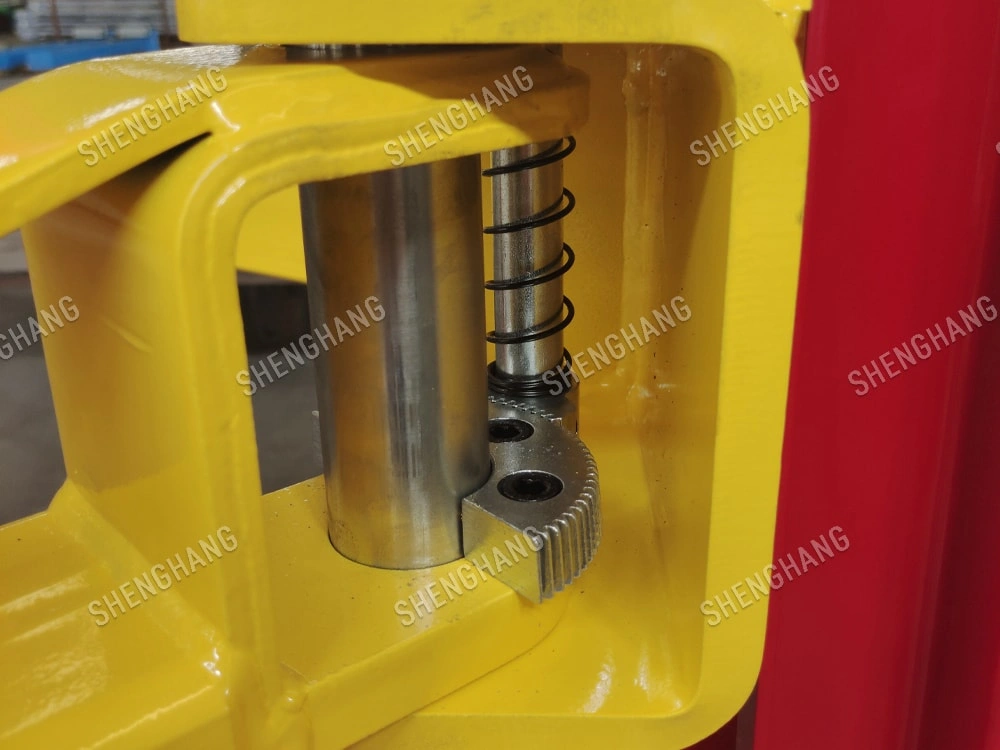

Integral type carriage

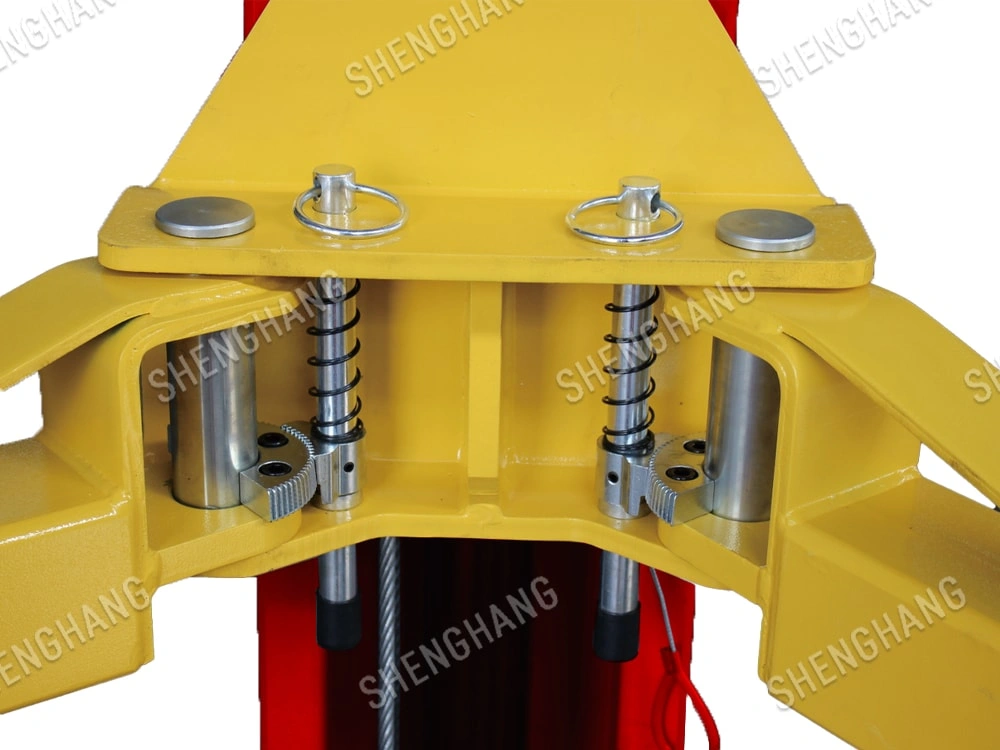

Integral type carriage (Two-side lock release）

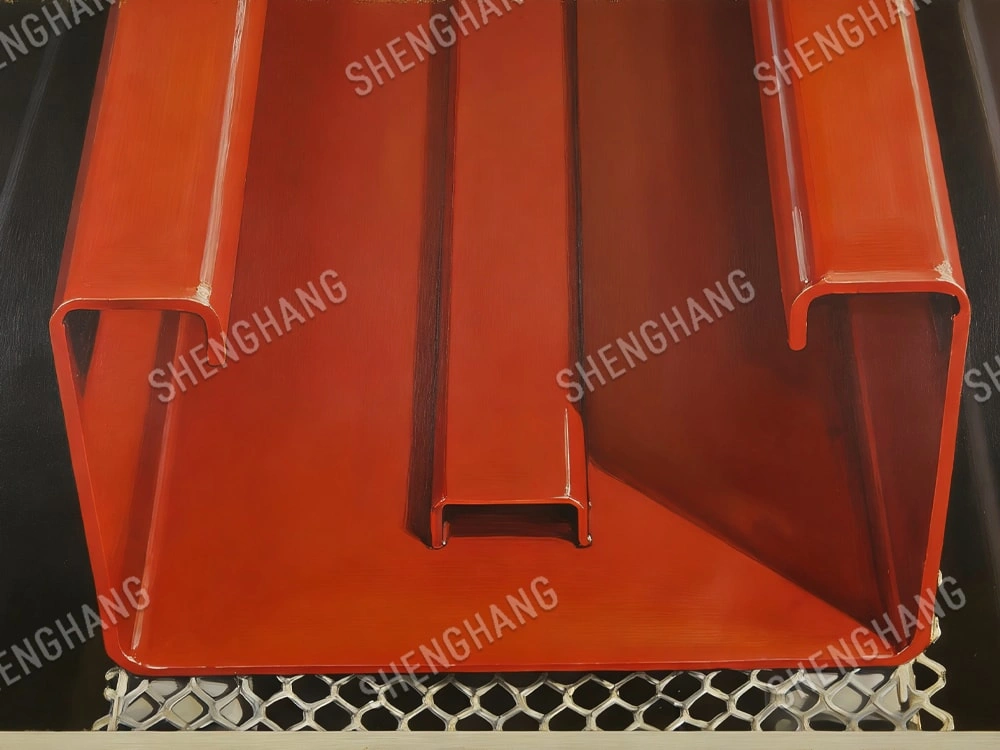

The columnwith 6 bending

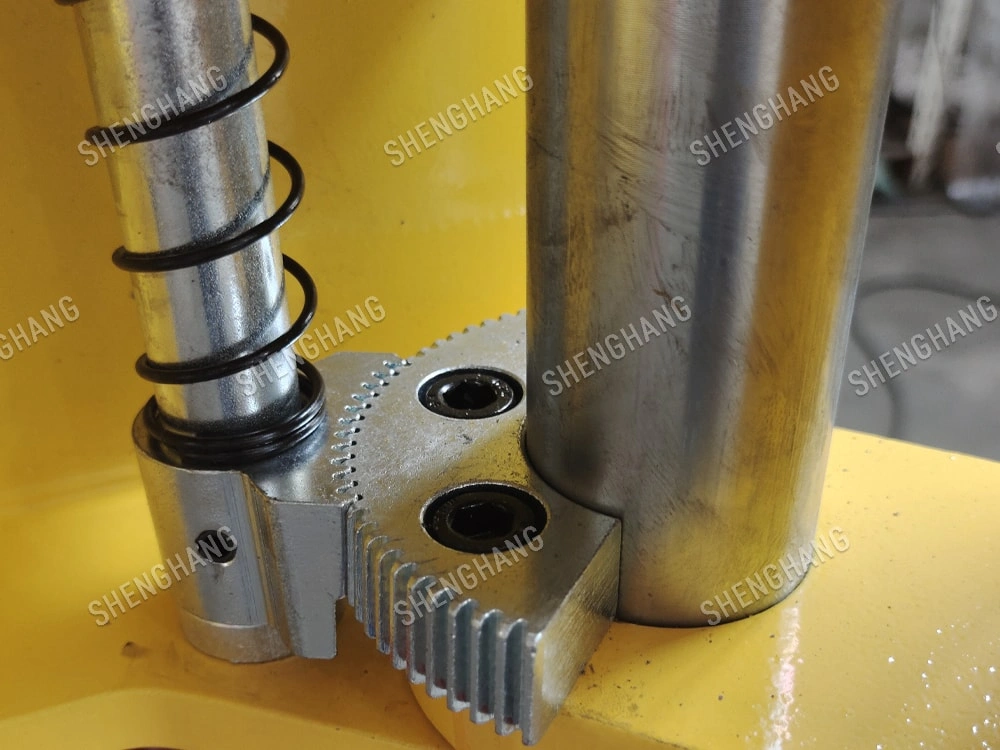

The safety lock is tightlyengaged

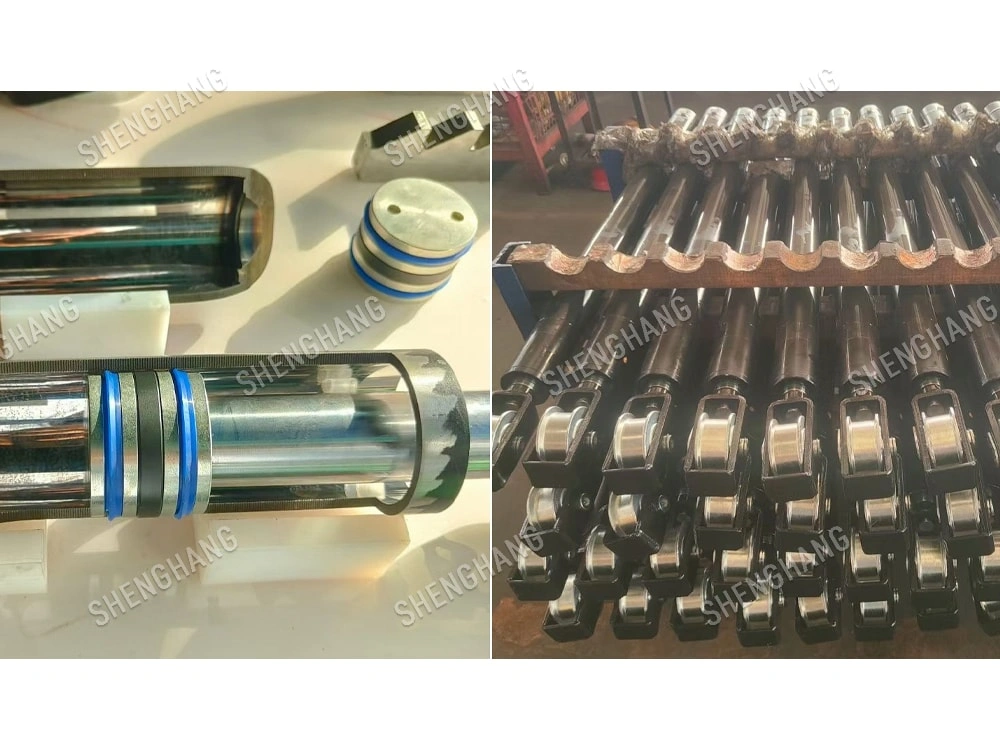

Double-channelsealedoil cylinder

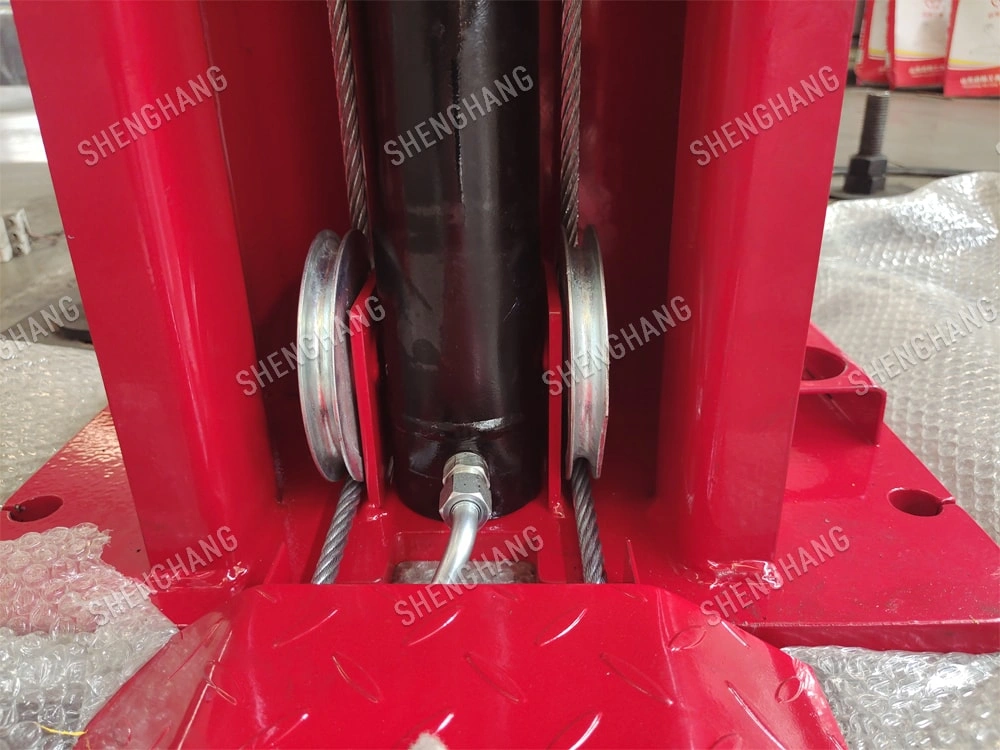

The cable pulley 45#steel is processed andthen heattreated

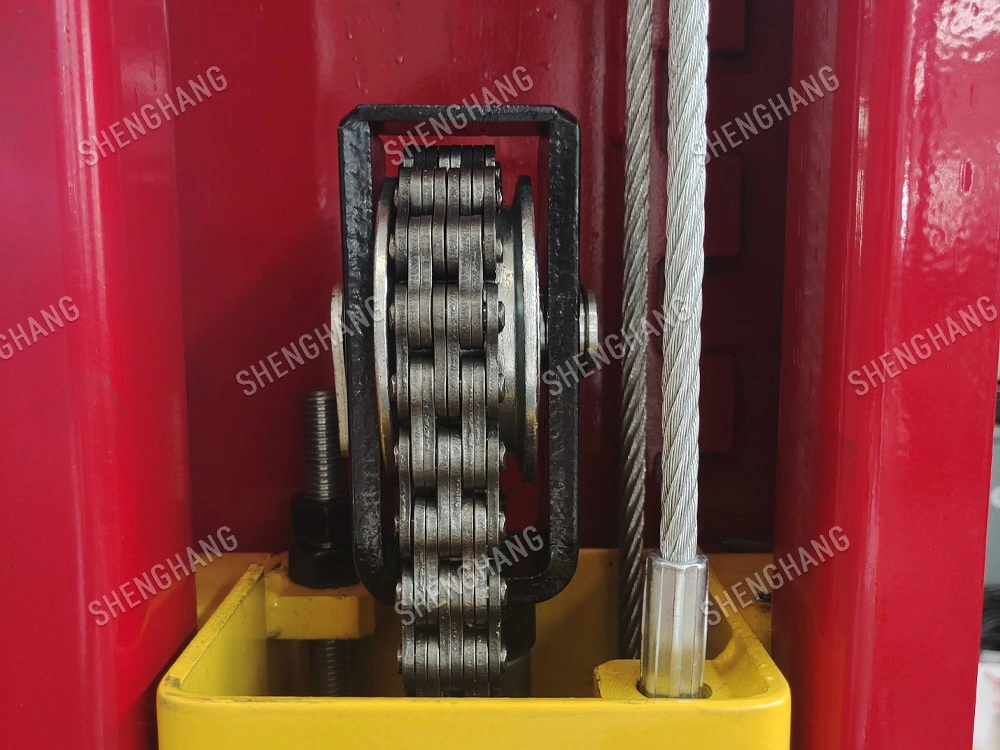

Anti-dropping andanti-rotation structure ofchain Heavy load plate chain

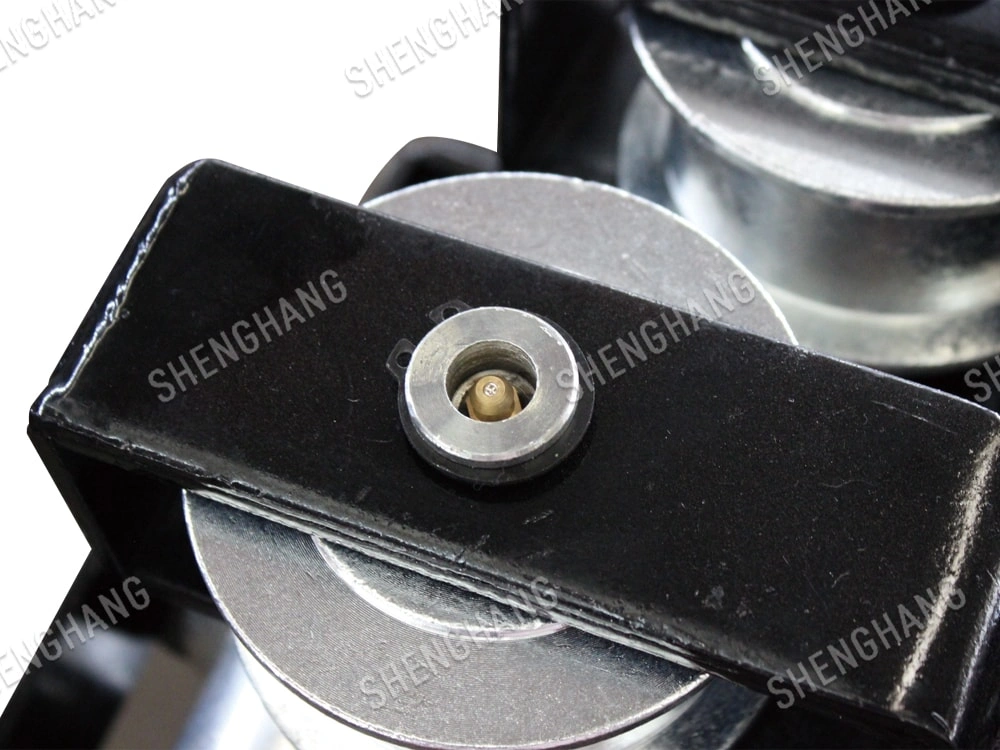

Butter nozzle design
QDSH-F650
C650&300
C650&300
Integral type carriage
Integral type carriage (Two-side lock release）
The columnwith 6 bending
The safety lock is tightlyengaged
Double-channelsealedoil cylinder
The cable pulley 45#steel is processed andthen heattreated
Anti-dropping andanti-rotation structure ofchain Heavy load plate chain
Butter nozzle design

PARAMETER

  • Model No.QDSH-F300/F350/650

  • Lifting Capacity3500/4000/4500kg

Inquiry now Download

MACHINE SIZE

Model QDSH-F300SQDSH-F350SQDSH-F650S
Lifting capacity 3500kg4000kg4500kg
Max lifting height 1800mm1800mm1800mm
Minimum height 100mm100mm100mm
Overall height 2780/3590mm2780/3590mm2780/3590mm
Overall width 3480mm3480mm3480mm
Lifting time 50s50s50s
Motor voltage 380V/220V380V/220V380V/220V
Motor power 2.2KW2.2KW2.2KW
Package size 2790/3610x540x800mm2790/3610x540x800mm2790/3610x540x800mm

FEATURES

1. The columns use standard steel plates ≥5mm thick and feature an 6-bend design.Integral type carriage

2. The bottom cover plate adopts diamondplate structure,

3. and a guide groove isadded under the bottom cover plate

4. Anti-dropping and anti-rotation structure of chain

5. Double sealing structure of oil cylinder

6. Set throttle explosion-proof valve to avoid the danger oftubing bursting in case

7. High-quality power unit with safe and reliable operation

8. This product uses a dual-sided unlocking method.

9. This product complies with CE standards.
