Floor Plate Two Post Lift QDSH-F400/F450/F850

BACK TO LIST

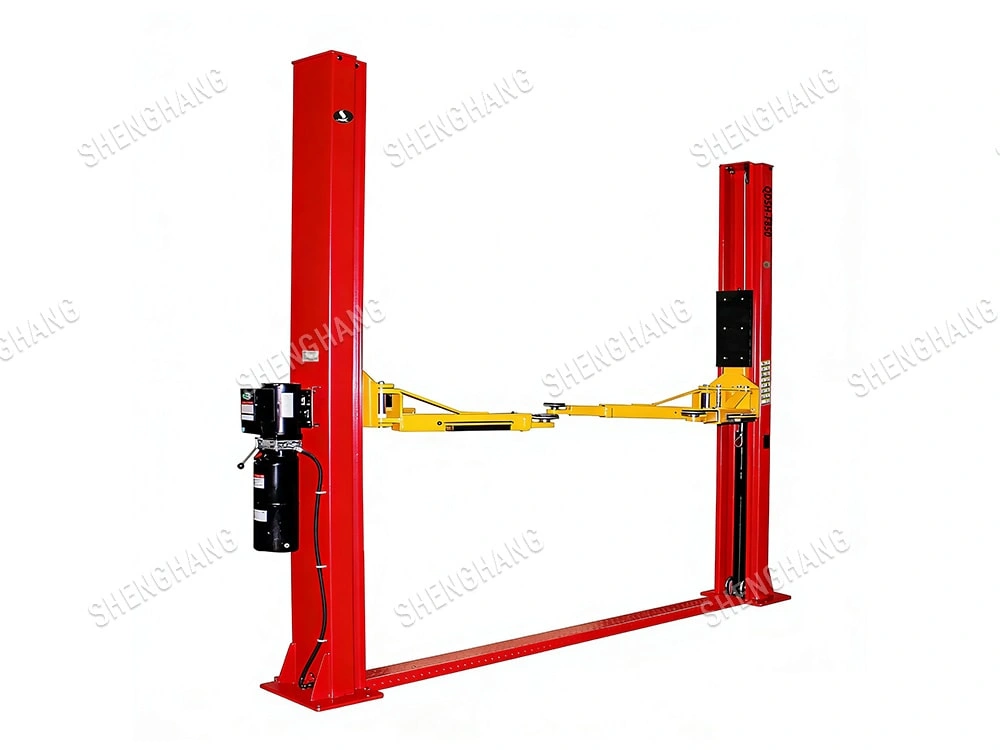

QDSH-F400/F450/F850

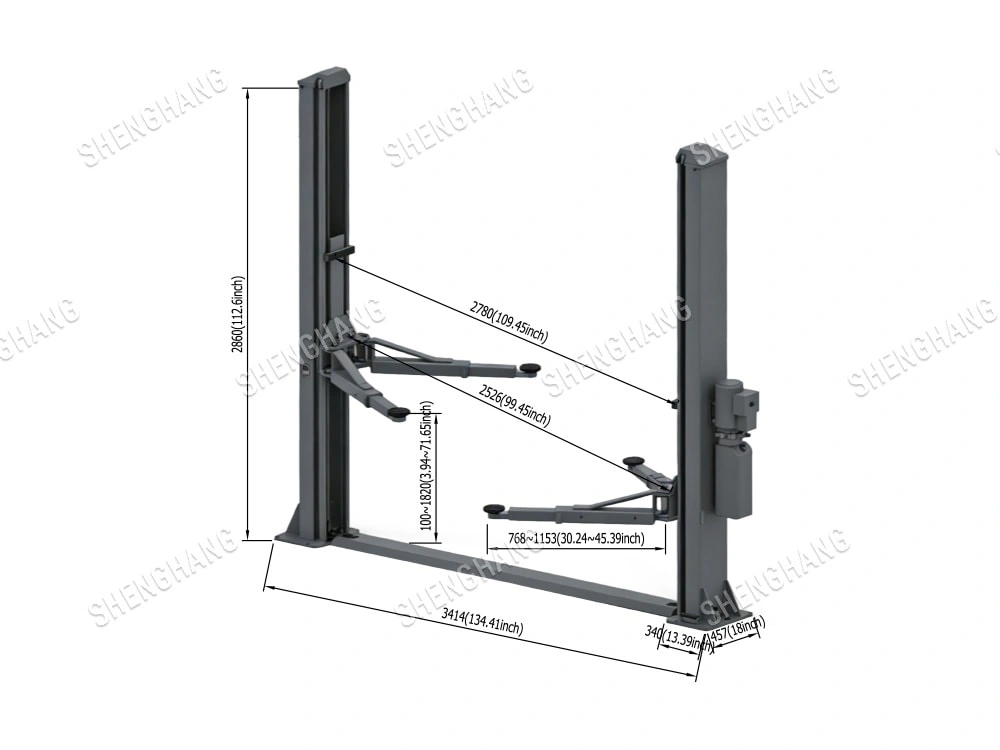

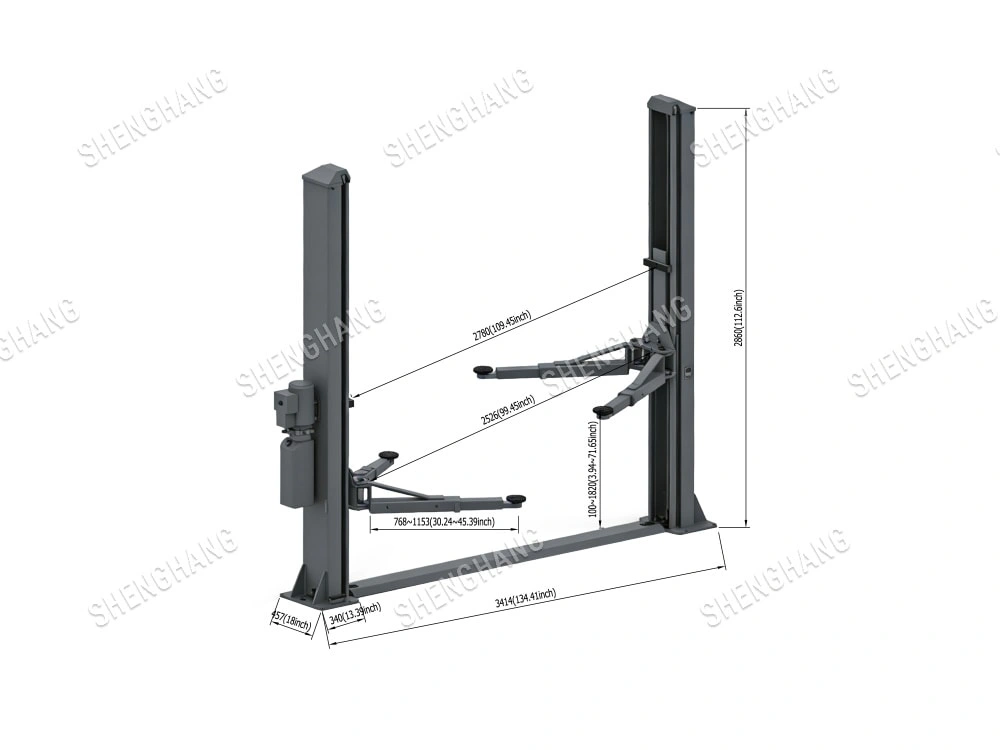

Dimension Drawing
Dimension Drawing

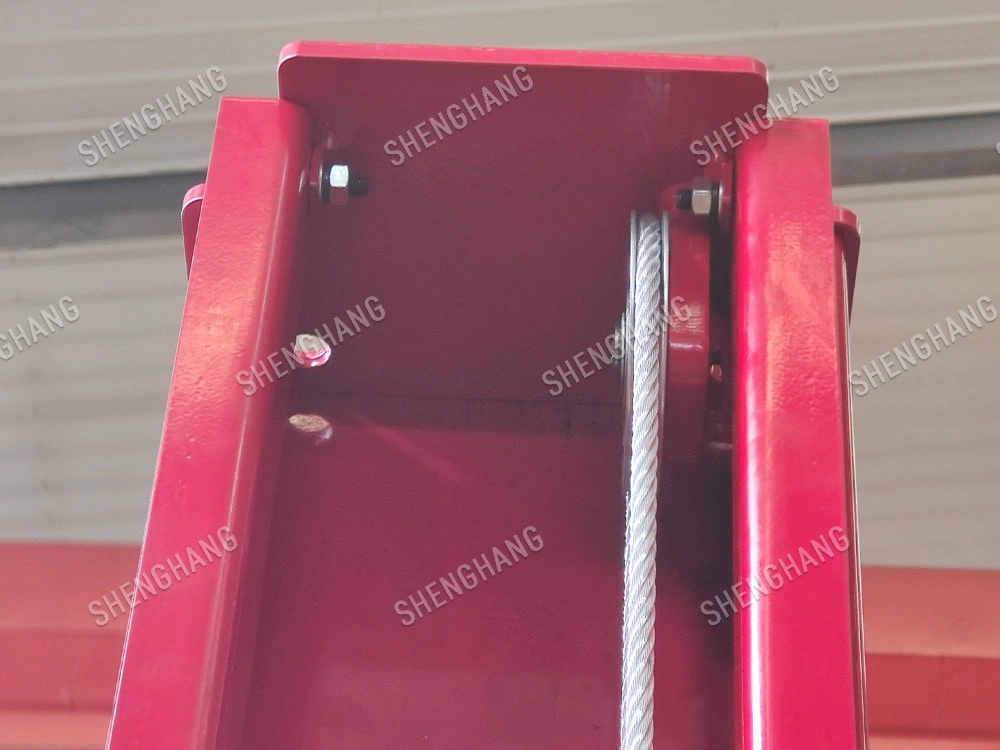

Top plate of column

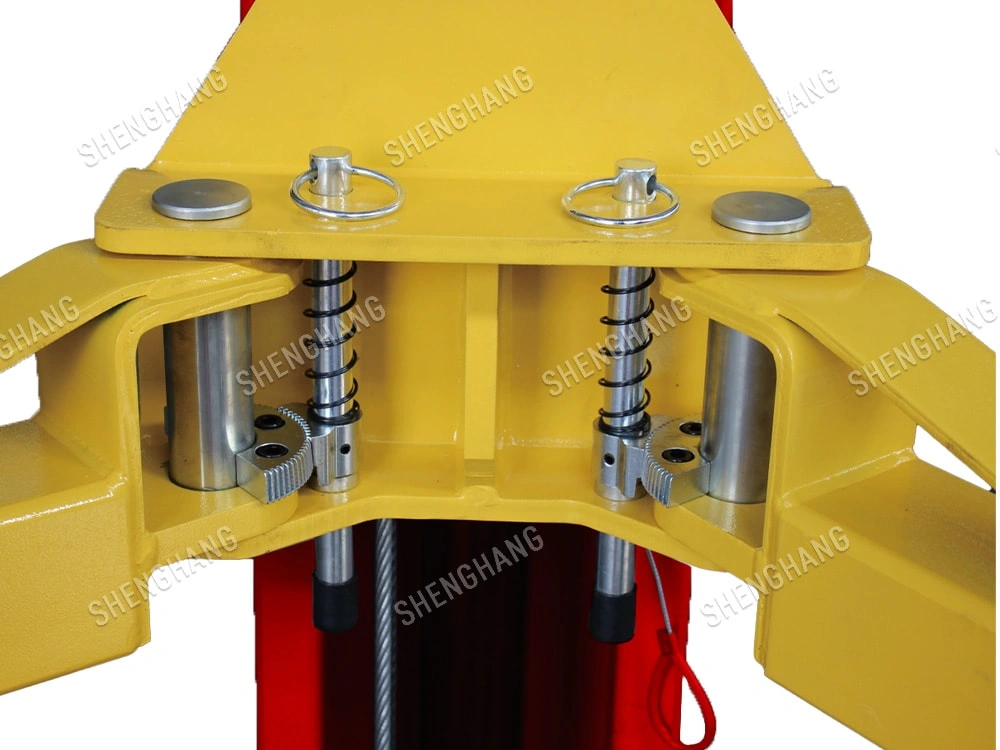

Integral type carriage (Two-side lock release）

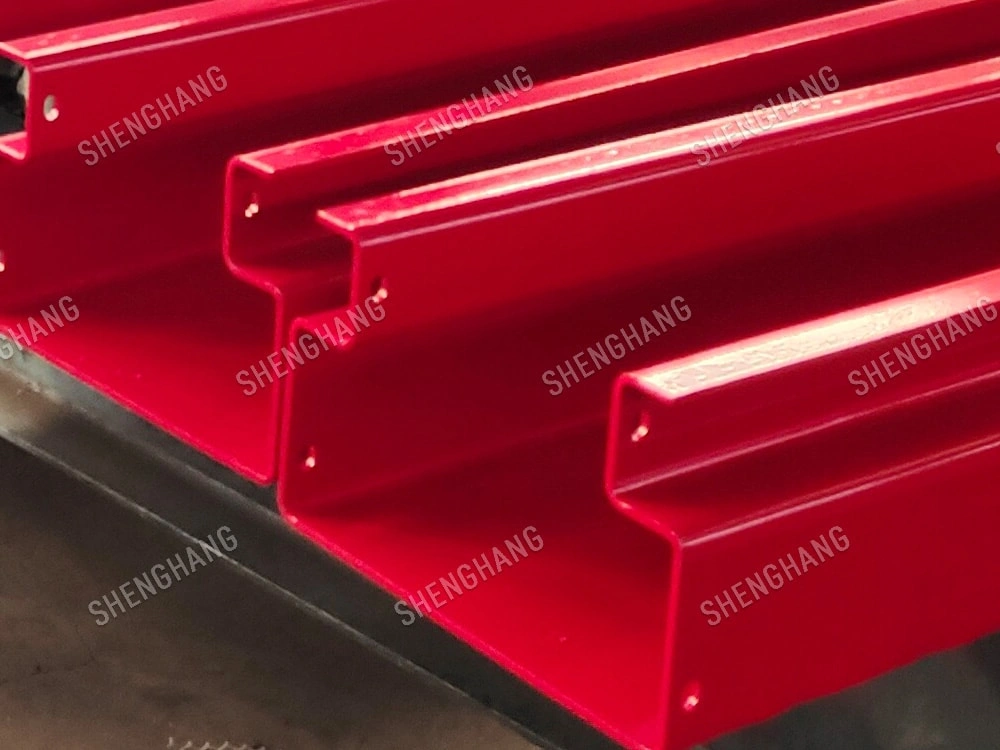

The column with 8 bending

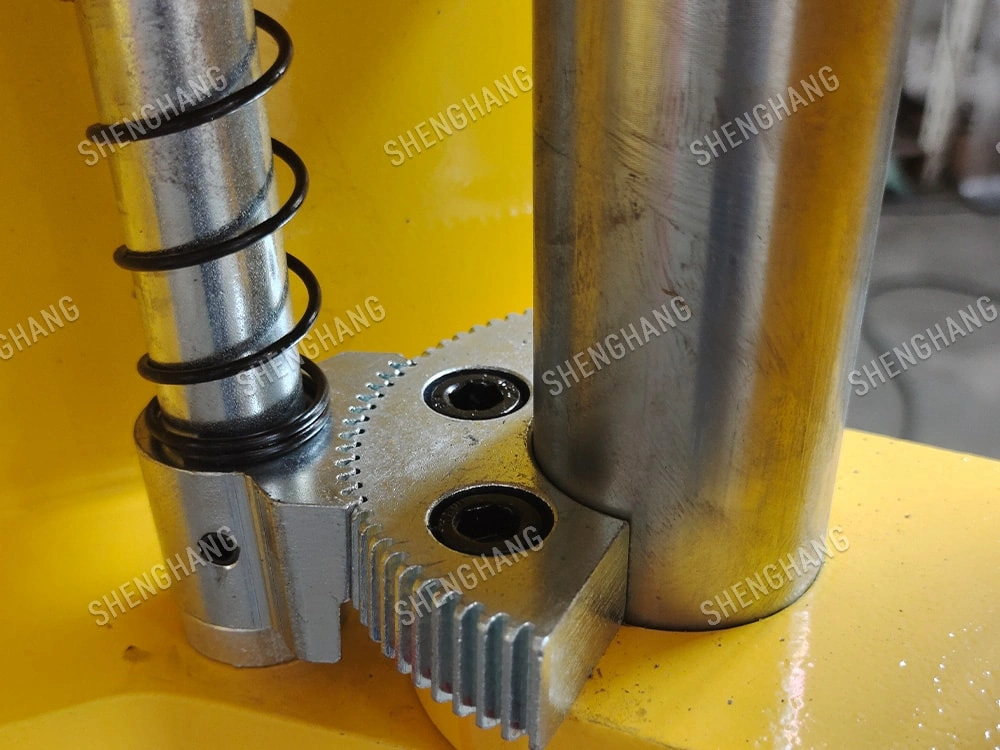

The safety lock is tightlyengaged

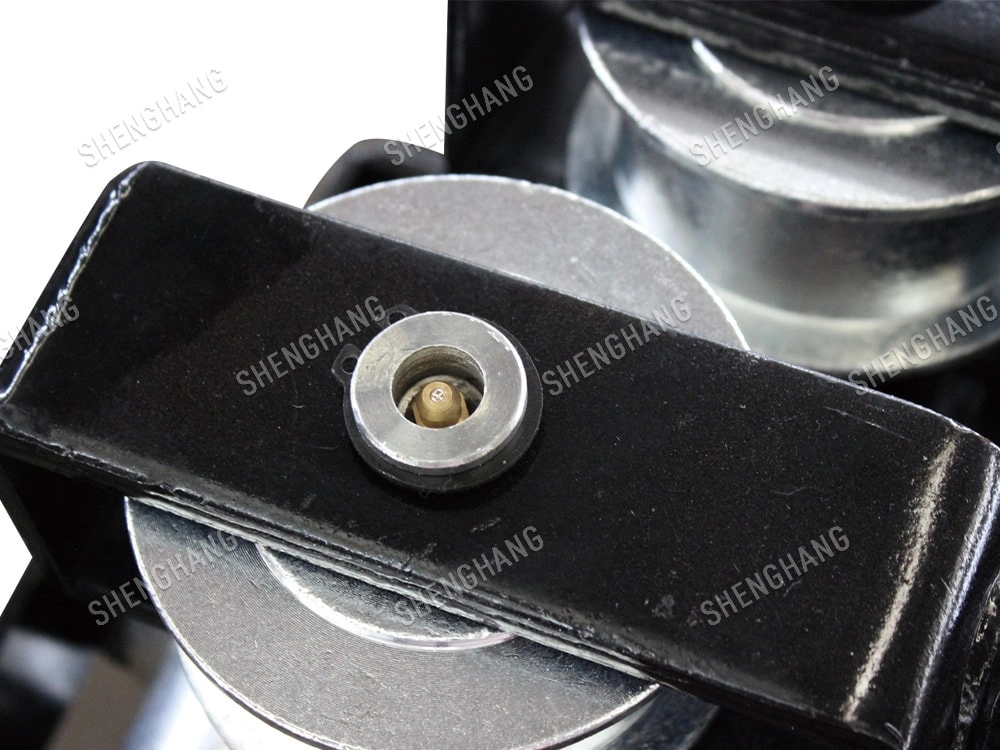

Butter nozzle design

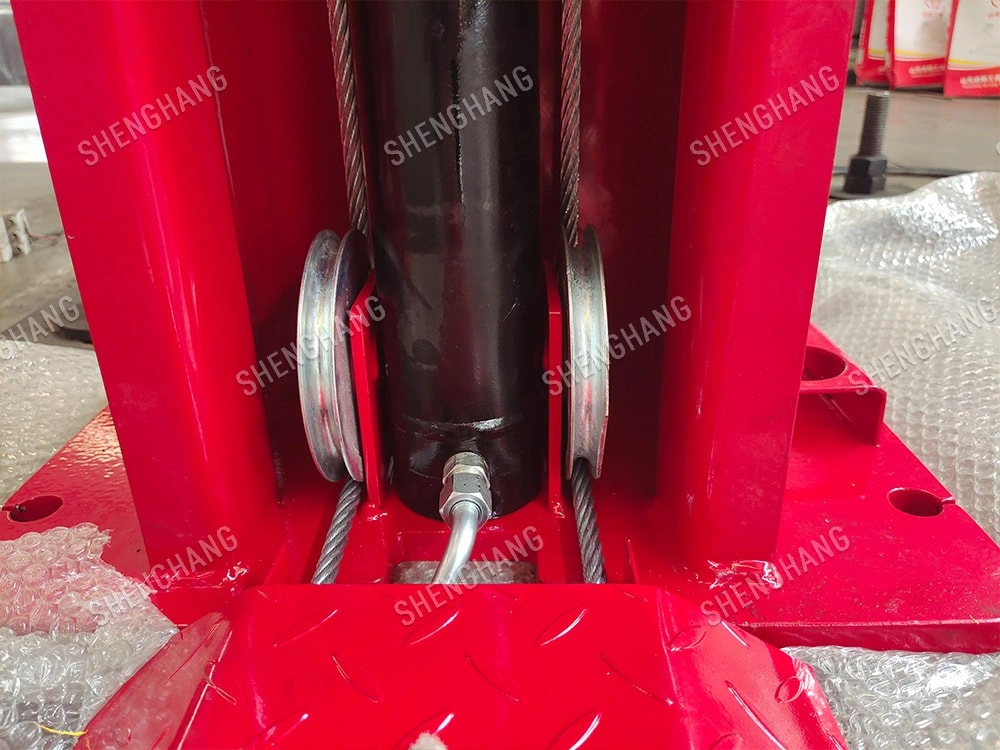

The cable pulley 45#steel is processed andthen heattreated

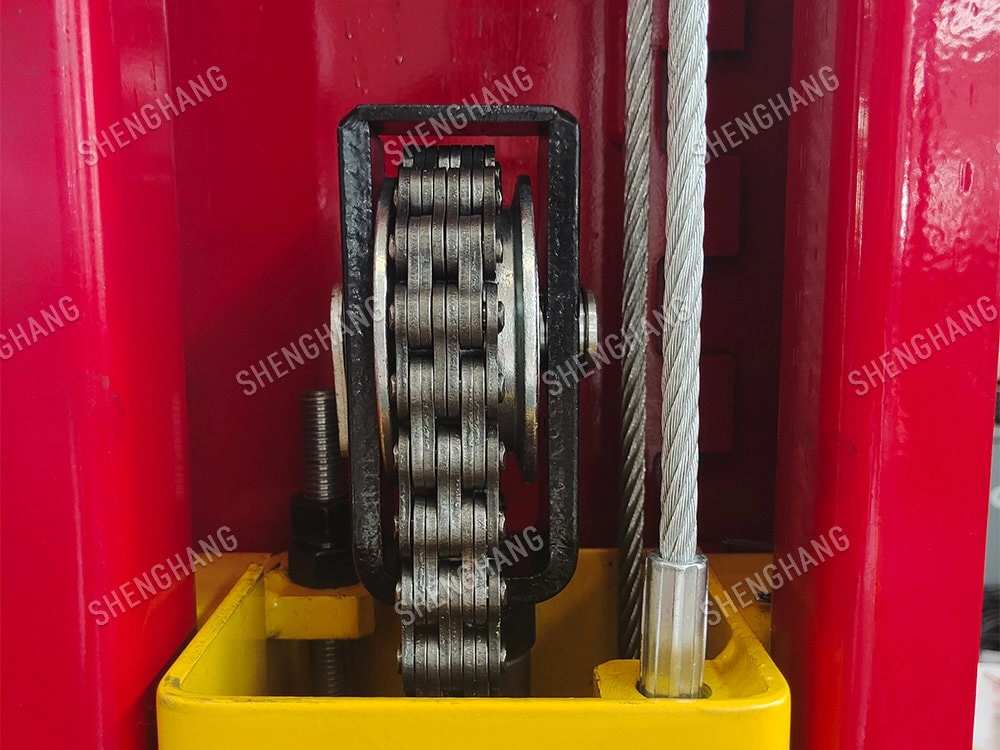

Anti-dropping andanti-rotation structure ofchain Heavy load plate chain

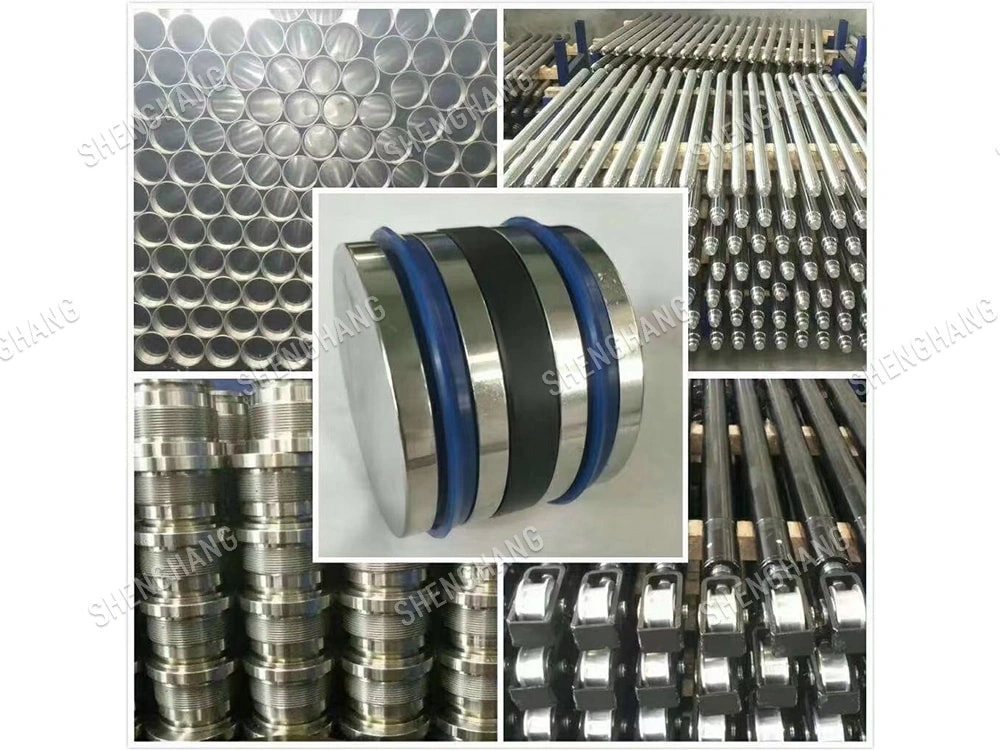

Double-channelsealedoil cylinder
QDSH-F400/F450/F850
Dimension Drawing
Dimension Drawing
Top plate of column
Integral type carriage (Two-side lock release）
The column with 8 bending
The safety lock is tightlyengaged
Butter nozzle design
The cable pulley 45#steel is processed andthen heattreated
Anti-dropping andanti-rotation structure ofchain Heavy load plate chain
Double-channelsealedoil cylinder

PARAMETER

  • Model No.QDSH-F400/F450/F850

  • Lifting Capacity3500/4000/4500kg

Inquiry now Download

MACHINE SIZE

Model QDSH-F400QDSH-F450QDSH-F850
Lifting capacity 3500kg4000kg4500kg
Max lifting height 1820mm1820mm1820mm
Minimum height 100mm100mm100mm
Overall height 2860mm2860mm2860mm
Overall width 3410mm3410mm3410mm
Lifting time 50s50s50s
Motor voltage 380V/220V380V/220V380V/220V
Motor power 2.2KW2.2KW2.2KW
Package size 2880x470x740mm2880x470x740mm2880x470x740mm

FEATURES

1. The columns use standard steel plates ≥5mm thick and feature an 8-bend design.Integral type carriage

2. The bottom cover plate adopts diamondplate structure,

3. and a guide groove isadded under the bottom cover plate

4. Anti-dropping and anti-rotation structure of chain

5. Double sealing structure of oil cylinder

6. Set throttle explosion-proof valve to avoid the danger oftubing bursting in case

7. High-quality power unit with safe and reliable operation

8. This product uses a dual-sided unlocking method.

9. This product complies with CE standards.
