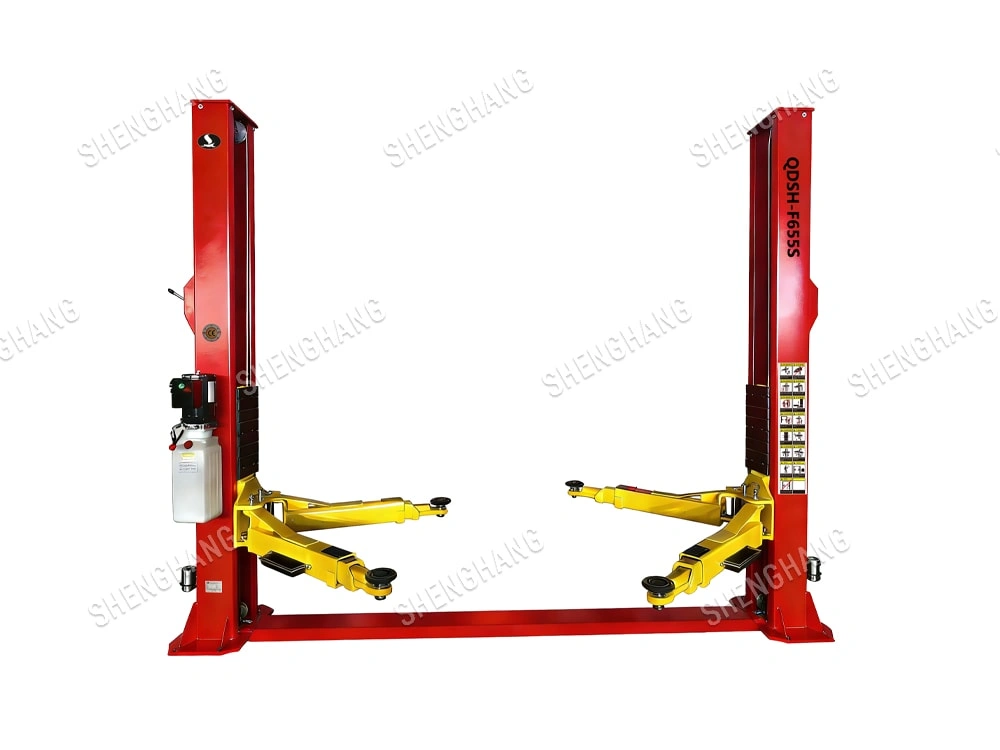

Model No.QDSH-F655S/655E
Load Capacity5500kg

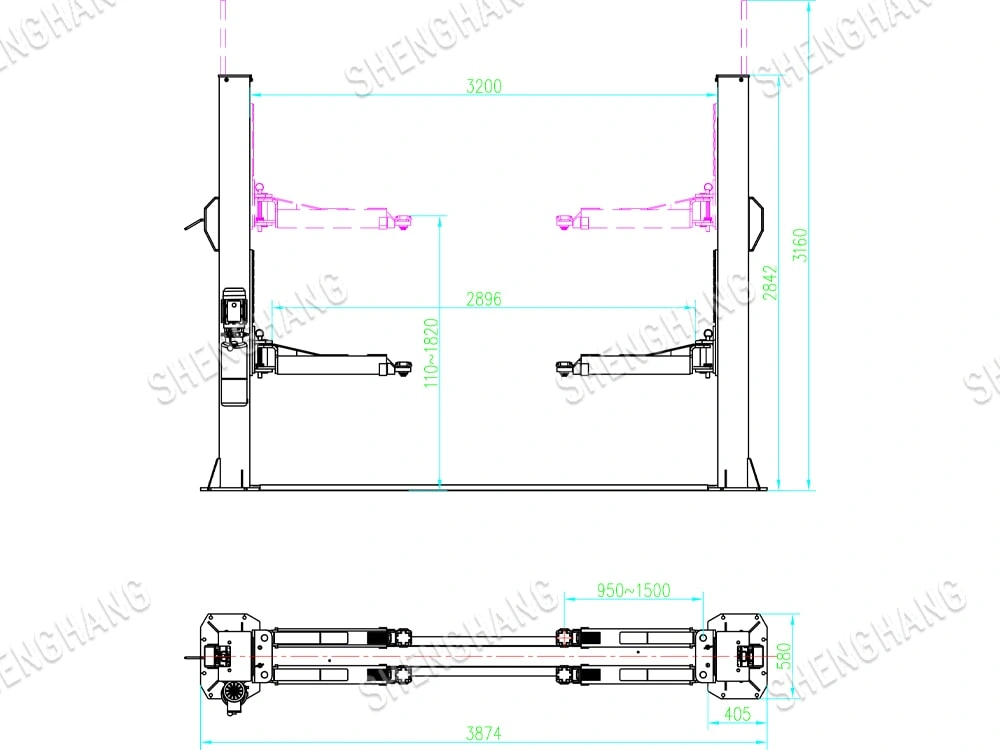

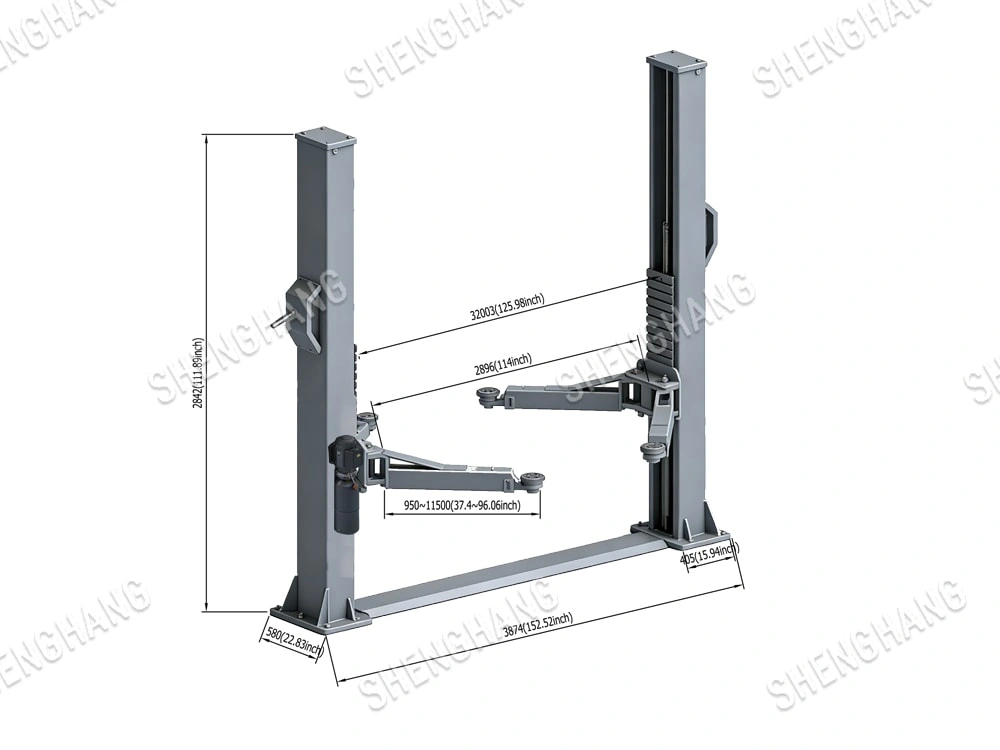

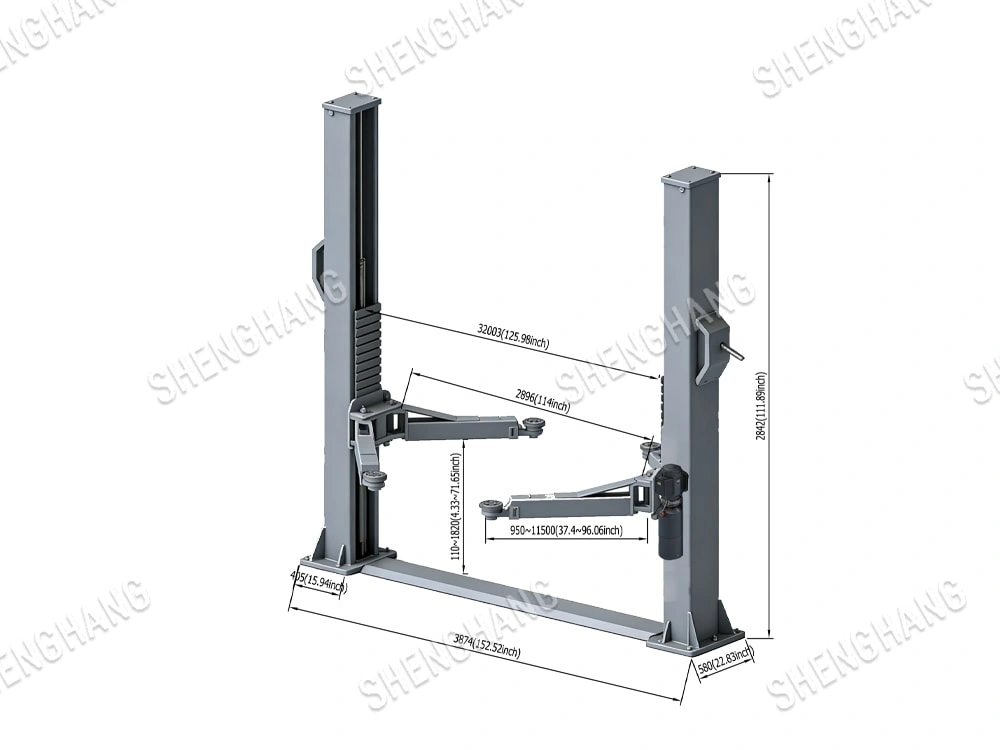

| Model | QDSH-F655S | QDSH-F655E |
| Lifting capacity | 5500kg | 5500kg |
| Max lifting height | 1820mm | 1820mm |
| Minimum height | 110mm | 110mm |
| Overall height | 2842mm | 2842mm |
| Overall width | 3874mm | 3874mm |
| Lifting time | 50s | 50s |
| Motor voltage | 380V/220V | 380V/220V |
| Motor power | 2.2KW | 2.2KW |
| Package size | 2870x600x860mm | 2870x600x860mm |
1.The column with 6 bending

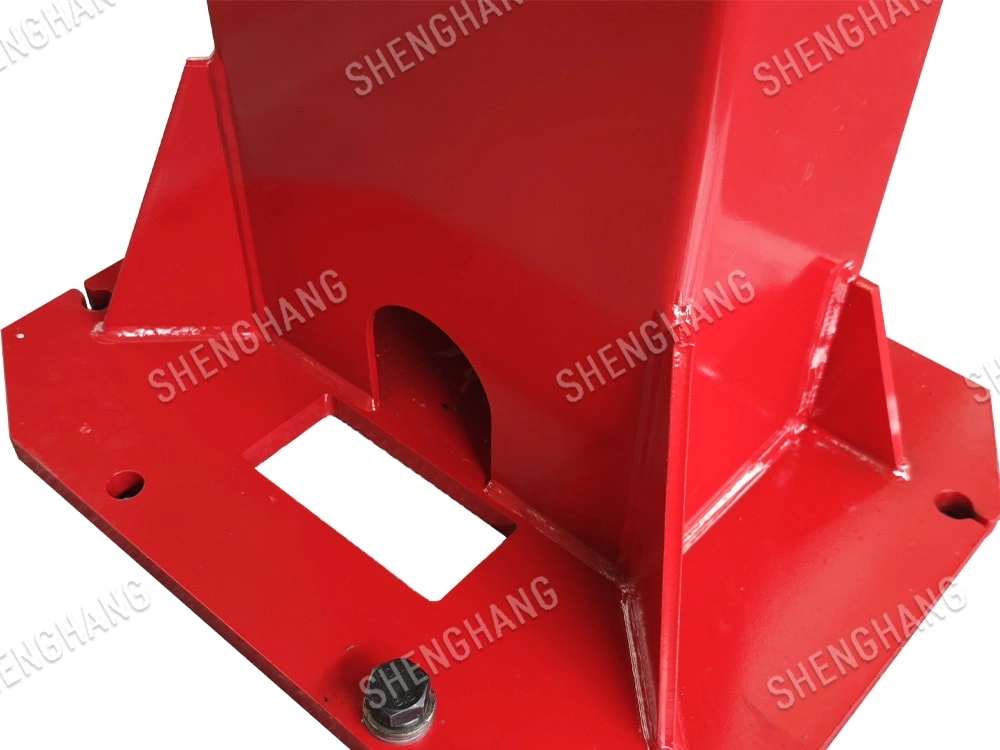

2.Enlarge the column base

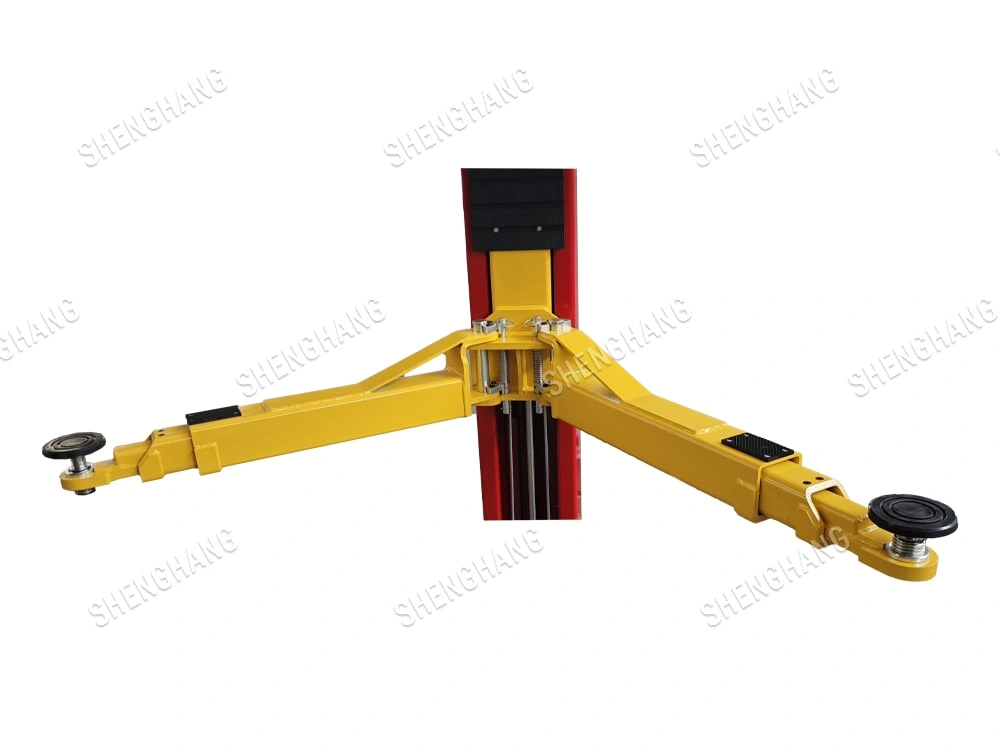

3.The arm adopts 2+2 straight arm design

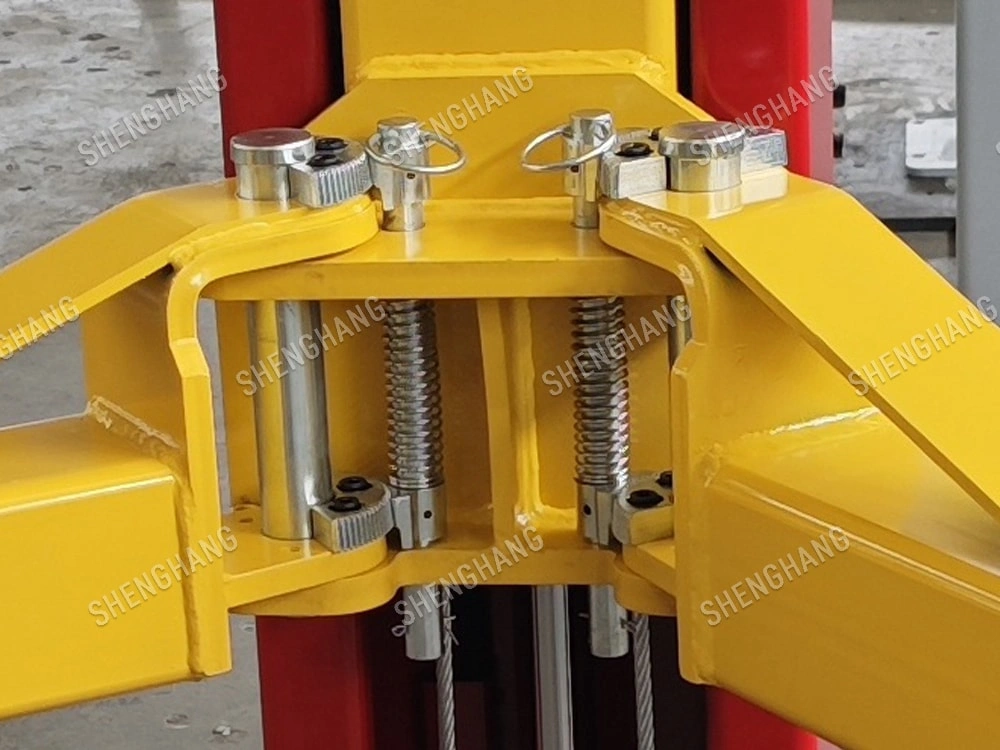

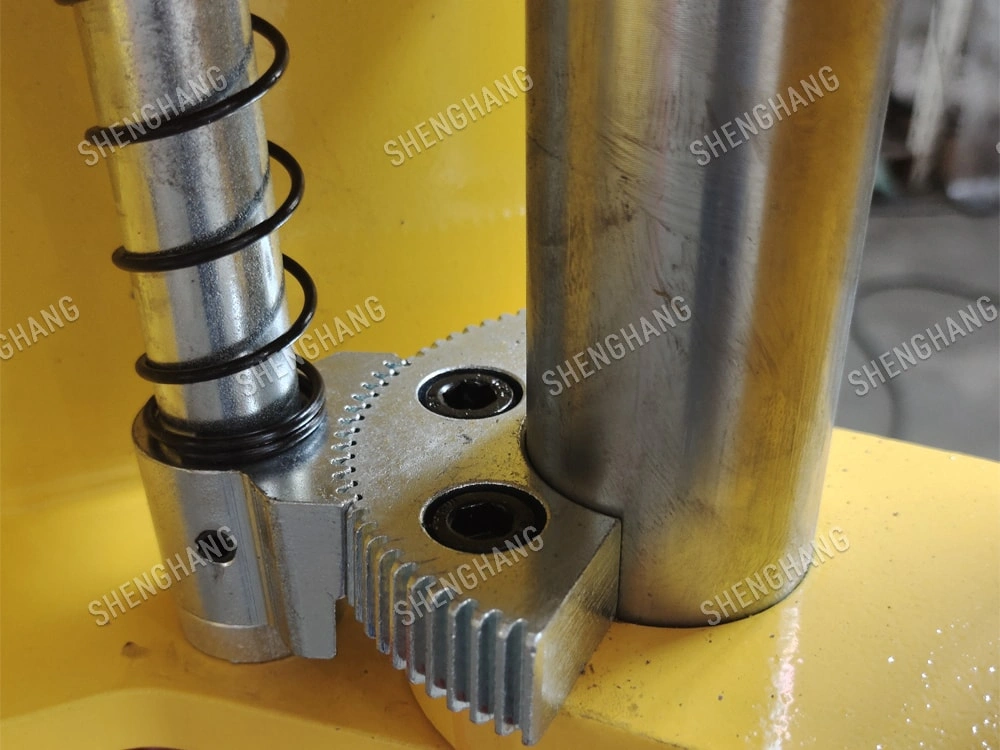

4.The safety lock is tightly engaged, andthe design of unlocking shaft is foolproof

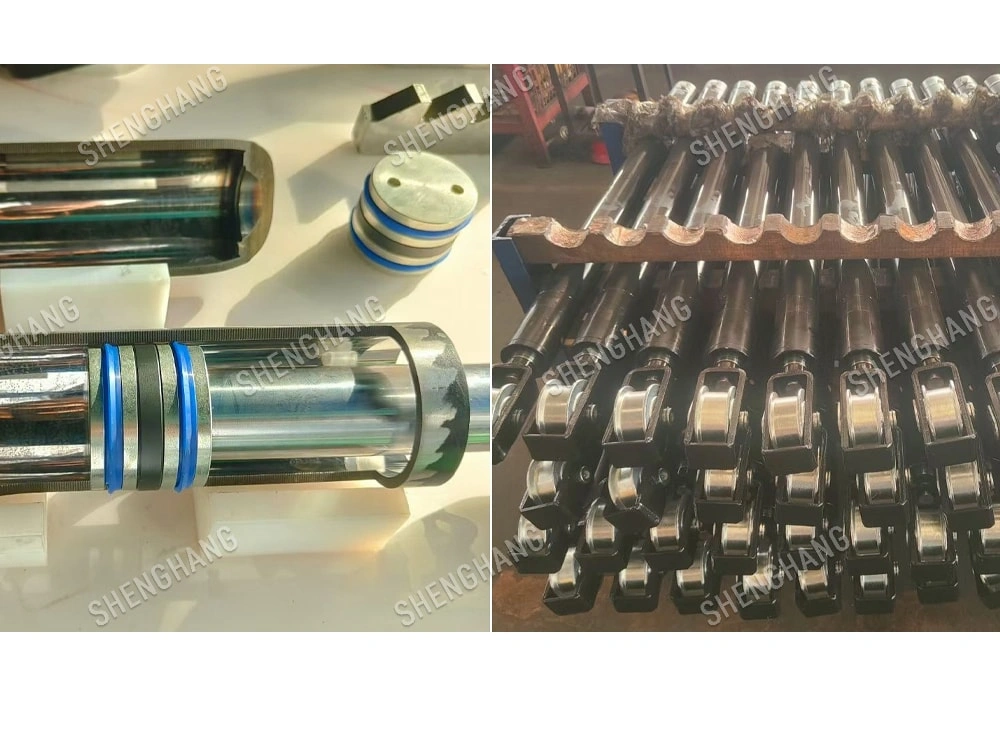

5.Double sealing structure of oil cylinder
6.High-quality power unit with safe andreliable operation

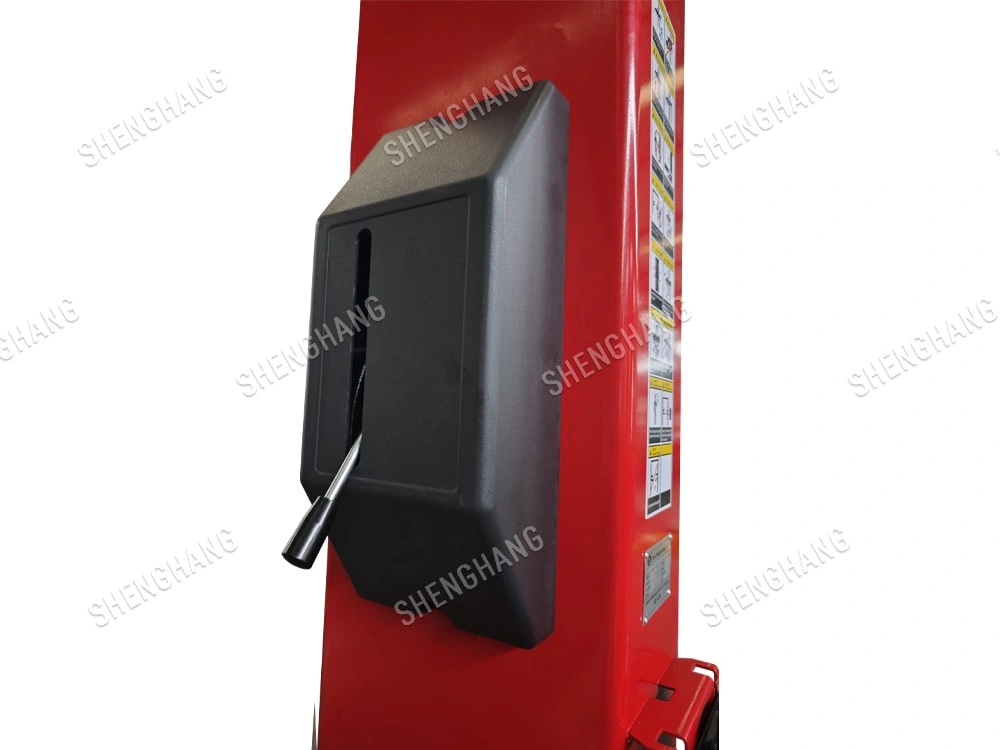

7. This product is available in two models: one with a single-sided unlocking method and the other with an electronic unlocking method.
8.This product complies with CE standards.
