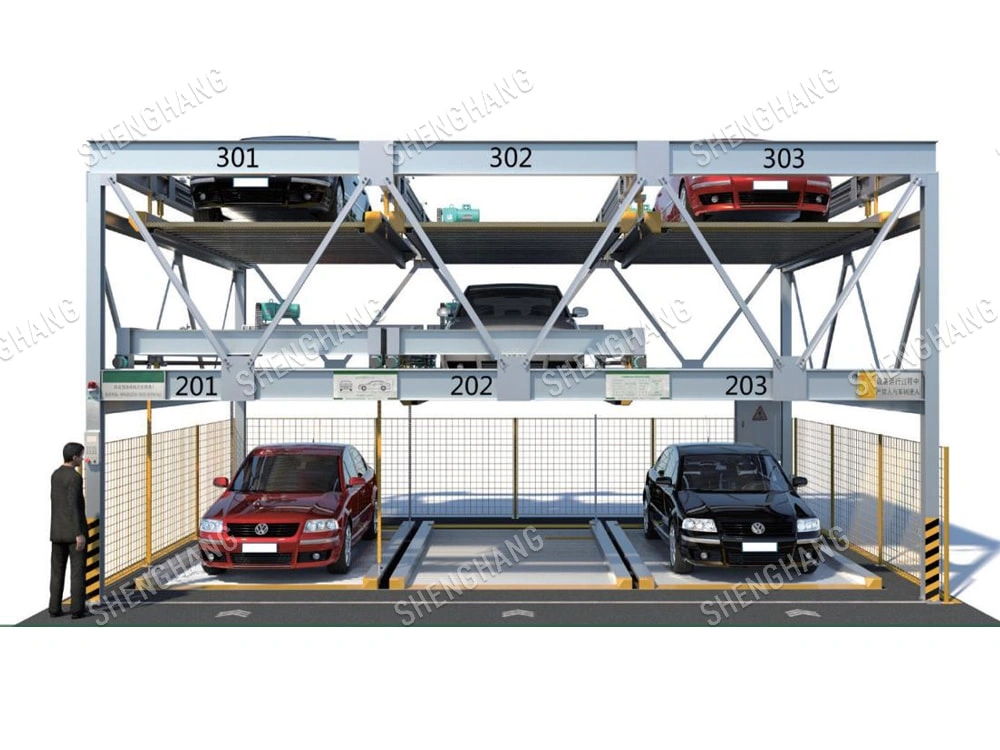

Three Levels Lift/Sliiding Parking System PSH-SH301

BACK TO LIST

Floor Plate Two Post Lift QDSH-F400E/F450E/F850E

PARAMETER

Model No.PSH-SH301

Inquiry now Download

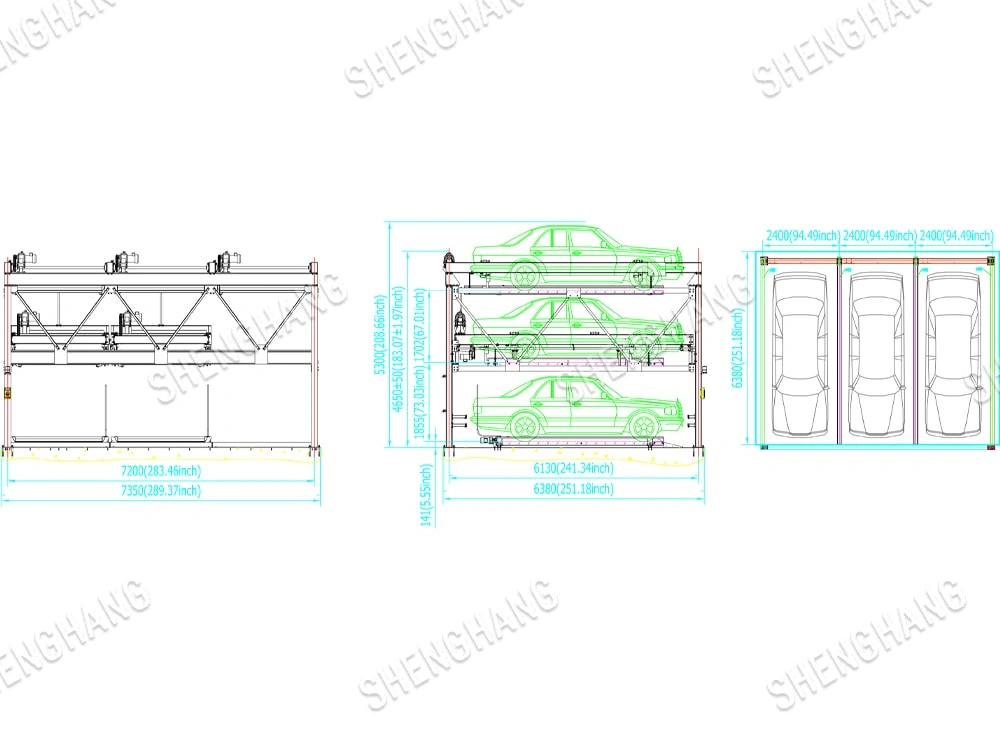

MACHINE SIZE

Model No.		PSH-SH301
Project		Large car	Over size car
Adaptivevehicle	Lengthxwidthxheight	<5000I850I550mm	<530019001550mm
	Weight	<1700kg	<2350kg
Row width		2350mm	2400mm
Post center distance		7050mm	7200mm
Outwidth		7175mm	7325mm
Front and back post center distance		5450mm	5750mm
Outlength		5725mm	6025mm
System height		3600mm
Rated speed		Lift speed:3-6 m/min Traverse speed: 6-6m/min
Motorpower	Lift	2.2 kw
	Traverse	0.2 kw
Driving mode		motor + chain
Control mode		PLC program control
Operation mode		Button+induction card (customized)
Power supply		3N,AC,38OV,50Hz
Storage mode		reverse
Average pick-up time		425

FEATURES

FEATURES

1. Save land area and take full use of spaceand columns can be arranged according to your requirements.

2 About awning design, can be designed according to your requiremets, such as full awning type, Part awning type and simple awning type and no awning type.

3. Low equipment cost and maintenance cost.

4.Liftsmoothly and low hoise,convenient for ar go in or out

5. Comprehensive security protection systemsudhas safety anti-aling hookmedhanism detect people or car entering.car parking limit mechanism.interlock mechanism.emergency brake mechanism.

6. Adopt PLC automatic control system,use button,IC card and remote control system.make operation very easy.

Applicable occasion

1.ground and underground parking lots in residential area.

2.commercial centre and office building.

3.station and hospital
