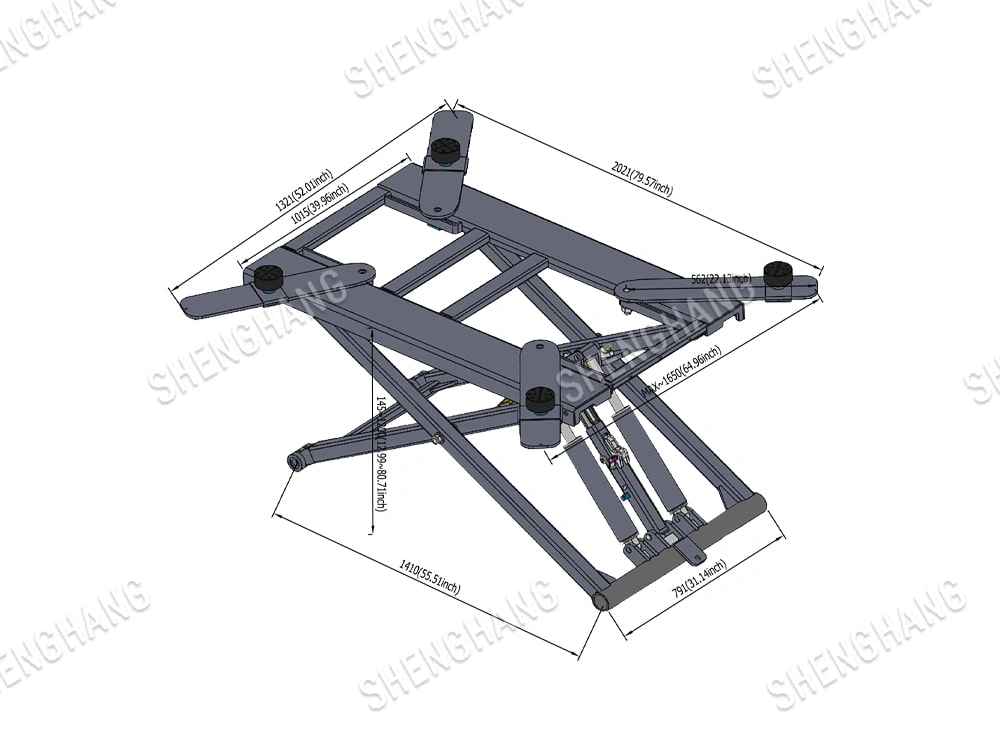

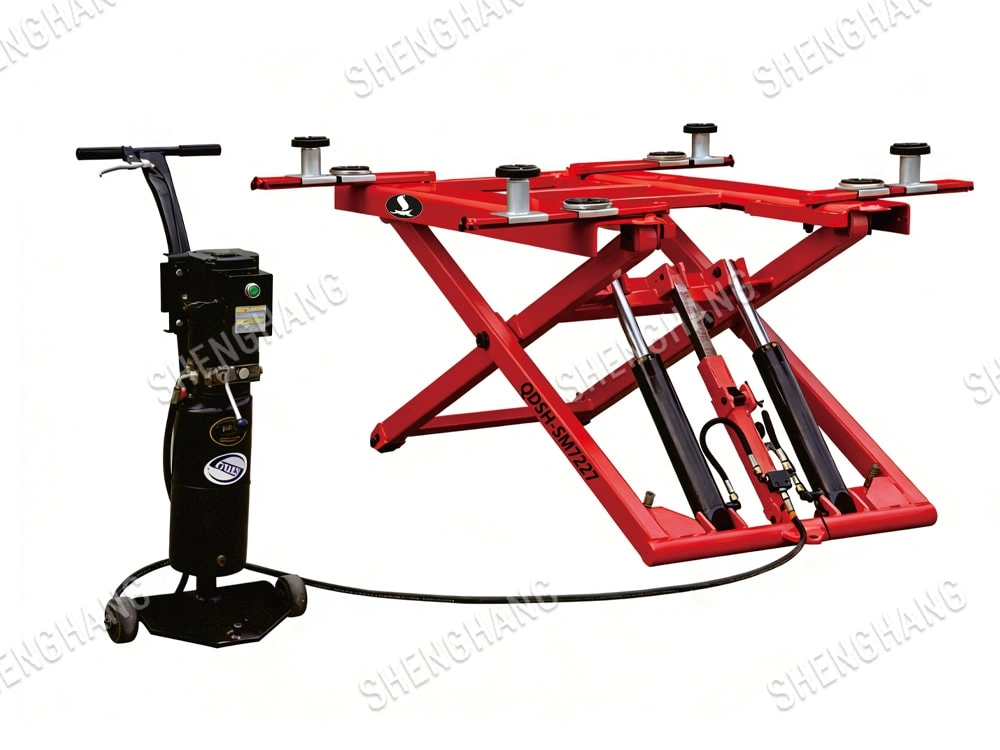

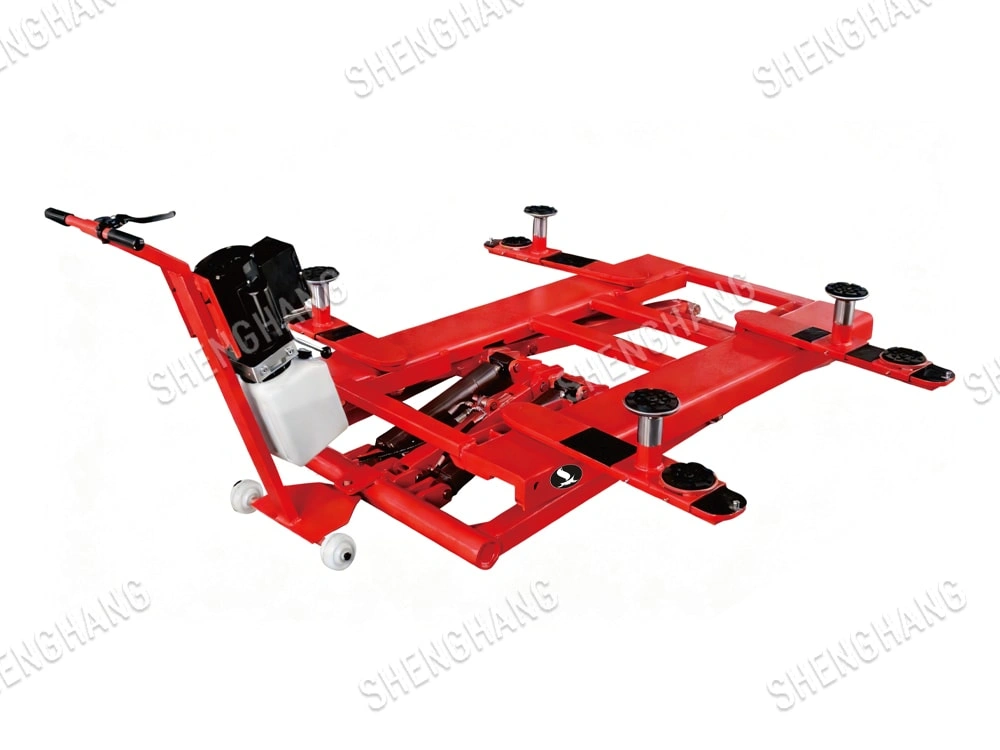

Model No.QDSH-SM7227
Load Capacity2700kg
| Model | QDSH-SM7227 |
| Lifting Capacity | 2700KG |
| Max Lifting Height | 1200mm |
| Min Height | 135mm |
| Lifting Time | ≤40S |
| Platform width | 1004~1660mm |
| Platform length | 1550-2100mm |
| Oil pressure | 0.6~0.8Mpa |
| Motor voltage | 380V/220V |
| Motor Power | 2.2KW |
| Package size | 2010*1000*220mm |

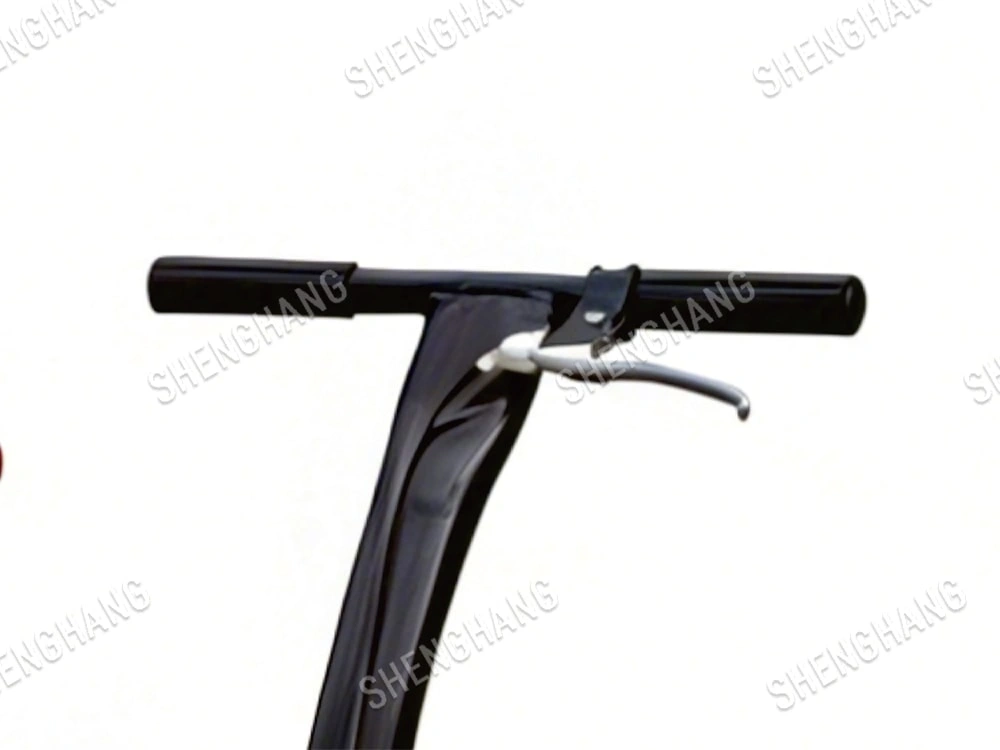

1.Manual safety lock release·

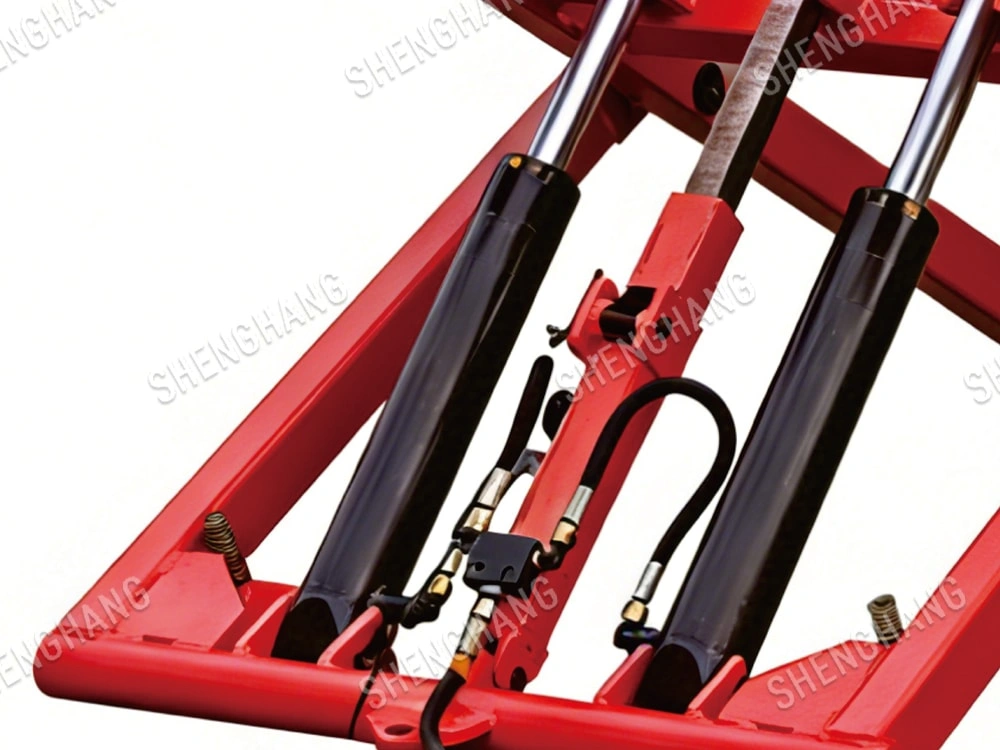

2.Dual cylinder structure, ensure stable raising & lowering
3.Ideal for tire service and narrow bays·

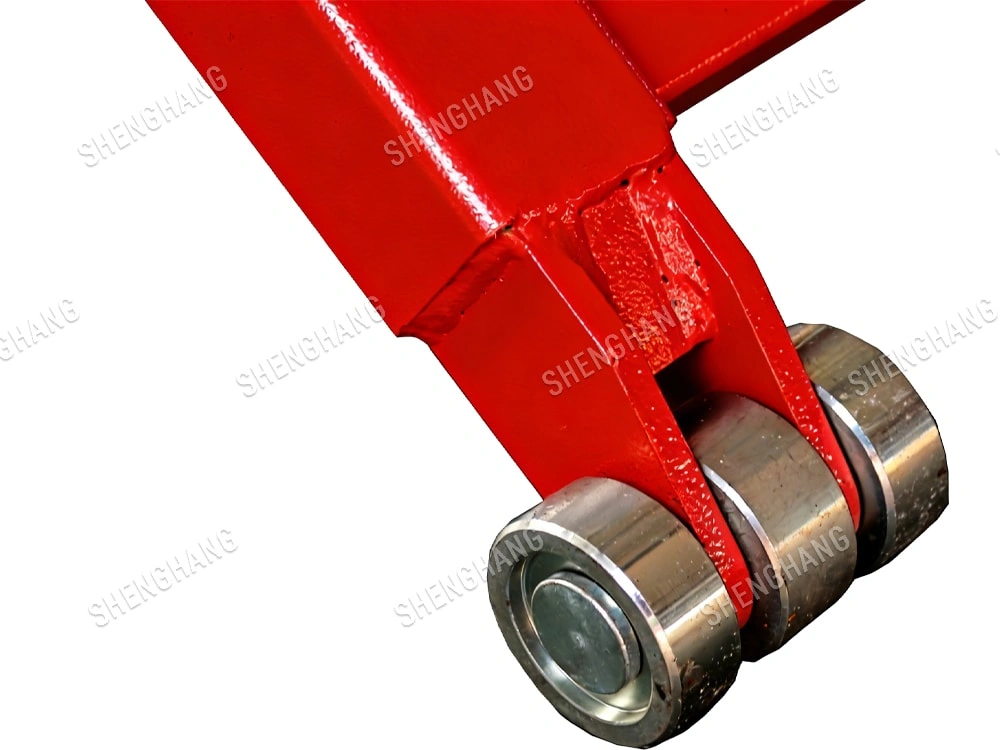

4.Mobile and fixed mount design
5.Proofed by dynamic test with 115% of rated capacity and static test with150% capacity
