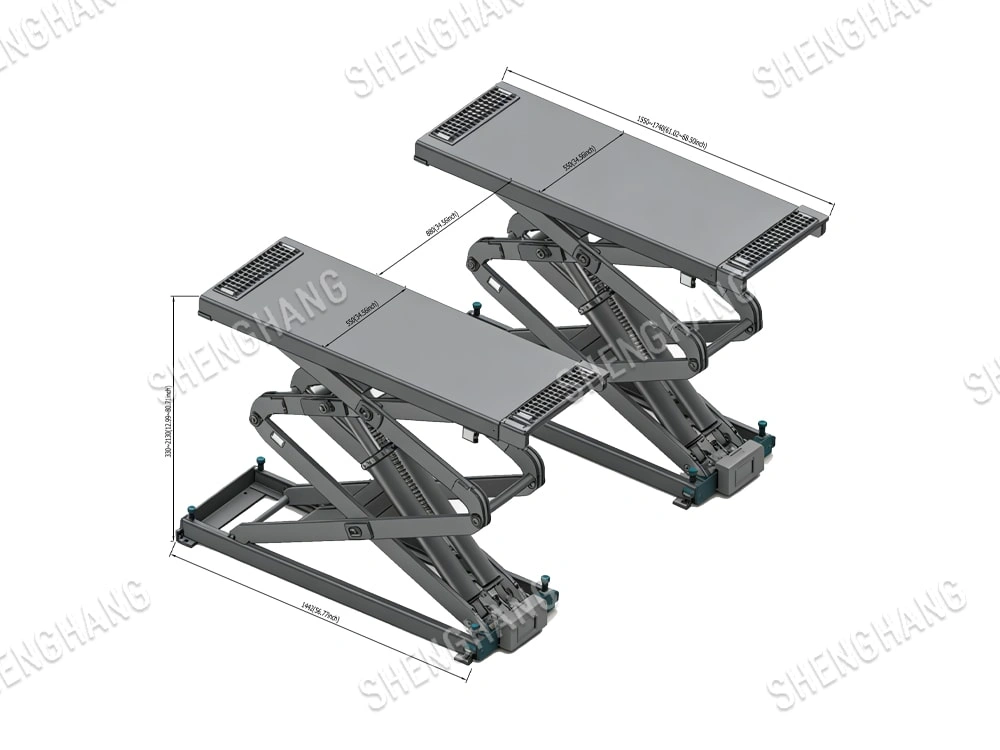

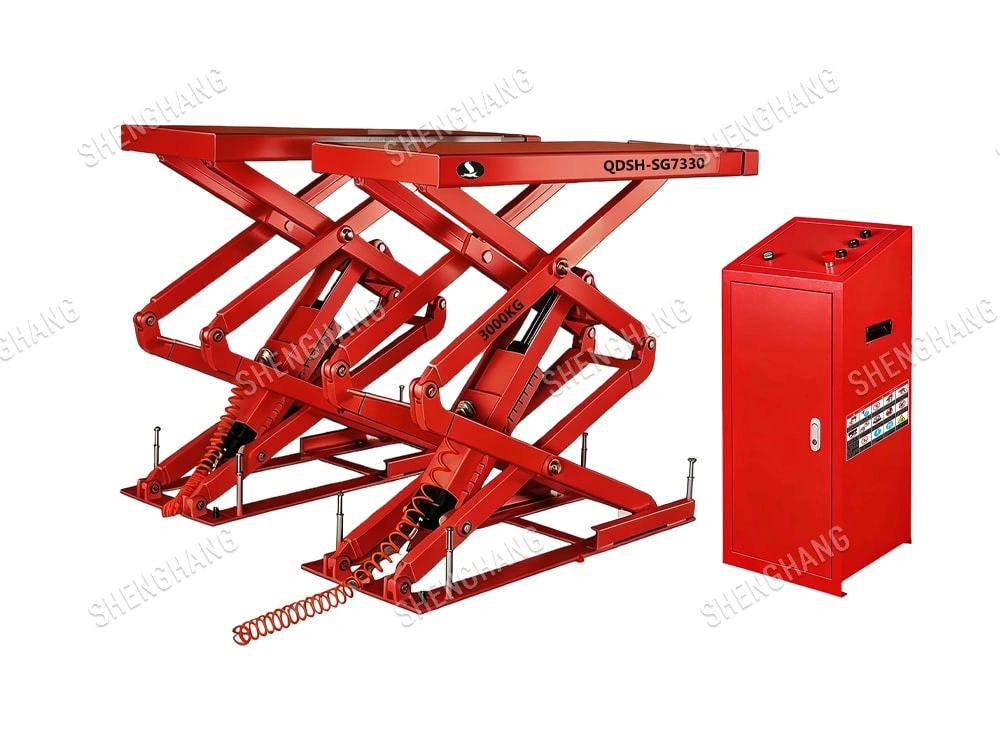

Model No.QDSH-SG7330
Load Capacity3000kg
| Model No. | QDSH-SM7330 |
| Lifting Capacity | 3000KG |
| Max Lifting Height | 2130mm |
| Min Height | 330mm |
| Lifting Time | S50S |
| Platform width | 570mm |
| Platform length | 1550-1760mm |
| Oil pressure | 0.6~0.8Mpa |
| Motor voltage | 380V/220V |
| Motor Power | 2.2KW |
| Package size | 1530*630*780mm |

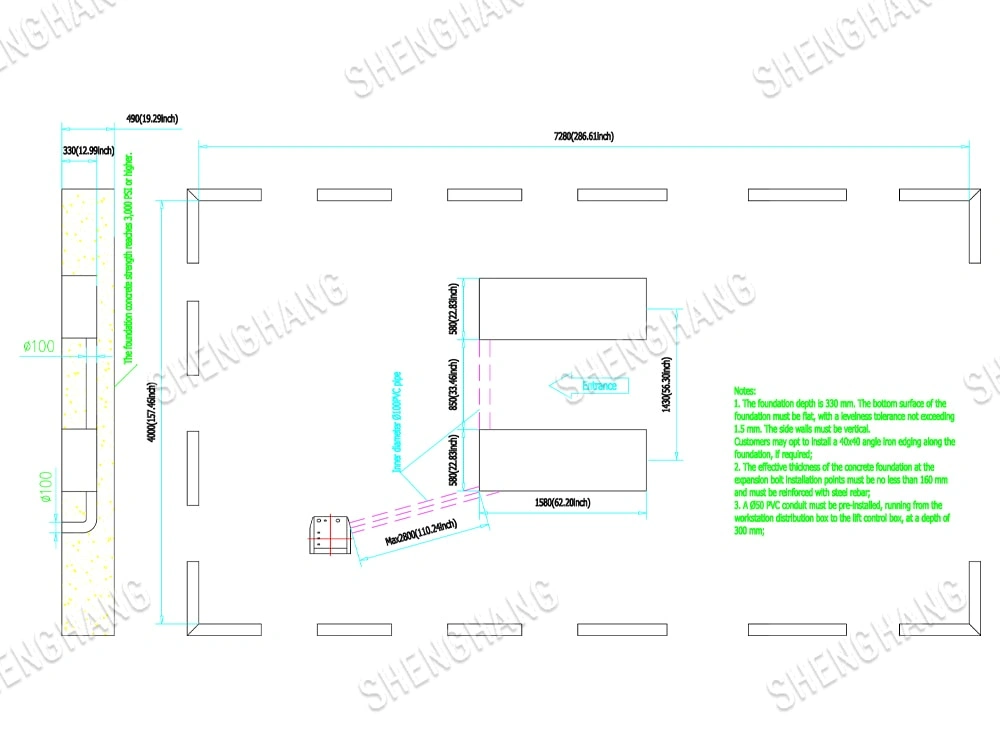

1.Inewly designed extension table and in-ground construction, could be usedfor more model

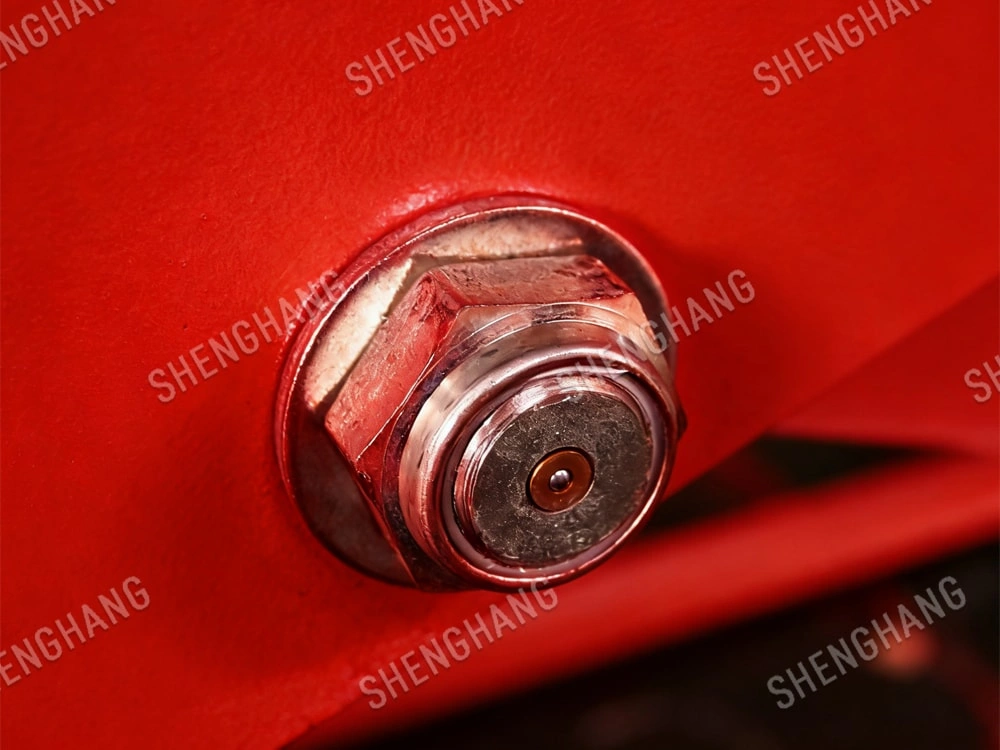

2.Square tube arm
3.Equipped with automatic security lock to ensure safety.
4.Pneumatic release·

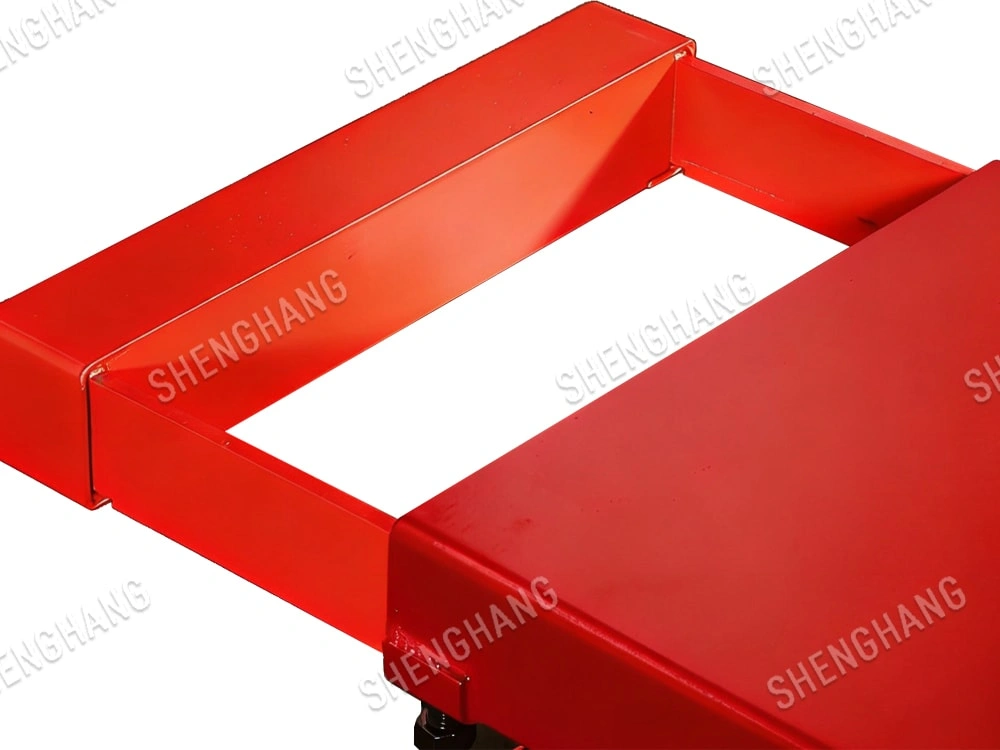

5.Extended table for more vehicle models+

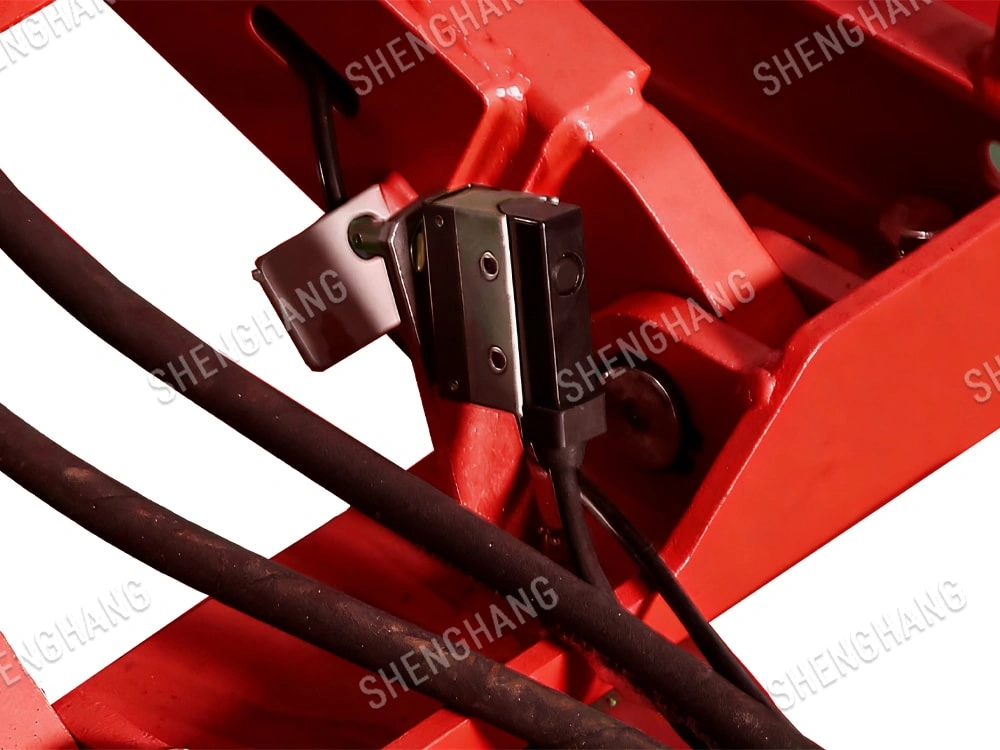

6.Height limit switch to ensure safety
7.Integral base, easy for installation·
8.Horizontally adjustable bolt design

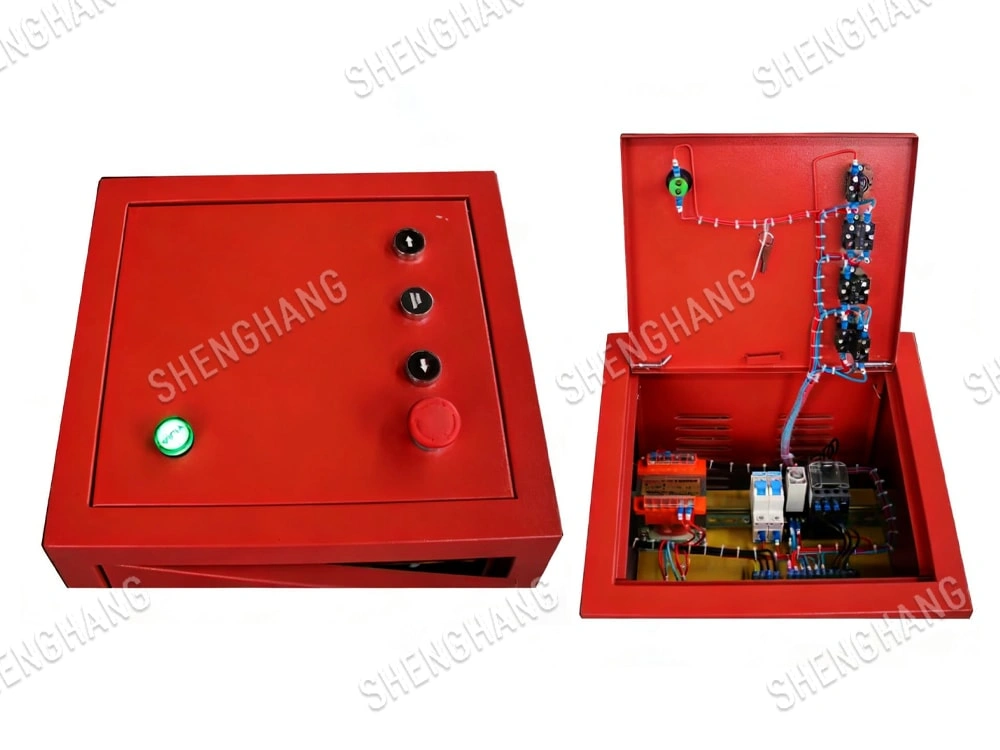

9.24V safety control system
Pass 115% dynamic overload test and 150% Static overload test.
