Mid-Rise Scissor Lift QDSH-SM7230

BACK TO LIST

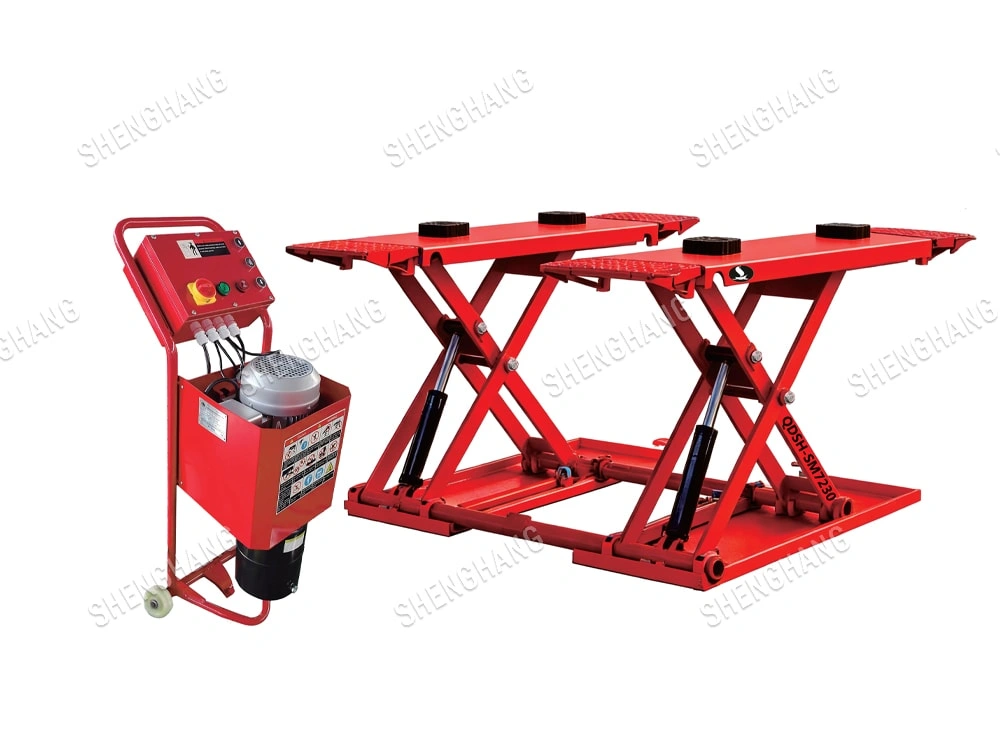

QDSH-SM7230
QDSH-SM7230

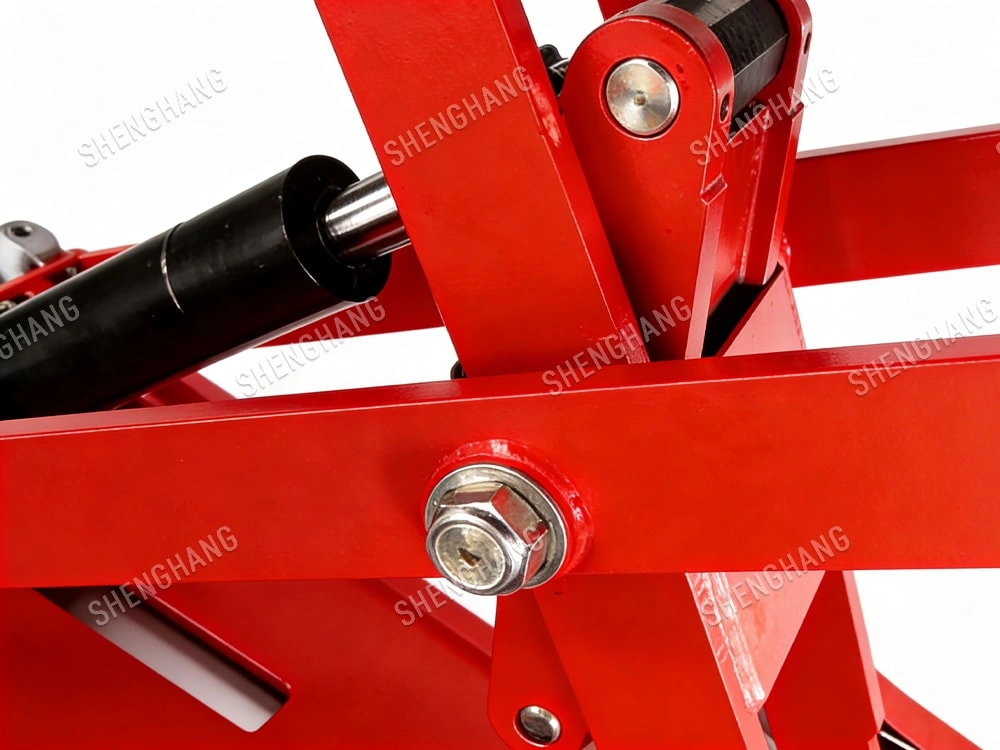

Strengthening arm design

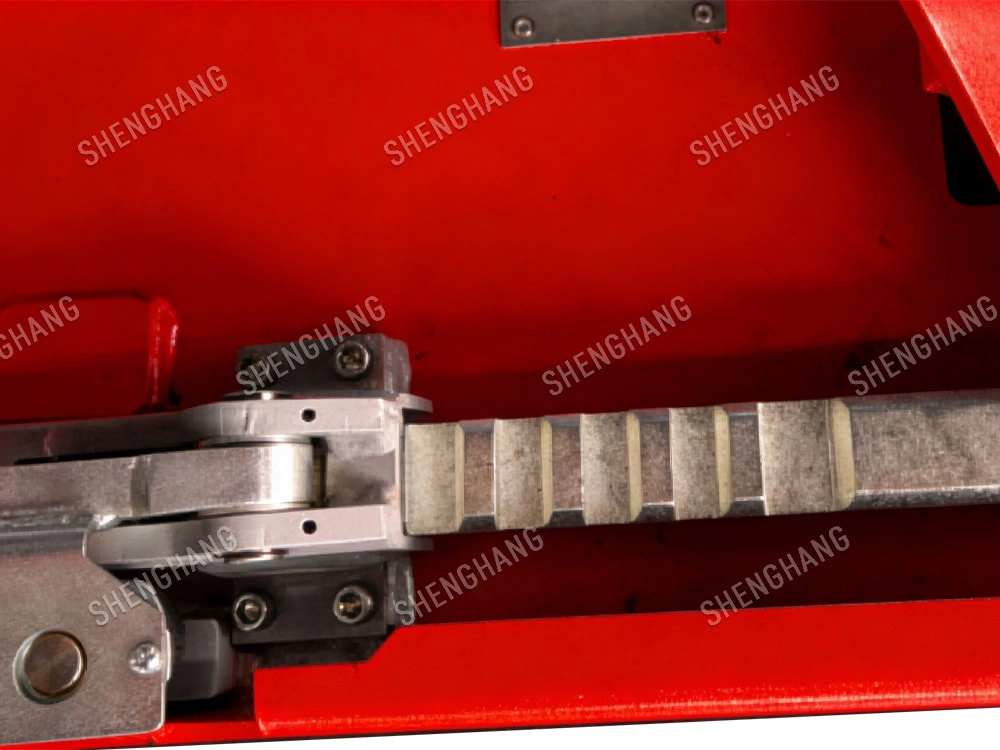

The lifting mechanical lock is automatically locked and pneumatically unlocked

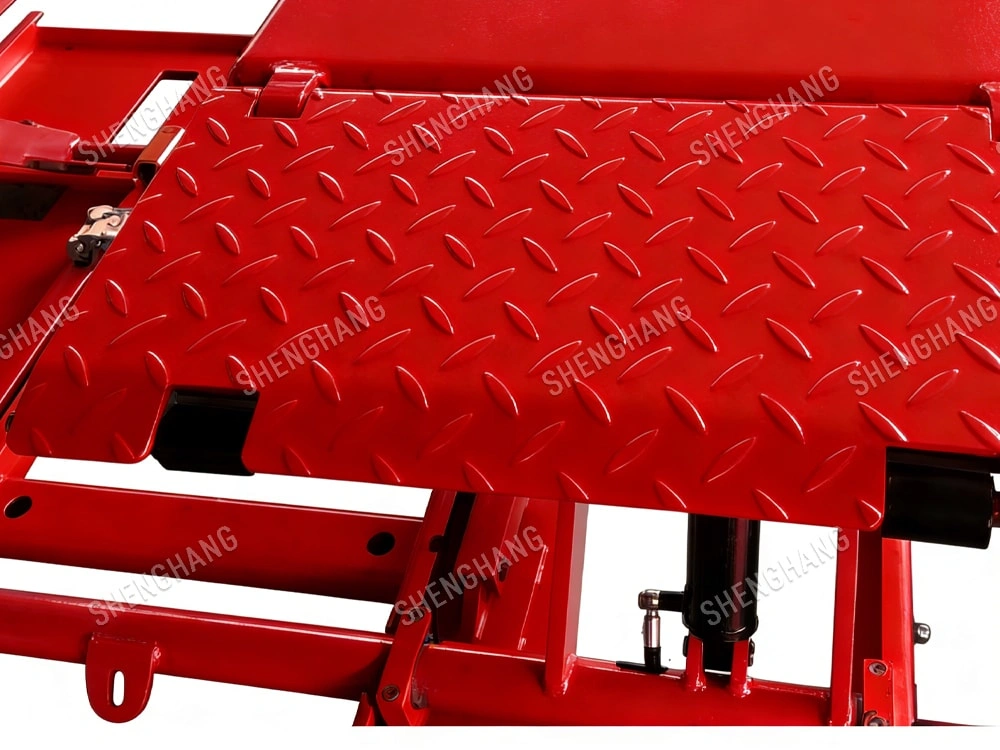

Extensible platform design

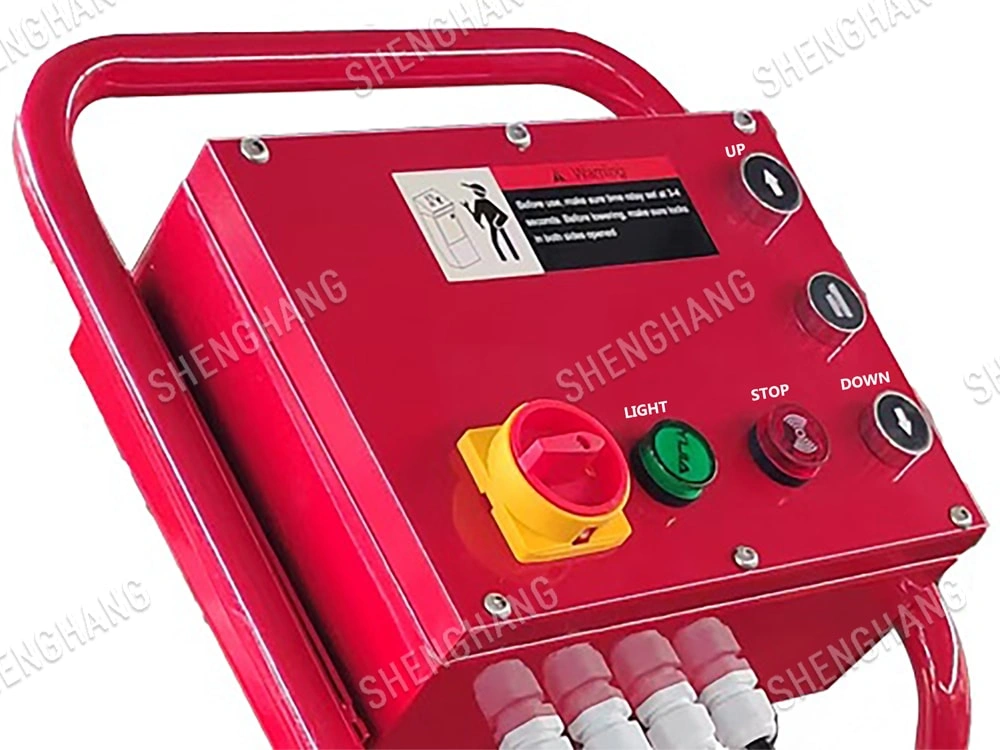

24V electric contr oloperating system to avoid high voltage electric shock
The lifting mechanical lock is automatically locked and pneumatically unlocked
QDSH-SM7230
QDSH-SM7230
Strengthening arm design
The lifting mechanical lock is automatically locked and pneumatically unlocked
Extensible platform design
24V electric contr oloperating system to avoid high voltage electric shock
The lifting mechanical lock is automatically locked and pneumatically unlocked

PARAMETER

  • Model No.QDSH-SM7230

  • Load Capacity3000kg

Inquiry now Download

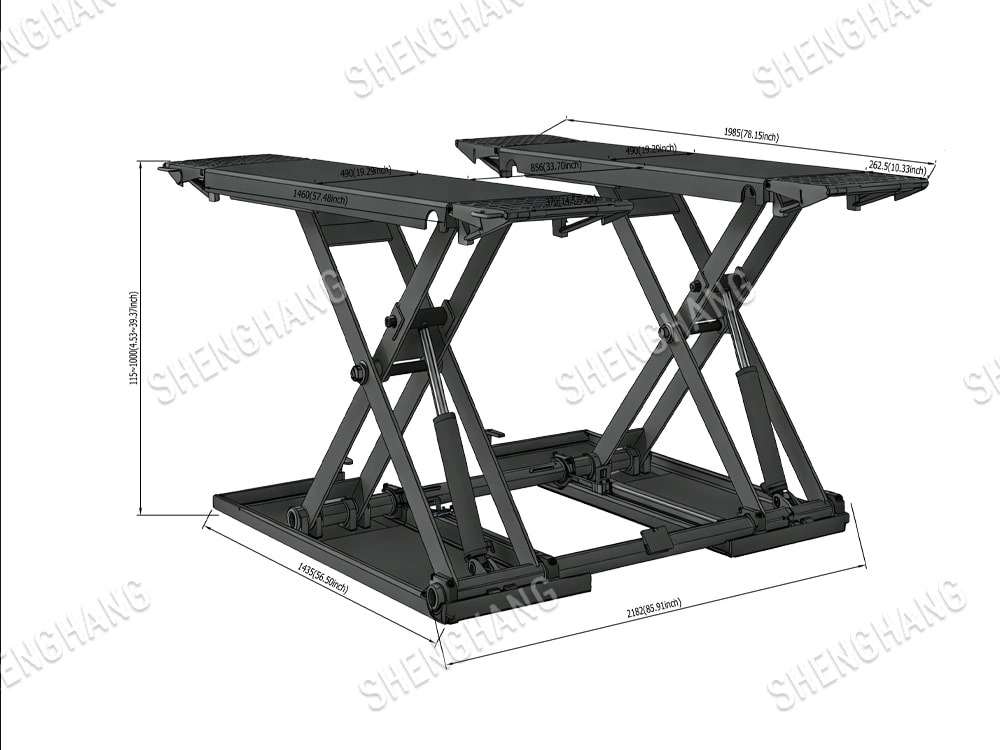

MACHINE SIZE

Model QDSH-SM7230
Lifting Capacity 3000KG
Max Lifting Height 1000mm
Min Height 110mm
Lifting Time ≤40S
Platform width 490mm
Platform length 1460-1985mm
Oil pressure 0.6~0.8Mpa
Motor voltage 380V/220V
Motor Power 1.5KW
Package size 1660*1845*225mm

FEATURES

1.With removable wheel

2.Air release-

3.With extension plate·

4.Two cylinders, mechanized connection, more powerful·

5.Accord with standard of European Unlon CE
