PARAMETER

  • Model No.QDSH-PJS8222

MACHINE SIZE

Model No. QDSH-PJS8222
Lifting Capacity 2000KG

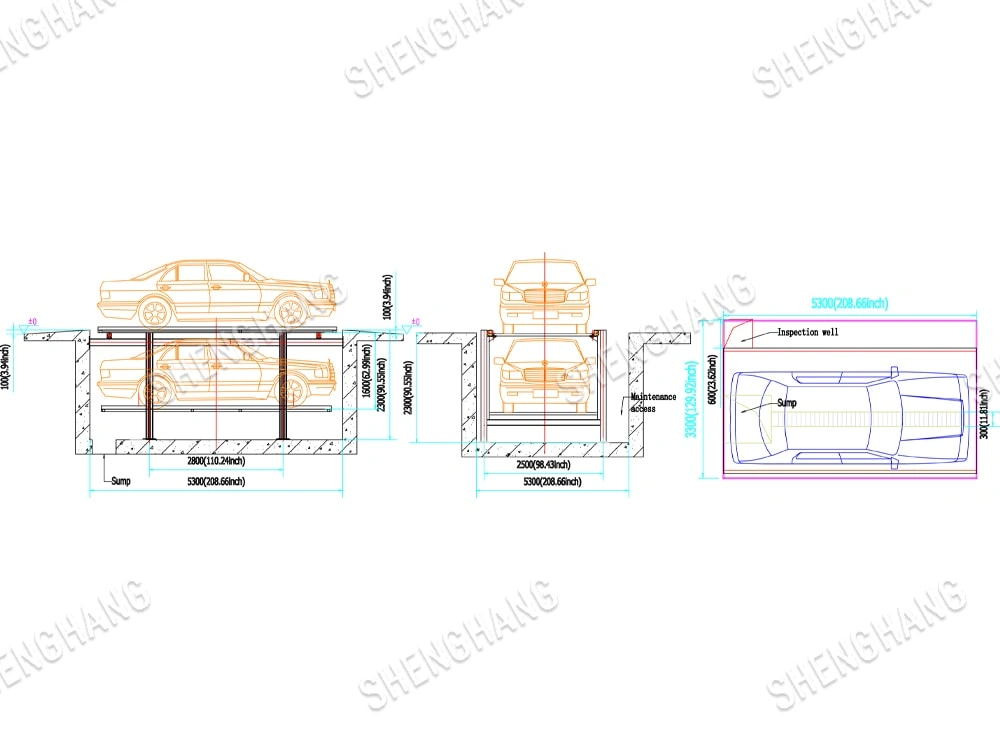

Parking specification 5000*1850*1550mm
Lifting motor power speed 3.6-8m/min
Lifting Time ≤50S
Motor voltage 380V/220V
Motor Power 2.2KW
Packaging size 3660*900*750

FEATURES

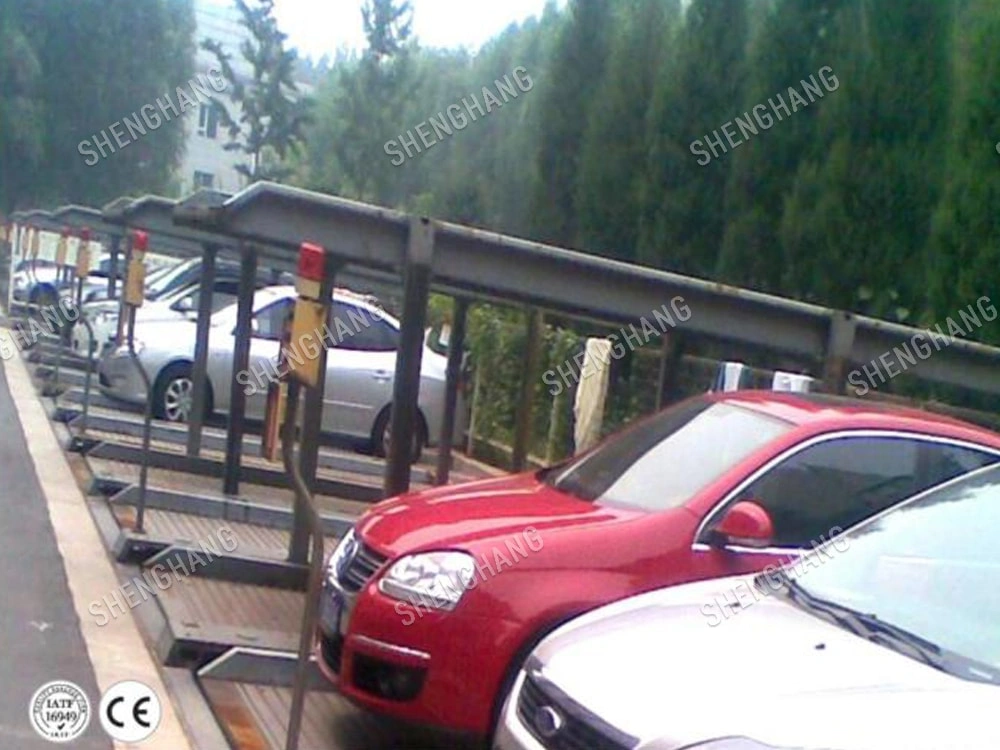

◆This is a two level design parking system,the bottom level installed as a liftin body and this levels usually stay in pit.

◆The top level can unpark car directly.When unpark car from the bottom level, those levels need to lift to unpark cars.

◆Low equipment cost and maintenance cost.

◆Vertical lift and easy cooperation,lift smoothlywith low noise,convenient for car goes in or out.

◆Comprehensive security protection system, such as safely ant-falling hook and emargency brake mechanism,

◆Adopt the control system with button and remote control,make operation wery easy.
