Clear Floor Two Post Lift QDSH-C300/C350/C650

BACK TO LIST

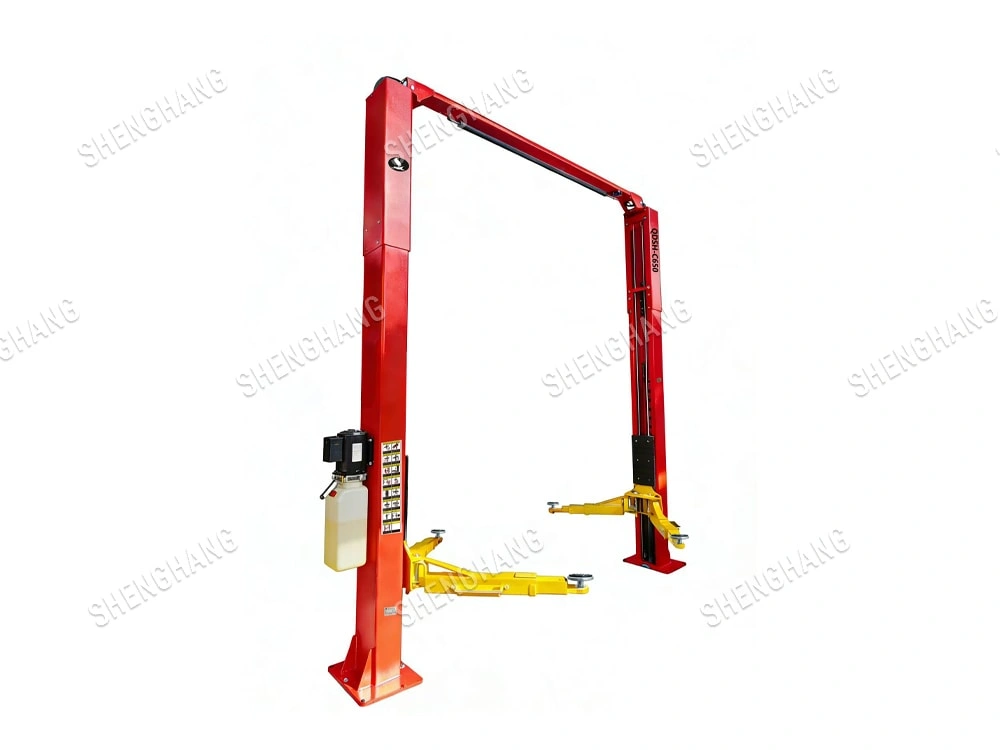

QDSH-C650
QDSH-C650
QDSH-C650

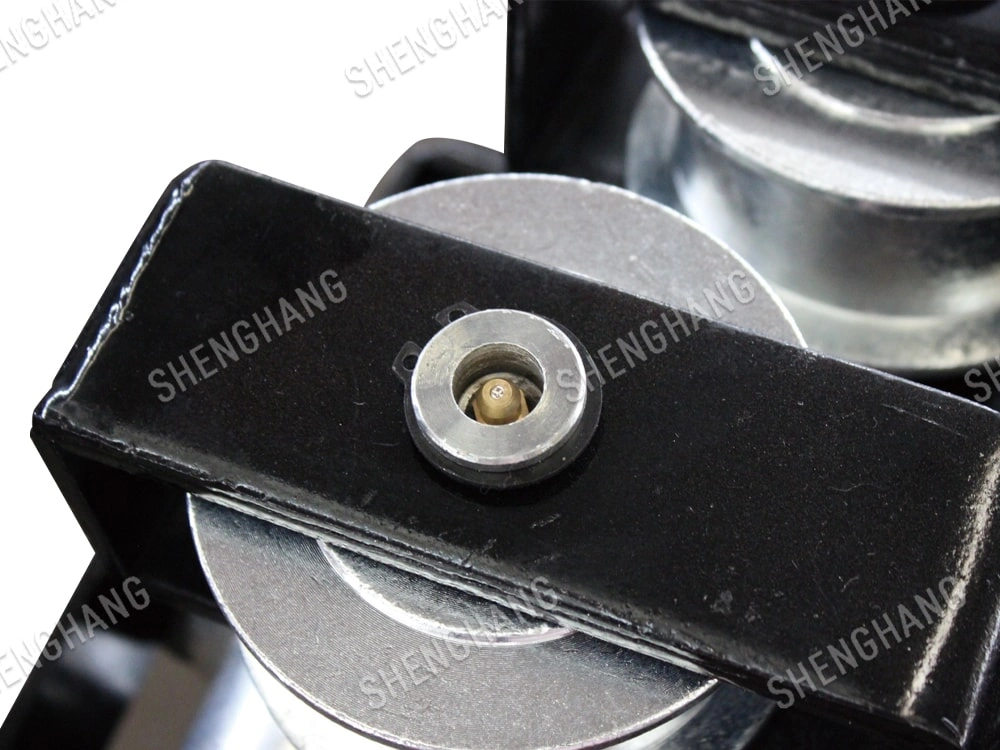

Butter nozzle design

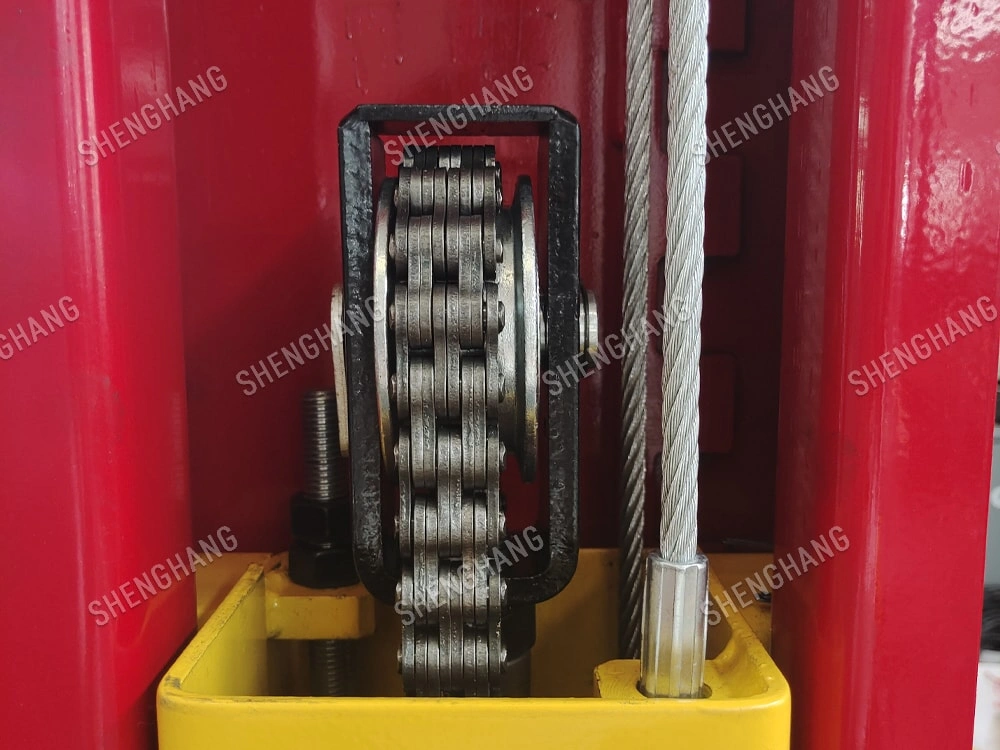

Anti-dropping andanti-rotation structure ofchain Heavy load plate chain
Integral type carriage

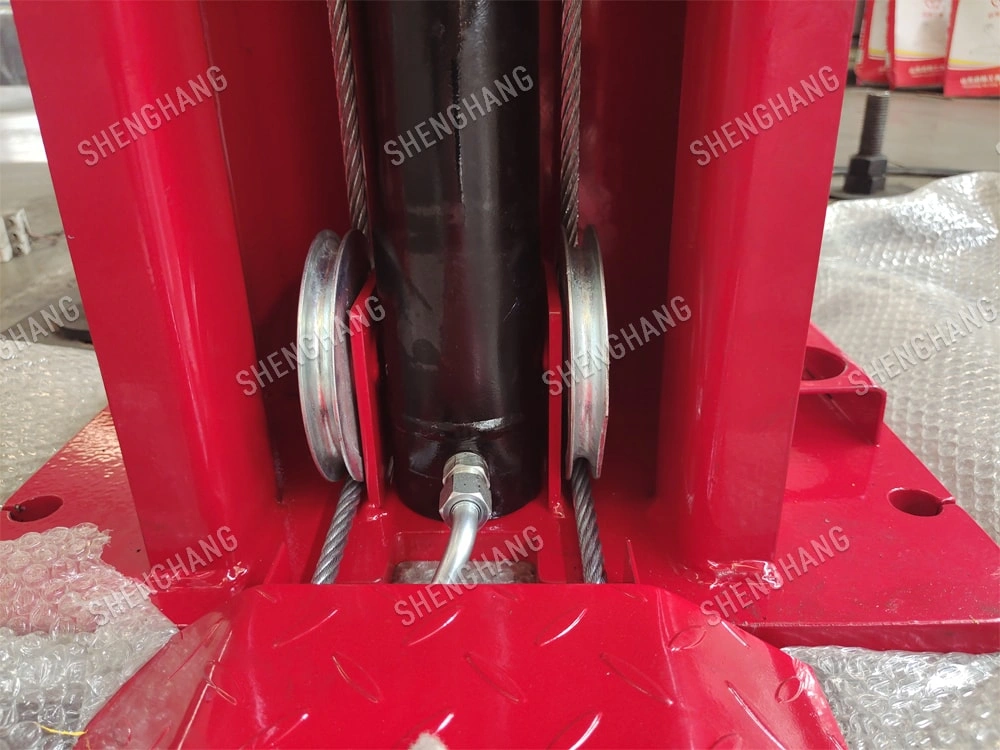

The cable pulley 45#steel is processed andthen heattreated

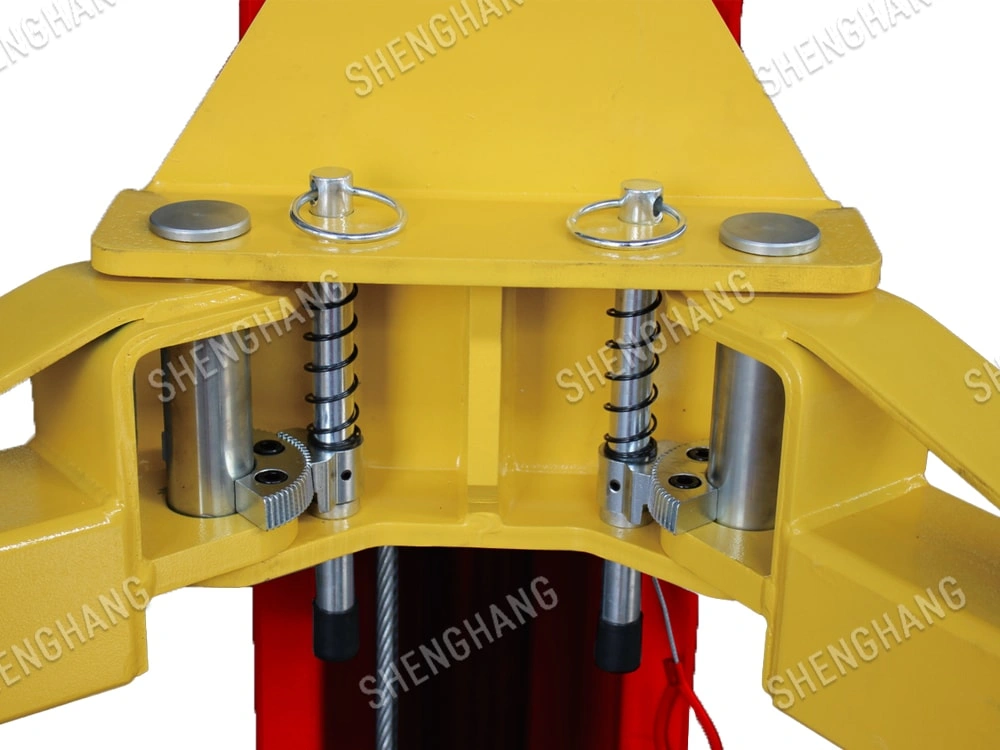

Integral type carriage (Two-side lock release）

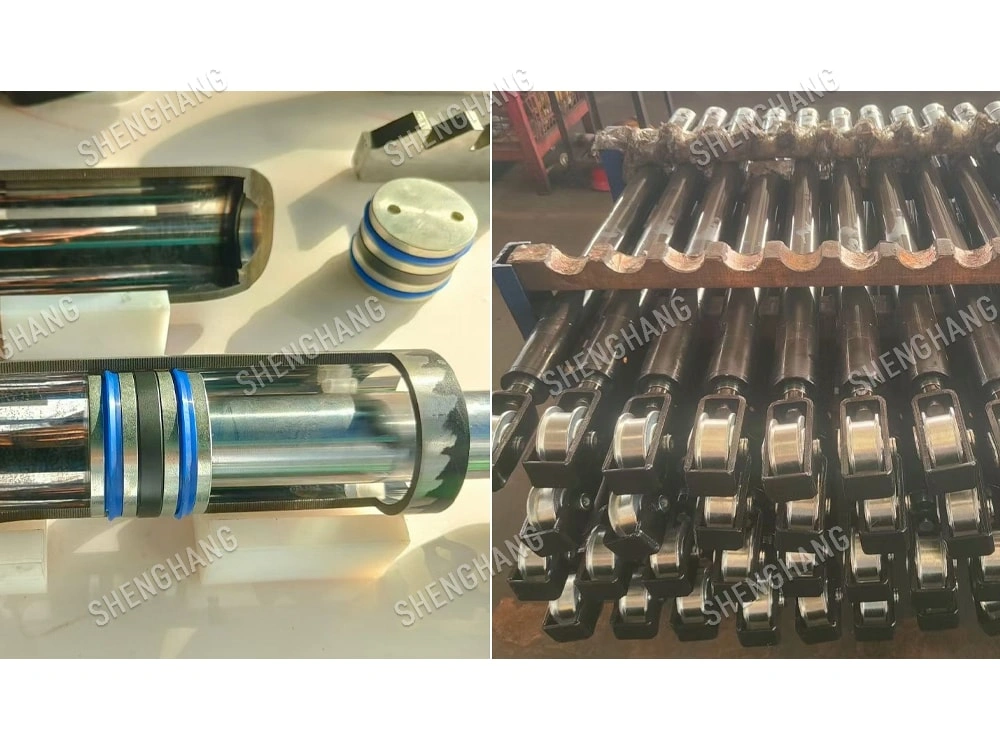

Double-channelsealedoil cylinder

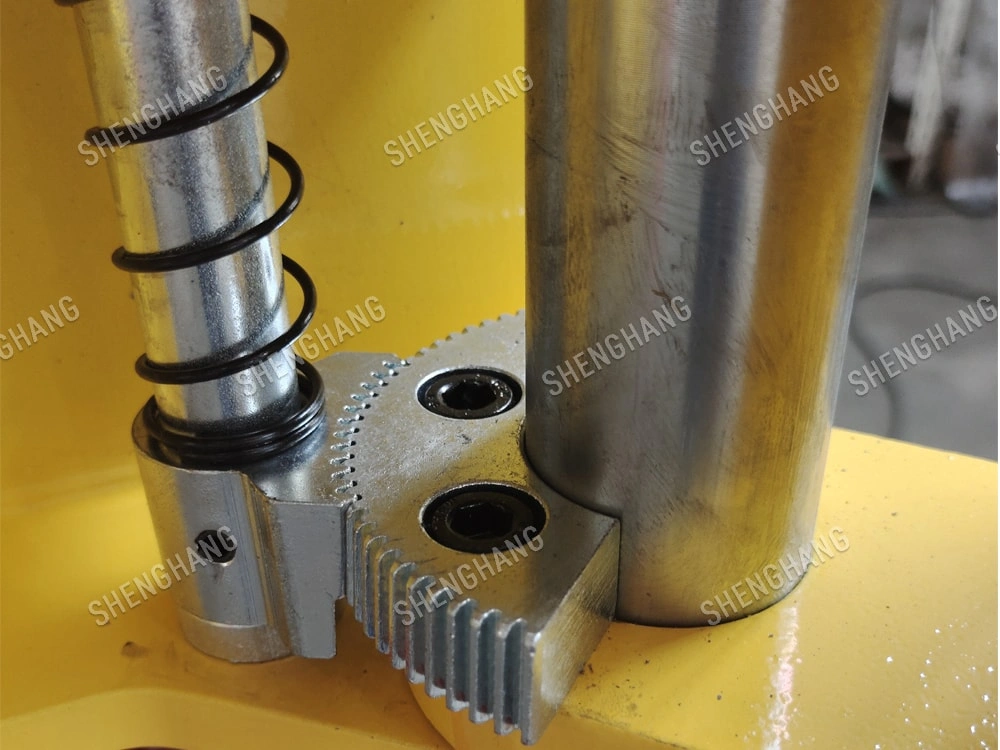

The safety lock is tightlyengaged

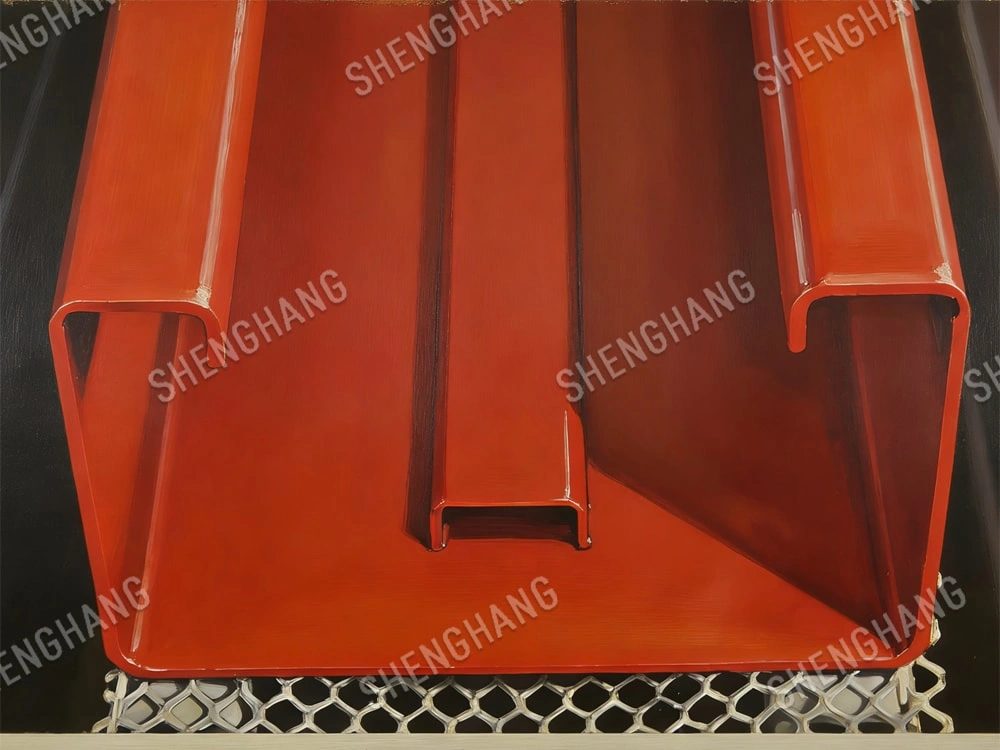

The columnwith 6 bending
QDSH-C650
QDSH-C650
QDSH-C650
Butter nozzle design
Anti-dropping andanti-rotation structure ofchain Heavy load plate chain
Integral type carriage
The cable pulley 45#steel is processed andthen heattreated
Integral type carriage (Two-side lock release）
Double-channelsealedoil cylinder
The safety lock is tightlyengaged
The columnwith 6 bending

PARAMETER

  • Model No.QDSH-C300/C350/C650

  • Load Capacity3500/4000/4500kg

Inquiry now Download

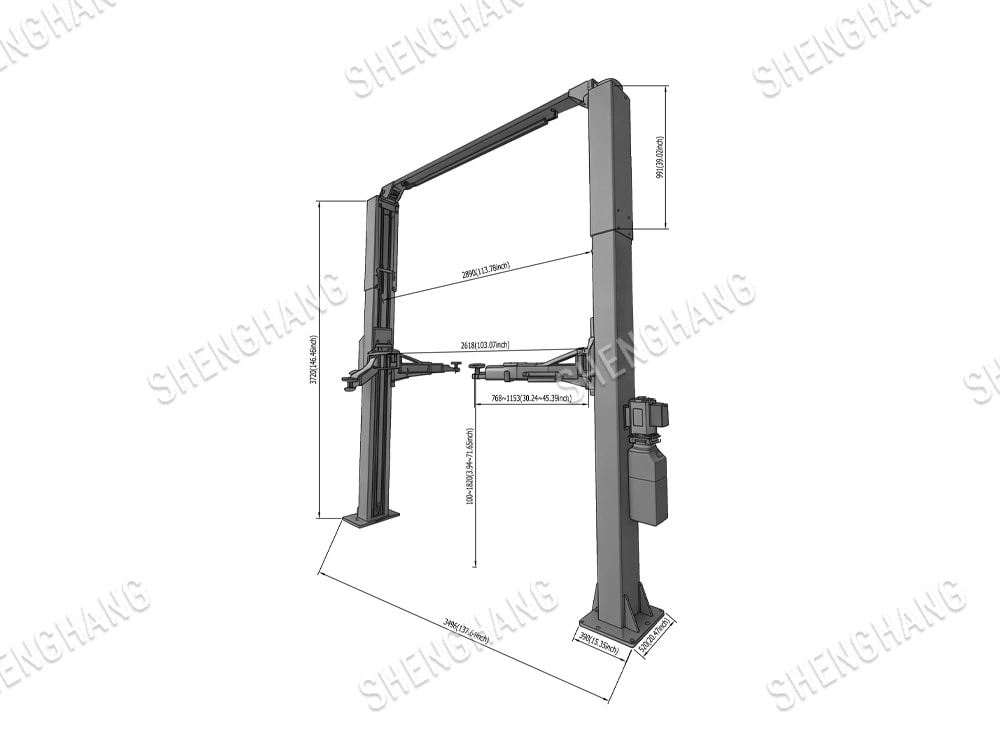

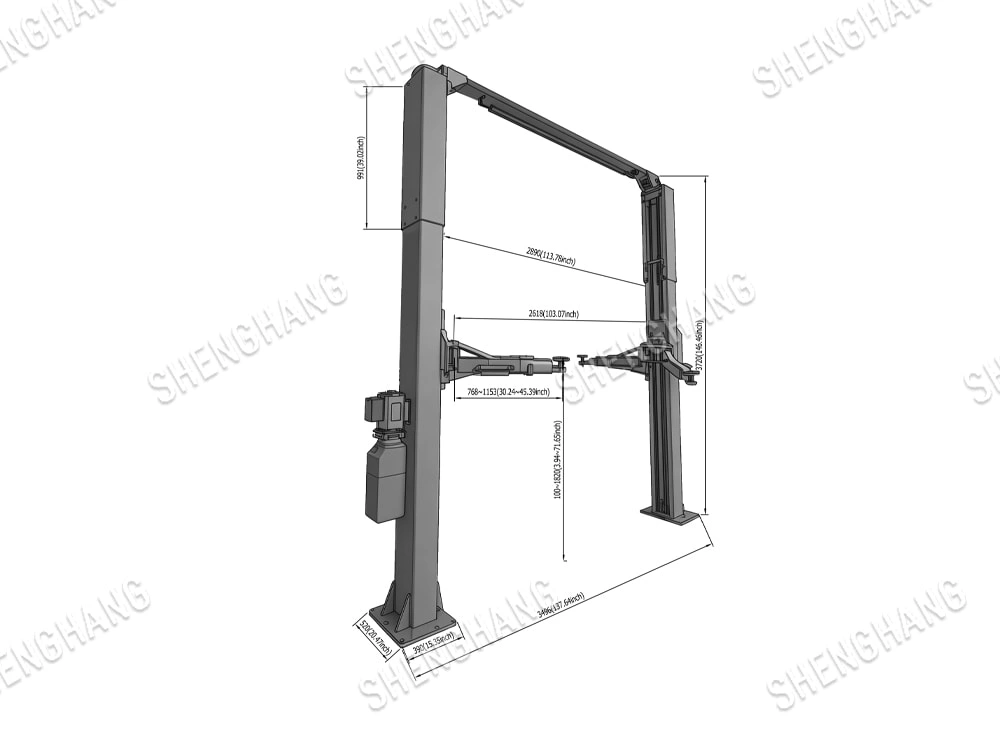

MACHINE SIZE

Model QDSH-C300QDSH-C350QDSH-C650
Lifting capacity 3500kg4000kg4500kg
Max lifting height 1800mm1800mm1800mm
Minimum height 100mm100mm100mm
Overall height 2780/3590mm2780/3590mm2780/3590mm
Overall width 3480mm3480mm3480mm
Lifting time 50s50s50s
Motor voltage 380V/220V380V/220V380V/220V
Motor power 2.2KW2.2KW2.2KW
Package size 2790x540x800mm2790x540x800mm2790x540x800mm

FEATURES

1. Column with 6 curves

2. Integral type trolley

3. Roof limit design to protect it from damage

4. Anti-fall and anti-rotation chain structure

5. Double sealing structure of the oil cylinder

6. Explosion-proof butterfly valve to prevent the risk of pipe rupture

7. High-quality power unit with safe and reliable operation

8. This product uses a double-sided unlocking method.

9. This product complies with CE standards.
