Clear Floor Two Post Lift QDSH-C400/C450/C850

BACK TO LIST

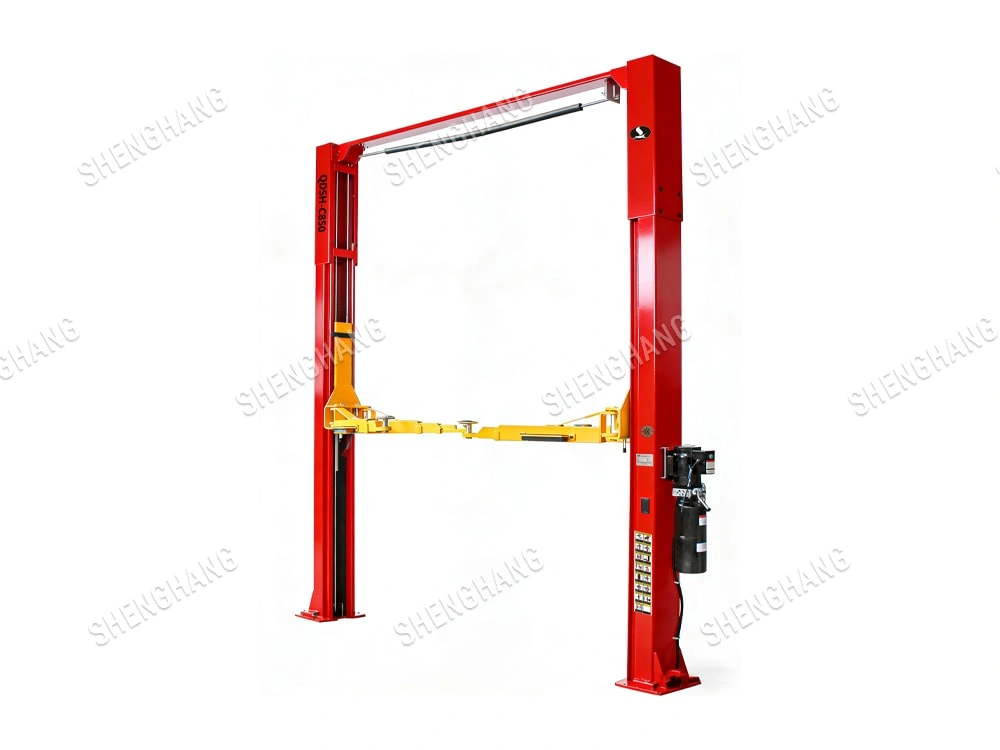

QDSH-C850
QDSH-C450E
QDSH-C450E
Clear Floor Two Post Lift QDSH-C400/C450/C850

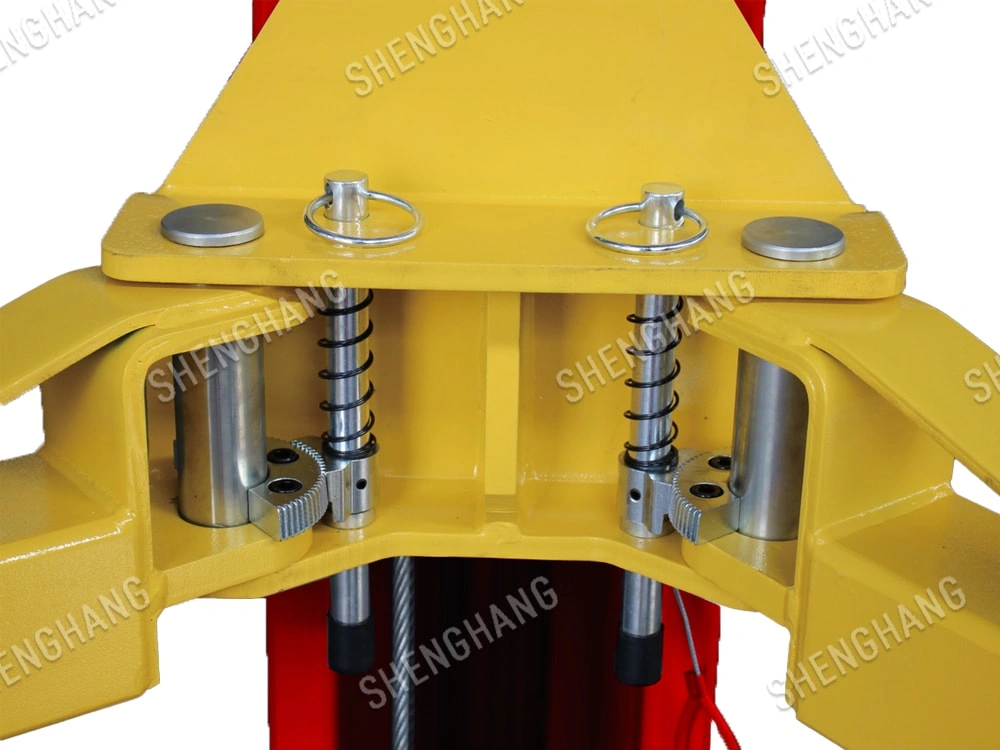

Integral type carriage (Two-side lock release）

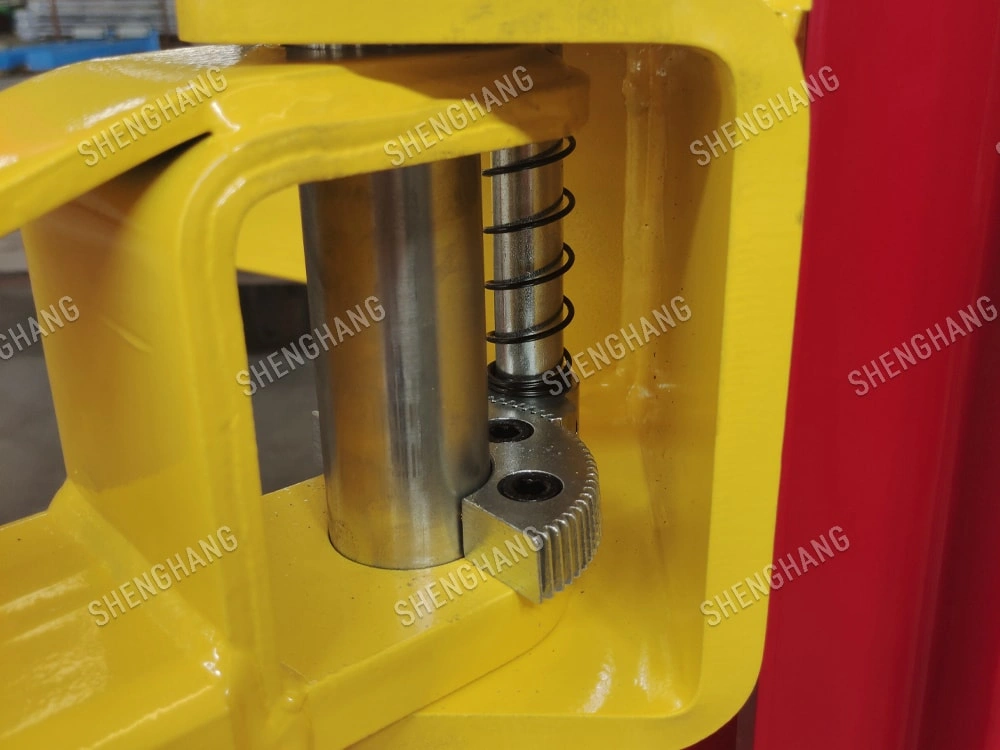

Integral type carriage

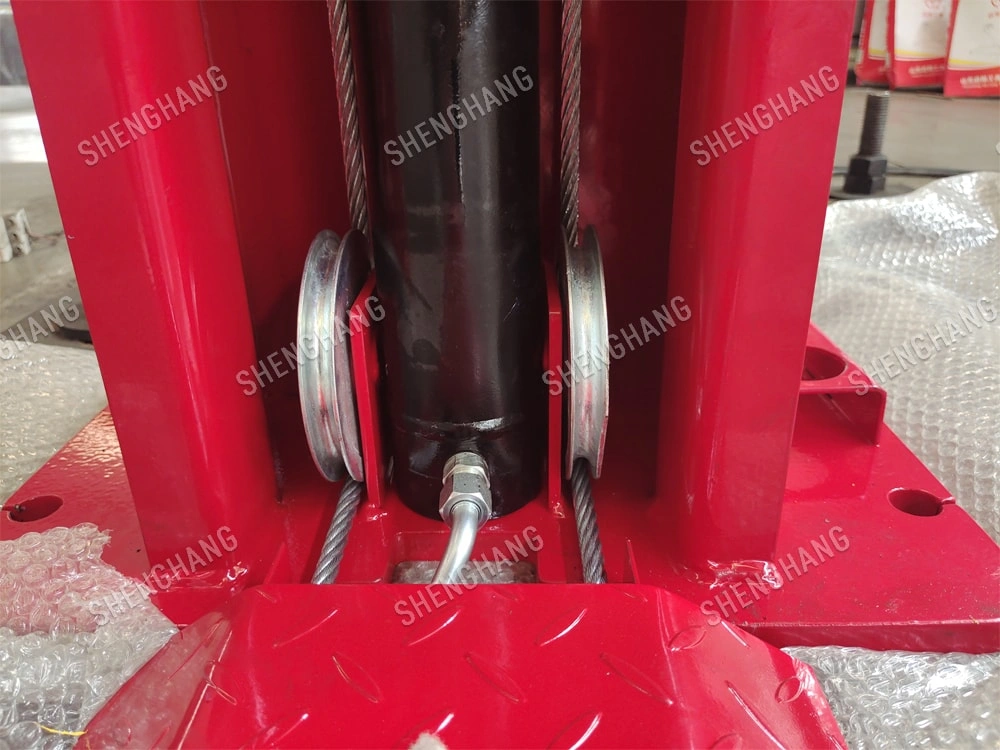

The cable pulley 45#steel is processed andthen heattreated

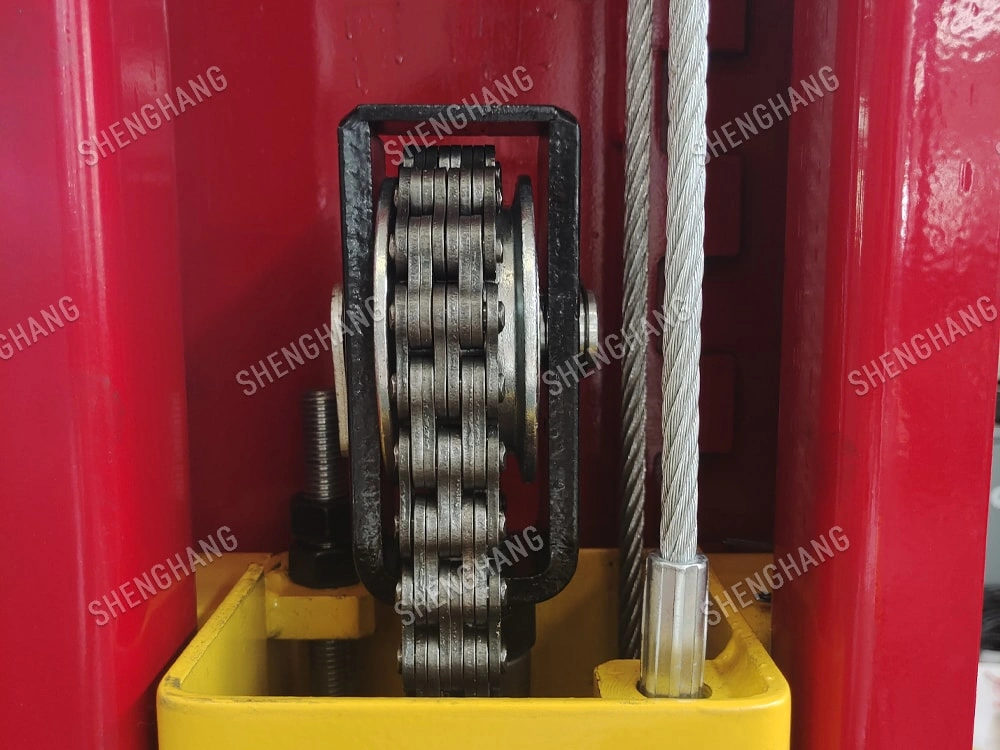

Anti-dropping andanti-rotation structure ofchain Heavy load plate chain

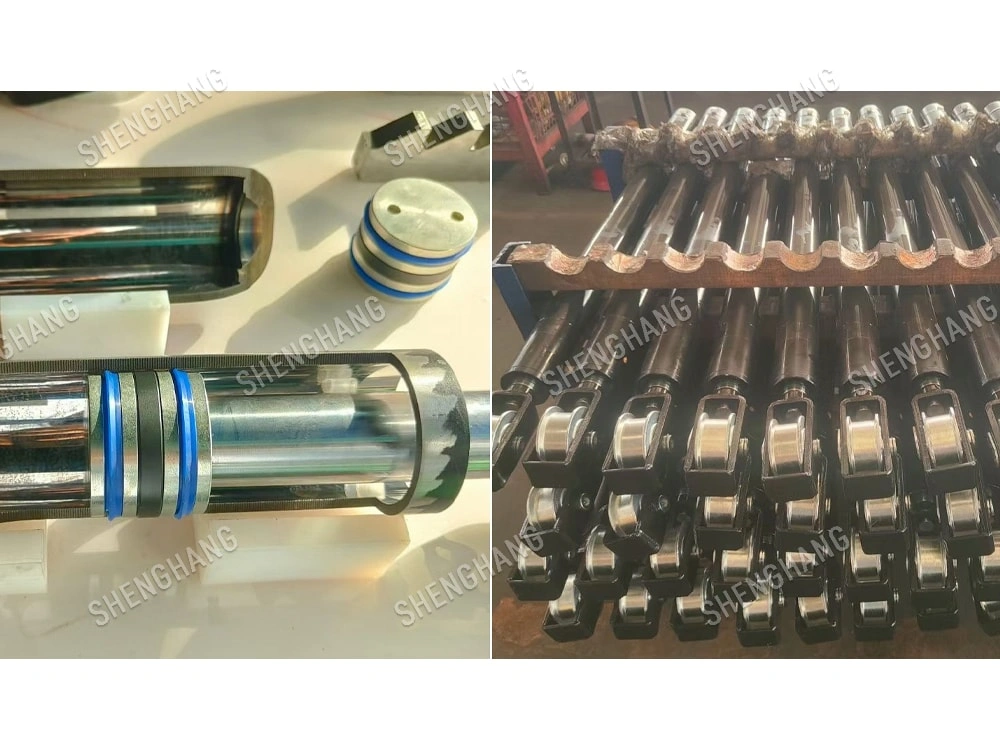

Double-channelsealedoil cylinder

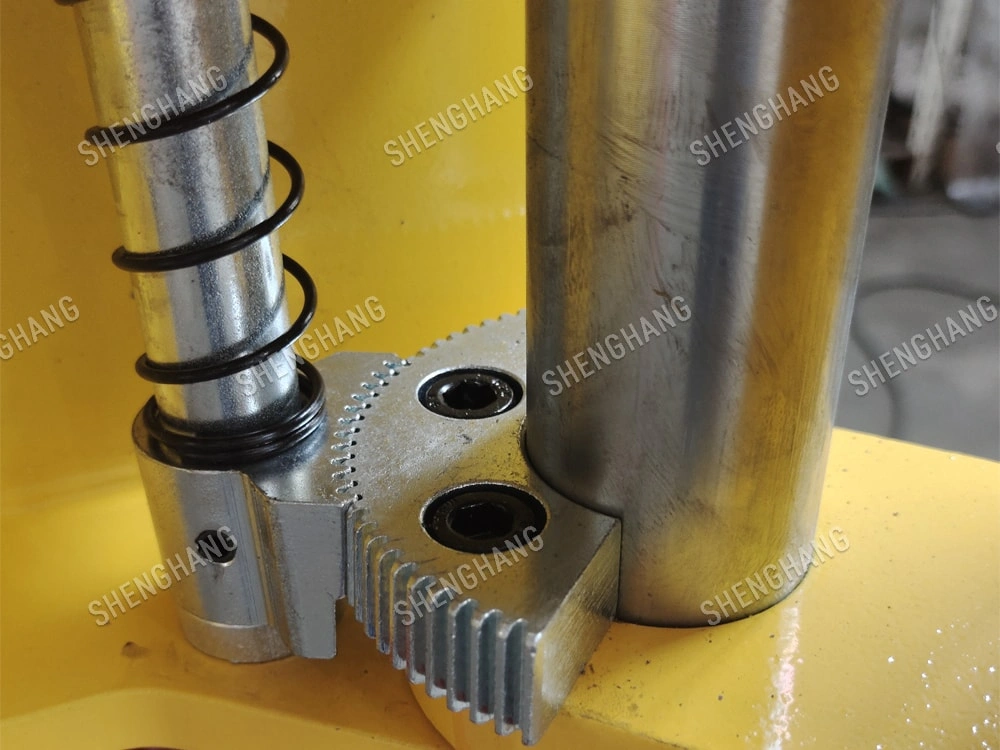

The safety lock is tightlyengaged

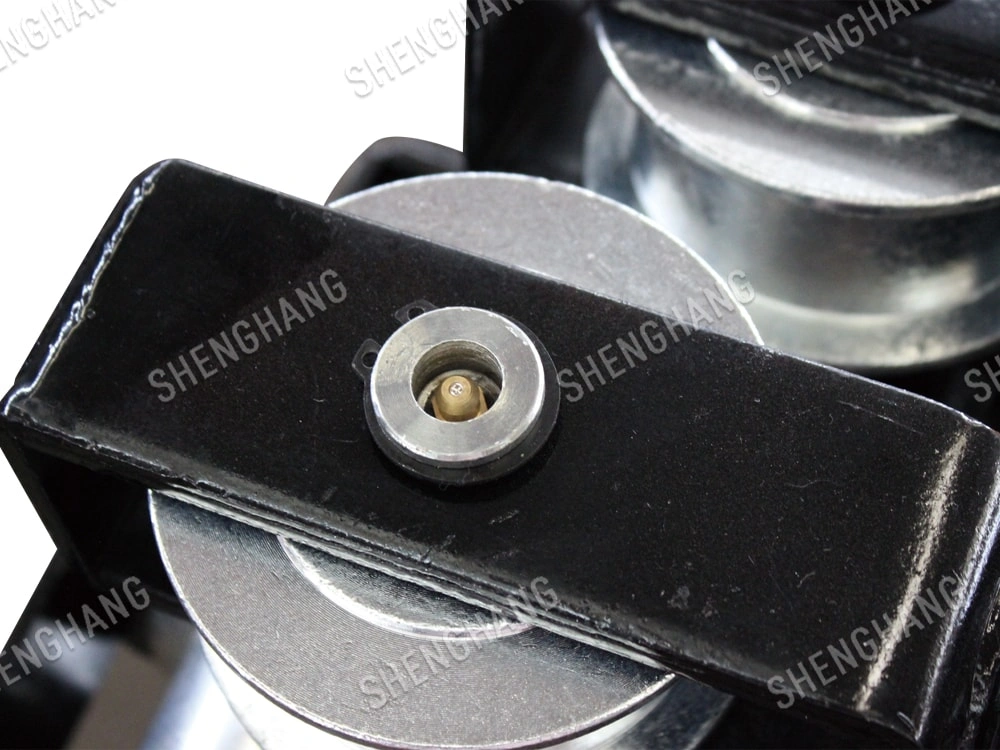

Butter nozzle design

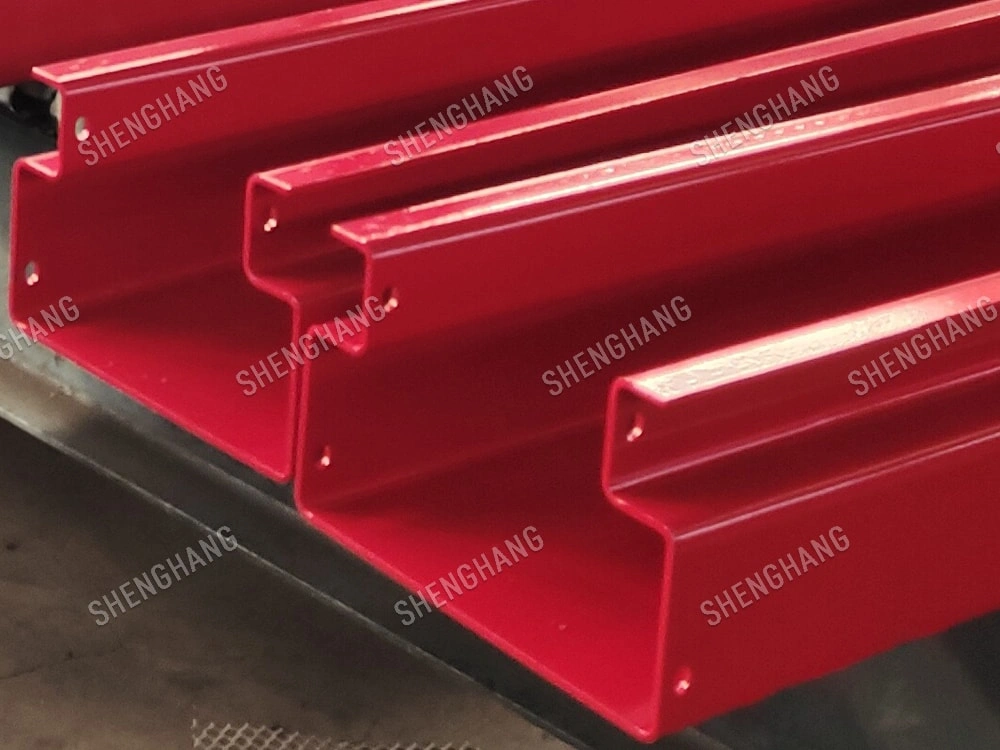

The column with 8 bending
QDSH-C850
QDSH-C450E
QDSH-C450E
Clear Floor Two Post Lift QDSH-C400/C450/C850
Integral type carriage (Two-side lock release）
Integral type carriage
The cable pulley 45#steel is processed andthen heattreated
Anti-dropping andanti-rotation structure ofchain Heavy load plate chain
Double-channelsealedoil cylinder
The safety lock is tightlyengaged
Butter nozzle design
The column with 8 bending

PARAMETER

  • Model No.QDSH-C400/C450/C850

  • Load Capacity3500/4000/4500kg

Inquiry now Download

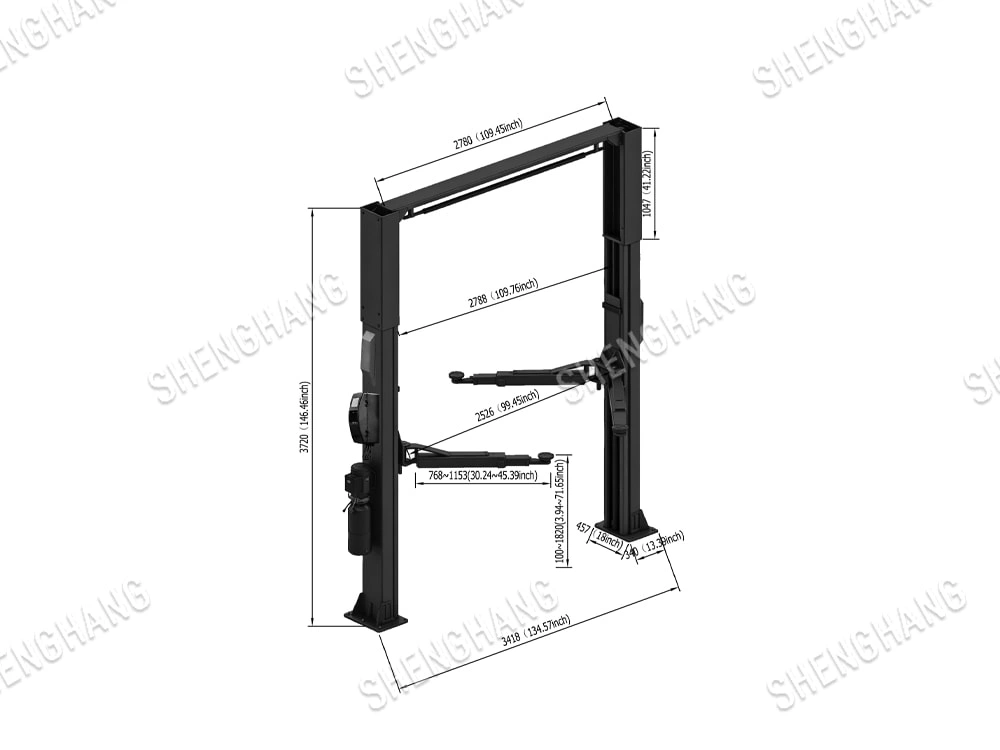

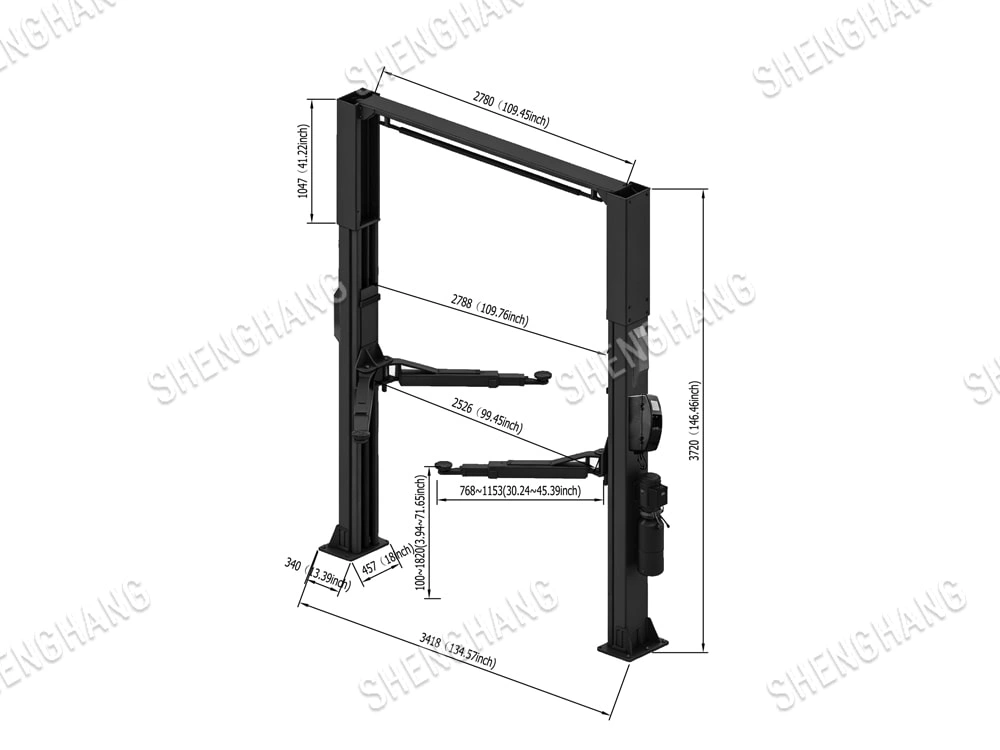

MACHINE SIZE

Model QDSH-C400QDSH-C450QDSH-C850
Lifting capacity 3500kg4000kg4500kg
Max lifting height 1820mm1820mm1820mm
Minimum height 100mm100mm100mm
Overall height 3720mm3720mm3720mm
Overall width 3420mm3420mm3420mm
Lifting time 50s50s50s
Motor voltage 380V/220V380V/220V380V/220V
Motor power 2.2KW2.2KW2.2KW
Package size 2880x470x740mm2880x470x740mm2880x470x740mm

FEATURES

1. Column with 8 curves

2. Integral type trolley

3. Roof limit design to protect it from damage

4. Anti-fall and anti-rotation chain structure

5. Double sealing structure of the oil cylinder

6. Explosion-proof butterfly valve to prevent the risk of pipe rupture

7. High-quality power unit with safe and reliable operation

8. This product uses a double-sided unlocking method.

9. This product complies with CE standards.
