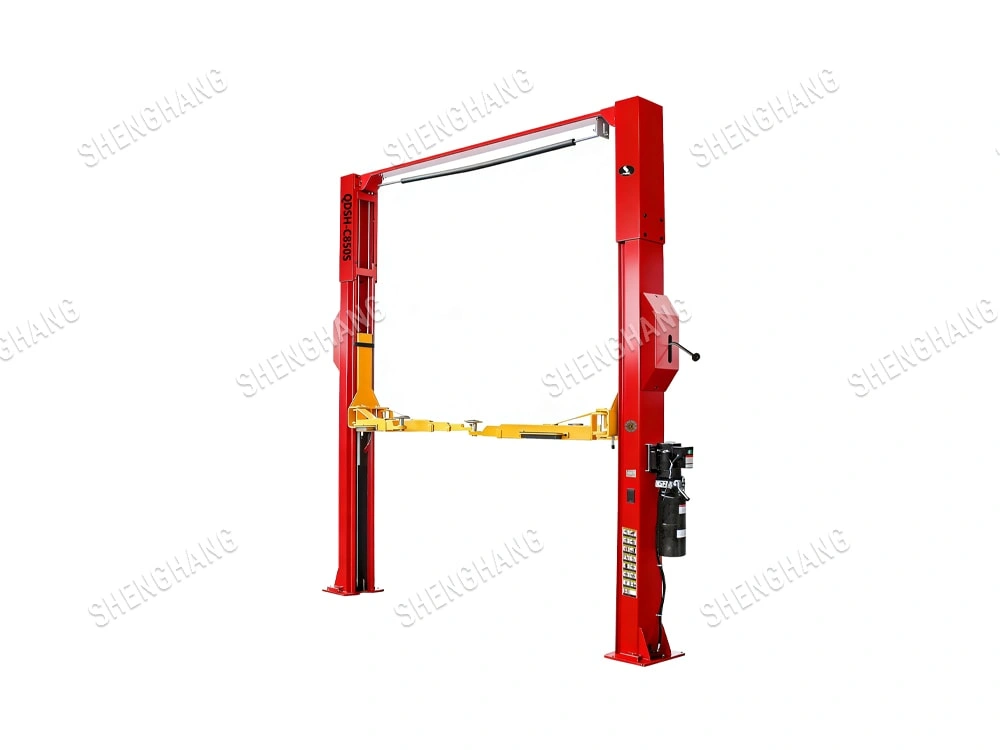

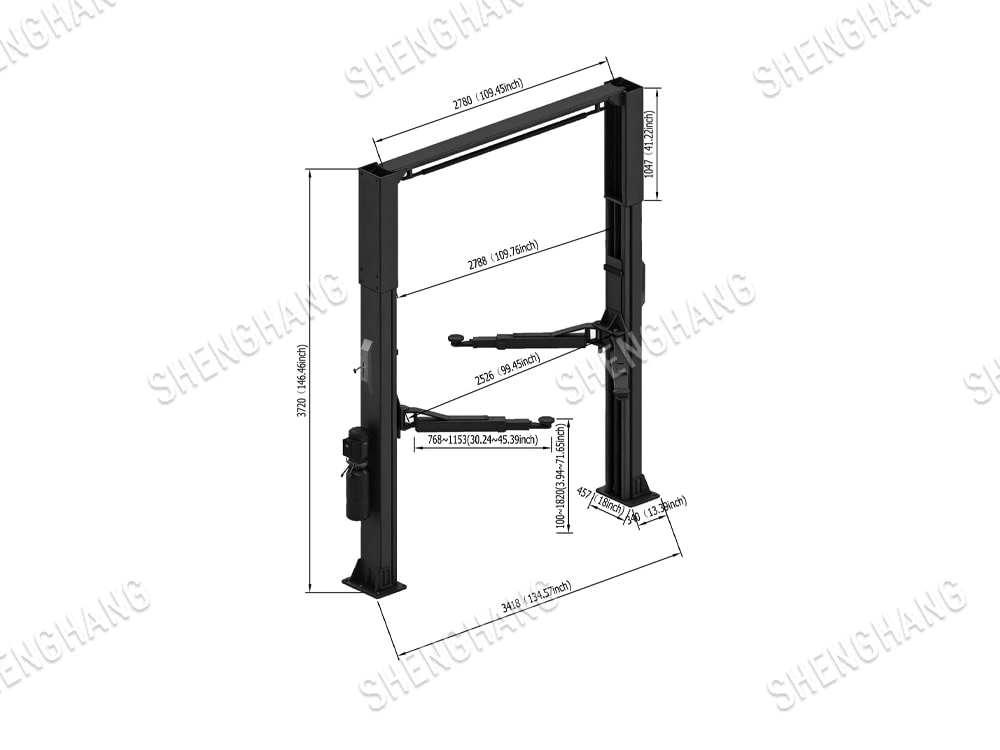

Model No.QDSH-C400S/C450S/C850S
Load Capacity3500/4000/4500kg

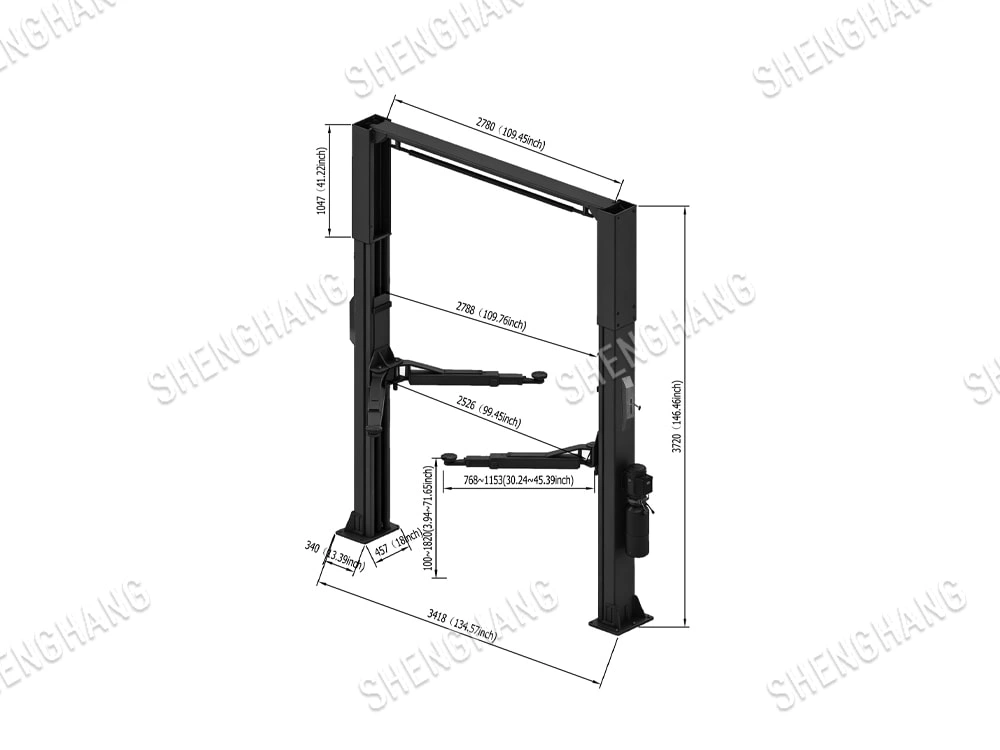

| Model | QDSH-C400S | QDSH-C450S | QDSH-C850S |
| Lifting capacity | 3500kg | 4000kg | 4500kg |
| Max lifting height | 1820mm | 1820mm | 1820mm |
| Minimum height | 100mm | 100mm | 100mm |
| Overall height | 3720mm | 3720mm | 3720mm |
| Overall width | 3420mm | 3420mm | 3420mm |
| Lifting time | 50s | 50s | 50s |
| Motor voltage | 380V/220V | 380V/220V | 380V/220V |
| Motor power | 2.2KW | 2.2KW | 2.2KW |
| Package size | 2880x470x740mm | 2880x470x740mm | 2880x470x740mm |

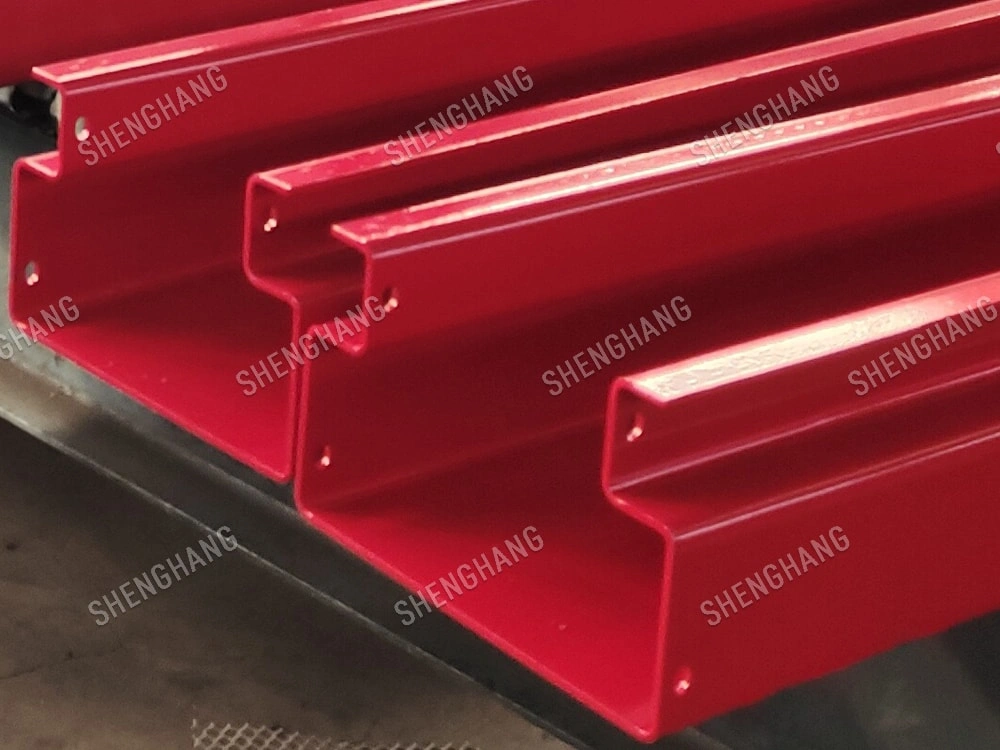

1.The column with 8 bending

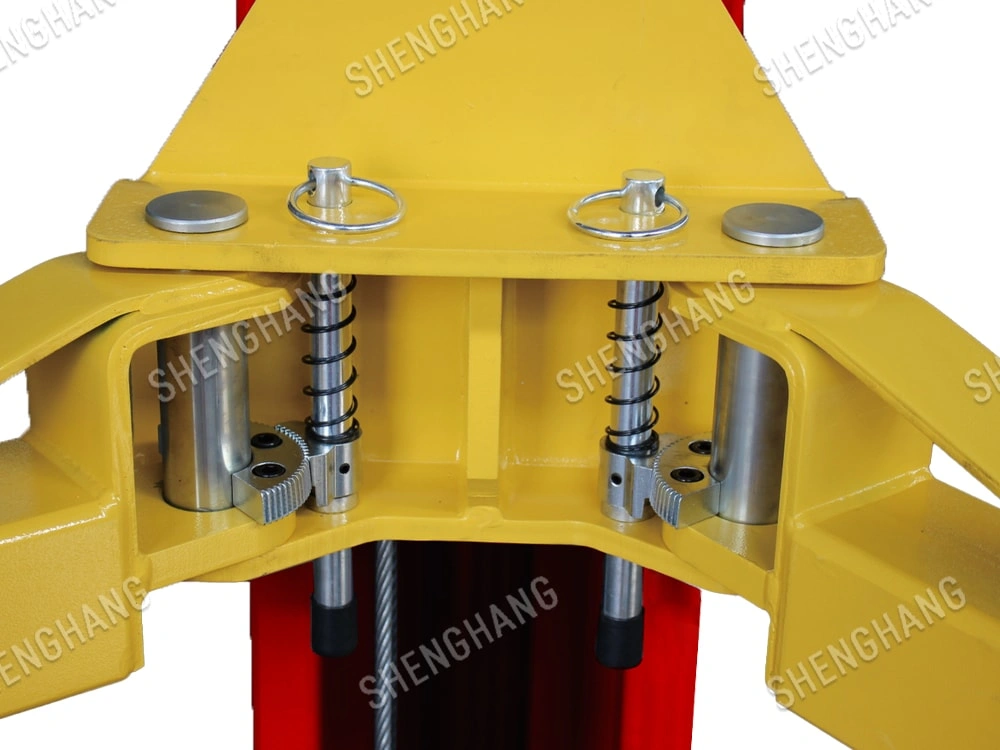

2.Integral type carriage
3.Roof limit design is adopted to protect the roof fromdamage

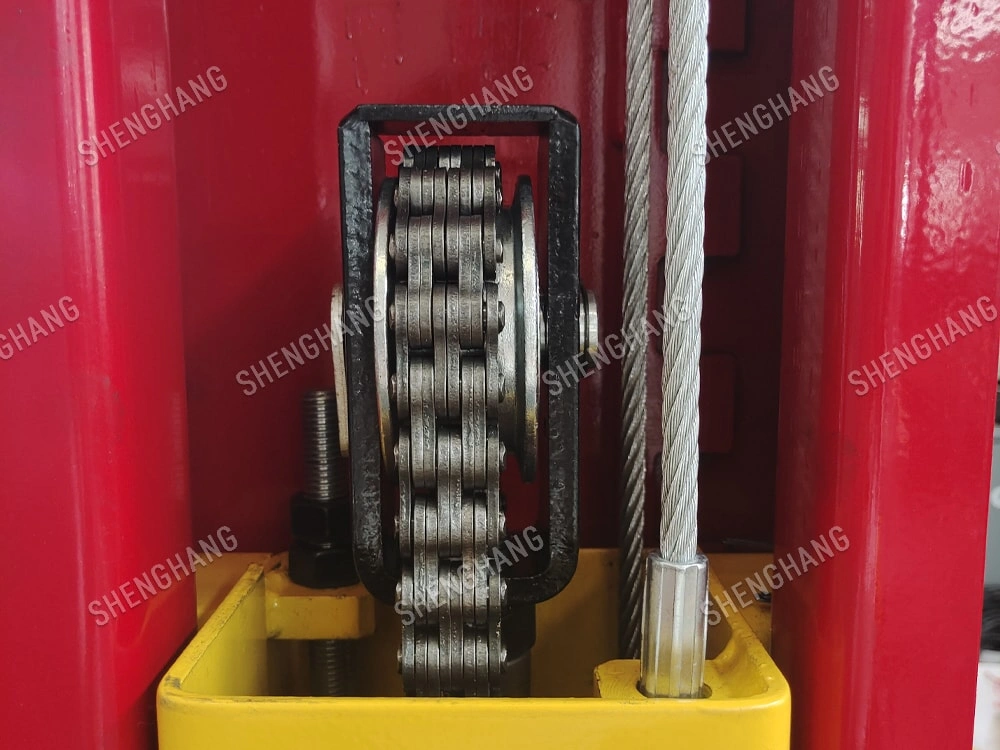

4.Anti-dropping and anti-rotation structure of chain

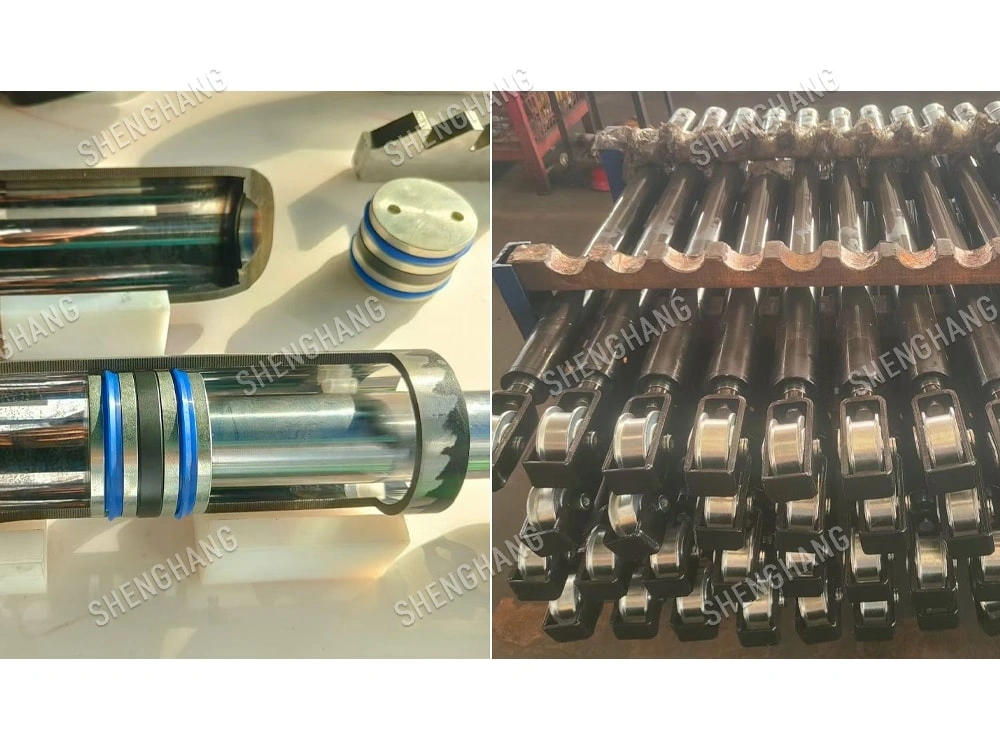

5.Double sealing structure of oil cylinder
6.Set throttle explosion-proof valve toavoid the danger of tubing bursting incase
7.High-quality power unit with safe andreliable operation

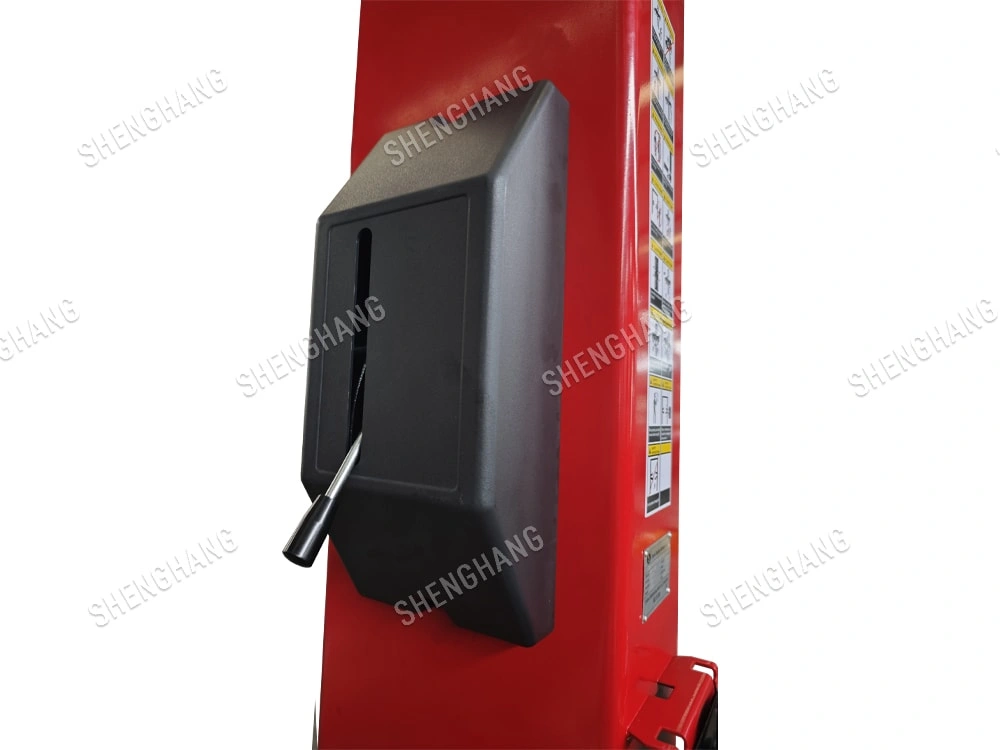

8. This product uses a single-sided unlocking method.
9. Este producto cumple con las normas CE.
