Model No.QDSH-C303
Load Capacity4000kg
| Model | QDSH-C303 |
| Lifting capacity | 4000kg |
| Max lifting height | 1820mm |
| Minimum height | 100mm |

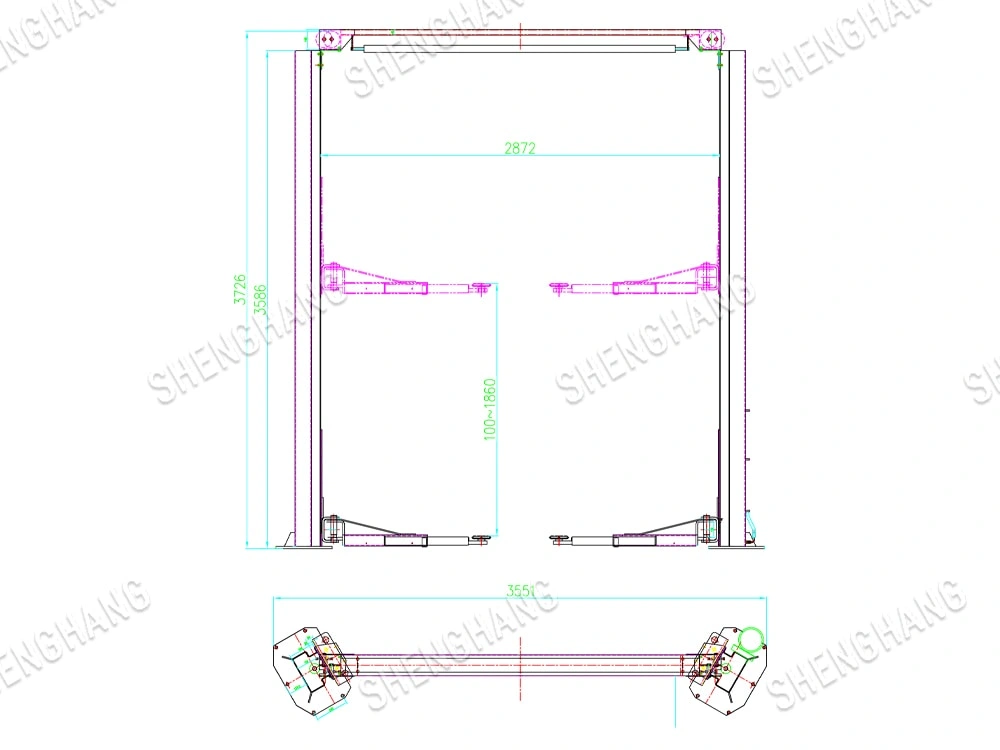

| Overall height | 3737mm |
| Overall width | 3551mm |
| Lifting time | 50s |
| Motor voltage | 380V/220V |
| Motor power | 2.2KW |
| Package size | 3600x600x820mm |

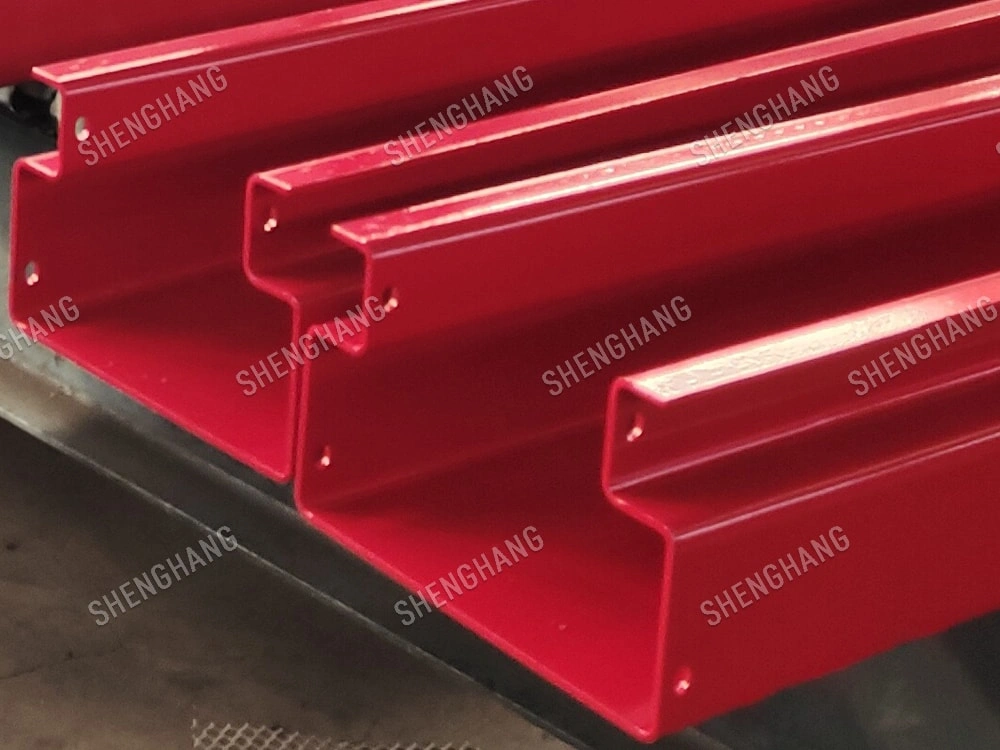

1. The column features an 8-bend design.

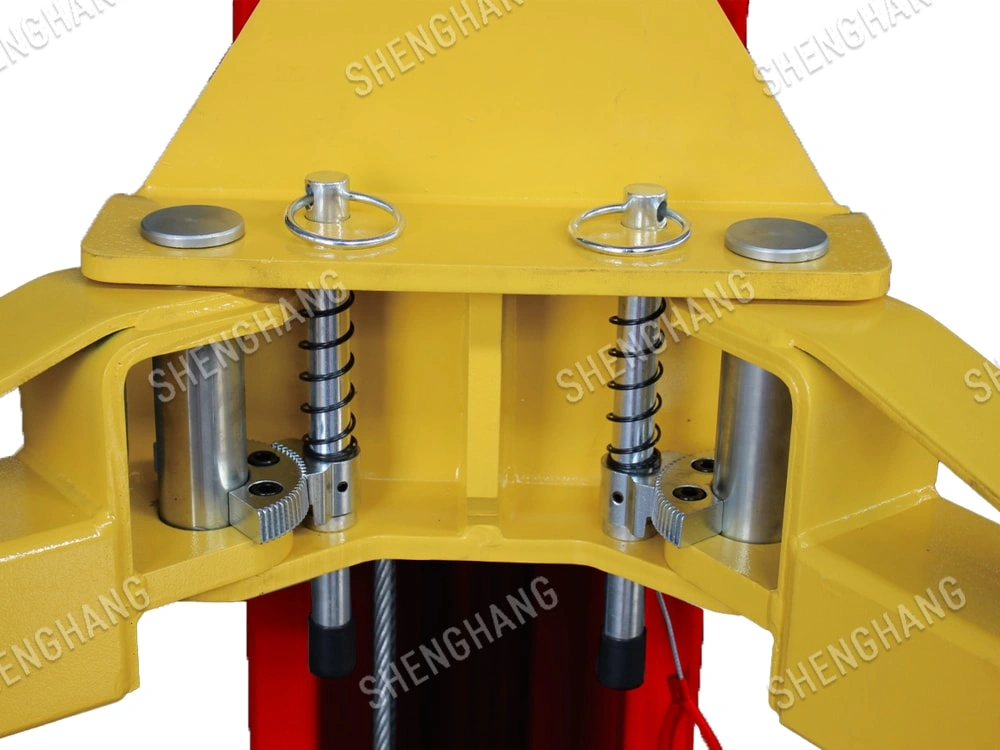

2. One-piece bracket.
3. Top cover limiting design protects the top cover from damage.
4. The chain has anti-fall and anti-rotation structures.

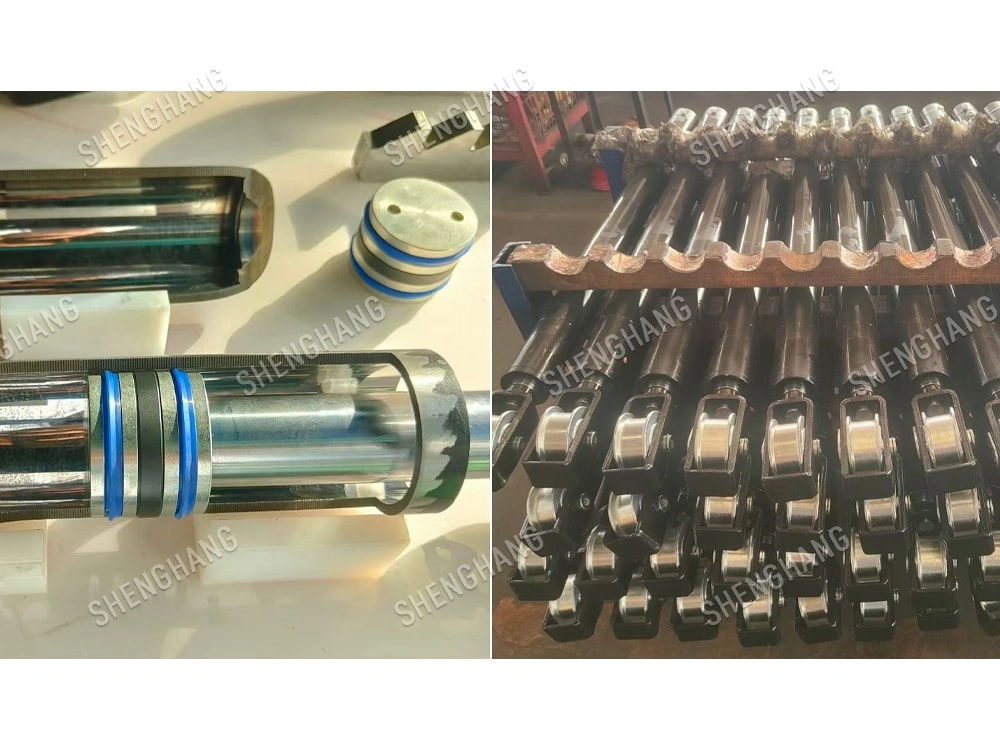

5. The hydraulic cylinder uses a double-sealing structure.
6. Equipped with a throttling explosion-proof valve to avoid the risk of hydraulic pipe rupture.
7. Uses a high-quality power unit for safe and reliable operation.

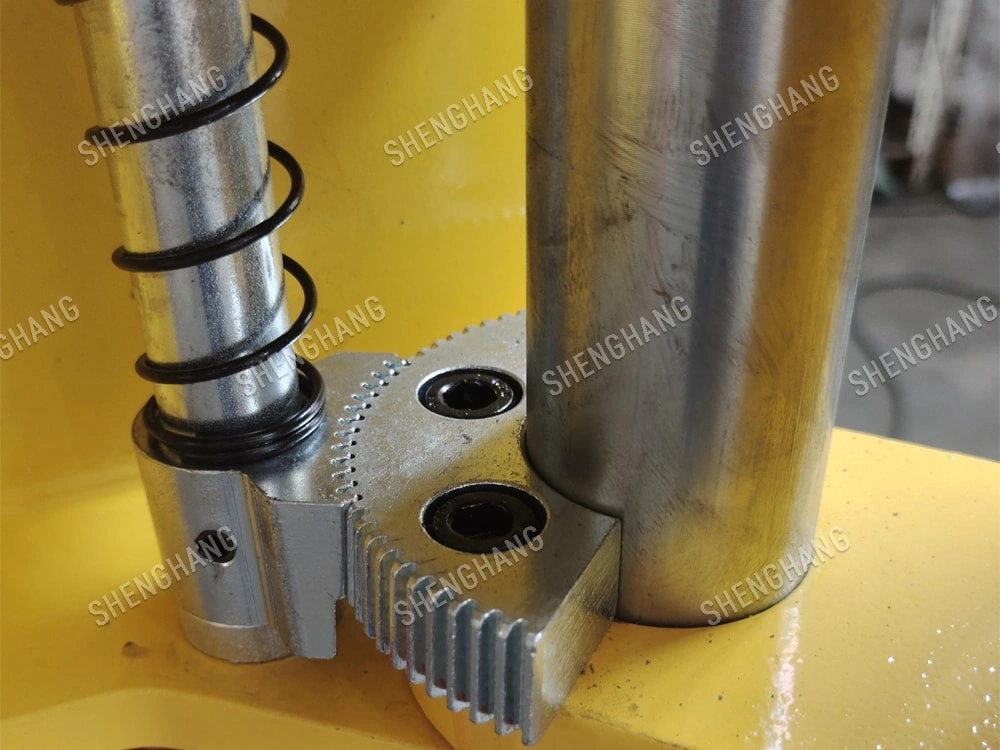

8. This product uses a dual-side unlocking method.
9. This product can be installed normally or at a 30° angle.
10. This product complies with CE standards.
