Clear Floor Two Post Lift QDSH-C400E/C450E/C850E

BACK TO LIST

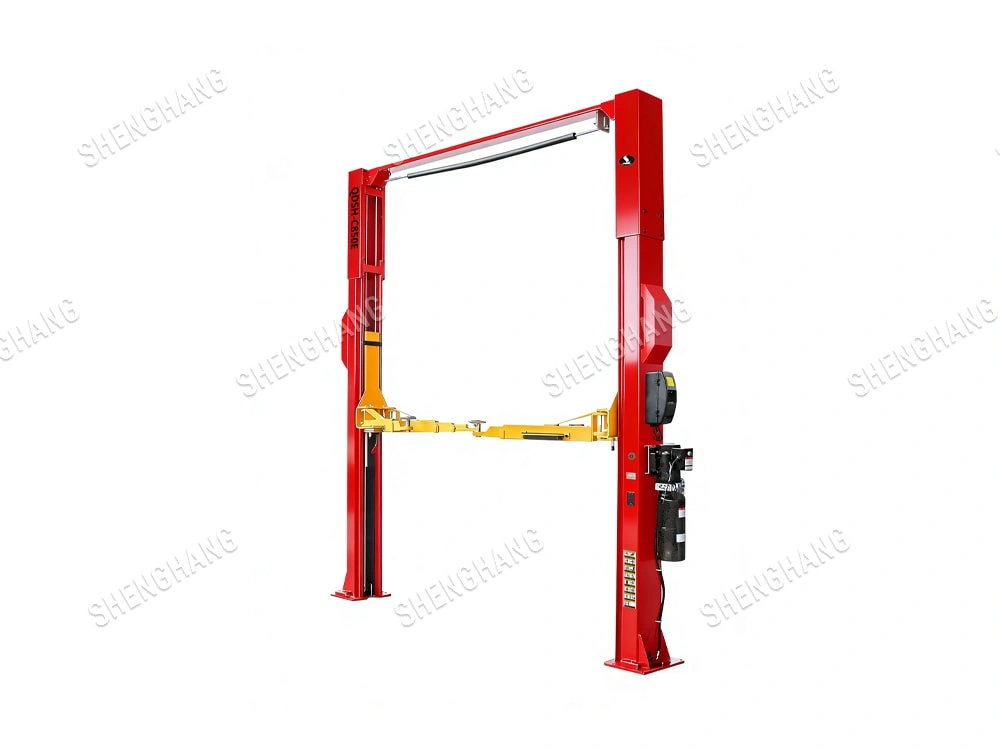

QDSH-C850E

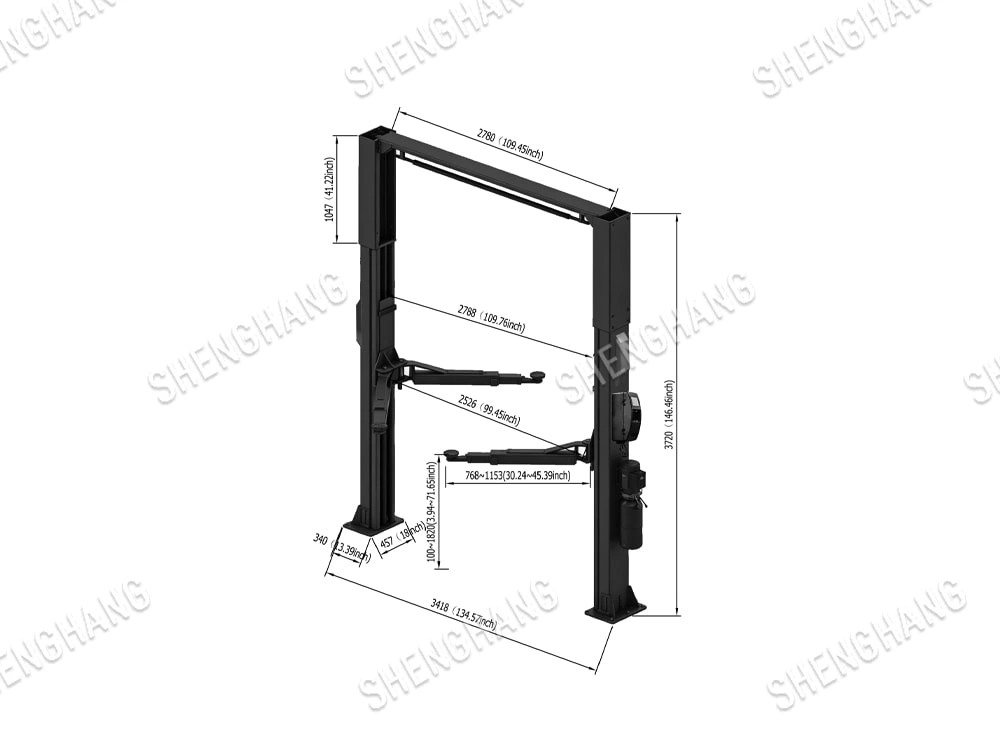

QDSH-C450E
QDSH-C450E

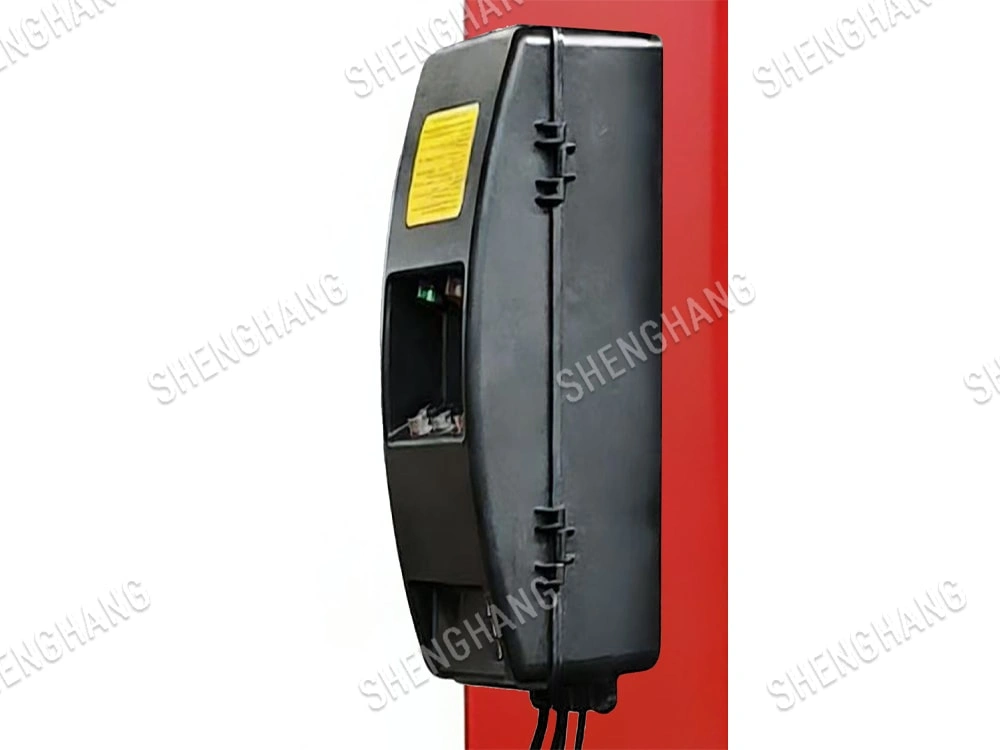

Electrolytic lock box

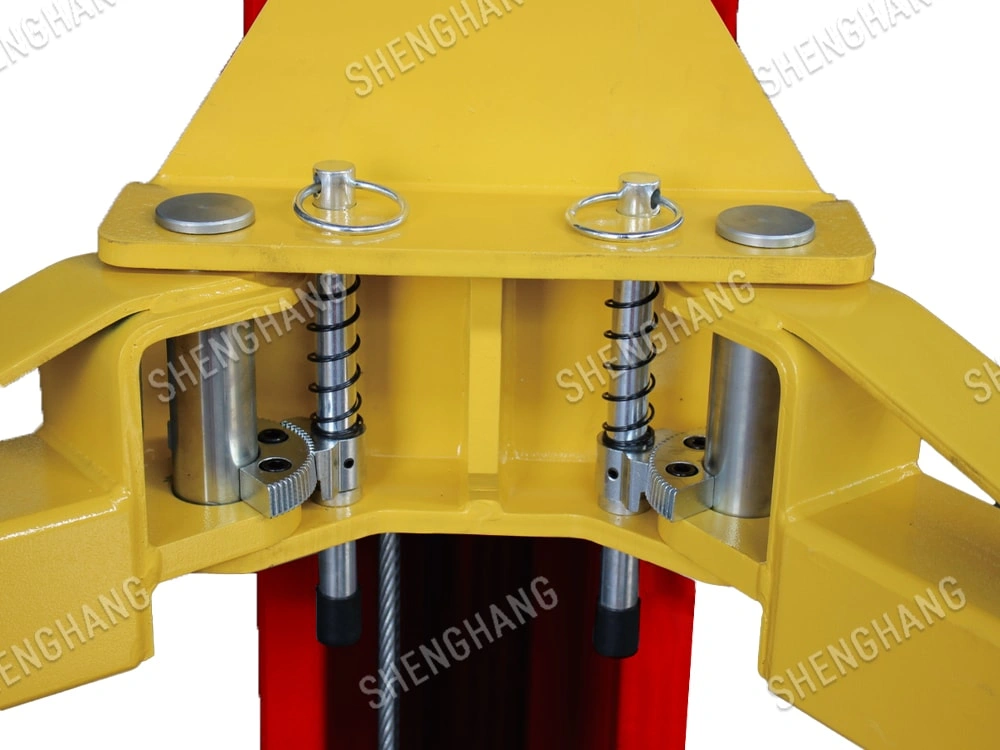

Integral type carriage

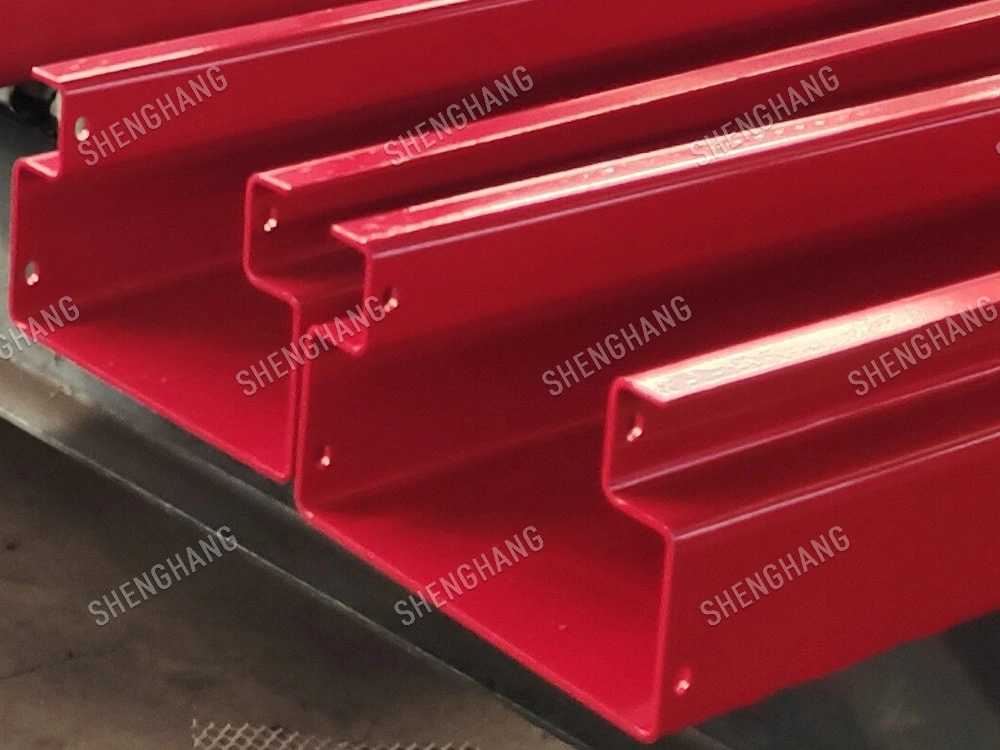

The column with 8 bending

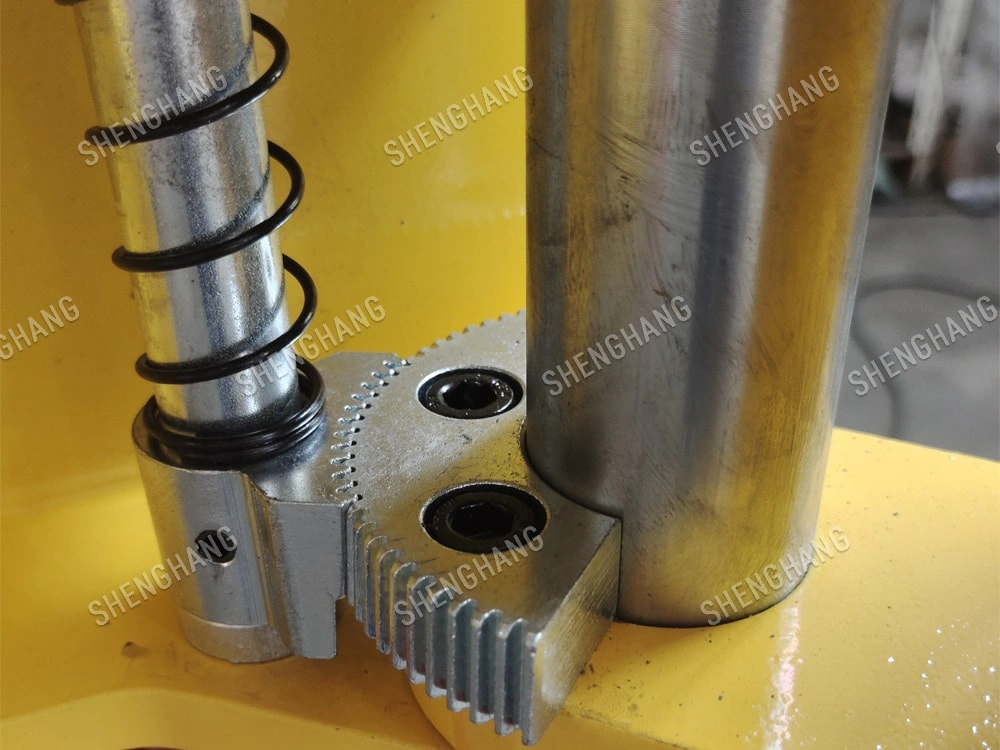

The safety lock is tightlyengaged

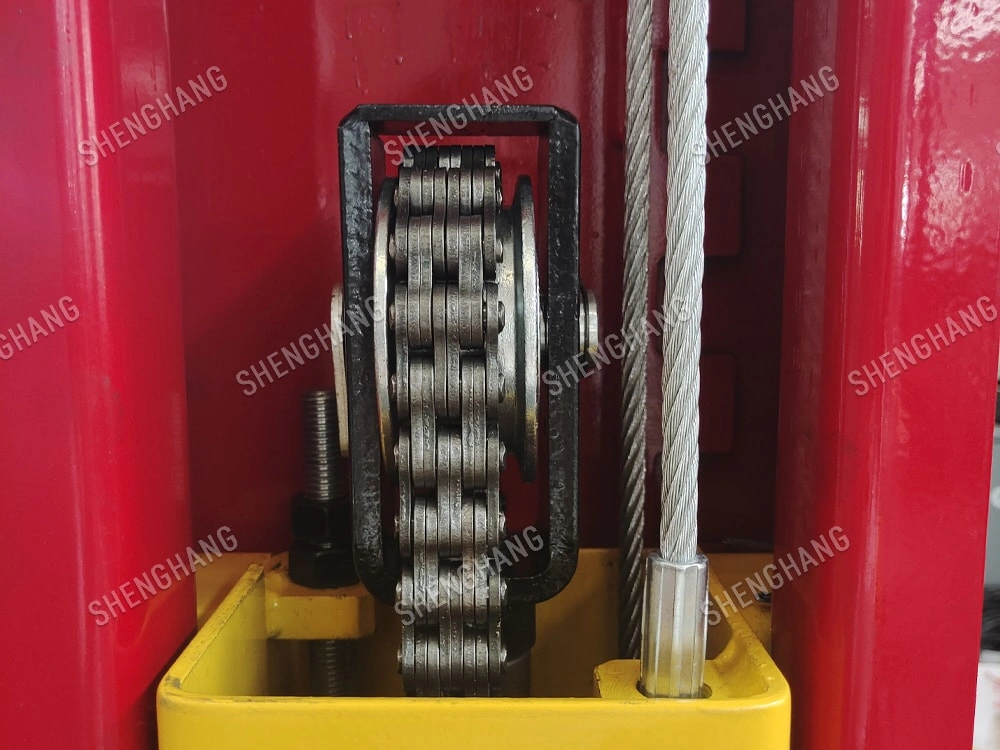

Anti-dropping andanti-rotation structure ofchain Heavy load plate chain

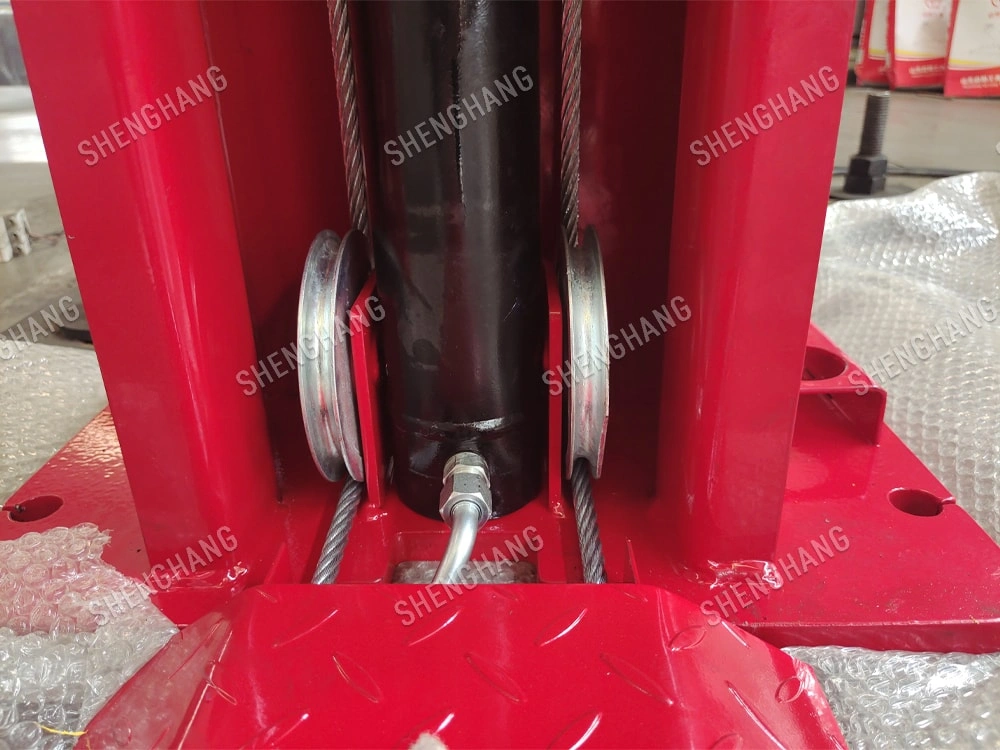

The cable pulley 45#steel is processed andthen heattreated

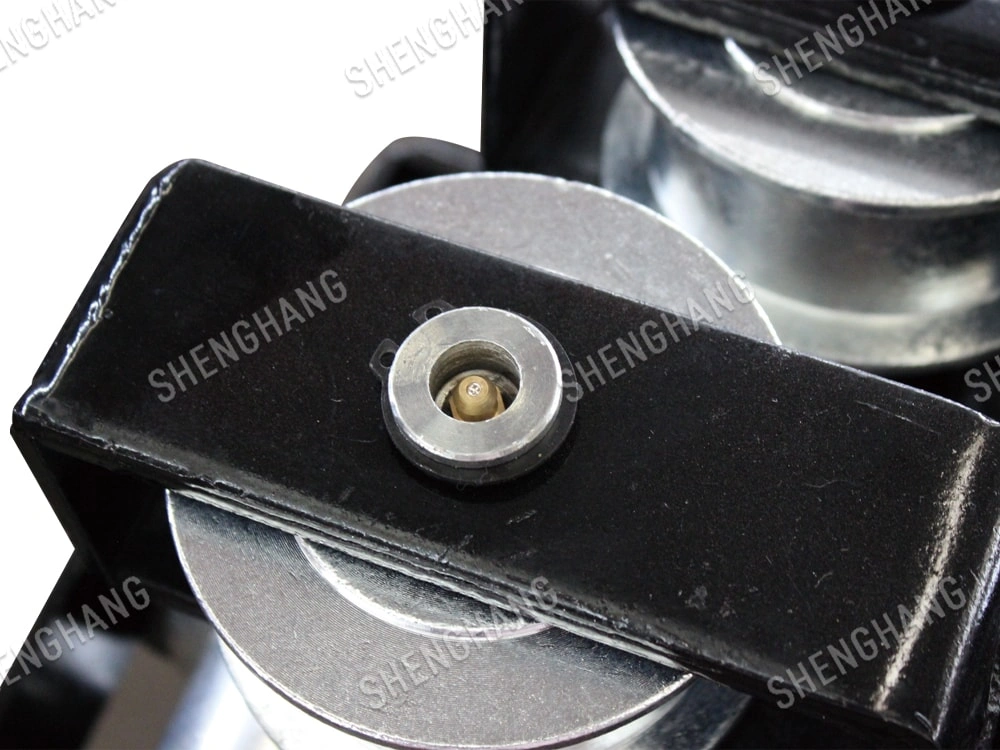

Butter nozzle design

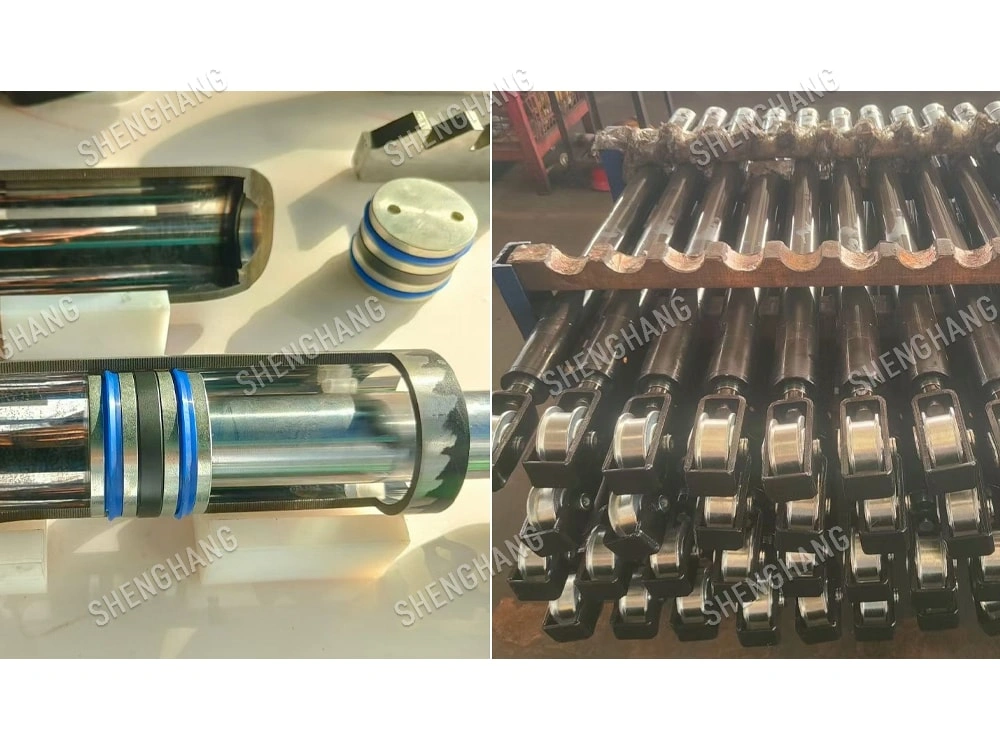

Double-channelsealedoil cylinder
QDSH-C850E
QDSH-C450E
QDSH-C450E
Electrolytic lock box
Integral type carriage
The column with 8 bending
The safety lock is tightlyengaged
Anti-dropping andanti-rotation structure ofchain Heavy load plate chain
The cable pulley 45#steel is processed andthen heattreated
Butter nozzle design
Double-channelsealedoil cylinder

PARAMETER

  • Model No.QDSH-C400E/C450E/C850E

  • Load Capacity3500/4000/4500kg

Inquiry now Download

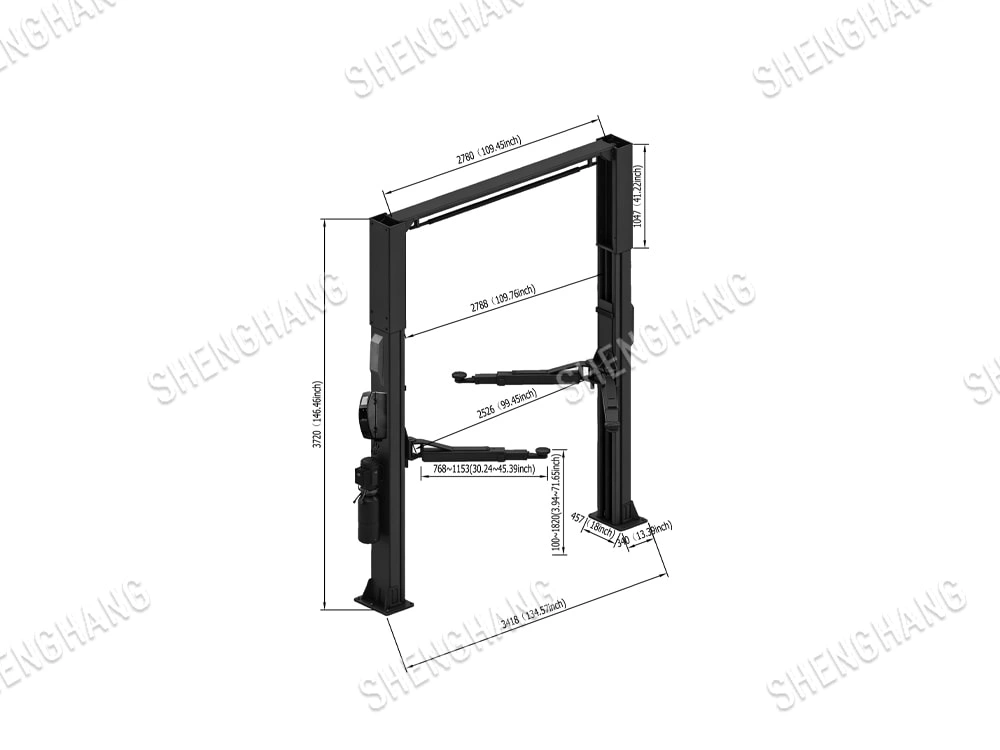

MACHINE SIZE

Model QDSH-C400EQDSH-C450EQDSH-C850E
Lifting capacity 3500kg4000kg4500kg
Max lifting height 1820mm1820mm1820mm
Minimum height 100mm100mm100mm
Overall height 3720mm3720mm3720mm
Overall width 3420mm3420mm3420mm
Lifting time 50s50s50s
Motor voltage 380V/220V380V/220V380V/220V
Motor power 2.2KW2.2KW2.2KW
Package size 2880x470x740mm2880x470x740mm2880x470x740mm

FEATURES

1.The column with 8 bending

2.Integral type carriage

3.Roof limit design is adopted to protect the roof fromdamage

4.Anti-dropping and anti-rotation structure of chain

5.Double sealing structure of oil cylinder

6.Set throttle explosion-proof valve toavoid the danger of tubing bursting incase

7.High-quality power unit with safe andreliable operation

8. This product uses an electric unlocking method.

9. Este producto cumple con las normas CE.
