Clear Floor Two Post Lift QDSH-C550E

BACK TO LIST

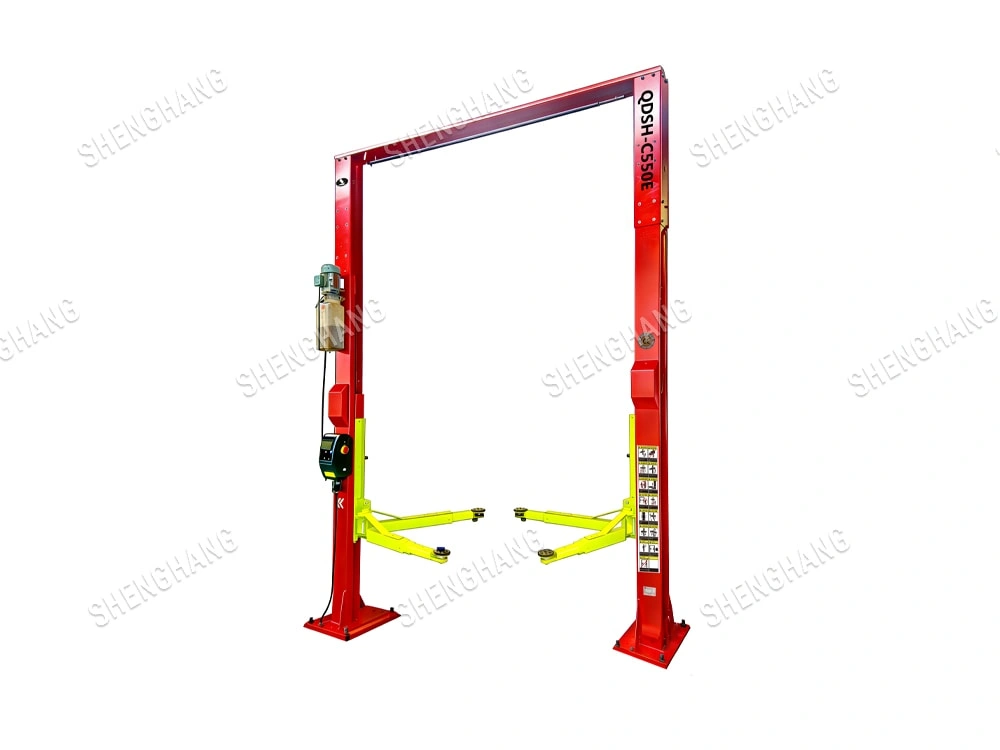

QDSH-C550E
QDSH-C550E

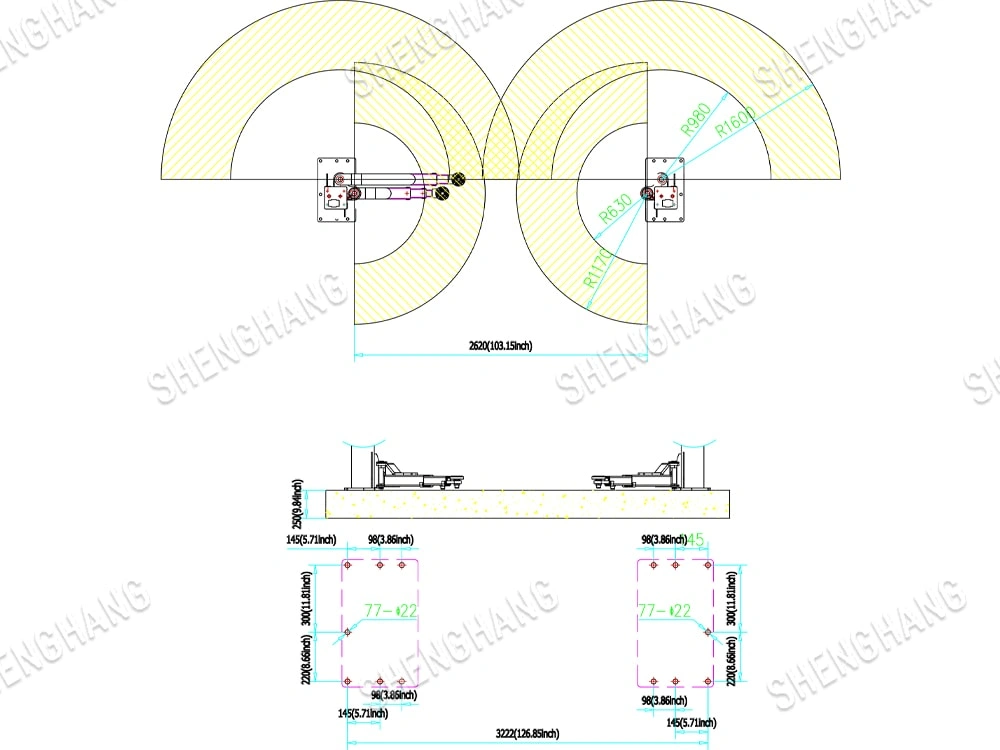

C550E

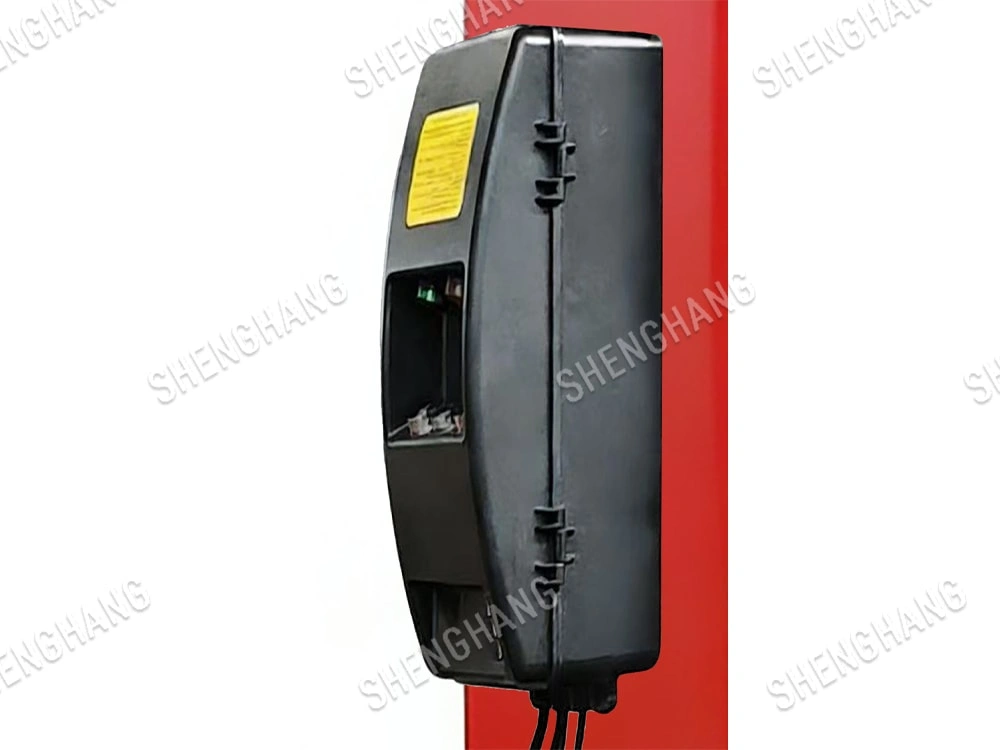

Electrolytic lock box

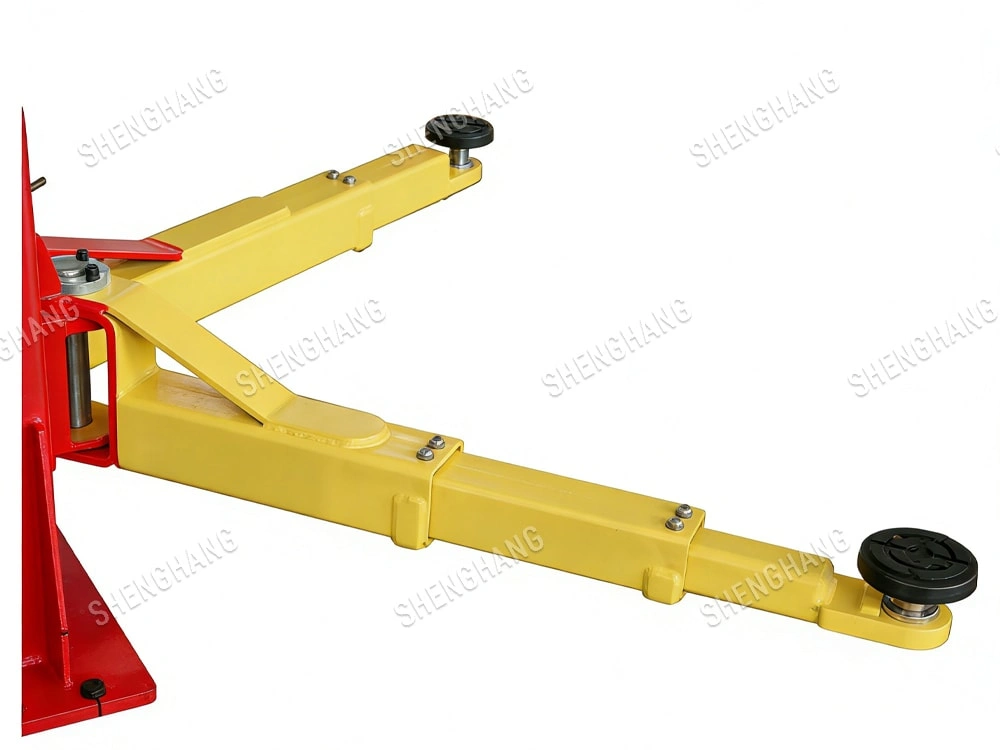

The arm adopts 3+2straightarm design
Double oil cylinder direct drive

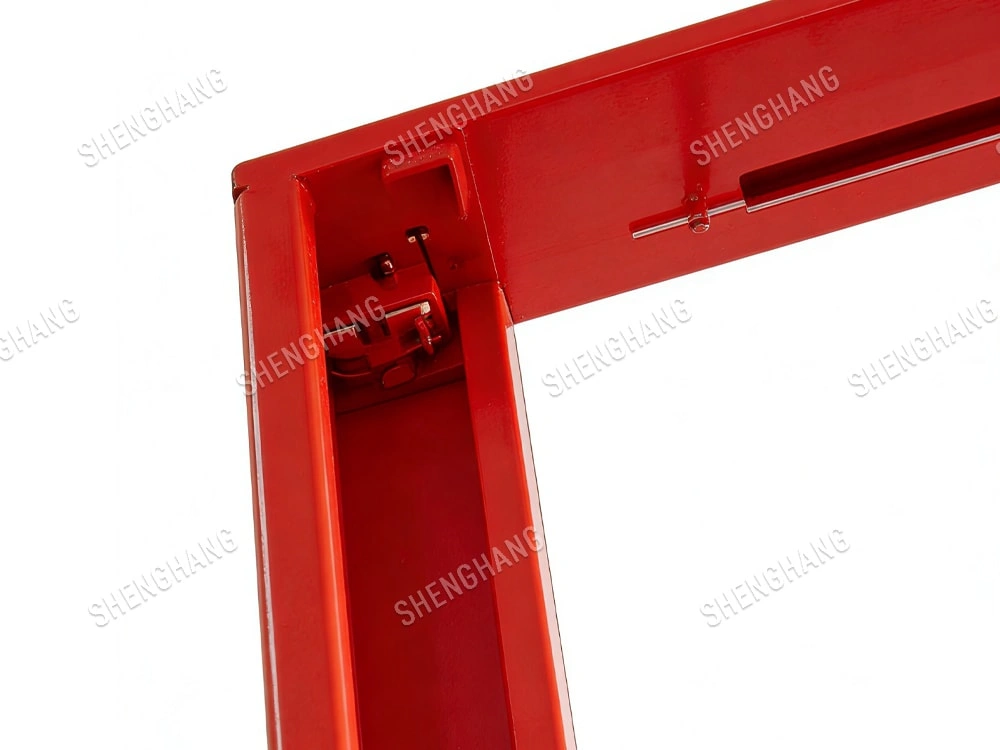

The columns are made of 6mm thick Q345 steel plates

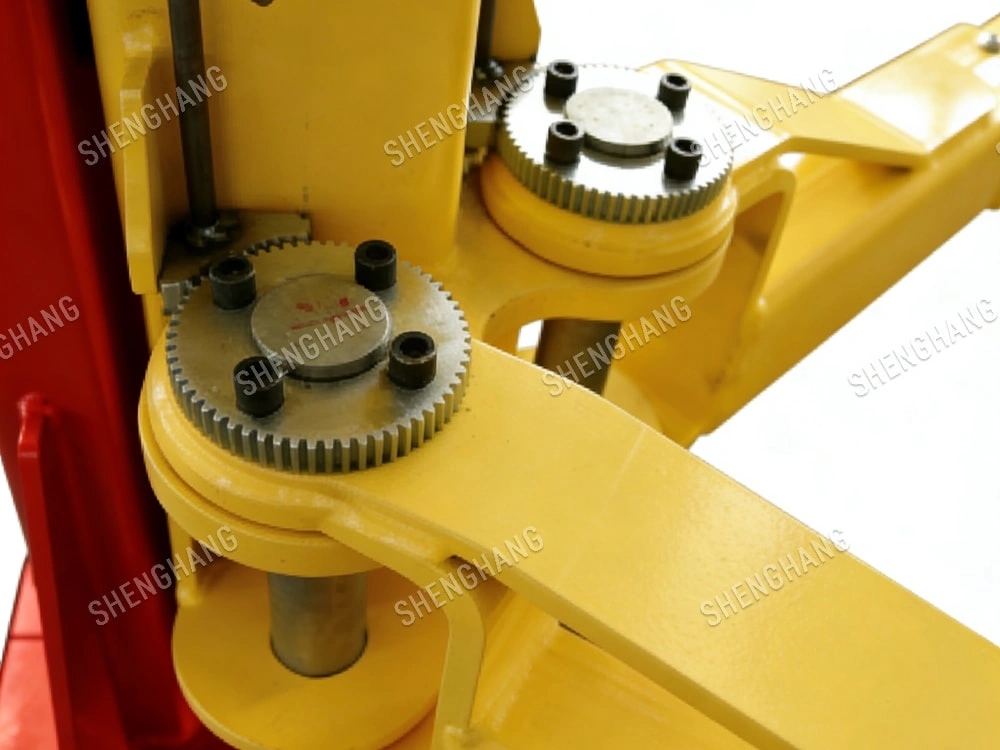

The safety lock is tightly engaged; the unlocking shaft has a self-limiting design
QDSH-C550E
QDSH-C550E
C550E
Electrolytic lock box
The arm adopts 3+2straightarm design
Double oil cylinder direct drive
The columns are made of 6mm thick Q345 steel plates
The safety lock is tightly engaged; the unlocking shaft has a self-limiting design

PARAMETER

  • Model No.QDSH-C550E

  • Load Capacity4000kg

Inquiry now Download

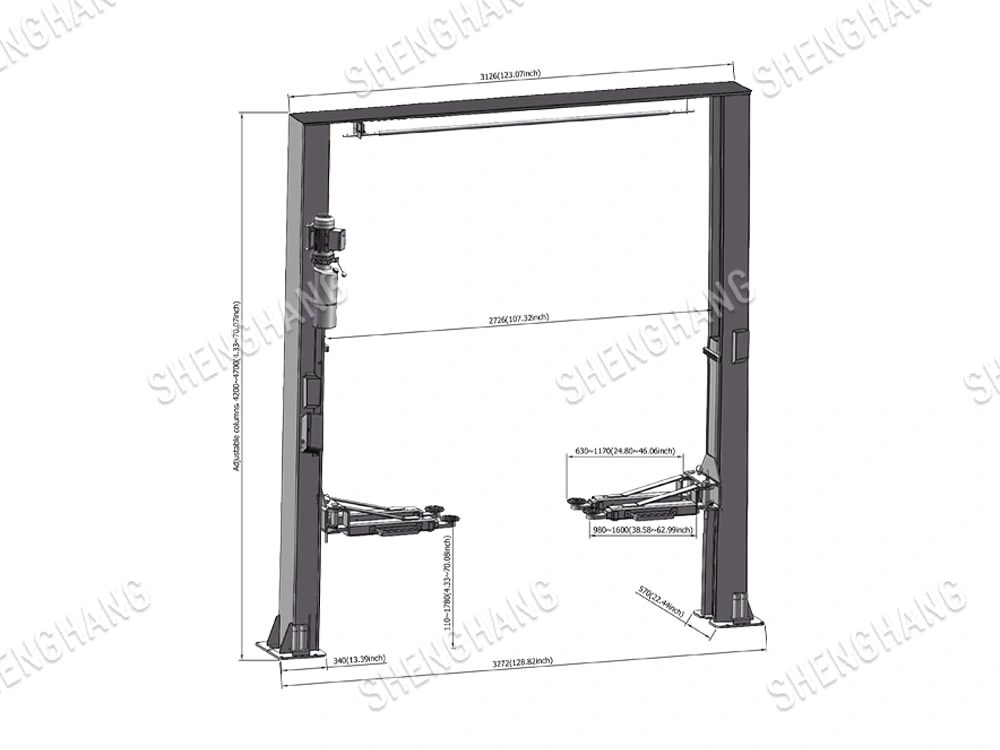

MACHINE SIZE

Model QDSH-C550E
Lifting capacity 4000kg
Max lifting height 1800mm
Minimum height 123mm
Overall height 3970mm
Overall width 3286mm
Lifting time 50s
Motor voltage 380V/220V
Motor power 2.2KW
Package size 4040x490x680mm

FEATURES

1.Column thickness is 6mm and material is Q345 steel

2.Inverted cylinder, without chain, simple structure, easy going, liftingsteadily

3.Single side electric release

4.Using middle and upper limit to ensure safe operation

5.Every cylinder passes the pressure test

6.24V safety control system

7.Pass 115% dynamic overload test and 150% Static overload test.

8.This product complies with CE standards.
