Clear Floor Two Post Lift QDSH-C630S

BACK TO LIST

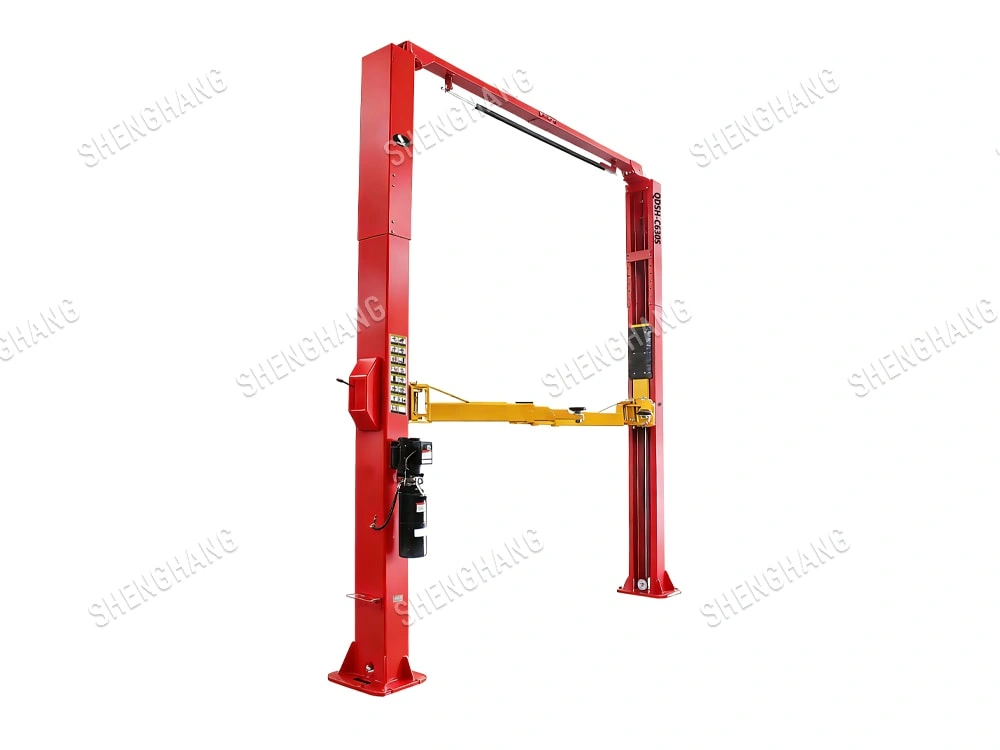

QDSH-C630S
QDSH-C630S

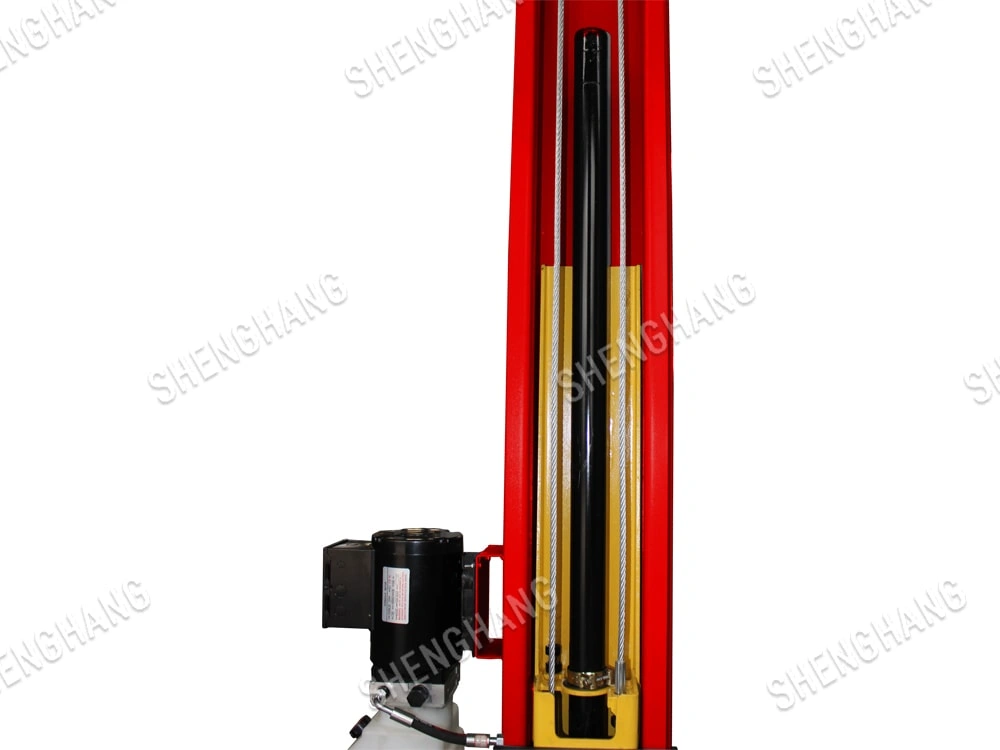

Double cylinder directdrive

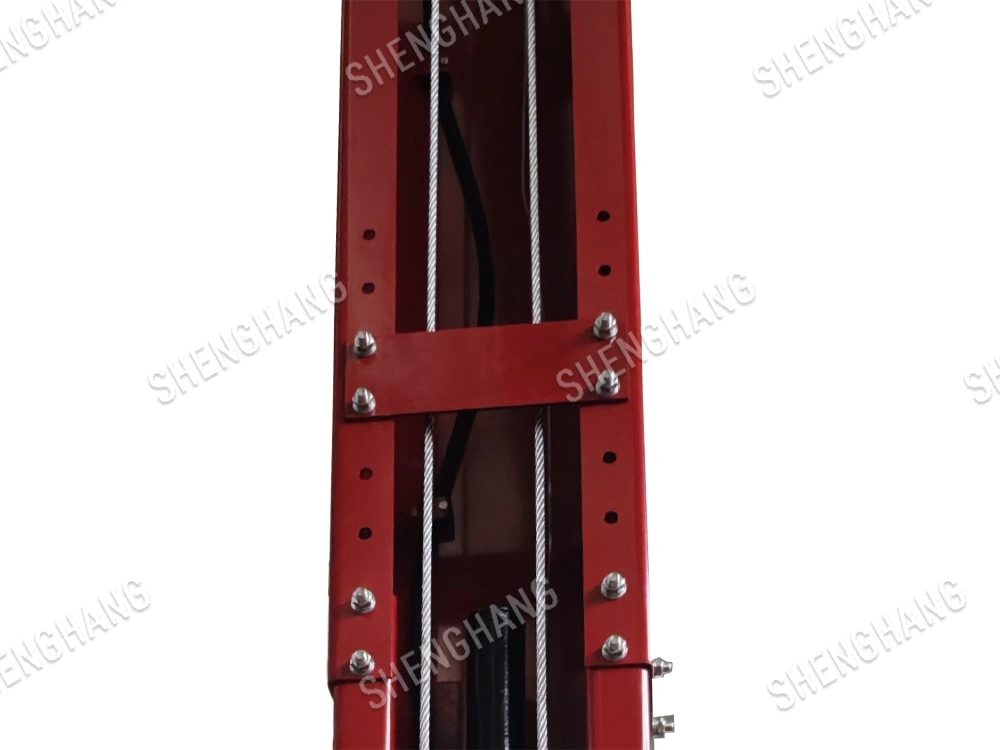

The height of the whole machine can be adjusted from min 3900 to max4200mm

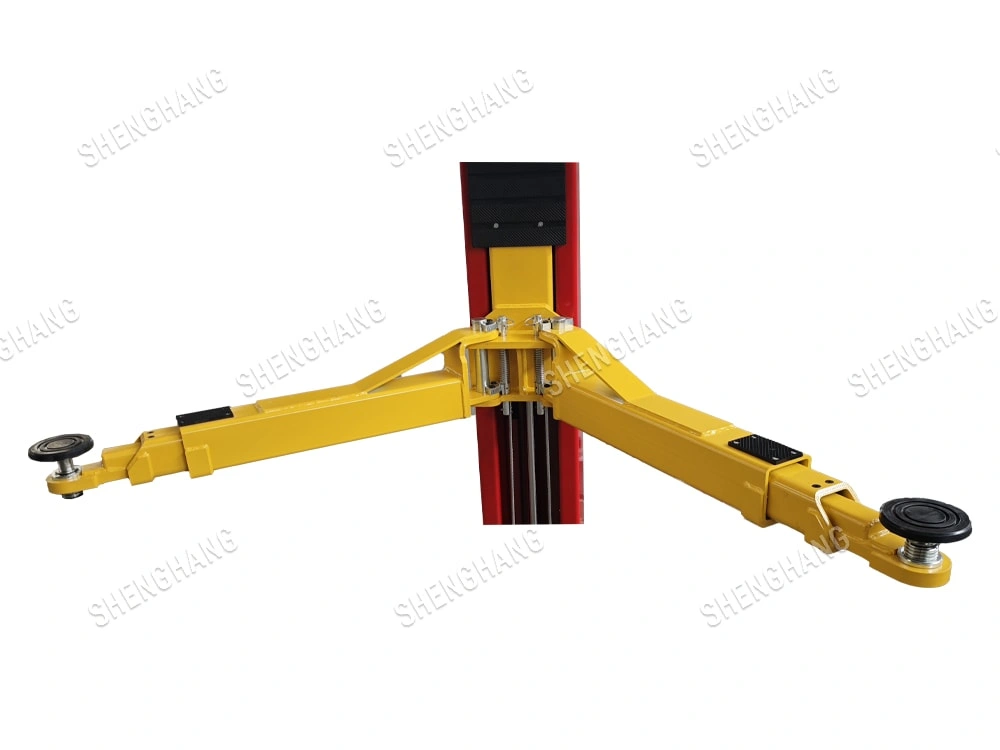

The armadopts 3+3 straightarm design

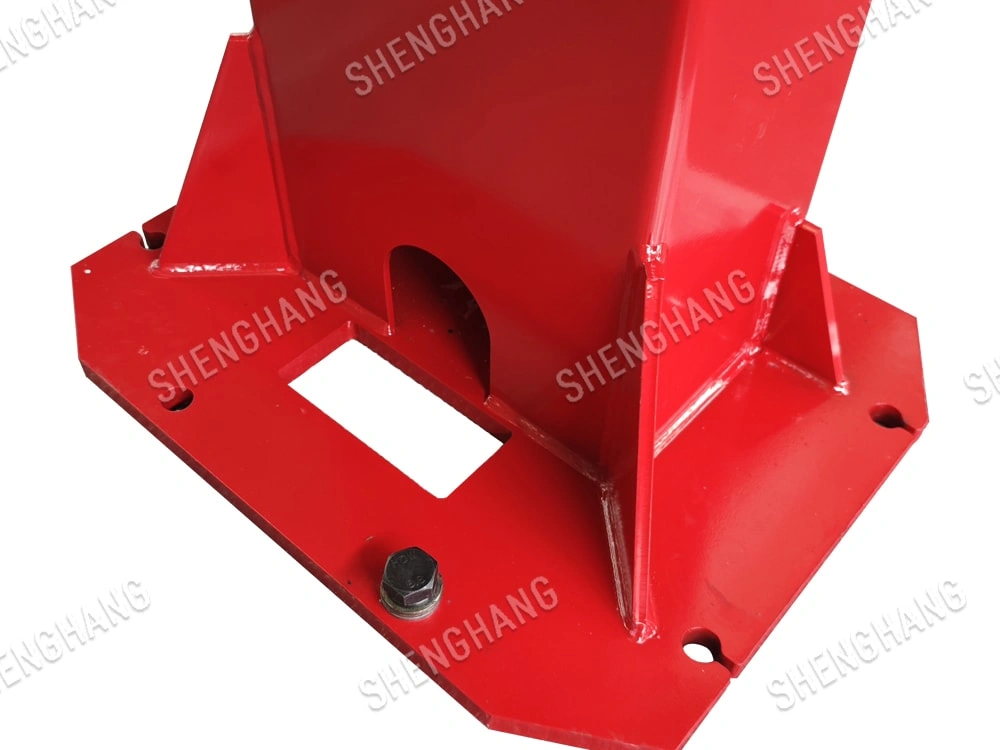

Enlarge the column base

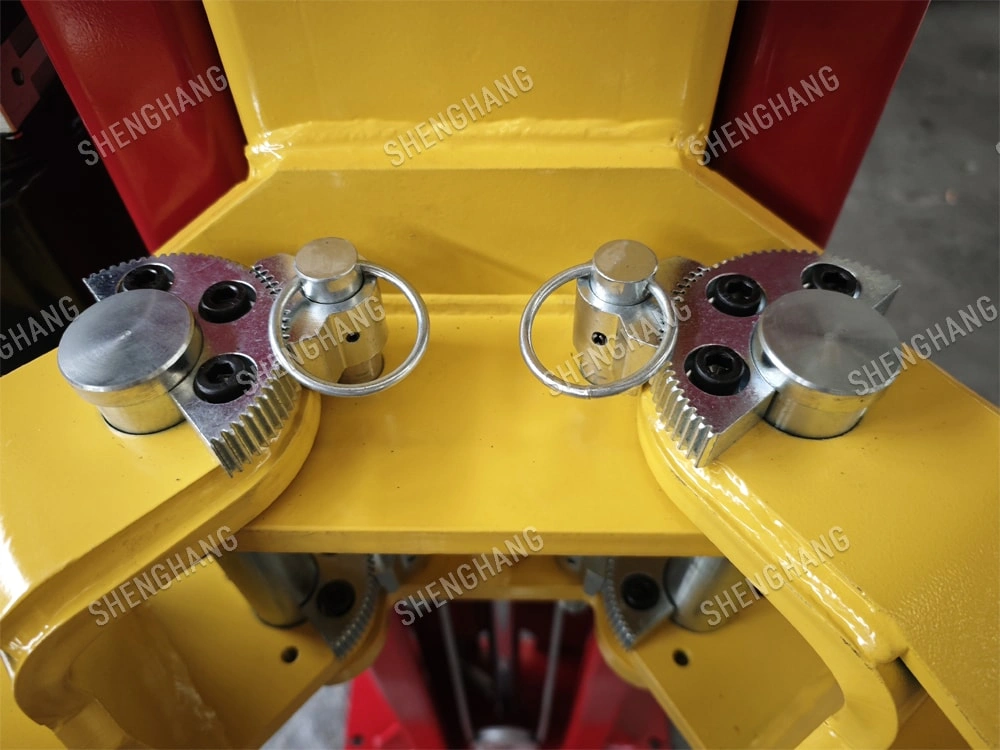

The safety lockis tightlyengaged

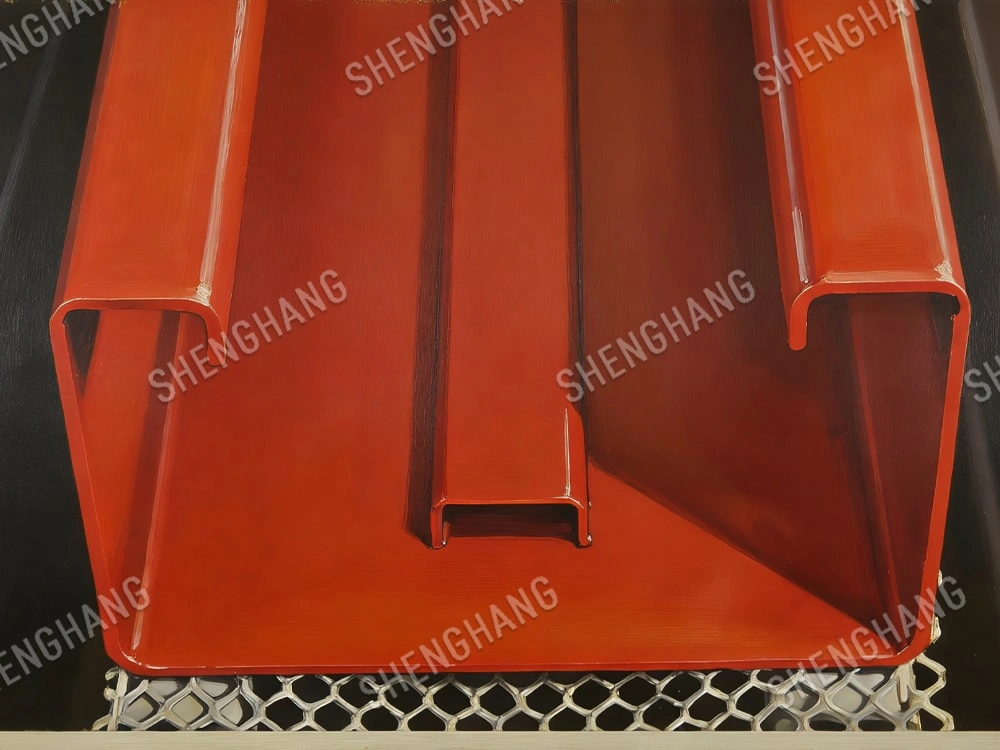

The columnwith 6 bending

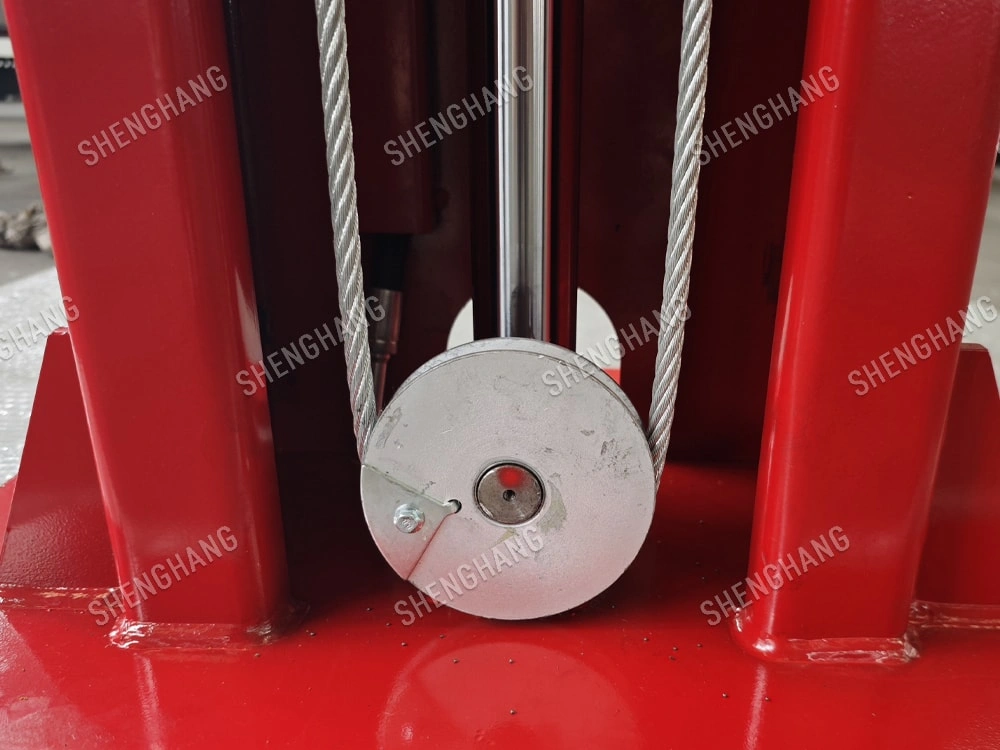

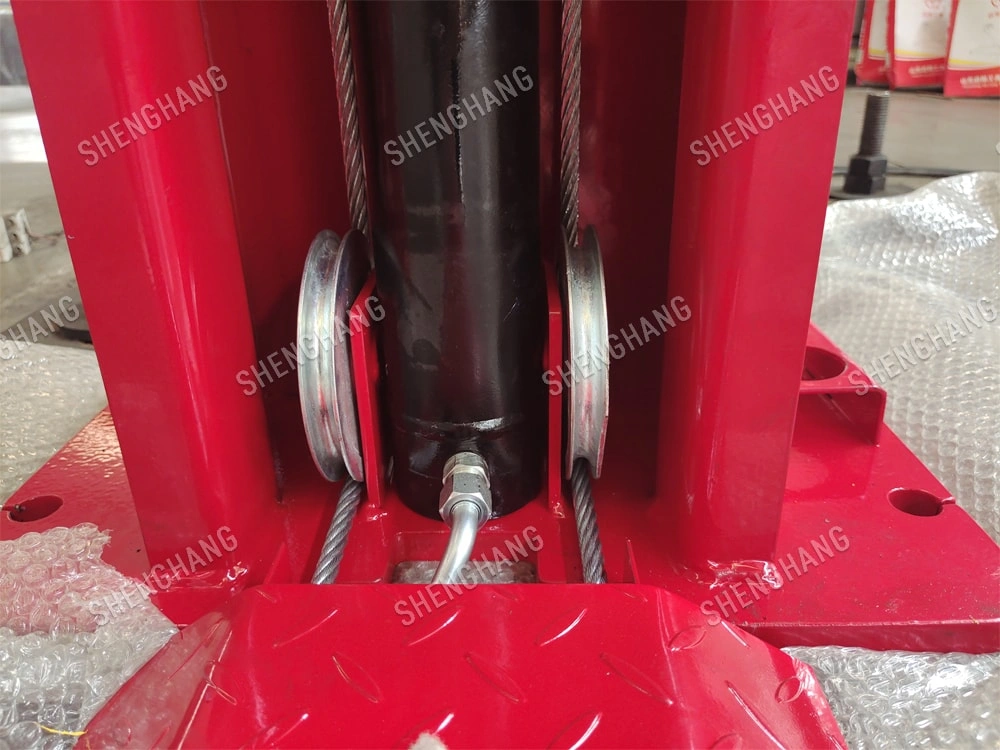

The cable pulley 45# steel is processed and then heattreated
The cable pulley 45#steel is processed andthen heattreated
QDSH-C630S
QDSH-C630S
Double cylinder directdrive
The height of the whole machine can be adjusted from min 3900 to max4200mm
The armadopts 3+3 straightarm design
Enlarge the column base
The safety lockis tightlyengaged
The columnwith 6 bending
The cable pulley 45# steel is processed and then heattreated
The cable pulley 45#steel is processed andthen heattreated

PARAMETER

  • Model No.QDSH-C630S

  • Load Capacity5500kg

Inquiry now Download

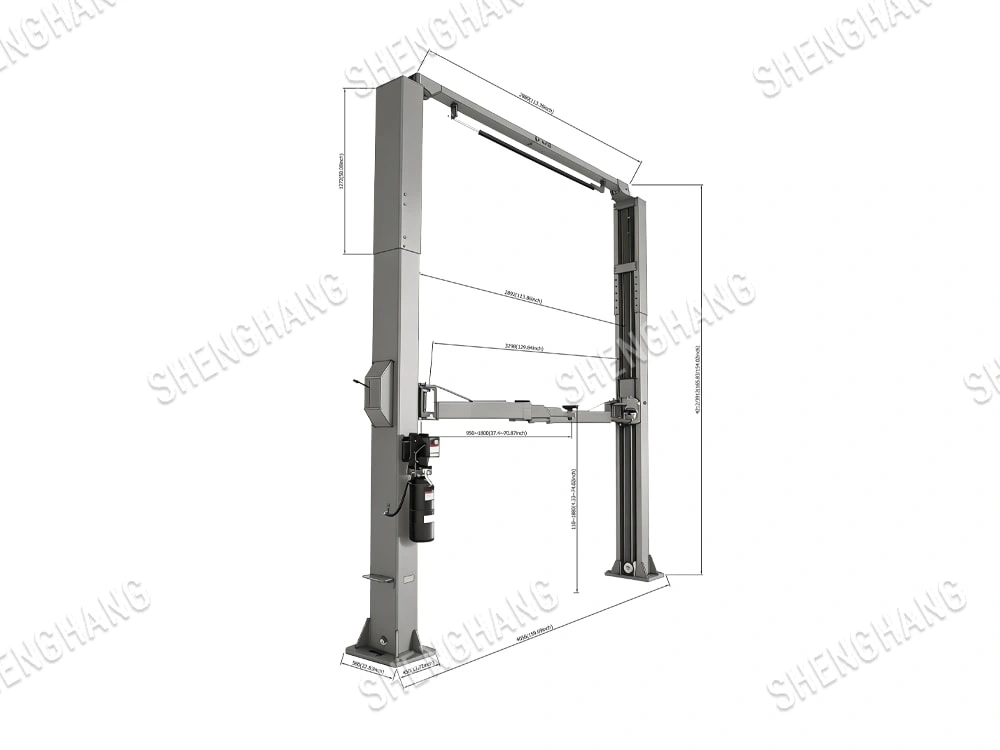

MACHINE SIZE

Model QDSH-C630S
Lifting capacity 5000kg
Max lifting height 1900mm
Minimum height 100mm
Overall height 4000mm
Overall width 3498mm
Lifting time 50s
Motor voltage 380V/220V
Motor power 3KW
Package size 2980*550*720

FEATURES

1.The column with 6 bending

2.Enlarge the column base

3.Double cylinder direct drive

4.The arm is designed with two extended straight arms

5.Roof limit design is adopted to protect the roof from damage

6.Double-section structure, the height of the whole machinecan be adjusted

7.Set throttle explosion-proof valve to avoid the danger oftubing bursting in case

8.High-quality power unit with safe and reliable operation

9.This product uses a single-sided unlocking method.

10.This product complies with CE standards.
