Clear Floor Two Post Lift QDSH-C830S

BACK TO LIST
QDSH-C830S
C830S
C830S
C830S
QDSH-C830S
The armadopts 3+2 straightarm design

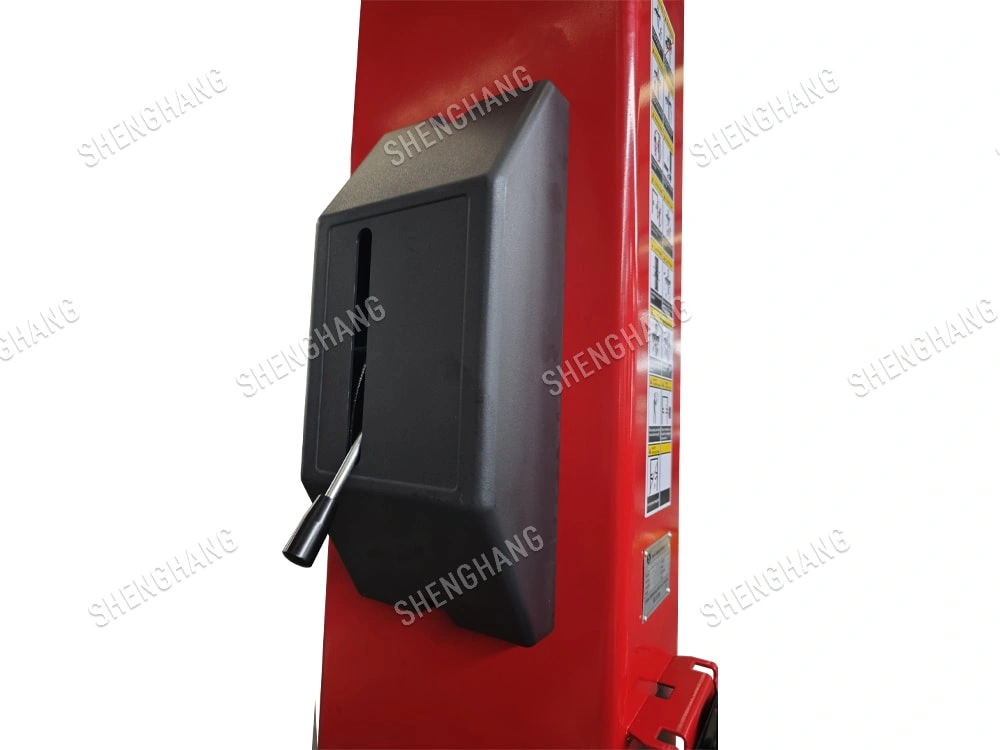

Single sidelockrelease system

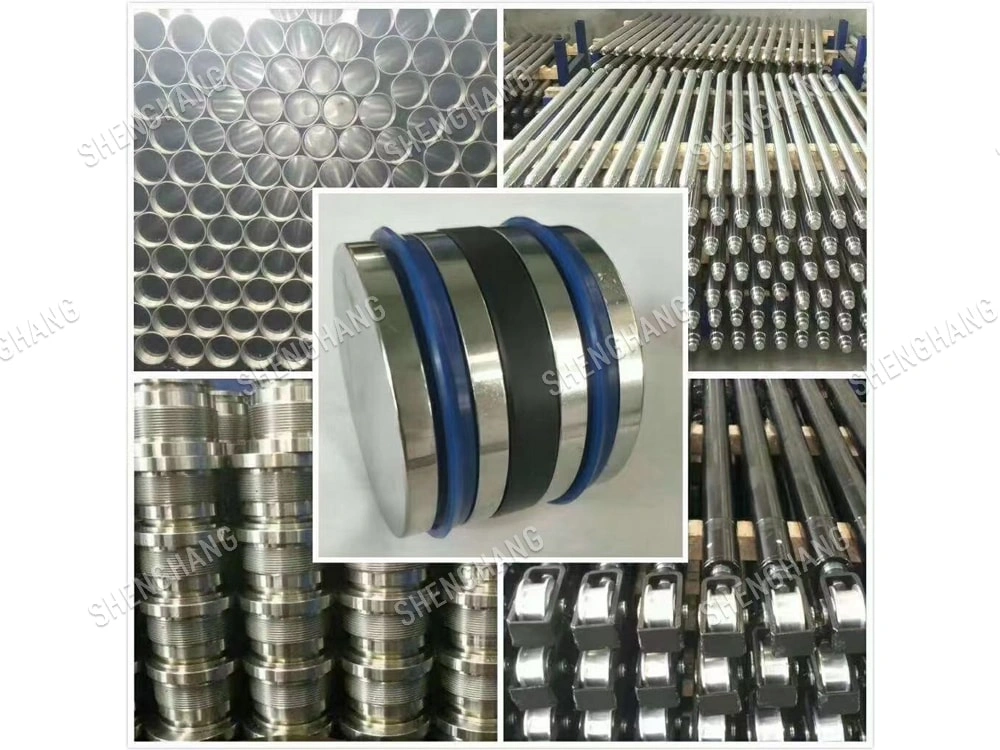

Double-channelsealedoil cylinder

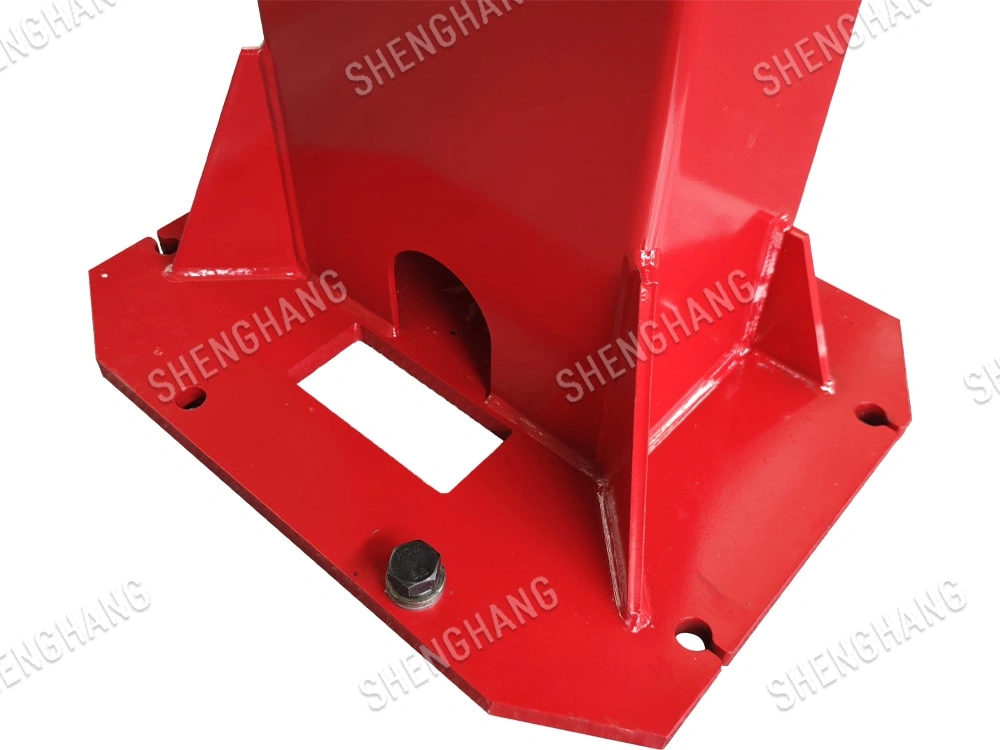

Enlarge the column base

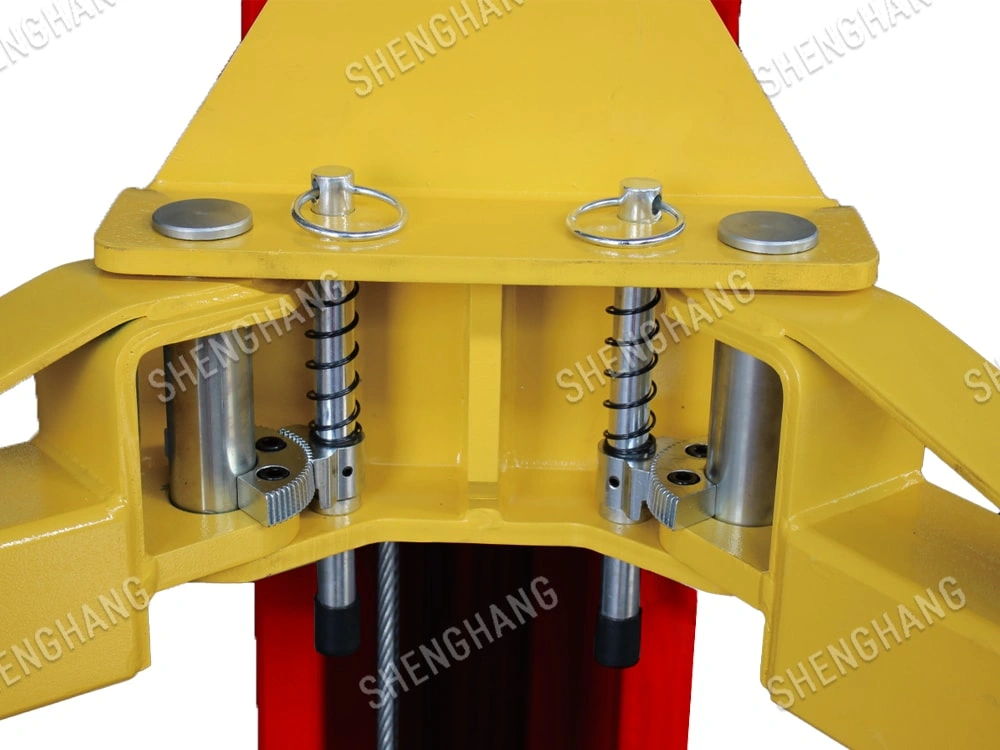

Integral type carriage

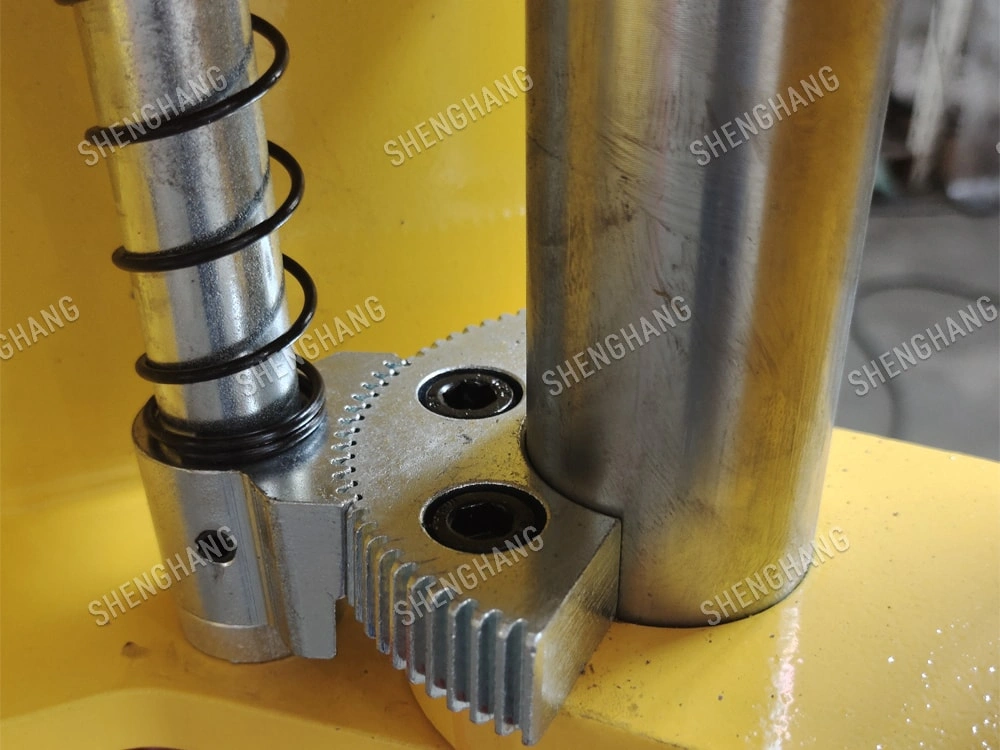

The safety lock is tightlyengaged

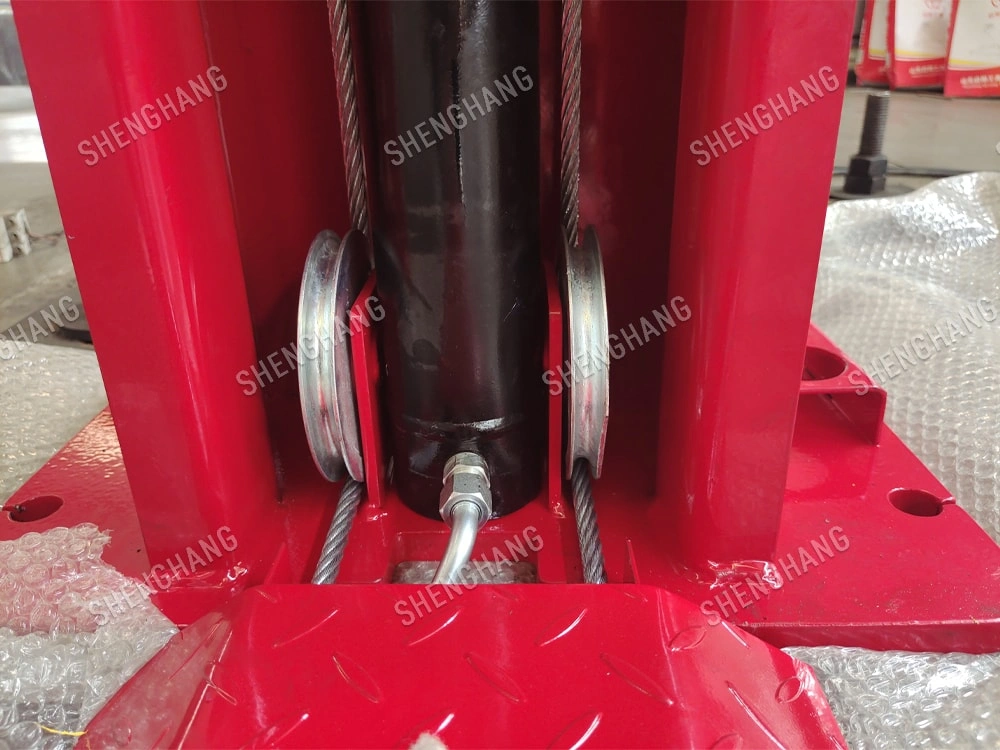

The cable pulley 45#steel is processed andthen heattreated

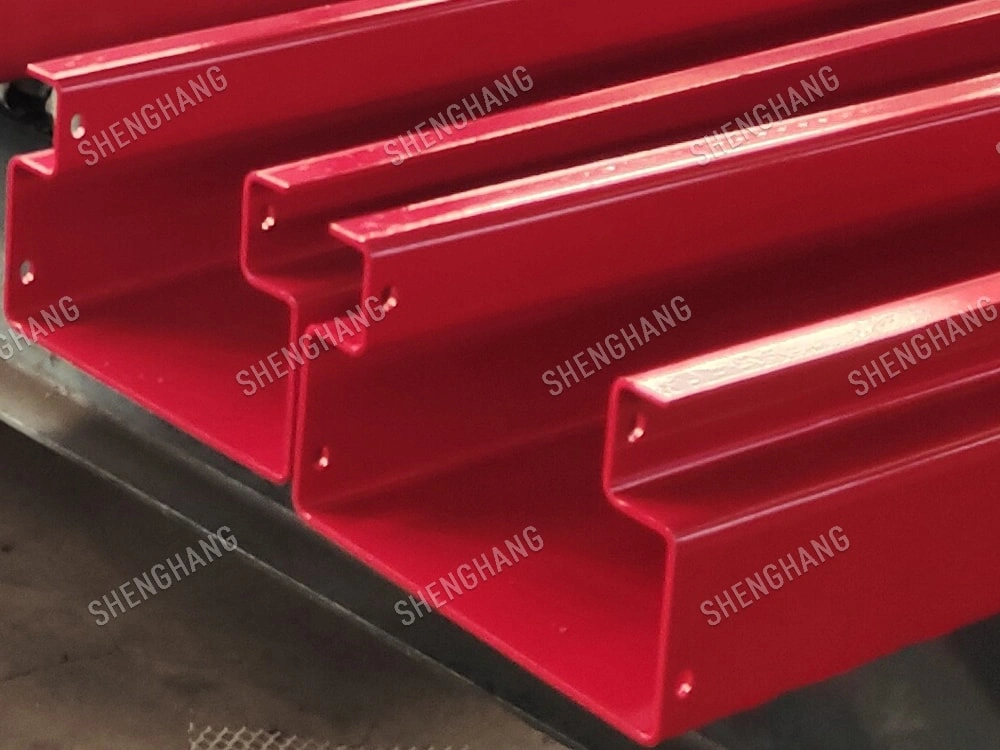

The column with 8 bending
QDSH-C830S
C830S
C830S
C830S
QDSH-C830S
The armadopts 3+2 straightarm design
Single sidelockrelease system
Double-channelsealedoil cylinder
Enlarge the column base
Integral type carriage
The safety lock is tightlyengaged
The cable pulley 45#steel is processed andthen heattreated
The column with 8 bending

PARAMETER

  • Model No.QDSH-C830S

  • Load Capacity4500kg

Inquiry now Download

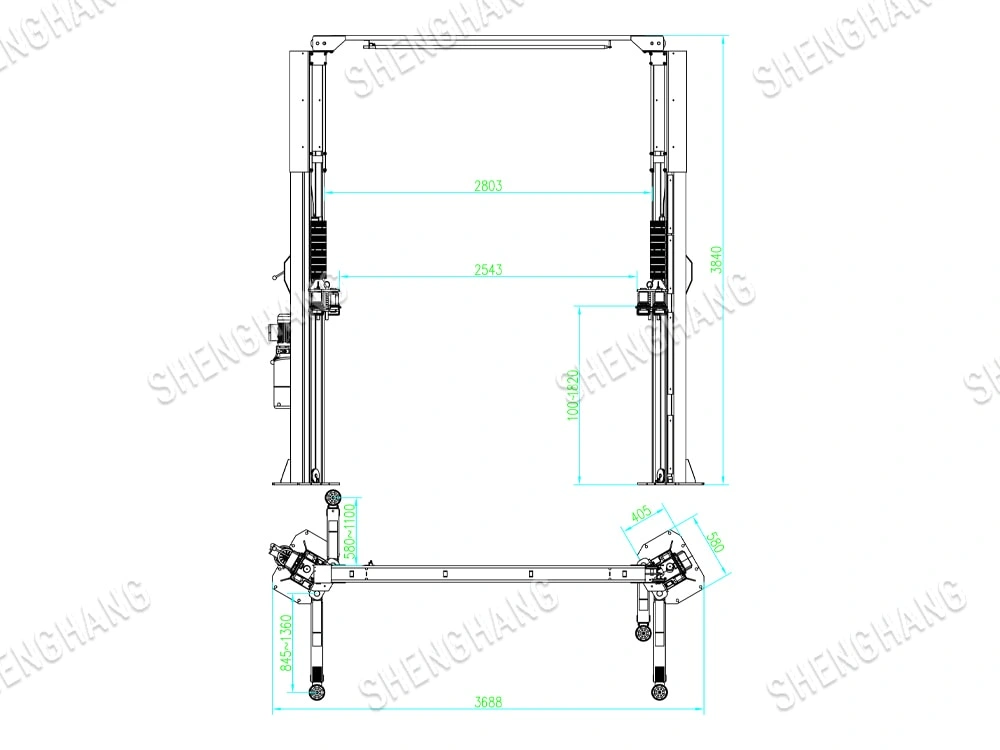

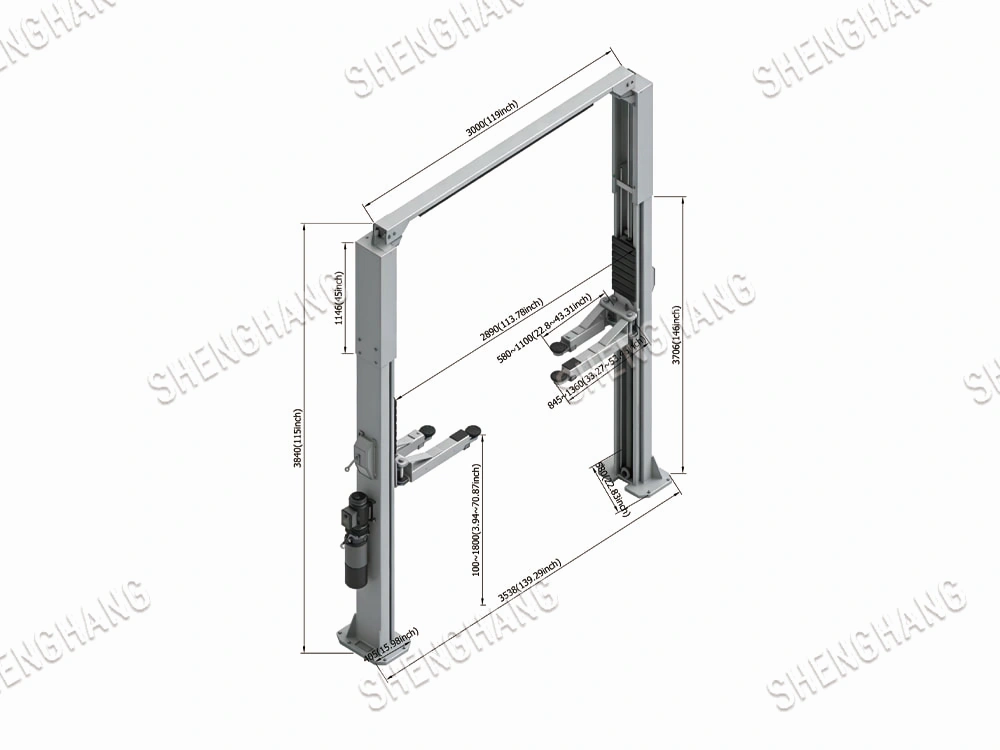

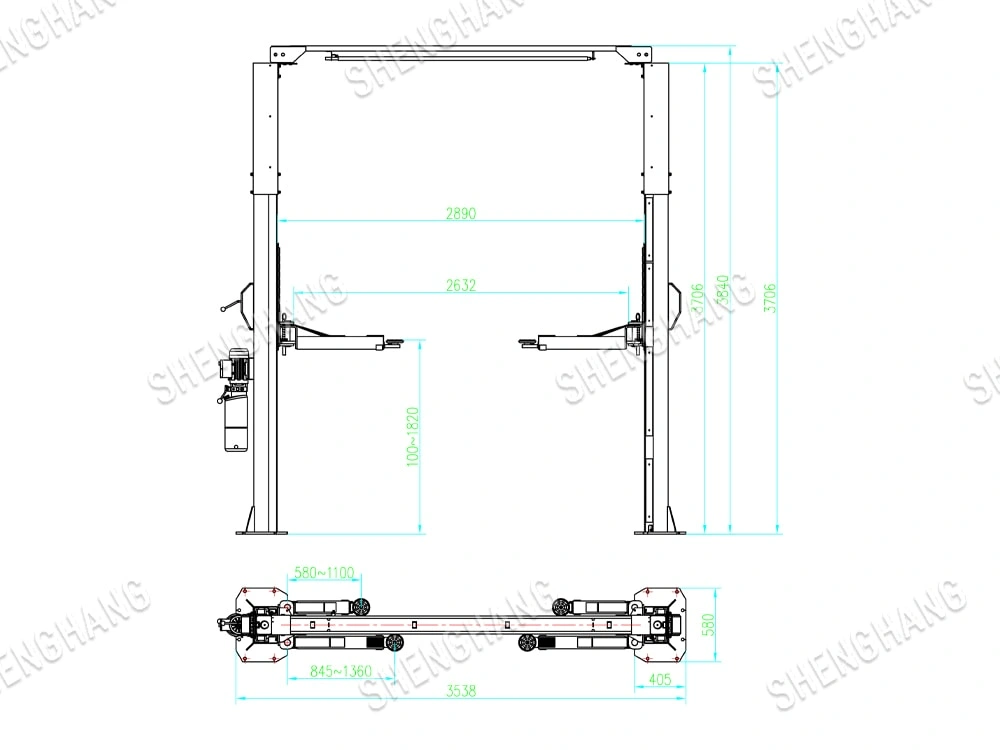

MACHINE SIZE

Model QDSH-C830S
Lifting capacity 4500kg
Max lifting height 1820mm
Minimum height 100mm
Overall height 3870mm
Overall width 3531/3564mm
Lifting time 50s
Motor voltage 380V/220V
Motor power 2.2KW
Package size 2880x600x1030mm

FEATURES

1. The column features an 8-bend design.

2. One-piece bracket.

3. Top cover limiting design protects the top cover from damage.

4. The chain has anti-fall and anti-rotation structures.

5. The hydraulic cylinder uses a double-sealing structure.

6. Equipped with a throttling explosion-proof valve to avoid the risk of hydraulic pipe rupture.

7. Uses a high-quality power unit for safe and reliable operation.

8. This product uses a single-sided unlocking method.

9. This product can be installed normally or at a 30° angle.

10. This product complies with CE standards.
