PARAMETER

  • Model No.QDSH-PJS8088

  • Load Capacity15000kg

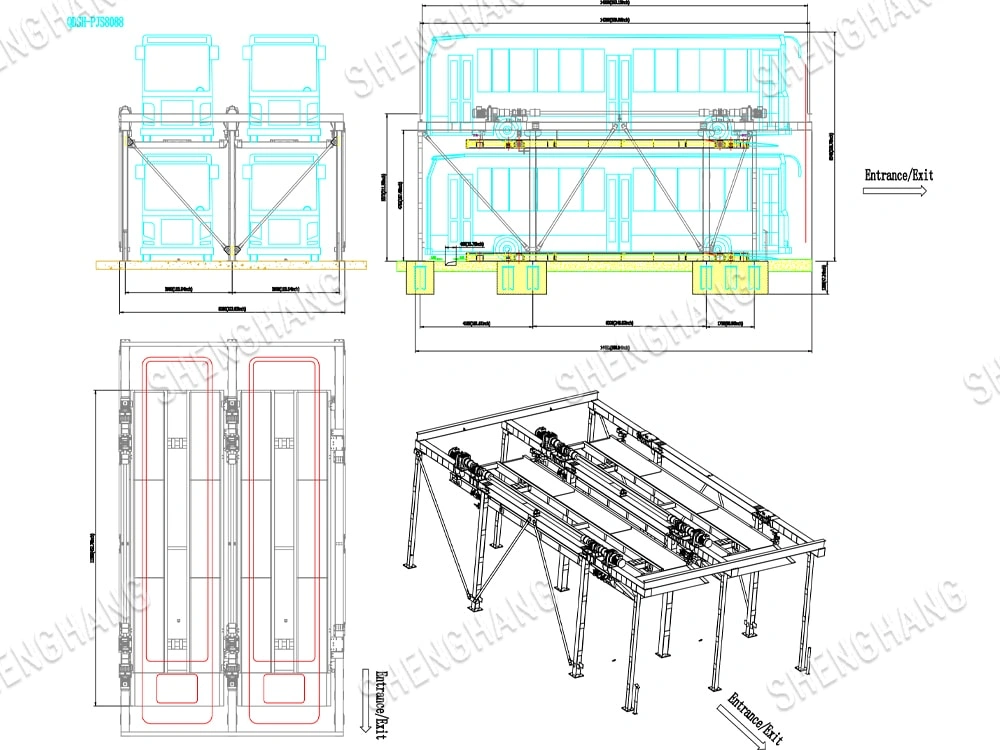

MACHINE SIZE

Model No. QDSH-PJS8088
Main Structure Framework style
Parking Weigh ≤15000KG
Parking Specifications ≤13000*2700 (excluding rearview mirror)*3900mm
Design Standards 《GB/T 17907》《GB/T 26559》《GB/T 26476》《JB/T 8909》
Storage Mode Reverse entry and forward exit
Driving method Motor + Steel wire rope
Lifting speed 3m/min(frequency adjustable)
Running Noise(Db(A)) ≤75 (indoor) / ≤70 (outdoor)

FEATURES

◆The equipment has a small footprint and high space utilization, and the number ofcolumns can be arranged reasonably according to user requirements.

◆We can design packaging forms such as full packaging, semi packaging, simplepackaging, and unpackaged according to user requirements.

◆Low equipment cost and low maintenance costs.

◆Vertical lifting, simple operation, convenient access to vehicles, and low failurerate.

◆Comprehensive safety protection measures such as fall prevention and emergencyparking

◆Adopting various control methods such as buttons and remote control, the opera-tion is simple.
