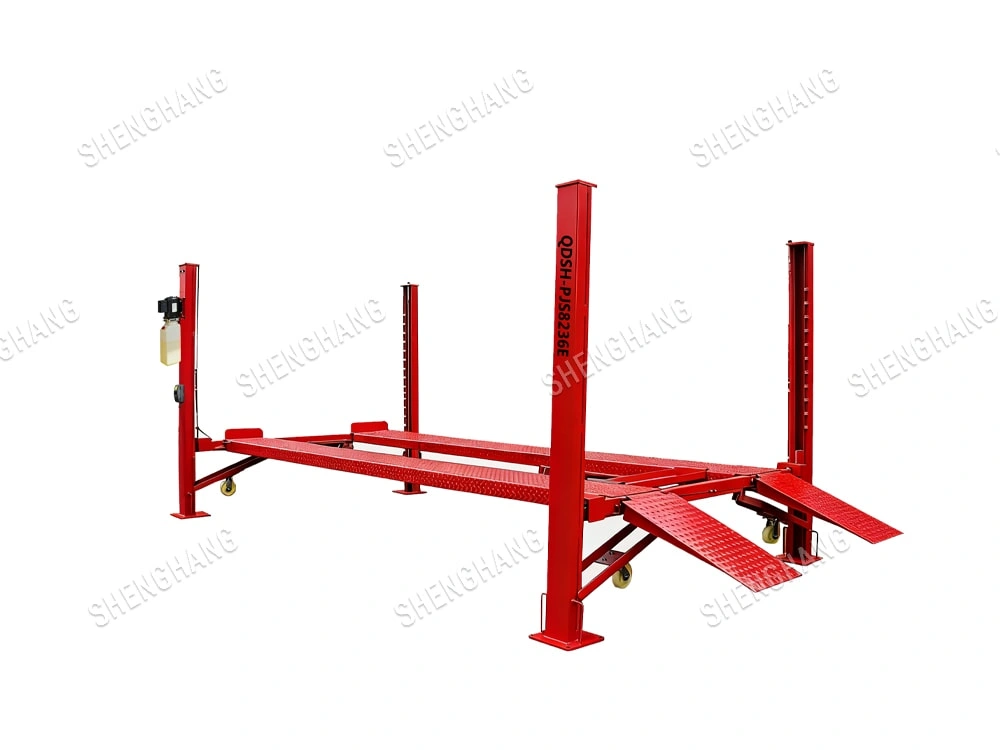

Four Post Parking Lift QDSH-PJS8236E

BACK TO LIST
QDSH-PJS8236E 拷贝
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E
QDSH-PJS8236E 1 拷贝
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E
QDSH-PJS8236E 拷贝
QDSH-PJS8236E 1 拷贝

PARAMETER

  • Model No.QDSH-PJS8236E

  • Load Capacity3600kg

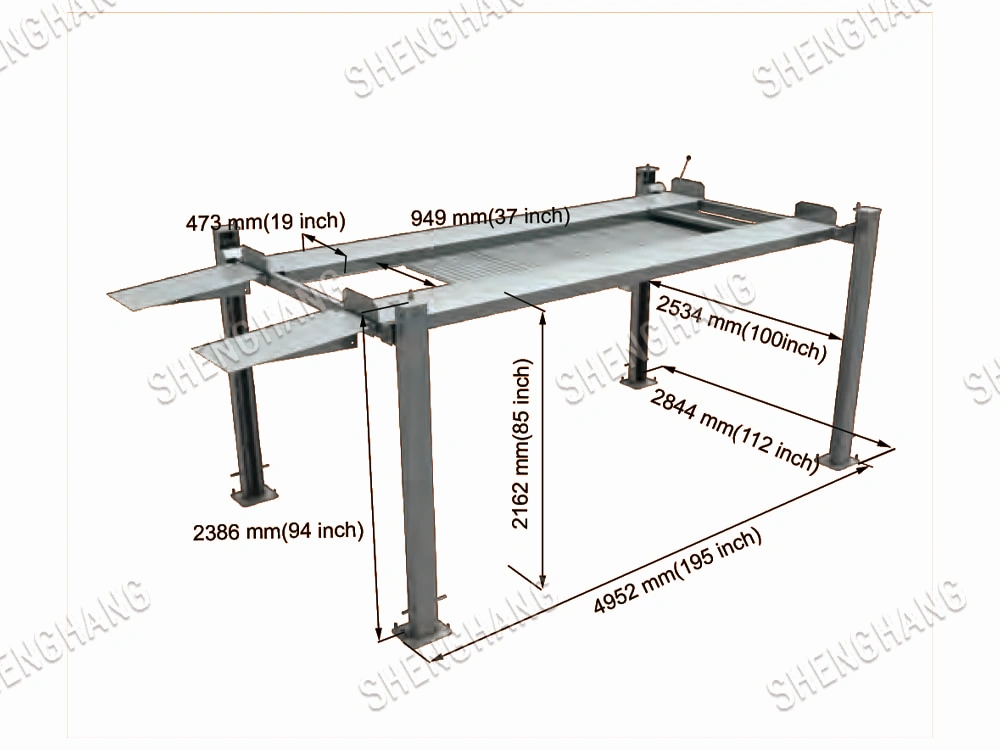

MACHINE SIZE

Model No. QDSH-PJS8236E
Lifting capacity 3600KG
Max height 2070mm
Minimum height 120mm
Overall height 2328mm
Overall length 5670mm
Lifting time 50S
Motor voltage 380V/220V
Motor Power 2.2KW
Package size 4800*570*610mm

FEATURES

◆The post and platform are made with a steel plate bend.

◆Automatic release and unlocking via electric unlocking.

◆Square pipe deem design.

◆Cylinder front fixed pattern eliminates cylinder fracture.

◆Platform pitch adjustable for various vehicles.

◆Neumatic synchronous unlocking design.

◆Every cylinder passes the pressure test.

◆Accords with European Union CE standards.
