Four Post Parking Lift QDSH-PJS8325

BACK TO LIST
QDSH-PJS8325
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E
QDSH-PJS8325
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E
QDSH-PJS8325
QDSH-PJS8325

PARAMETER

  • Model No.QDSH-PJS8325

MACHINE SIZE

Model No. QDSH-PJS8325
Lifting capacity ≤2500kg
Unlocking method Electric
Number of car 4
Suitable parking cars 5100x1900x1900mm

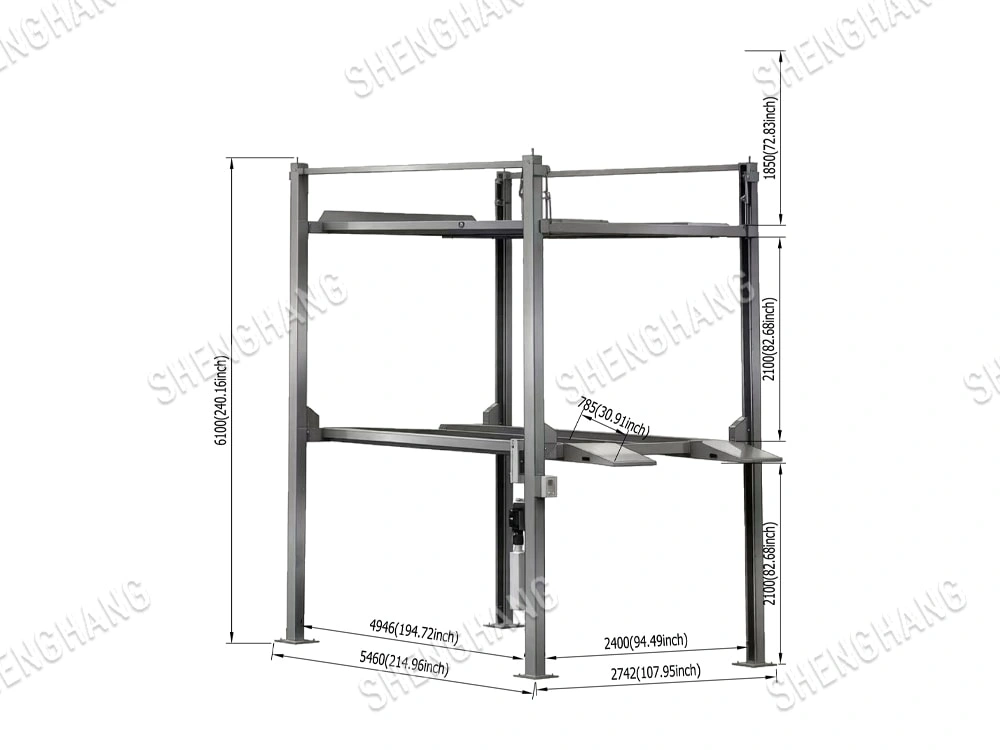

Equipment specification 5460x2740x6100mm
Drive mode Hydraulic drive
Operating mode Button
Motor Power 380V/220V
Maximum access car time 70S
Package size 5150x560x920mm

FEATURES

◆ Customizable to fit customer space, saving height space compared to stacked shelves, and can be arranged

side-by-side.

◆ Hydraulic cylinder and wire rope drive, with two mechanical locks and one electric unlocking layer.

◆ Electric multi-stage locking, with a perfect combination of wire rope anti-drop lock and electric unlocking with internal sliding mechanism in the columns for double protection.

◆ Single-cylinder operation design, two widths to choose from to suit different vehicle models.

◆  Metal parts have a powder-coated surface, aesthetically pleasing and durable.

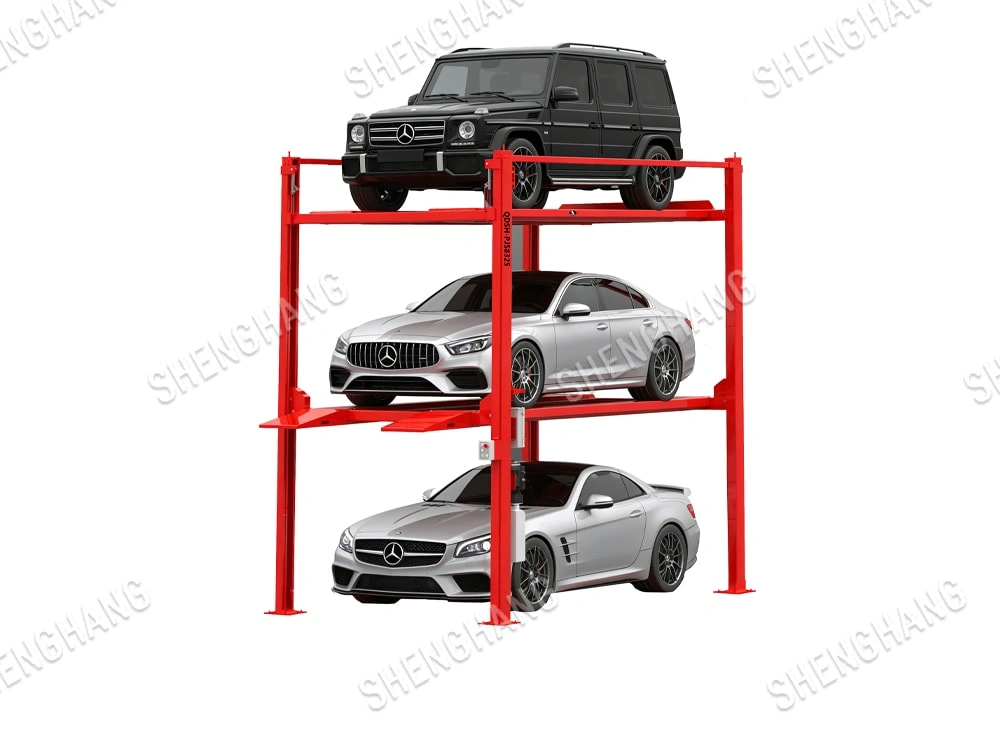

◆ Four-column design for flexible use in different spaces. Each layer has a load capacity of 2.5 tons.
