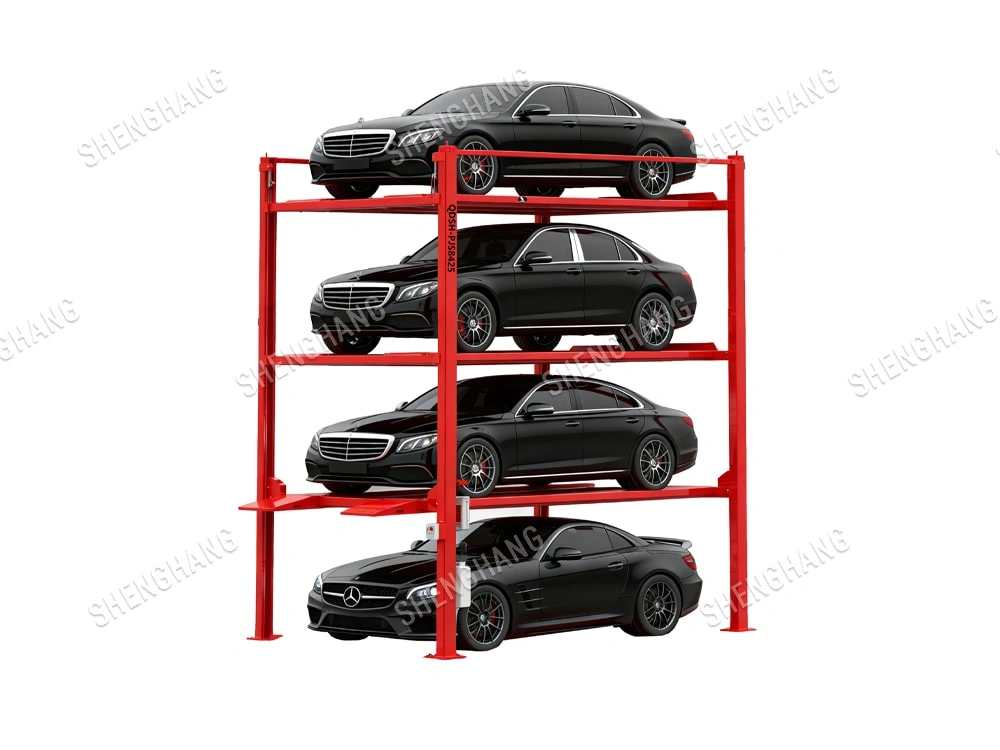

Model No.QDSH-PJS8425
| Model No. | QDSH-PJS8425 |
| Lifting capacity | ≤2500kg |
| Unlocking method | Electric |
| Number of car | 4 |
| Suitable parking cars | 5100x1900x1900mm |

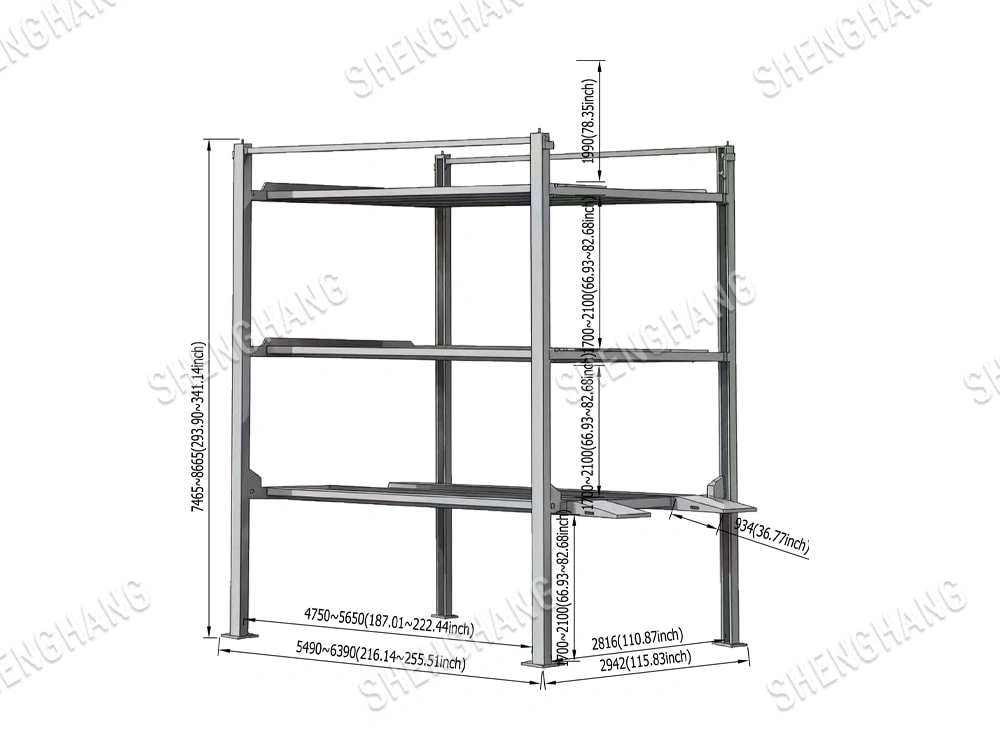

| Equipment specification | 5790x2942x7765mm |
| Drive mode | Hydraulic drive |
| Operating mode | Button |
| Motor Power | 380V/220V |
| Maximum access car time | 70S |
| Package size | 5150x560x920mm |
◆ Customizable to fit customer space, saving height space compared to stacked shelves, and can be arranged
side-by-side.
◆ Hydraulic cylinder and wire rope drive, with two mechanical locks and one electric unlocking layer.
◆ Electric multi-stage locking, with a perfect combination of wire rope anti-drop lock and electric unlocking with
internal sliding mechanism in the columns for double protection.
◆ Single-cylinder operation design, two widths to choose from to suit different vehicle models.
◆ Metal parts have a powder-coated surface, aesthetically pleasing and durable.
◆ Four-column design for flexible use in different spaces. Each layer has a load capacity of 2.5 tons.
