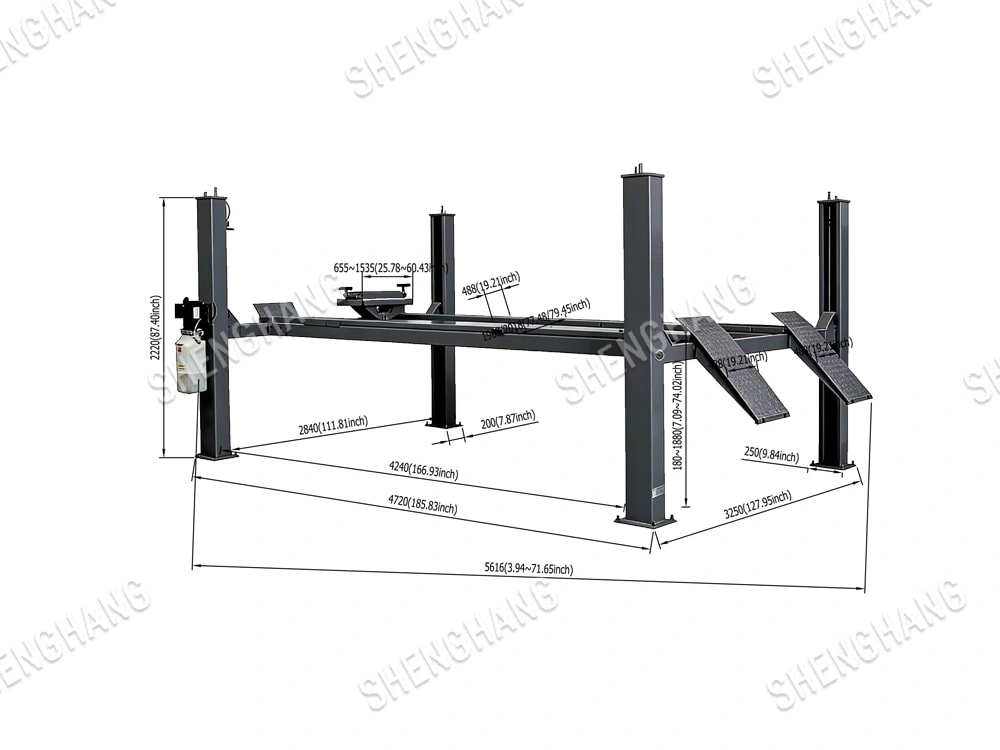

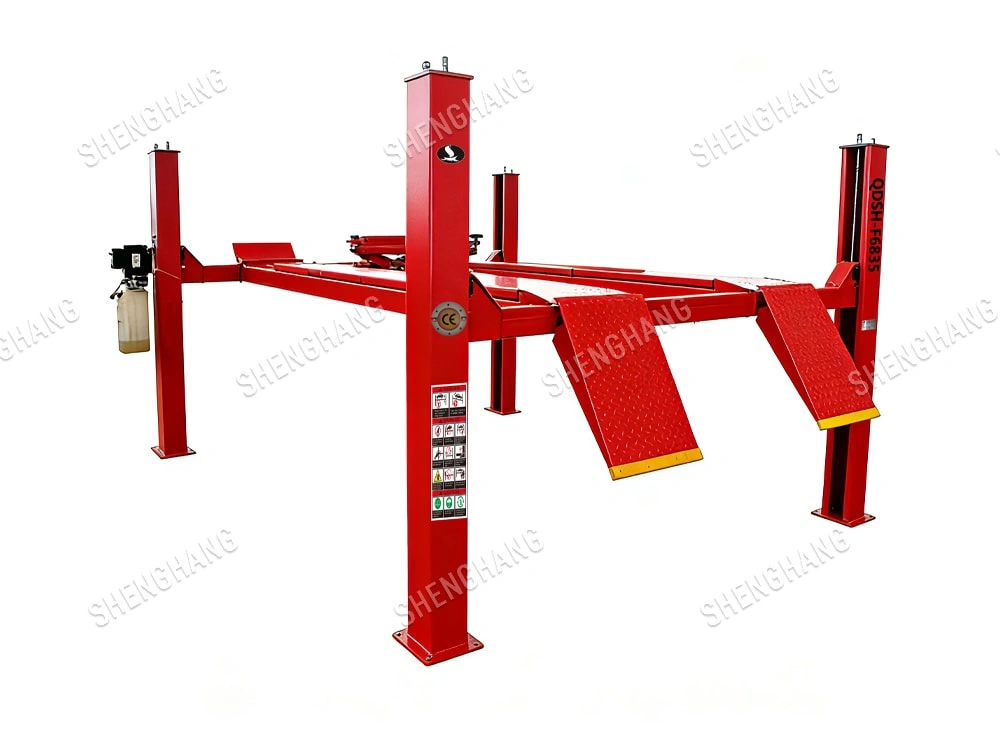

Model No.QDSH-F6835
Load Capacity4000kg
| Model | QDSH-F6835 |
| Lifting capacity | 4000kg |
| Platform lifting height | 1800mm |

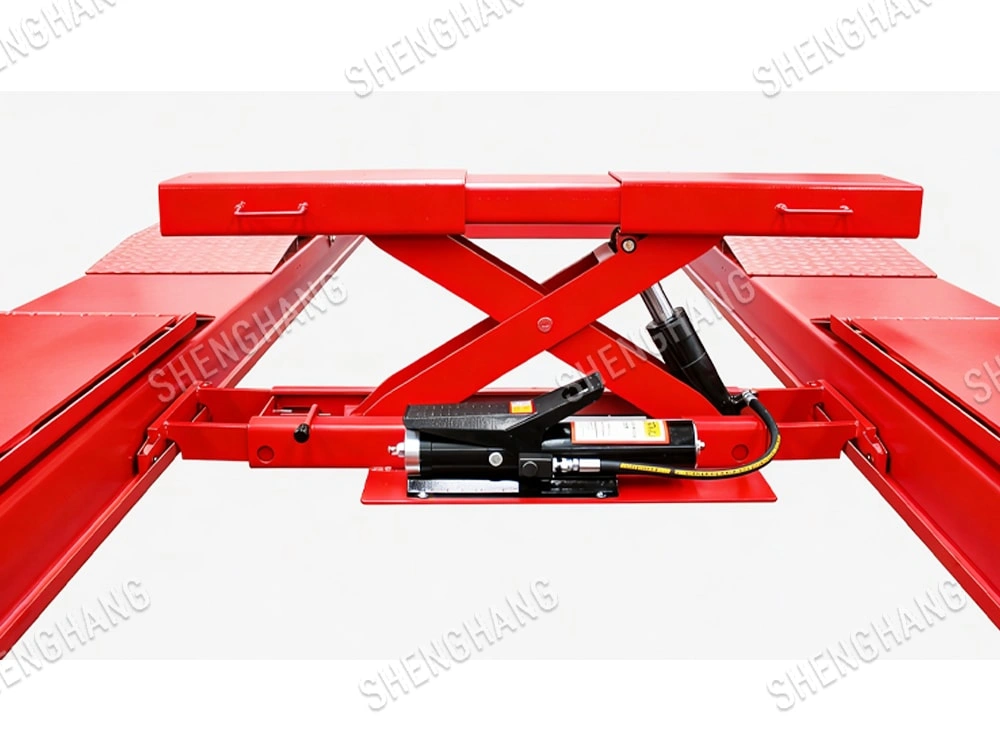

| Secondary lifting height | 340mm |
| Minimum height | 180mm |
| Platform length | 4500mm |
| Platform width | 488mm |
| Lifting time | 50s |
| Motor voltage | 380V/220V |
| Motor power | 2.2KW |
| Package size | 4530x560x790mm |
1.The columns and platformsare formed by bending steelplates
2. The oil cylinder adopts thefront fixed style to eliminatethe risk of oil cylinder fracture
3. The platform spacing can beadjusted to adapt to vehicleswith different tire spacing

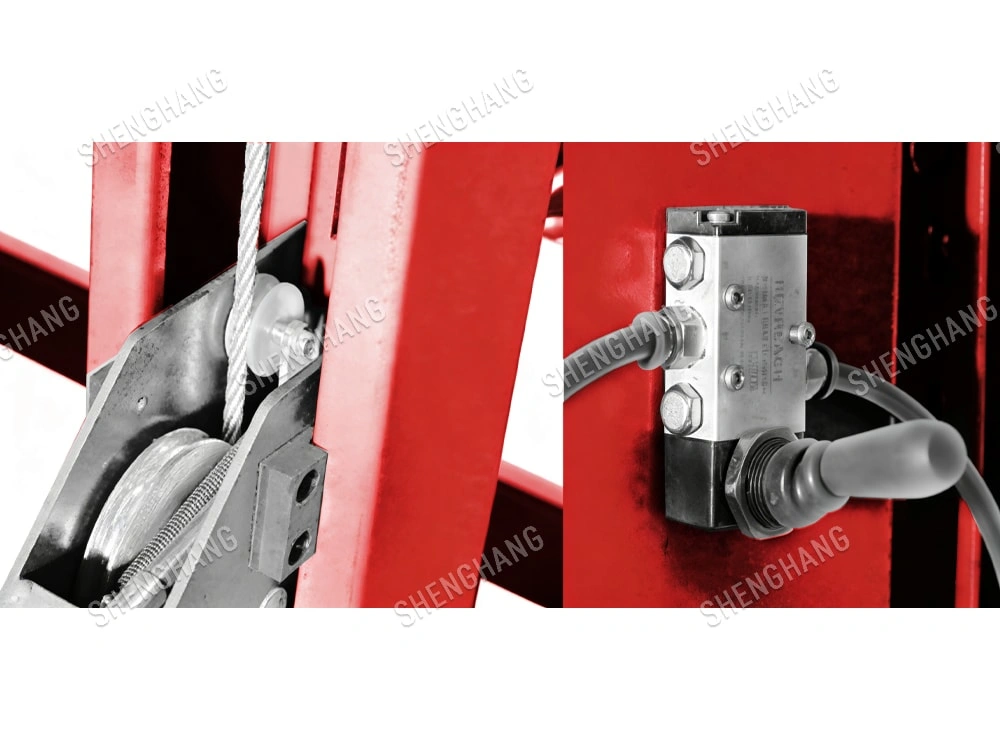

4. Pneumatic synchronousunlocking

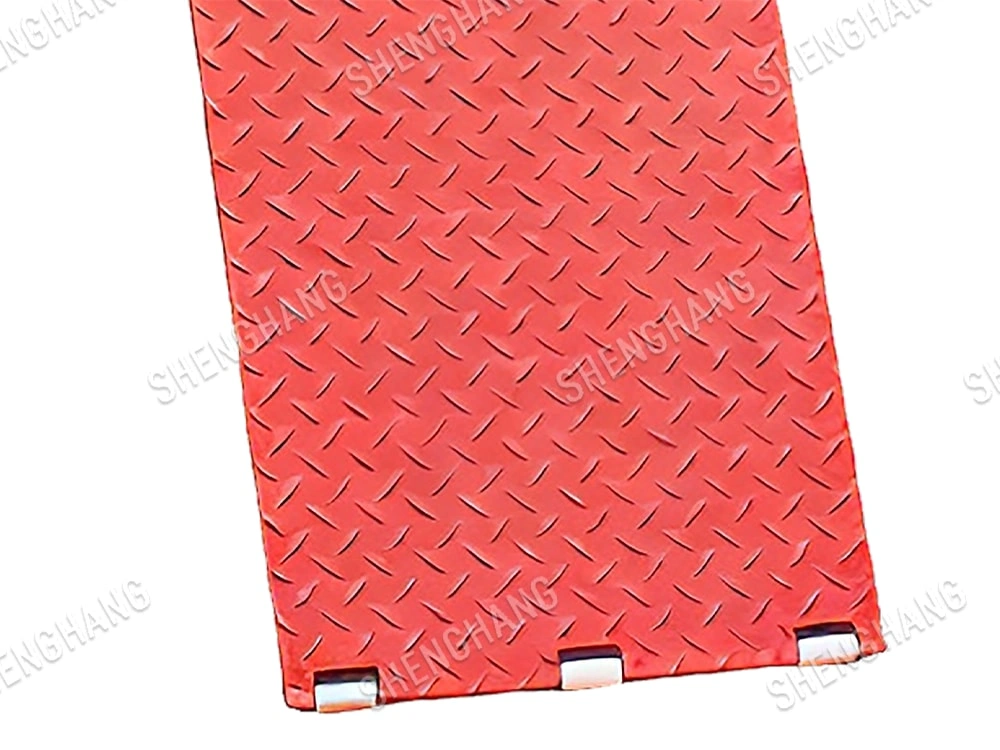

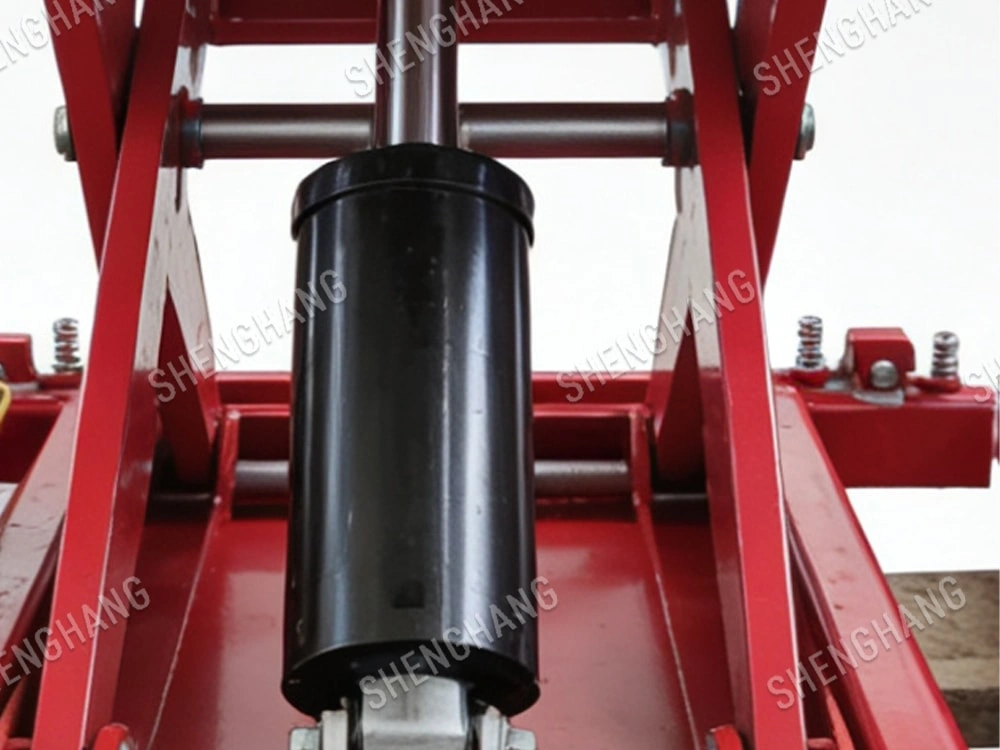

5. 100% pressure holding test ofoil cylinder6. The protection wheel of rampapproach bridge can protectthe ground more effectively
6.This product complies with CE standards.
