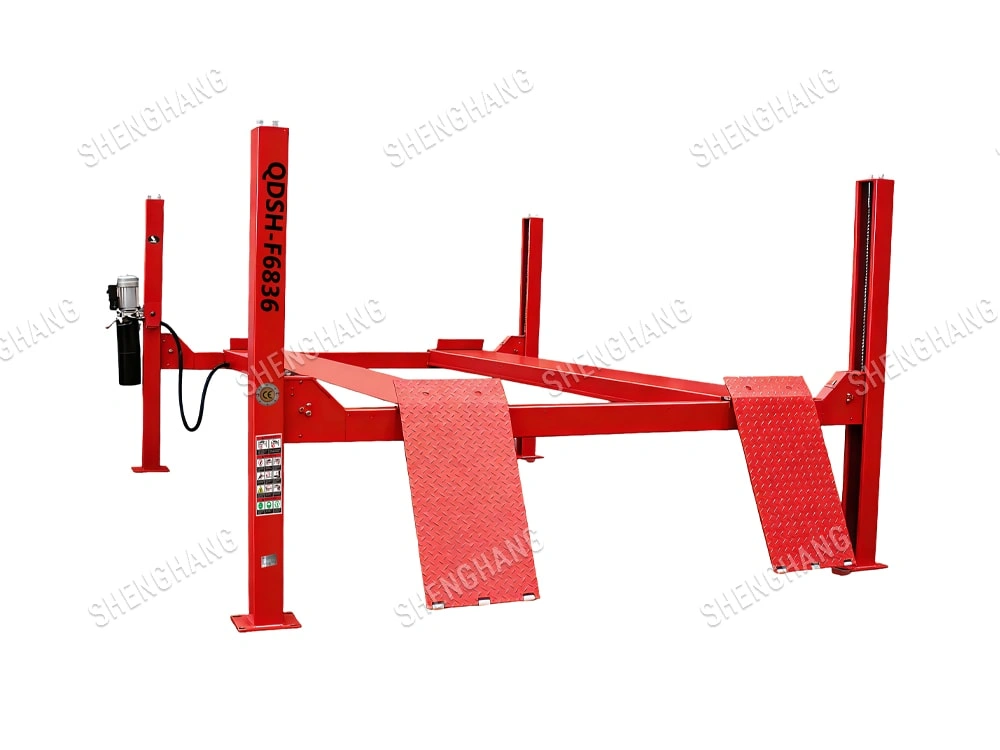

Four Post Car Lift QDSH-F6836

BACK TO LIST
QDSH-F6836
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E
QDSH-F6836
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E

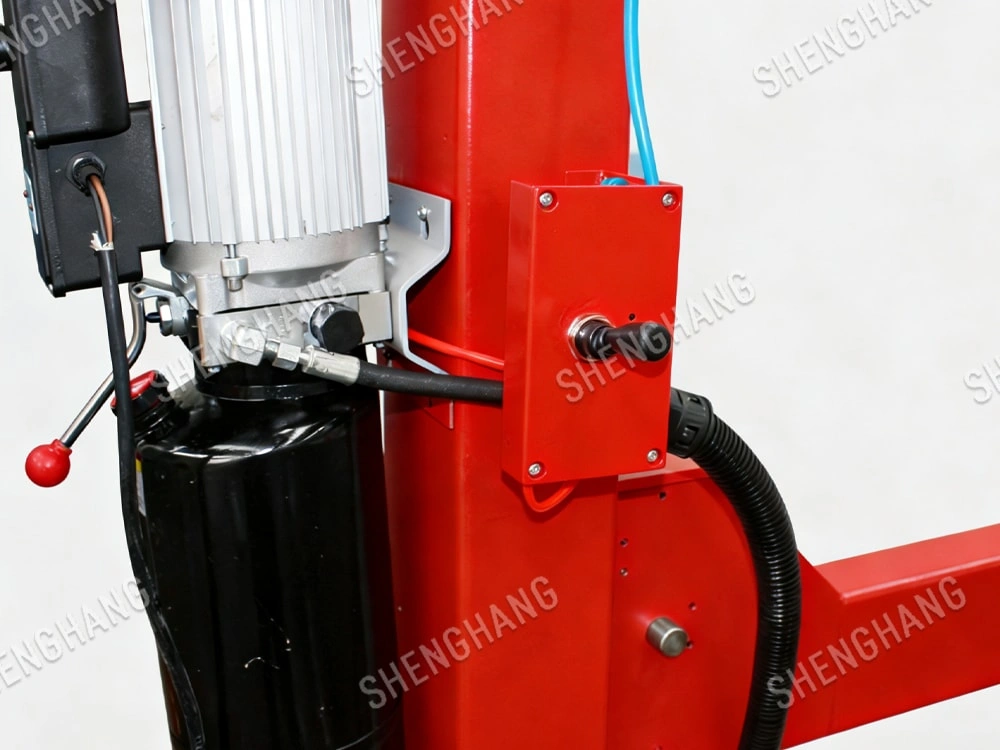

Pneumatic synchronous unlocking
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E

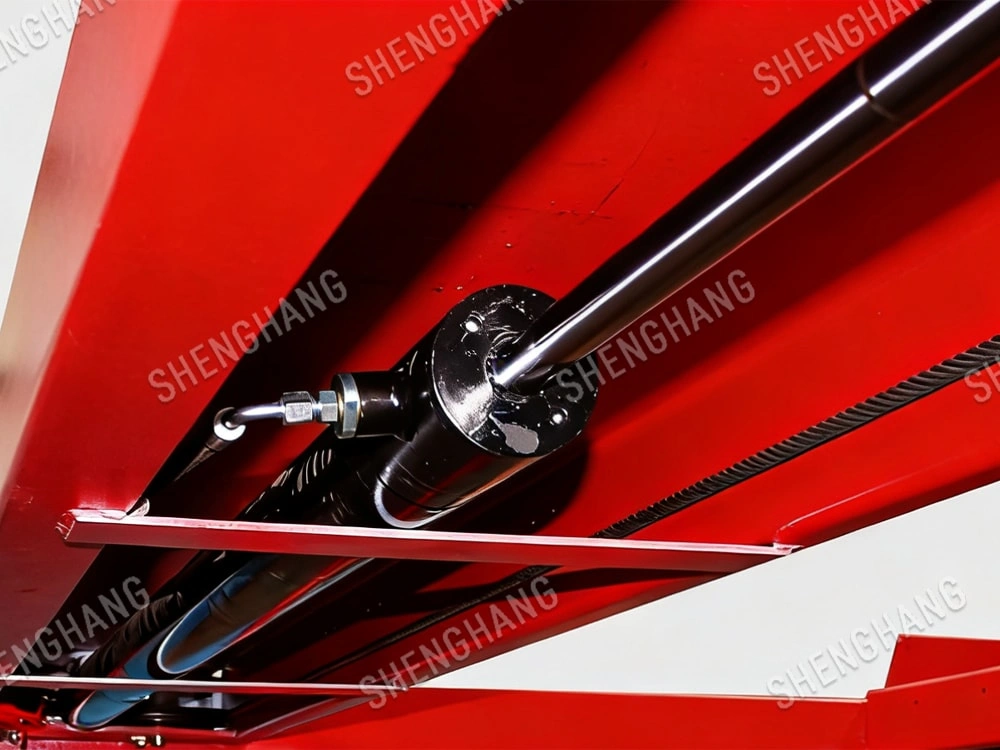

100% of the oilcylinder passed thepressure holding test
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E

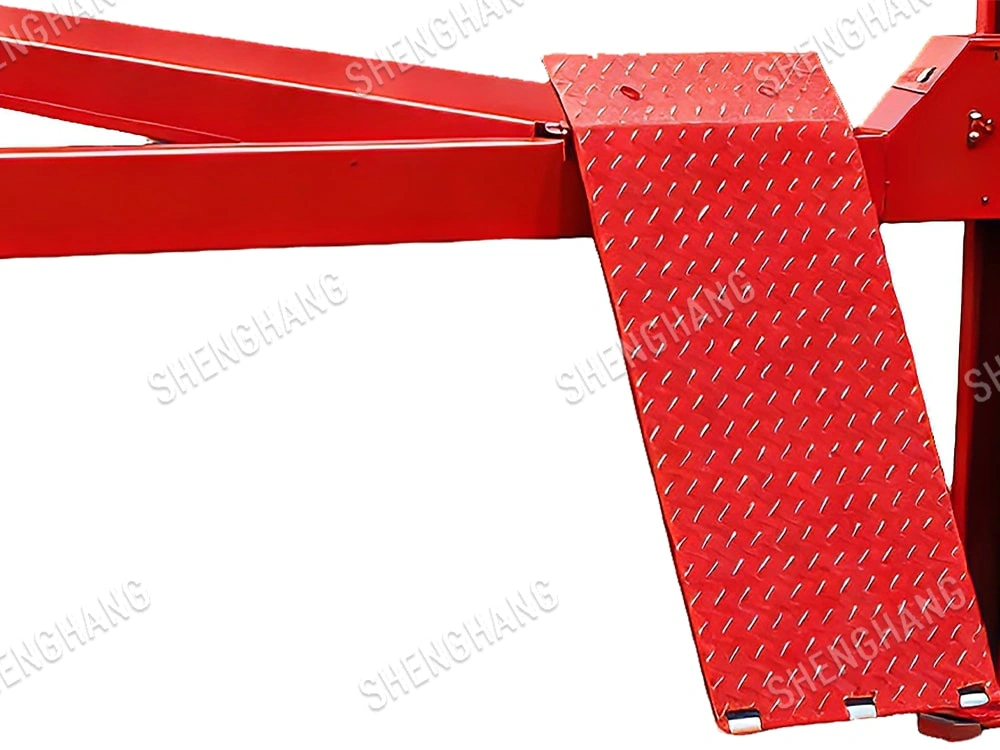

desgth enesogp aletestructure; Guard wheelfor ramp approach bridge
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E
QDSH-F6836
QDSH-F6836
Pneumatic synchronous unlocking
100% of the oilcylinder passed thepressure holding test
desgth enesogp aletestructure; Guard wheelfor ramp approach bridge

PARAMETER

  • Model No.QDSH-F6836

  • Load Capacity4000kg

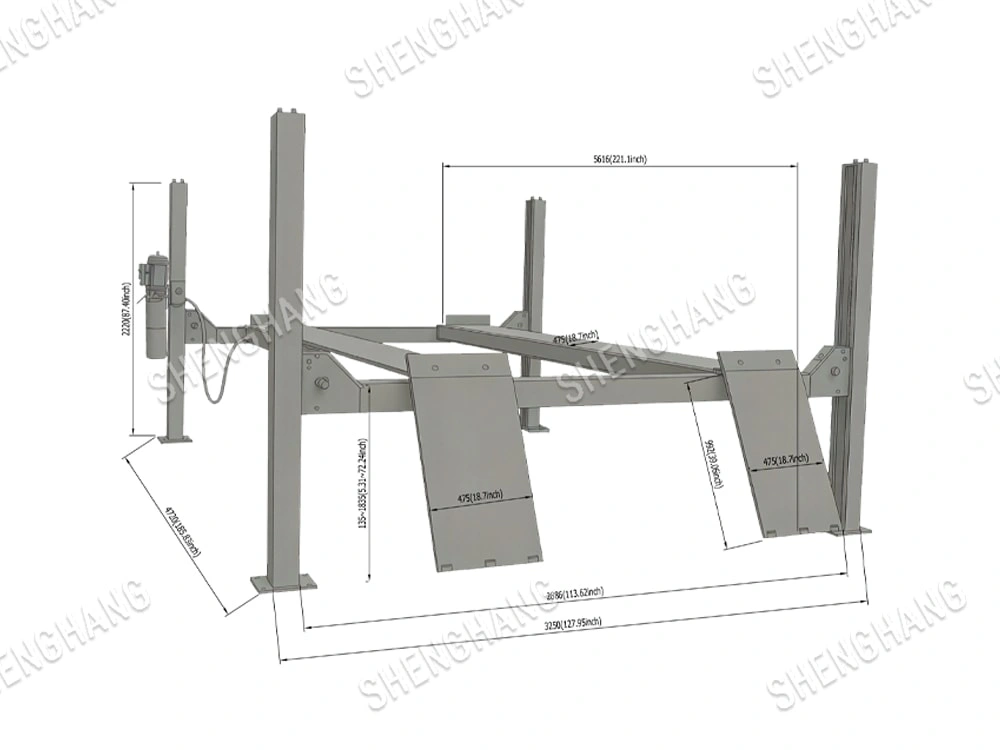

MACHINE SIZE

Model QDSH-F6836
Lifting capacity 4000kg
Platform lifting height 1800mm
Secondary lifting height 340mm
Minimum height 180mm
Platform length 4500mm
Platform width 488mm
Lifting time 50s
Motor voltage 380V/220V
Motor power 2.2KW
Package size 4530x560x790mm

FEATURES

1. The columns and platform are formed by bending steel plates.

2. Designed and manufactured according to European CE standards, making it more suitable for tire changes and chassis maintenance.

3. Equipped with mechanical safety features and optional CE anti-rope breakage safety features, ensuring stable and reliable equipment operation.

4. Includes a secondary trolley guide rail; a secondary lifting trolley is available as an option.

5. The hydraulic cylinders feature a front-fixed design, eliminating the risk of cylinder breakage.

6. Pneumatic synchronous unlocking.

7. The hydraulic cylinders have undergone 100% pressure holding testing.

8. The protective wheels on the approach ramps more effectively protect the ground.
