Product advantages

Stacker cranes are the core equipment of an automated storage and retrieval system (AS/RS).

Through manual, semi-automatic, or fully automatic operation, they move goods from one location to another.

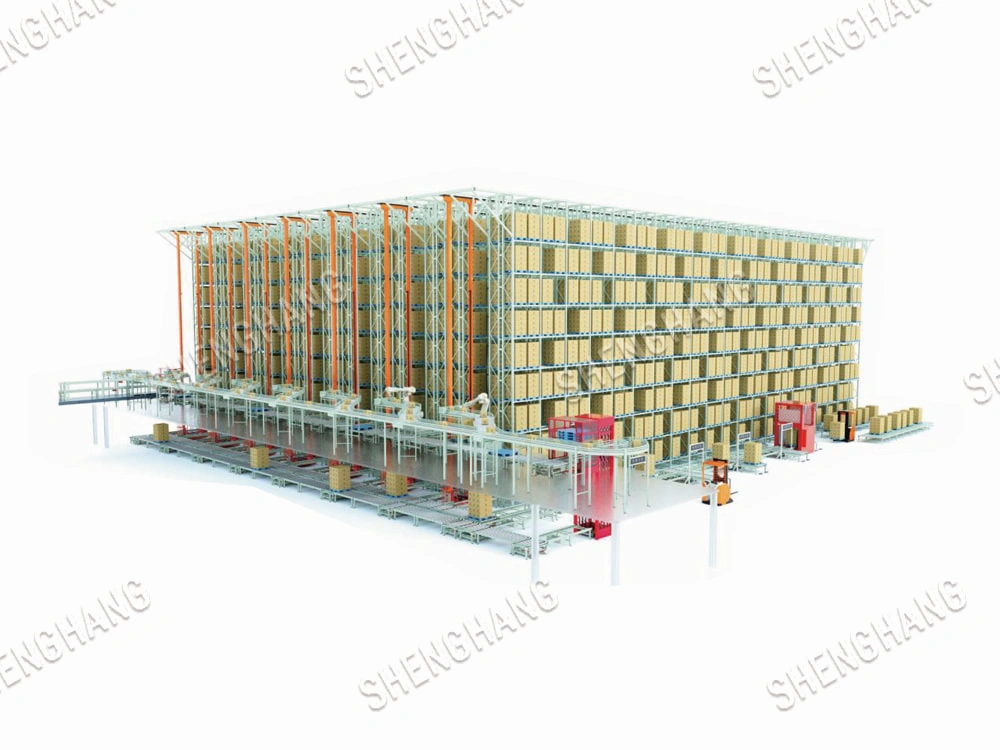

They are primarily used in high-rise rack warehouses, moving along tracks within aisles to store goods located at the aisle entrance into rack compartments, completing the inbound operation; or conversely, to retrieve goods from rack compartments and transport them to the aisle entrance, completing the outbound operation.

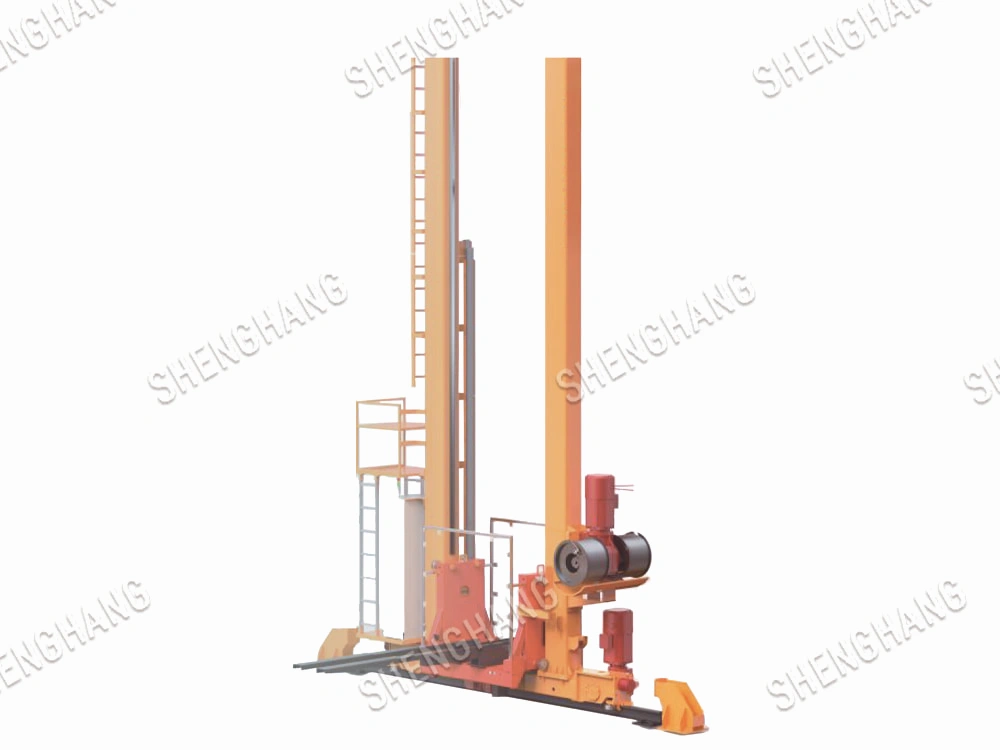

They mainly consist of the following components: upper beams, uprights, lower beams, loading platform, forks, lifting device, ladders, etc.

Stacker Crane Parameters

Traveling Speed: 0~120m/min

Lifting Speed: 0~30m/min

Fork Speed: 0~30m/min

Positioning Method: Laser positioning, barcode positioning

Operation Method: Online/Semi-automatic/Manual

Key Technologies

· Vector frequency conversion control, S-curve stepless speed control

· Frequency conversion (or servo) speed regulation, laser or barcode addressing

· Optical communication between the stacker crane and the host computer

· Double mechanical and electrical safety features

· Multiple control modes: manual, semi-automatic, stand-alone automatic, and online automatic
