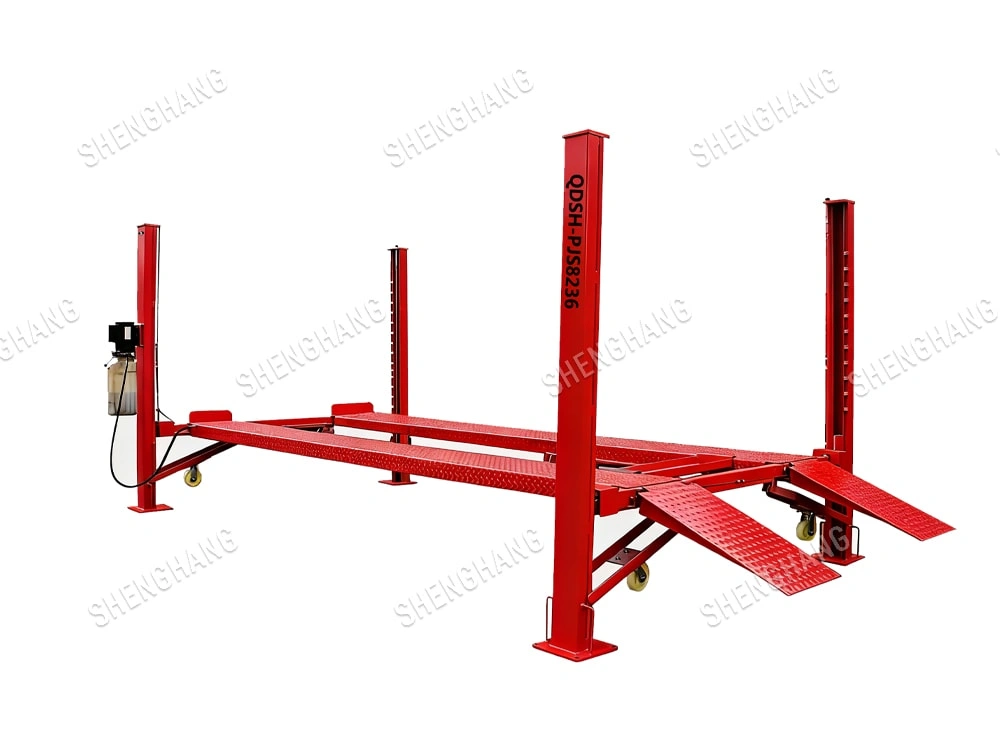

Four Post Parking Lift QDSH-PJS8236

BACK TO LIST
QDSH-PJS8236 拷贝
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E
QDSH-PJS8236 1 拷贝
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E
QDSH-PJS8236 拷贝
QDSH-PJS8236 1 拷贝

PARAMETER

  • ◆The post and platform made with steel p late bend.

    ◆square pipe deem design

    ◆Cylinder front fixed pattern eliminating cylinder fracture.

    ◆Platform pitch adjustable for various vehicles

    ◆P neumatic synchronous unlocking design

    ◆Every cylinder passes the pressure test

    ◆Accord with standard of European Union CE

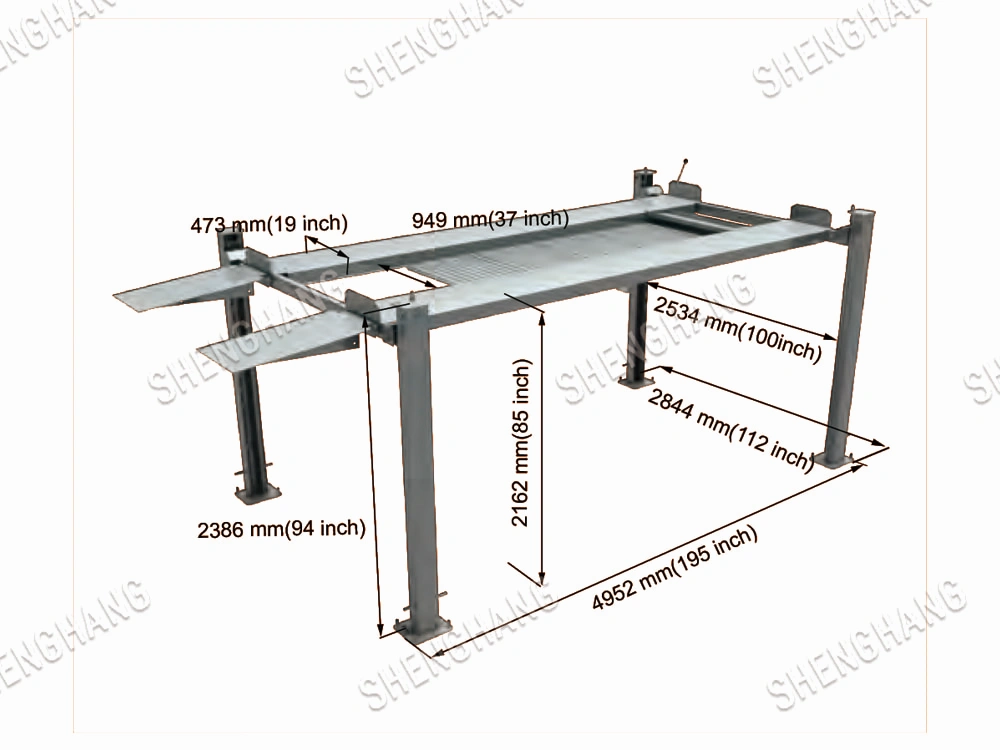

MACHINE SIZE

Model No. QDSH-PJS8236
Lifting capacity 3600KG
Max height 2070mm
Minimum height 120mm
Overall height 2328mm
Overall length 5670mm
Lifting time 50S
Motor voltage 380V/220V
Motor Power 2.2KW
Package size 4800x570x610mm

FEATURES

◆The post and platform made with steel p late bend.

◆square pipe deem design

◆Cylinder front fixed pattern eliminating cylinder fracture.

◆Platform pitch adjustable for various vehicles

◆P neumatic synchronous unlocking design

◆Every cylinder passes the pressure test

◆Accord with standard of European Union CE
