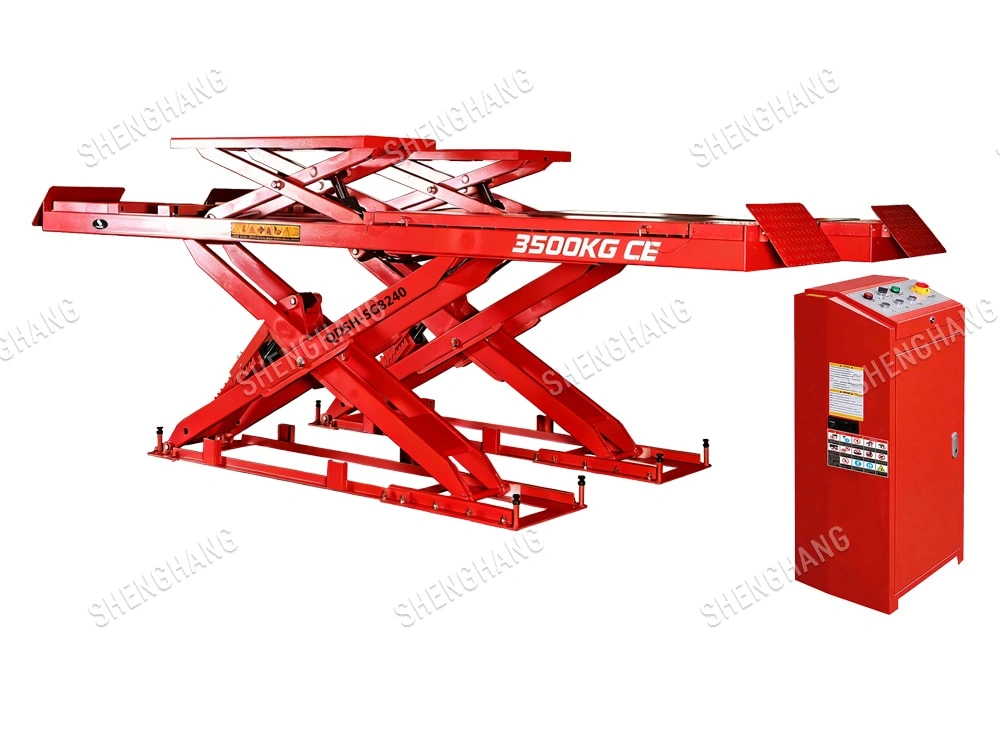

In-Groud Double Level Scissor Lift Four Wheel Alignmen QDSH-SG8235

BACK TO LIST
QDSH-SG8240(1) 拷贝
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E
QDSH-SG8240 1 拷贝
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E
QDSH-SG8240(1) 拷贝
QDSH-SG8240 1 拷贝

PARAMETER

  • Model No.QDSH-SG8235

  • Load Capacity3500kg

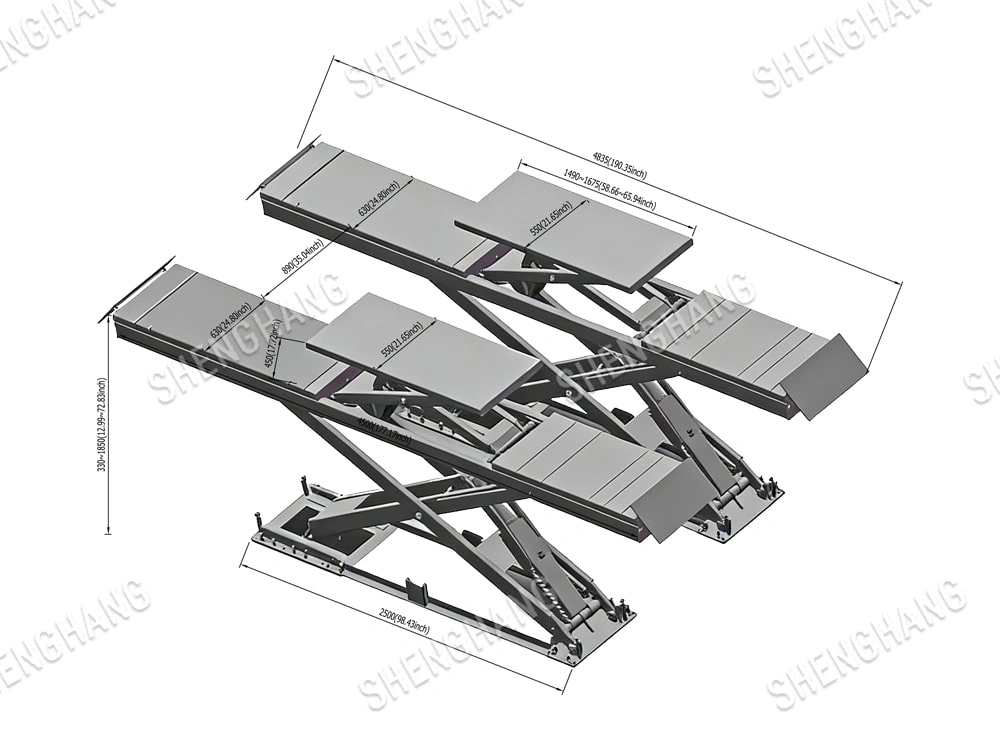

MACHINE SIZE

Model No. QDSH-SG8240
Main lift lifting capacity 4000kg
Sub-lift lifting capacity 4000kg
Main lift lifting height 1850mm
Sub-lift lifting height 450mm
Minimum height 330mm
Main lift platform length 4500mm
Sub-lift platform length 1490-1675mm
Main lift platform width 630mm
Sub-lift platform width 630mm
Lifting time 50s
Motor voltage 380V/220V
Motor power 2.2KW
Package size 4520x640x840mm

FEATURES

1. The structural design of the Tibetan area is flush with theground, saving space

2. The square tube structure of the support arm, and theconnecting part of the shaft is added with butter holes, which isreasonable in design

3. High-quality oil cylinder, 100% pressure test, durable

4. The side slide plate can move left and right and backward,which is convenient to eliminate the rear wheel clearance

5. The automatic locking of the lifting mechanical lock is safe andreliable, and it is pneumatically unlocked

6. Upper limit device to ensure safe operation

7.24V electric control operating system to avoid high voltageelectric shock

8. Product complies with EU CE standards.
