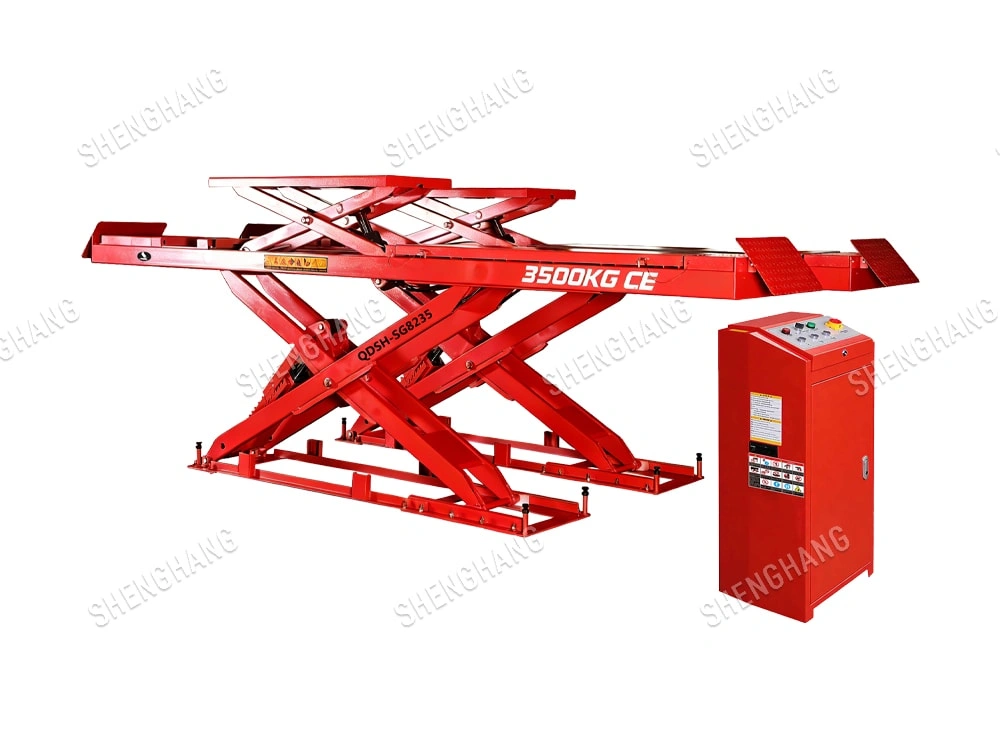

Model No.QDSH-SG8235
Load Capacity3500kg
| Model No. | QDSH-SG8235 |
| Main lift lifting capacity | 3500kg |
| Sub-lift lifting capacity | 3500kg |
| Main lift lifting height | 1850mm |
| Sub-lift lifting height | 460mm |
| Minimum height | 330mm |
| Main lift platform length | 4500mm |
| Sub-lift platform length | 1400mm |
| Main lift platform width | 610mm |
| Sub-lift platform width | 610mm |
| Lifting time | 50s |
| Motor voltage | 380V/220V |
| Motor power | 2.2KW |
| Package size | 4500x610x860mm |
1. The structural design of the Tibetan area is flush with theground, saving space

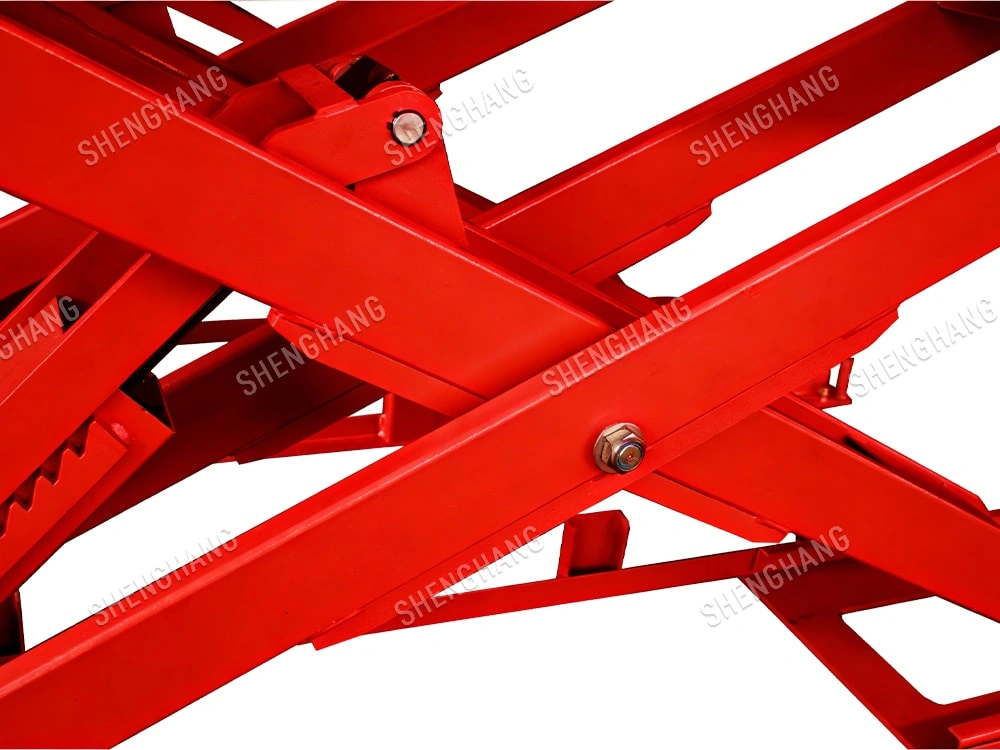

2. The square tube structure of the support arm, and theconnecting part of the shaft is added with butter holes, which isreasonable in design
3. High-quality oil cylinder, 100% pressure test, durable
4. The side slide plate can move left and right and backward,which is convenient to eliminate the rear wheel clearance

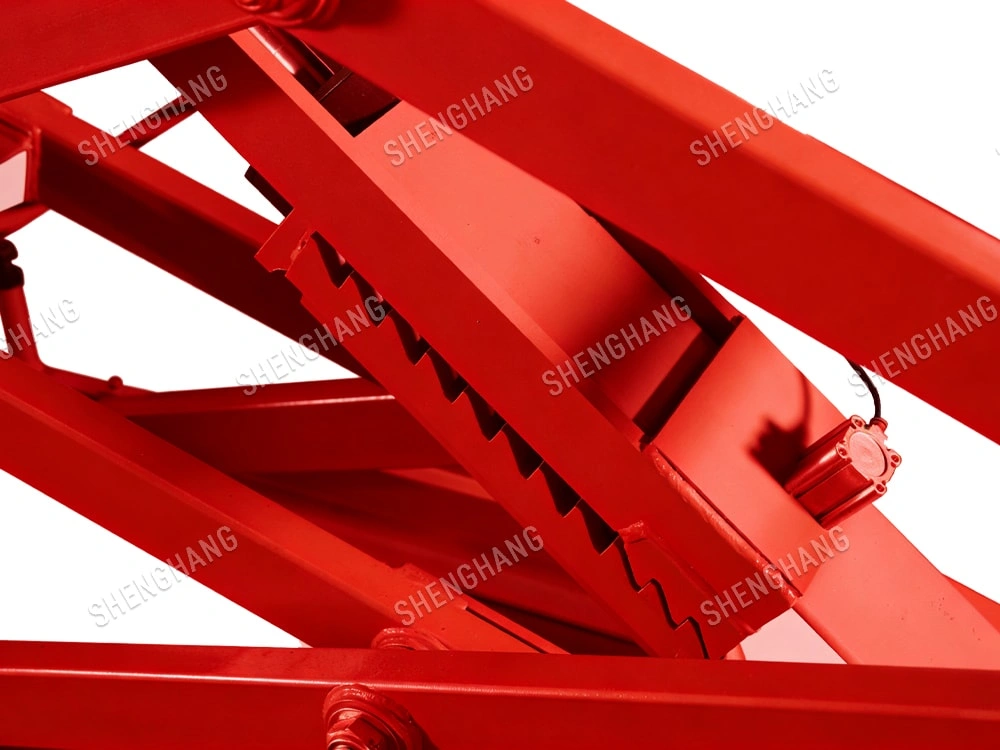

5. The automatic locking of the lifting mechanical lock is safe andreliable, and it is pneumatically unlocked

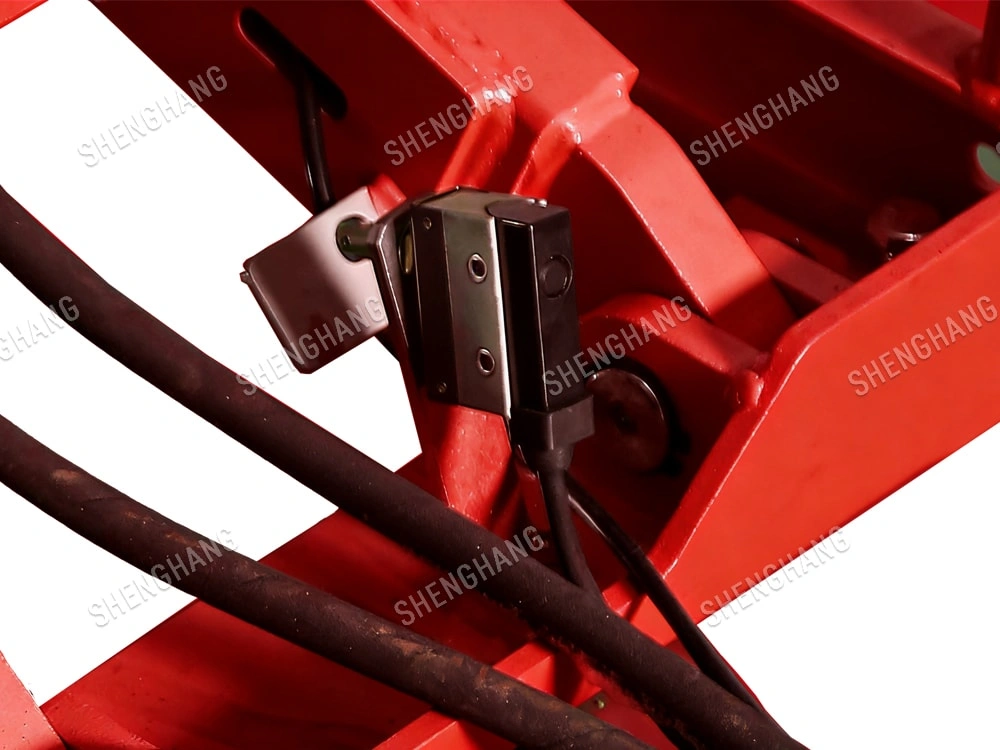

6. Upper limit device to ensure safe operation
7.24V electric control operating system to avoid high voltageelectric shock
8. Product complies with EU CE standards.
