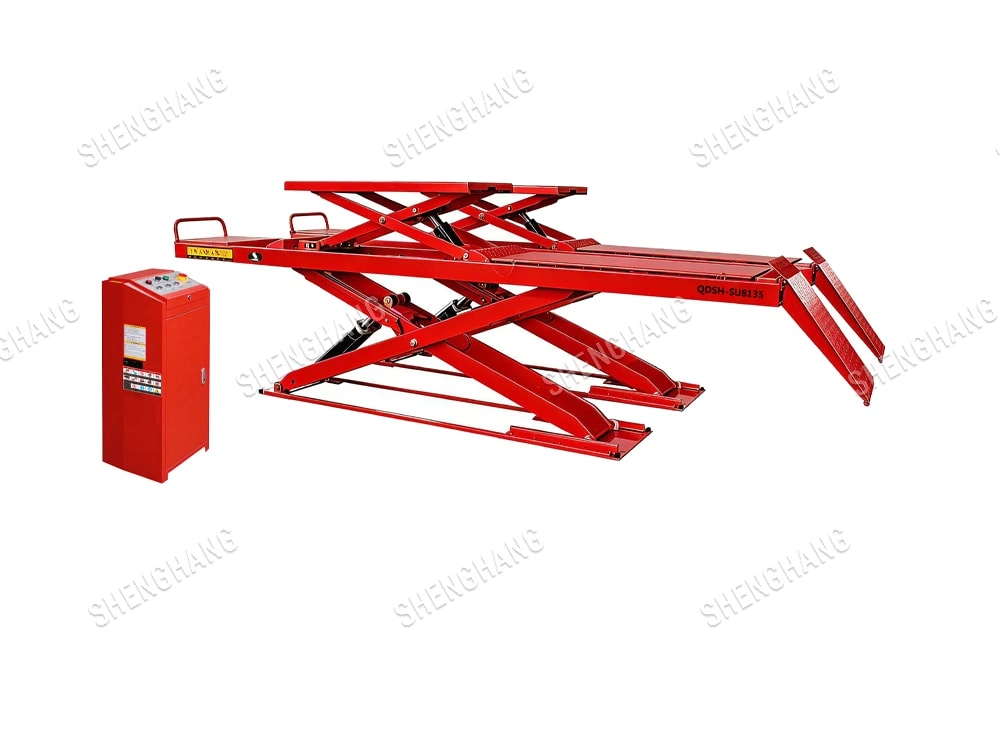

Model No.QDSH-SU8135
Load Capacity3500kg
| Model No. | QDSH-SU8135 |
| Main lift lifting capacity | 3500kg |
| Sub-lift lifting capacity | 3500kg |

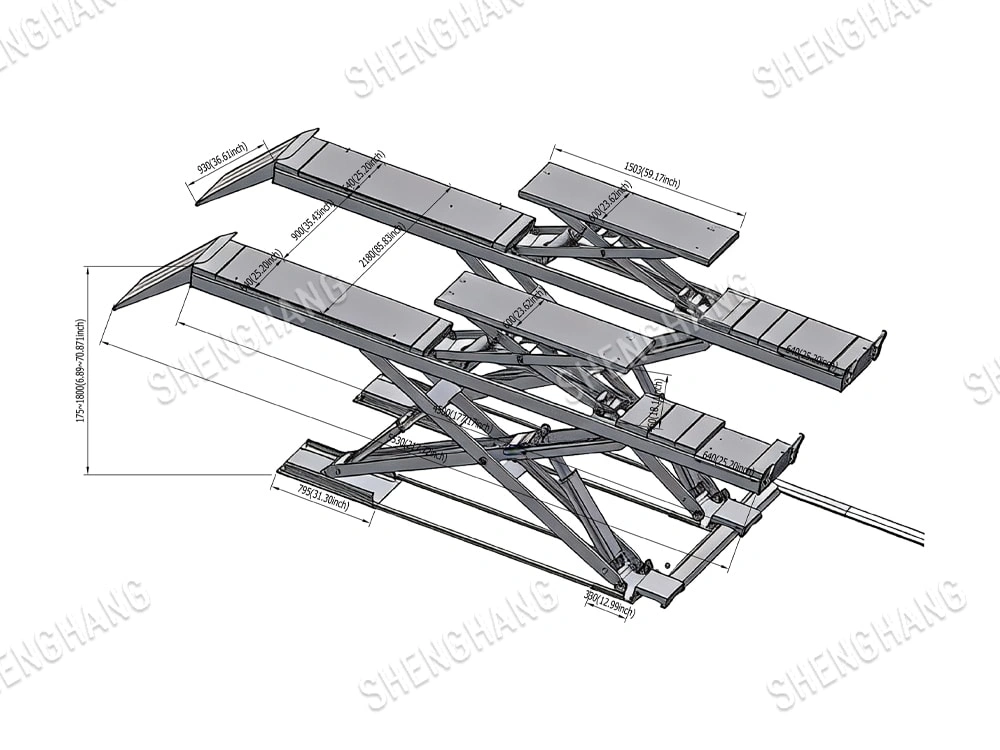

| Main lift lifting height | 1800mm |
| Sub-lift lifting height | 400mm |
| Minimum height | 175mm |
| Main lift platform length | 4500mm |
| Sub-lift platform length | 1500mm |
| Main lift platform width | 640mm |
| Sub-lift platform width | 640mm |
| Lifting time | 50s |
| Motor voltage | 380V/220V |
| Motor power | 2.2KW |
| Package size | 4500x640x600mm |
1. Designed for surface installation, convenient and quickinstallation, suitable for four-wheel positioning

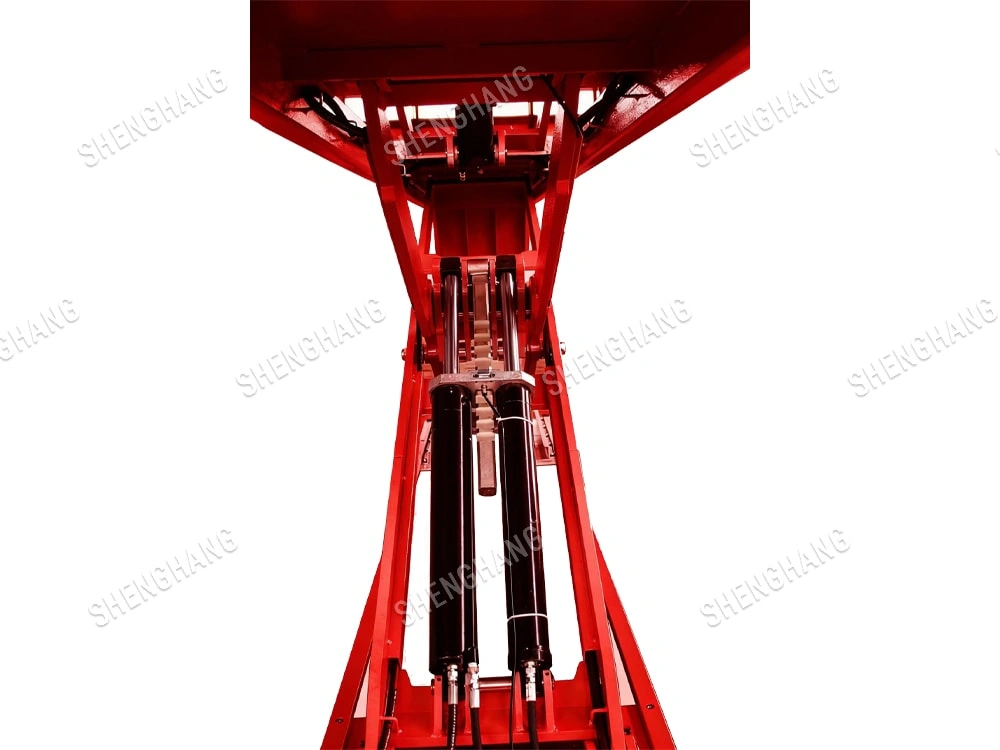

2. Four-cylinder drive, super power, 100% passed the pressureholding test

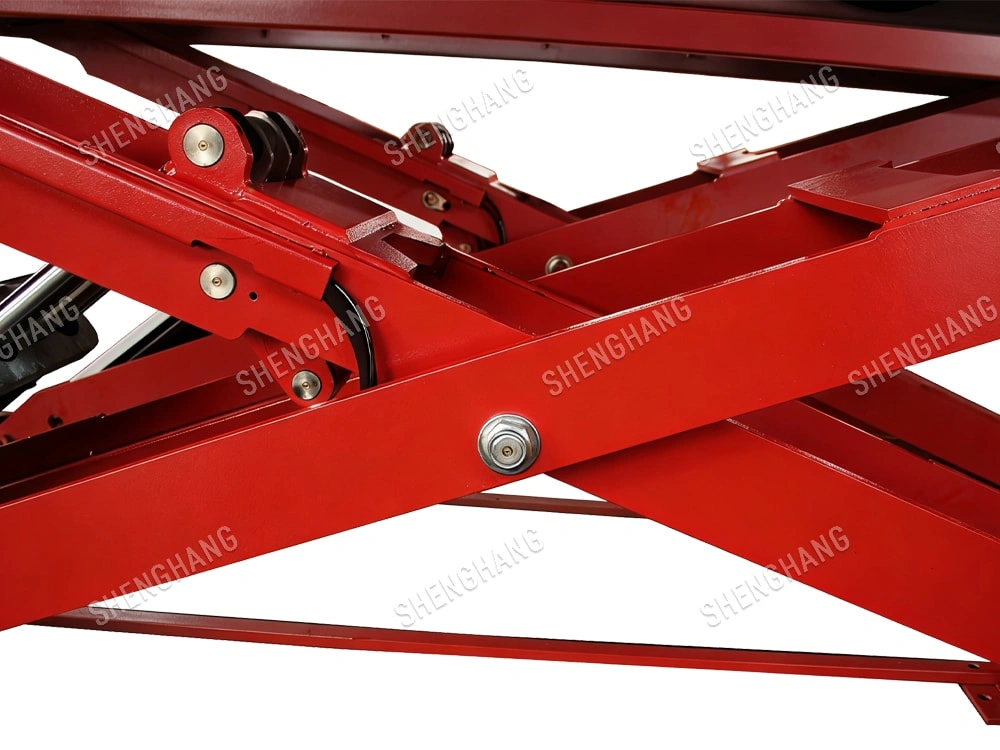

3. The arm is made of Q345 steel plate, and the connecting shaftis added with butter holes, which is reasonable in design

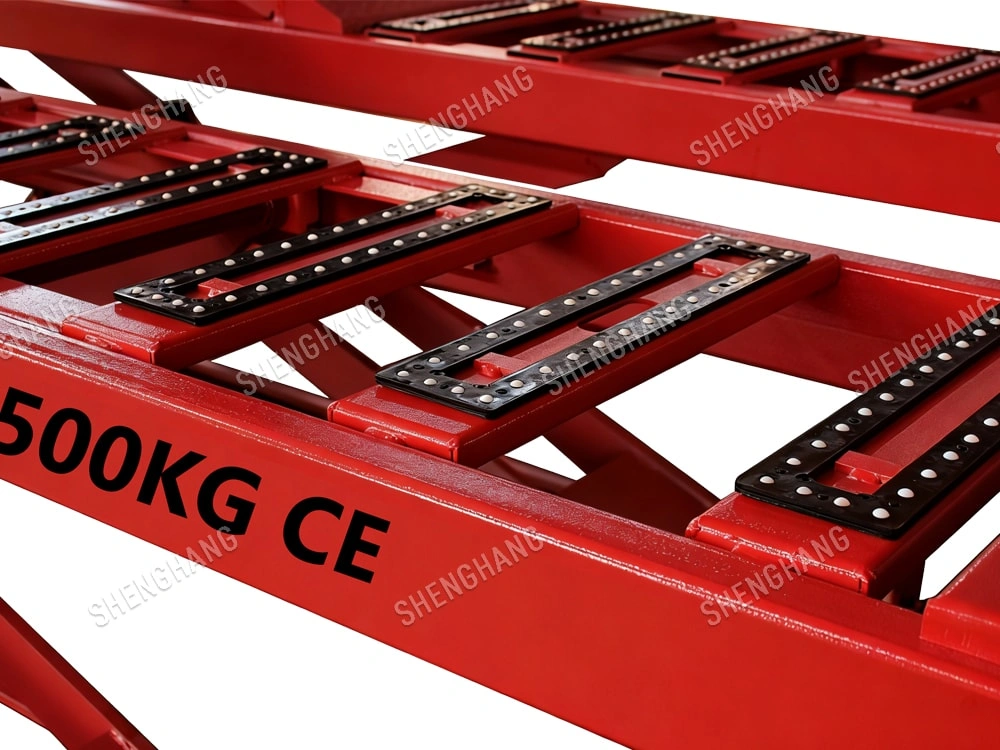

4. The side slide plate can move left and right and backward,which is convenient to eliminate the rear wheel clearance

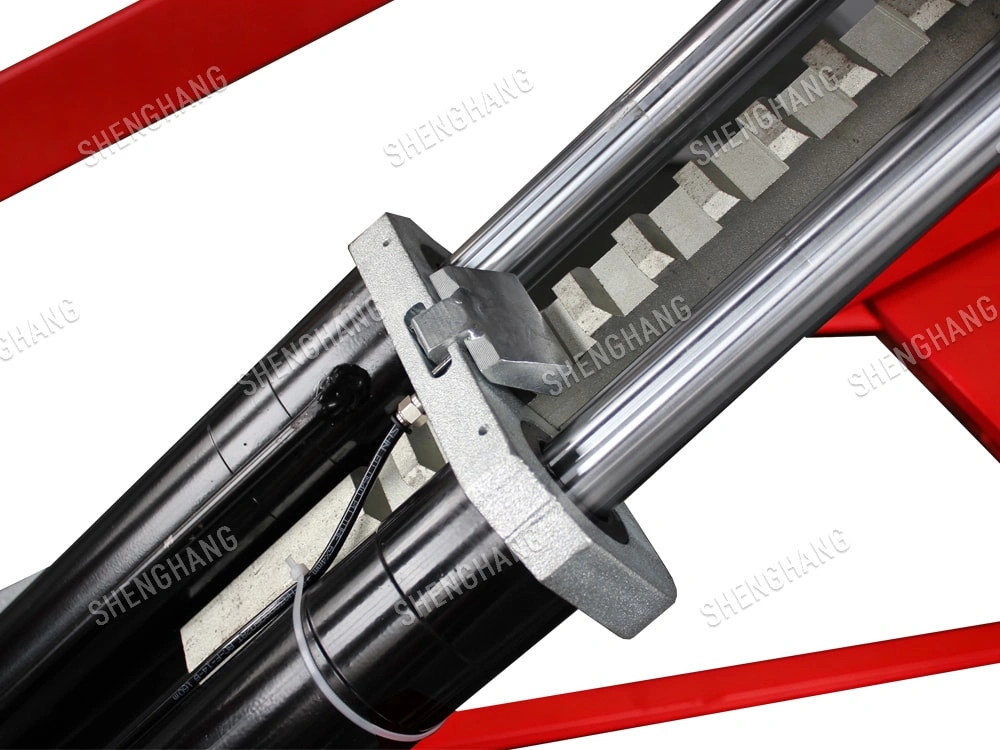

5. The automatic locking of the lifting mechanical lock is safe andreliable, and it is pneumatically unlocked

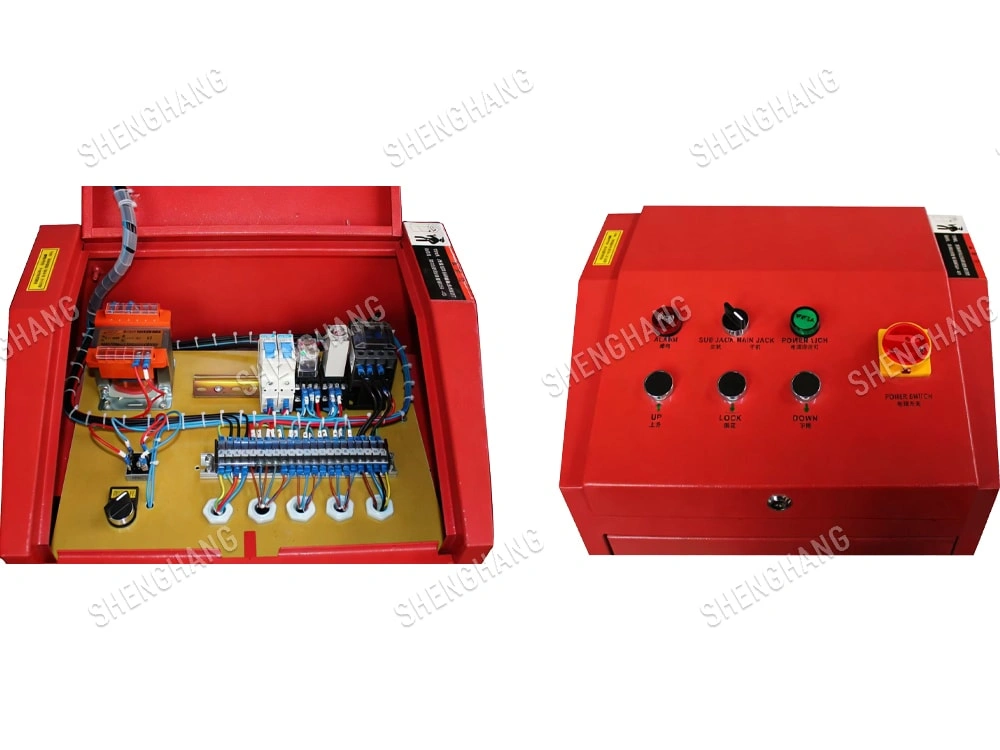

6. Upper limit device to ensure safe operation7.24V electric control operating system to avoid high voltageelectric shock
7.Accord with standard of European Union CE
