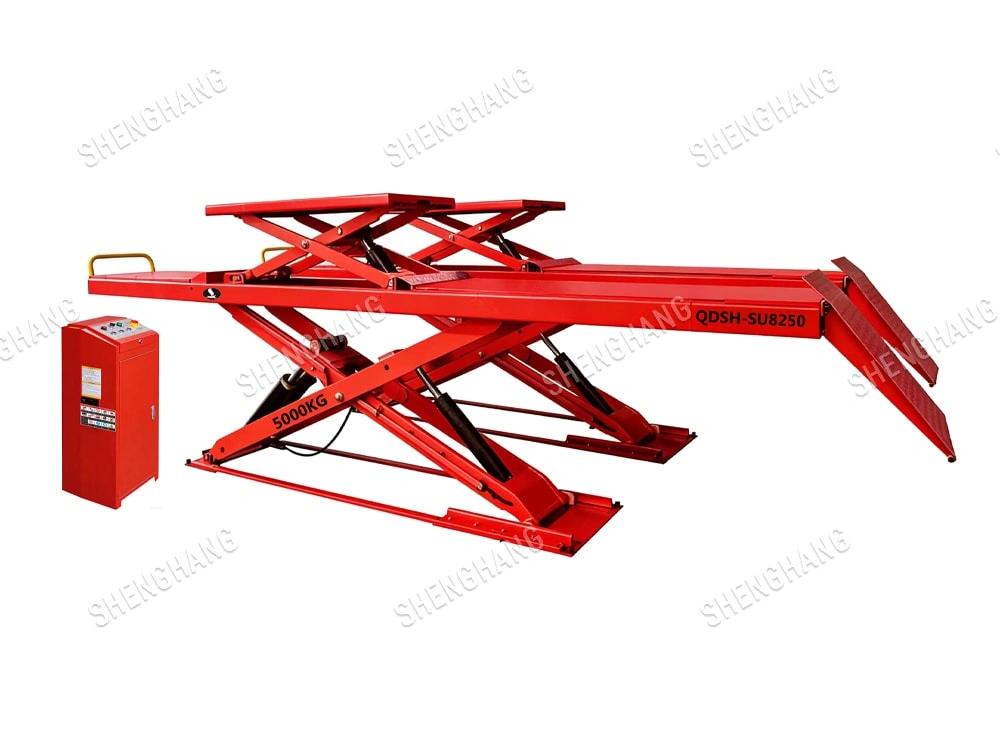

| Model No. | QDSH-SU8250 |
| Main lift lifting capacity | 5000kg |
| Sub-lift lifting capacity | 3800kg |
| Main lift lifting height | 1800mm |
| Sub-lift lifting height | 500mm |
| Minimum height | 175mm |
| Main lift platform length | 5000mm |
| Sub-lift platform length | 1500mm |
| Main lift platform width | 640mm |
| Sub-lift platform width | 640mm |
| Lifting time | 50s |
| Motor voltage | 380V/220V |
| Motor power | 3.0KW |
| Package size | 5030x660x600mm |
1. Designed specifically for ground installation, offering quick and easy setup, suitable for four-wheel alignment.

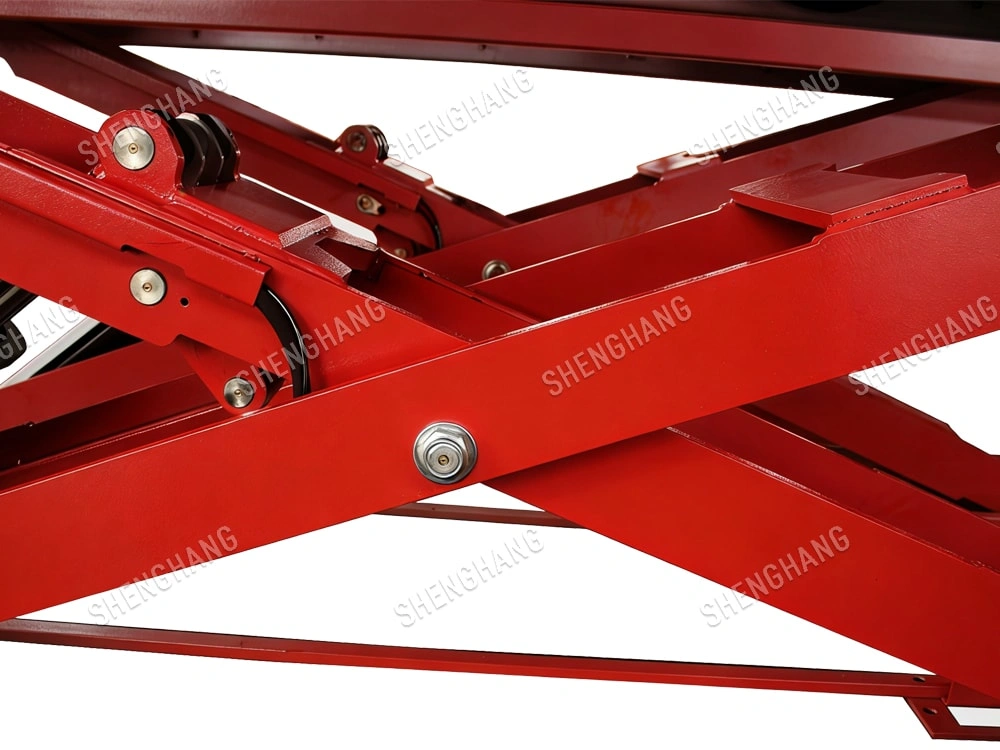

2. Outrigger steel plate structure, made of Q345 steel plate, ensuring stable lifting.

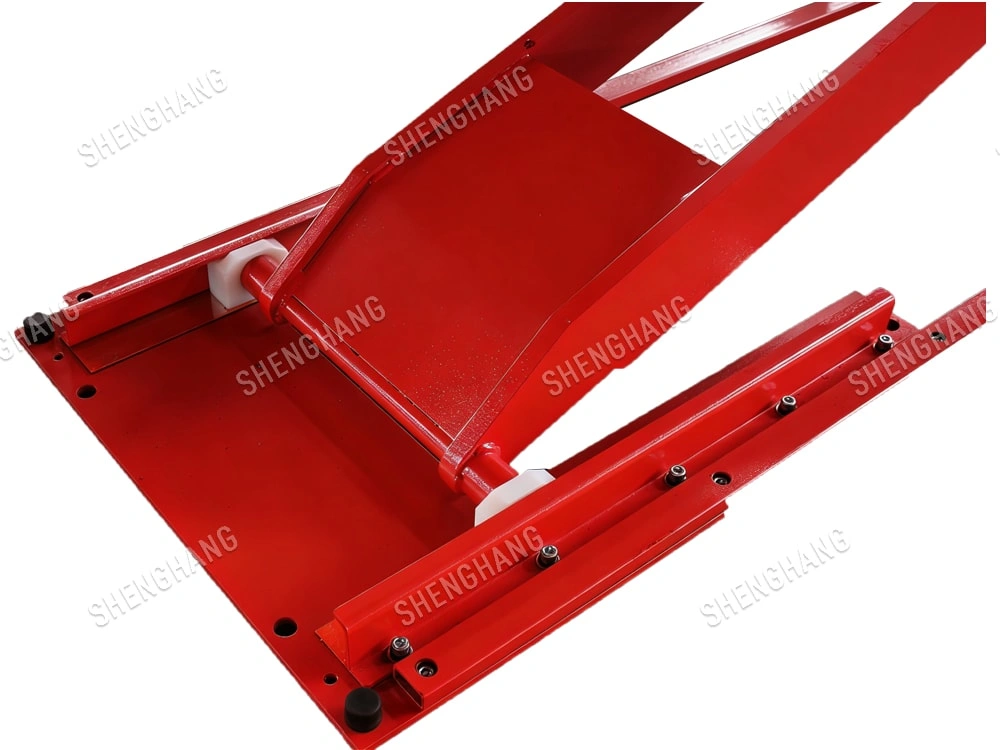

3. Side sliding plates can move left, right, and backward to easily eliminate rear wheel clearance.

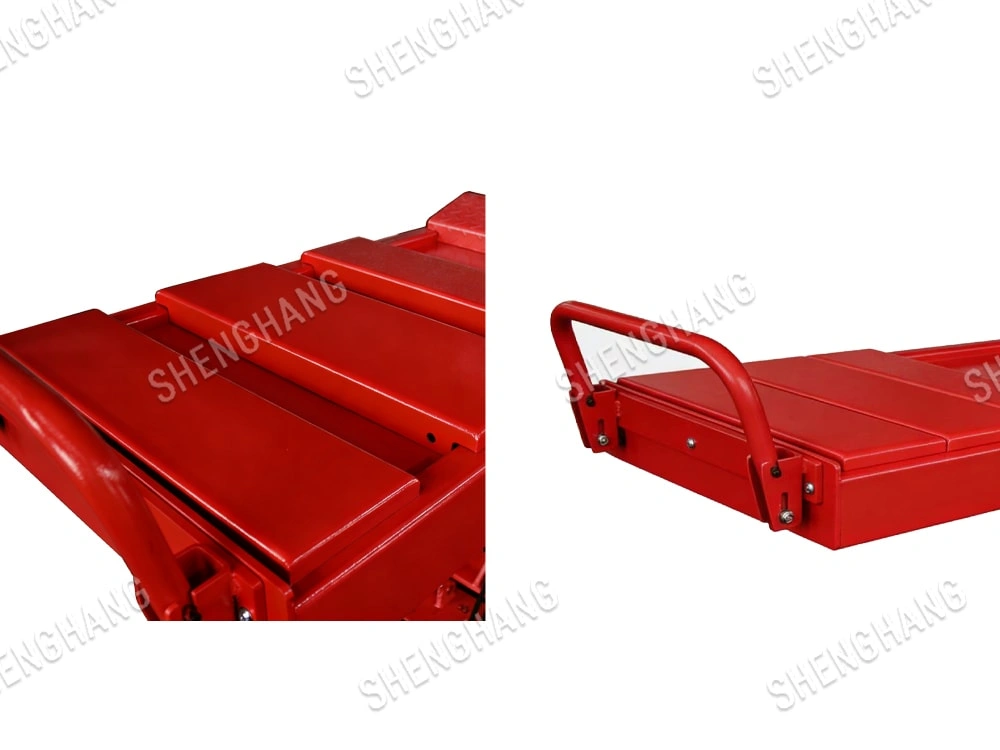

4. Corner plate equipped with large adjustable slots.

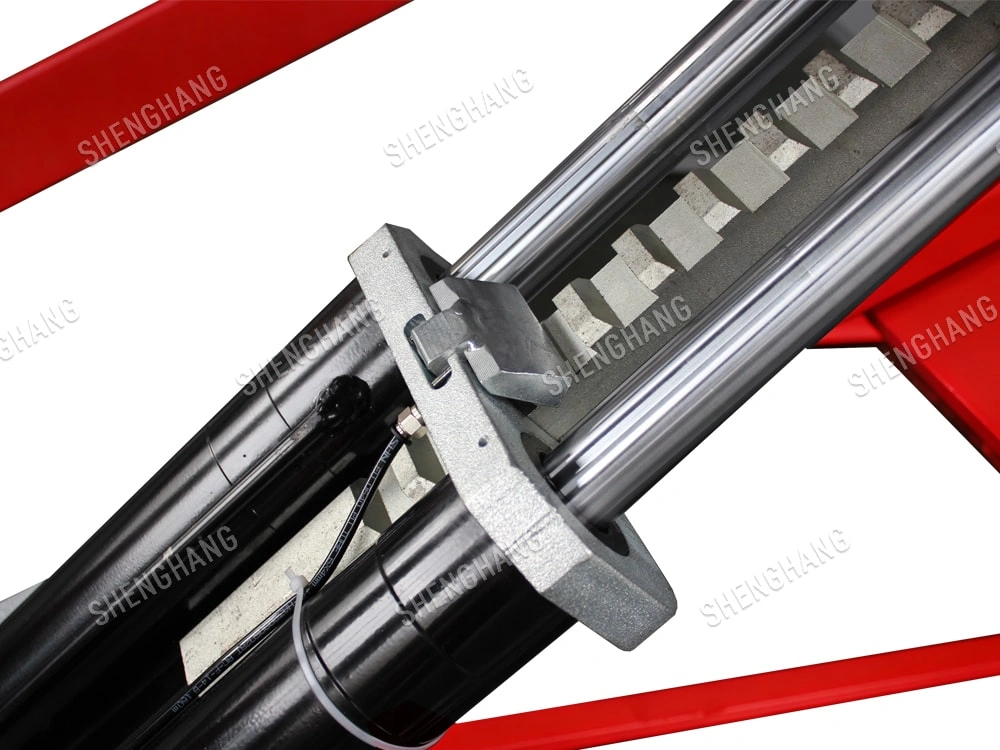

5. Automatic locking mechanism for reliable safety during ascent, pneumatic unlocking.
6. Height limit switch ensures safe operation.
7. Equipped with secondary descent, flashing warning lights, and a buzzer to alert personnel.
8. Reflective photoelectric switch effectively prevents platform asynchrony.

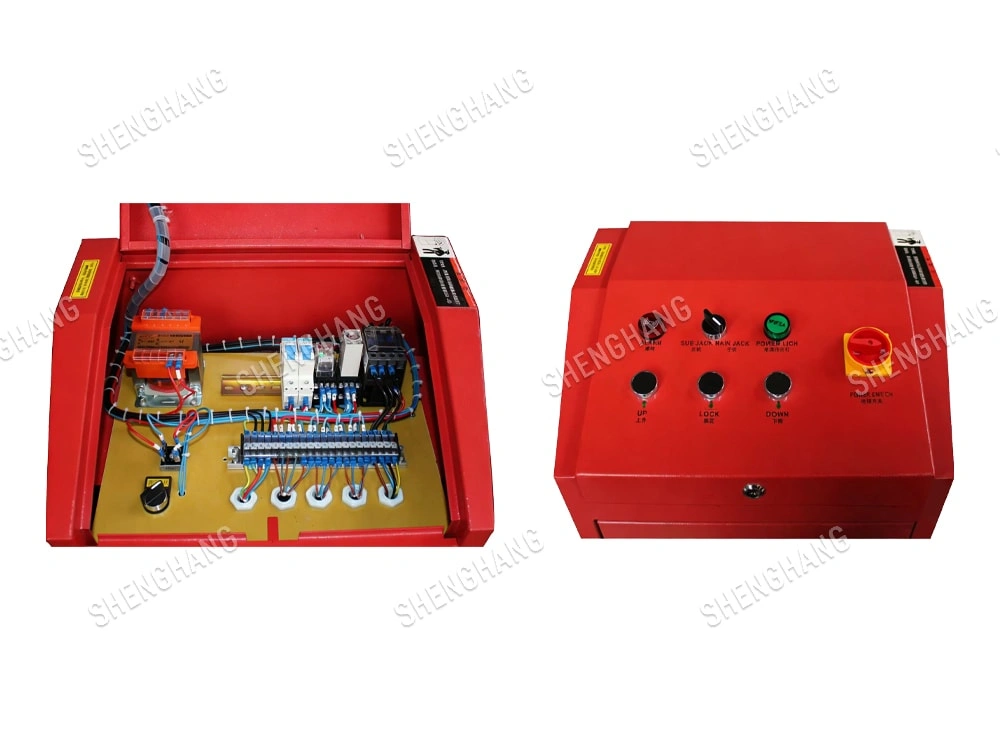

9. 24V electrical control system to prevent electric shock from high voltage.
10. Product complies with EU CE standards.
