◆Save land area and take fll use of space, the construction height requirement is about 3000mm
and columns can be arranged according to your requirements
◆According to custmer's requirement;whole packhalf pack,or simple pack awning for the equipment can be adopted
◆Low equipment cost and maintenance cost.
◆Vertical lift and easy cooperation,lift smoothlywith low noise,convenient for car goes in or out.
◆Comprehensive security protection system, such as safely ant-falling hook and emargency brake mechanism,
◆Adopt the control system with button and remote control,make operation wery easy.
◆24V low-tension safety control
◆Accord with standard of European Union CE

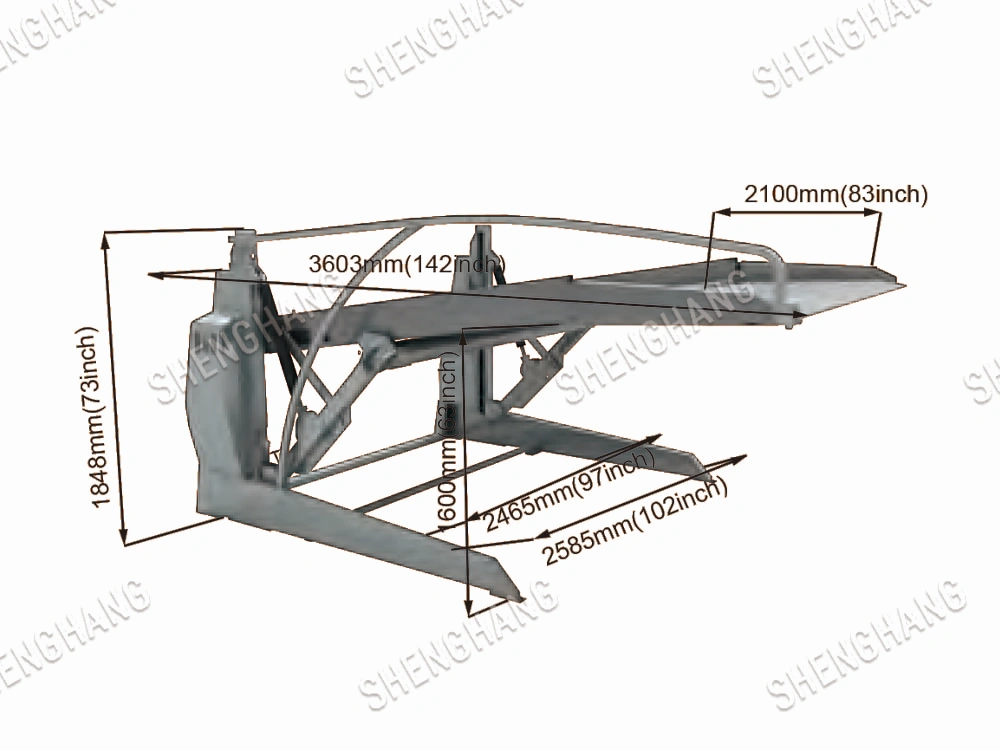

| Model No. | QDSH-PJS8016 |
| Lifting Capacity | 2000KG |
| Parking specification | 5000*1850*1550mm |
| Max Lifting Height | 1750mm |
| Platform width | 2200mm |
| Platform length | 3660mm |
| Column height | 1690mm |
| Lifting Time | ≤50S |
| Overall width | 2585mm |
| Overall height | 3000mm |
| Motor voltage | 380V/220V |
| Motor Power | 2.2KW |
| Package size | 3900*1000*800mm |
◆Save land area and take fll use of space, the construction height requirement is about 3000mm
and columns can be arranged according to your requirements
◆According to custmer's requirement;whole packhalf pack,or simple pack awning for the equipment can be adopted
◆Low equipment cost and maintenance cost.
◆Vertical lift and easy cooperation,lift smoothlywith low noise,convenient for car goes in or out.
◆Comprehensive security protection system, such as safely ant-falling hook and emargency brake mechanism,
◆Adopt the control system with button and remote control,make operation wery easy.
◆24V low-tension safety control
◆Accord with standard of European Union CE
