Two Post Parking Lift QDSH-PJS8127/8123

BACK TO LIST

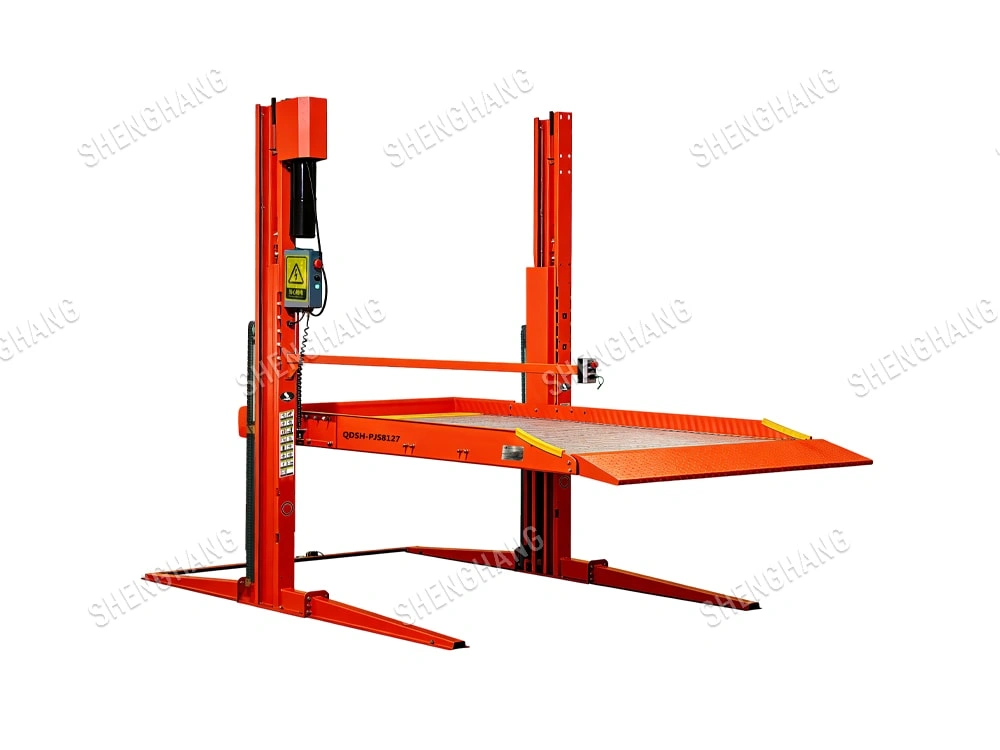

QDSH-PJS8127
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E
QDSH-PJS8127
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E

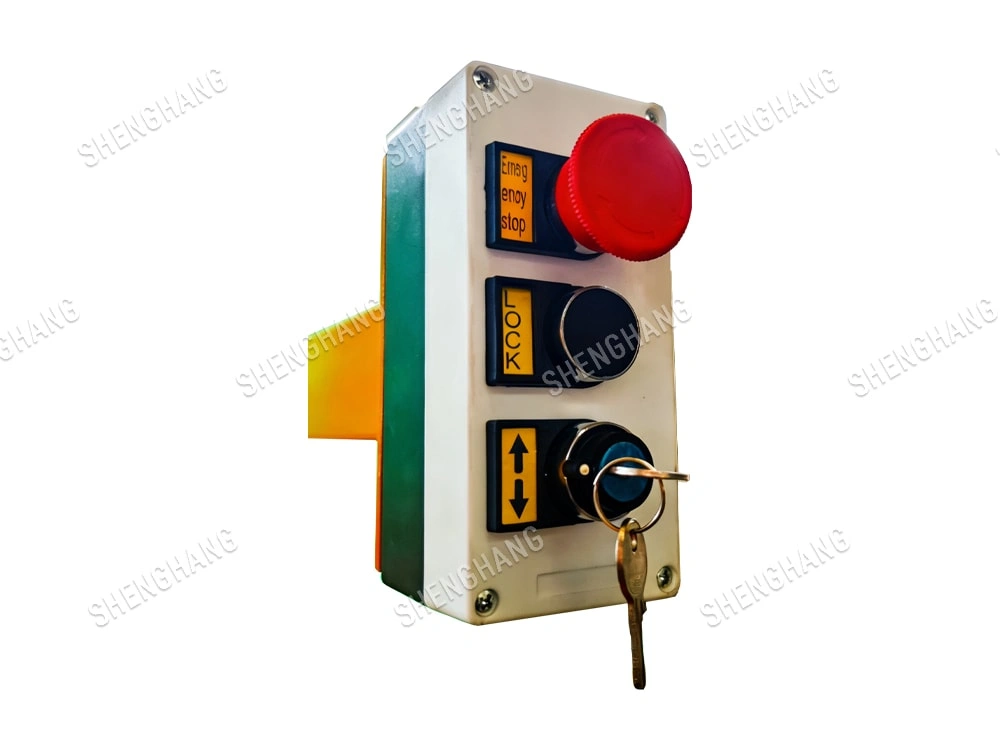

Key Button Switch (Can be designed for remote control)
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E

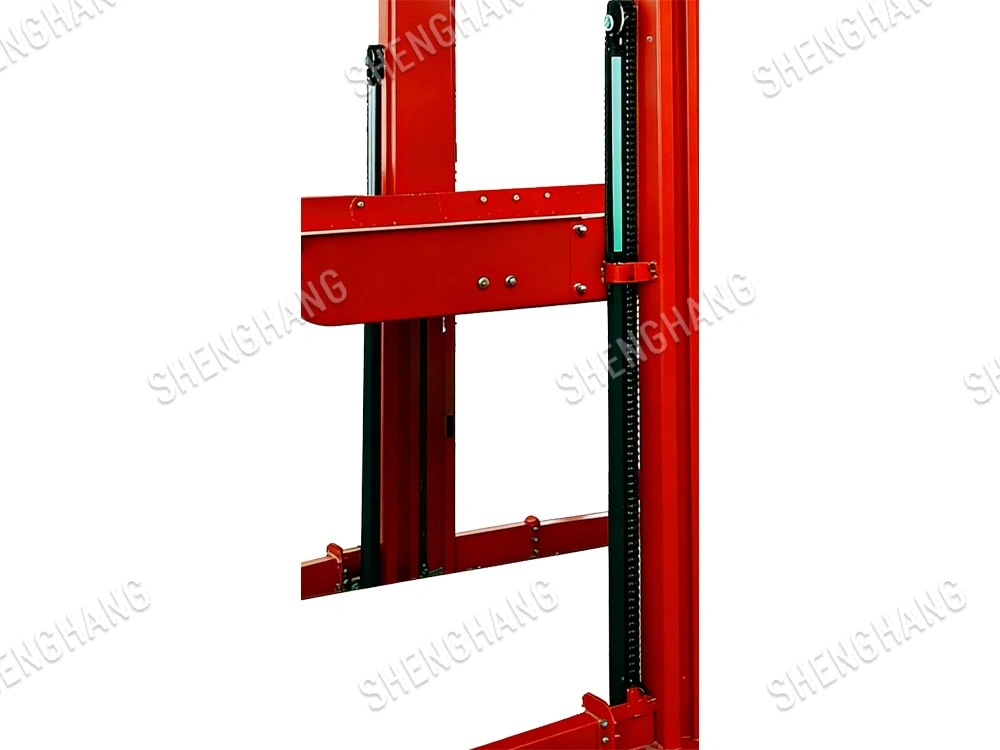

High-Quality Dual-Cylinder Chain Drive — More Economical and Affordable
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E

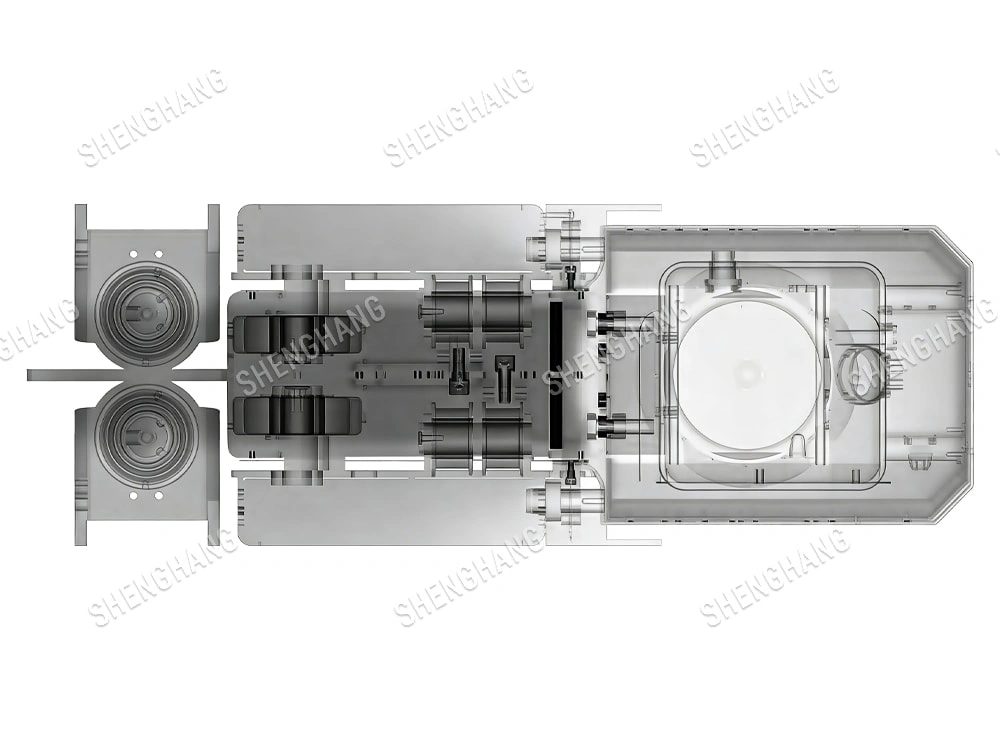

Symmetrical designed column can be shared by two units to save pre-cious space for your car
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E

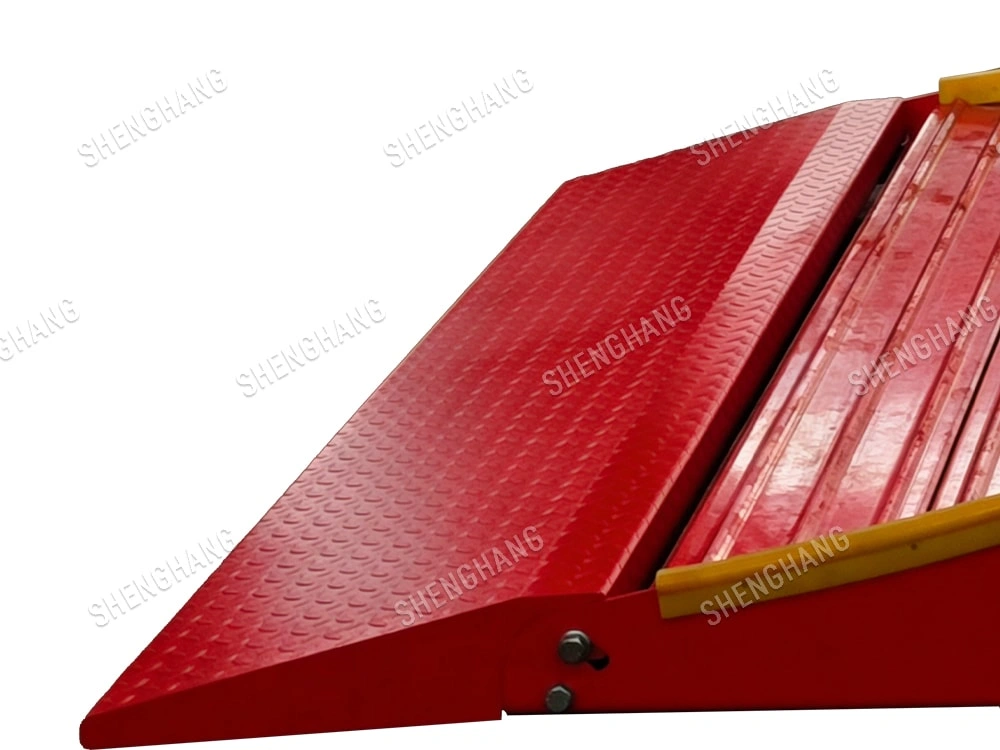

Adjustable ramp to adopt unleveled floor
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E
QDSH-PJS8127
QDSH-PJS8127
Key Button Switch (Can be designed for remote control)
High-Quality Dual-Cylinder Chain Drive — More Economical and Affordable
Symmetrical designed column can be shared by two units to save pre-cious space for your car
Adjustable ramp to adopt unleveled floor

PARAMETER

  • Model No.QDSH-PJS8127/8123

  • Load Capacity2700kg/2300kg

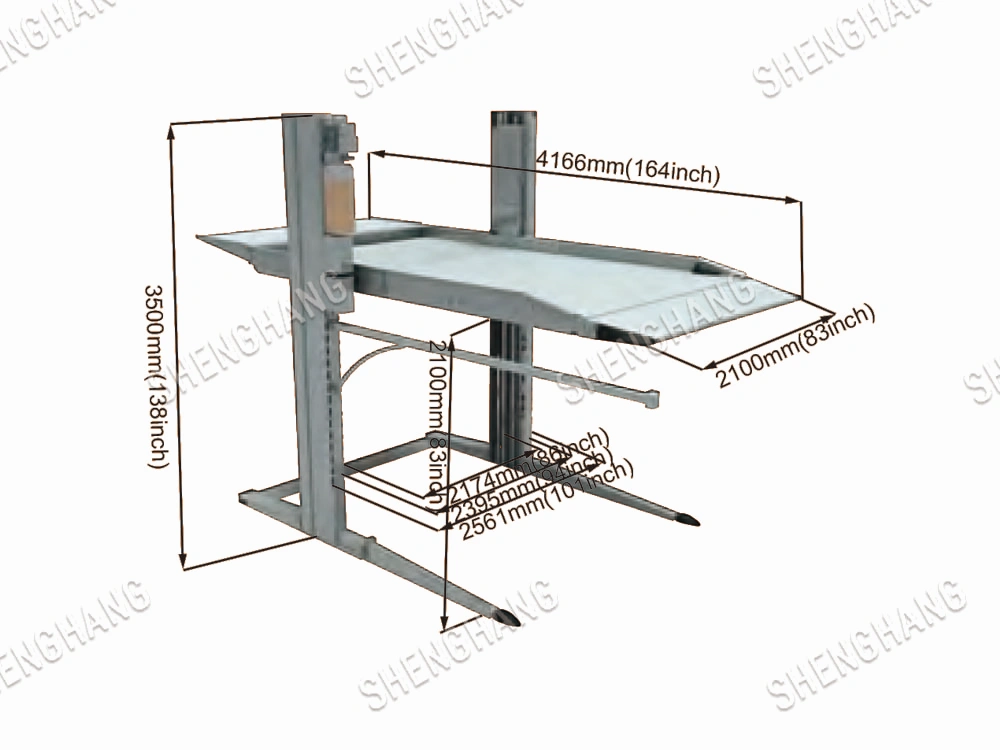

MACHINE SIZE

Model No. QDSH-PJS8127QDSH-PJS8123
Lifting Capacity 2700KG2300KG
Parking specification 5000*1850*1550mm5000*1850*1550mm
Max Lifting Height 0-2100mm0-2100mm
Platform width 2267mm2263mm
Platform length 4173mm4173mm
Column height 3500mm2900mm
Lifting Time ≤50S≤50S
Overall width 2560mm2558mm
Overall height 3500mm3500mm
Motor voltage 380V/220V380V/220V
Motor Power 2.2KW2.2KW
Package size 4100*1000*800mm3800*1000*800mm

FEATURES

◆Save land area and take full use of space, columns can be arranged according to your requirements.

◆According to custmer's requirement;whole packhalf pack,or simple pack awning for the equipment can be adopted

◆Using double cylinder chain drive

◆Low equipment cost and maintenance cost.

◆More than 2 sets can share the column

◆Vertical lift and easy cooperation, lift smoothly with low noise, convenient for car goes in or out.

◆Comprehensive security protection system, such as safely ant-falling hook and emargency brake mechanism,

◆Adopt the control system with button and remote control, make operation very easy.

◆24V low-tension safety control

◆Accord with standard of European Union CE
