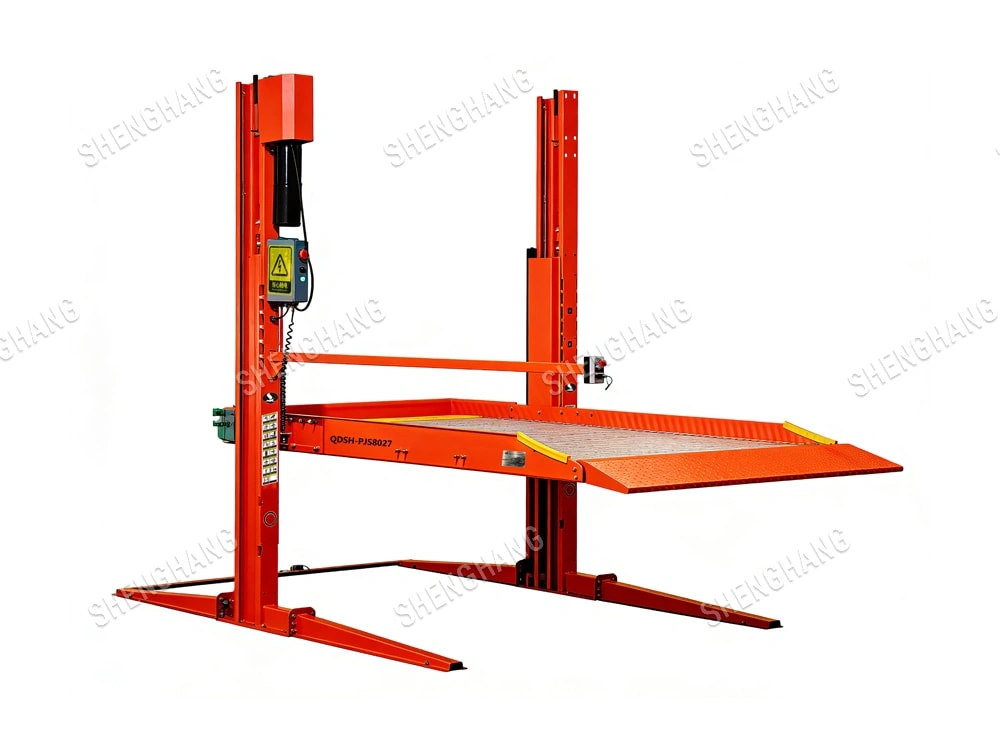

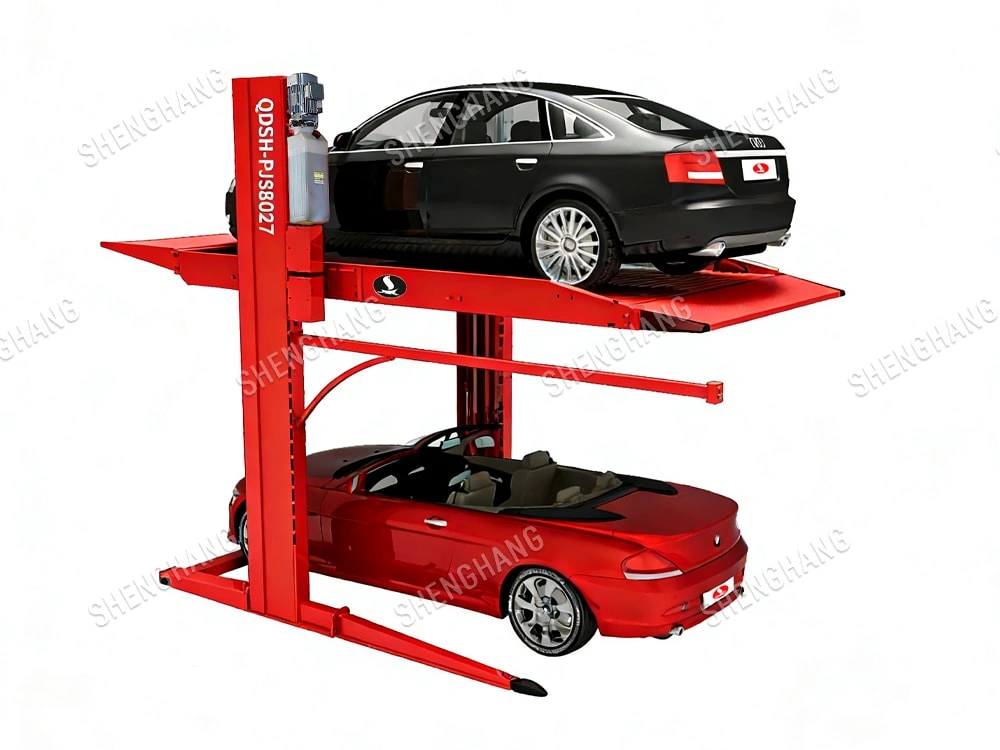

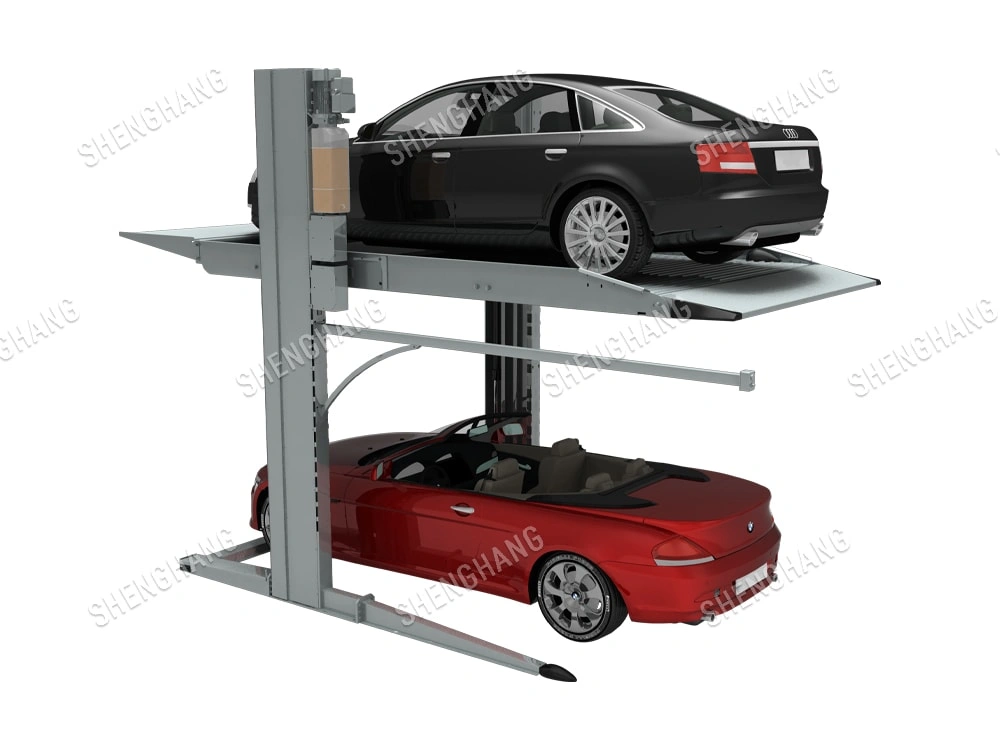

Model No.QDSH-PJS8027
Load Capacity2700kg
| Model No. | QDSH-PJS8027 |
| Lifting Capacity | 2700KG |

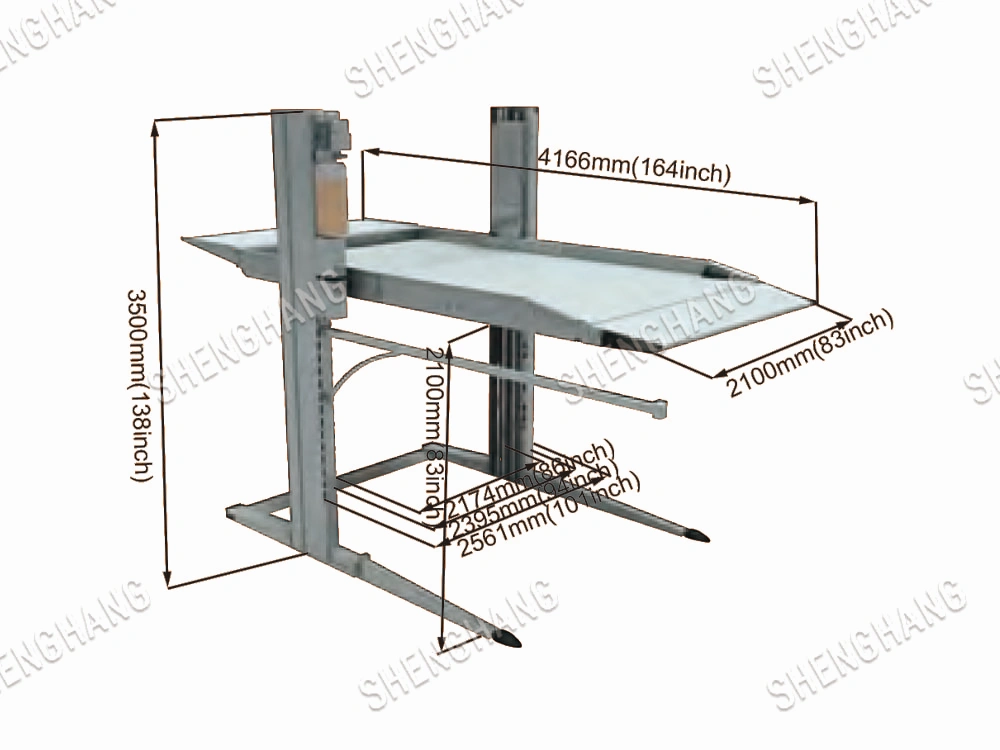

| Parking specification | 5000*1850*1550mm |
| Max Lifting Height | 0-2100mm |
| Platform width | 2267mm |
| Platform length | 4173mm |
| Column height | 3500mm |
| Lifting Time | ≤50S |
| Overall width | 2560mm |
| Overall height | 3500mm |
| Motor voltage | 380V/220V |
| Motor Power | 2.2KW |
| Package size | 4100*1000*800mm |
◆Save land area and take full use of space, columns can be arranged according to your requirements.
◆According to custmer's requirement;whole packhalf pack,or simple pack awning for the equipment can be adopted

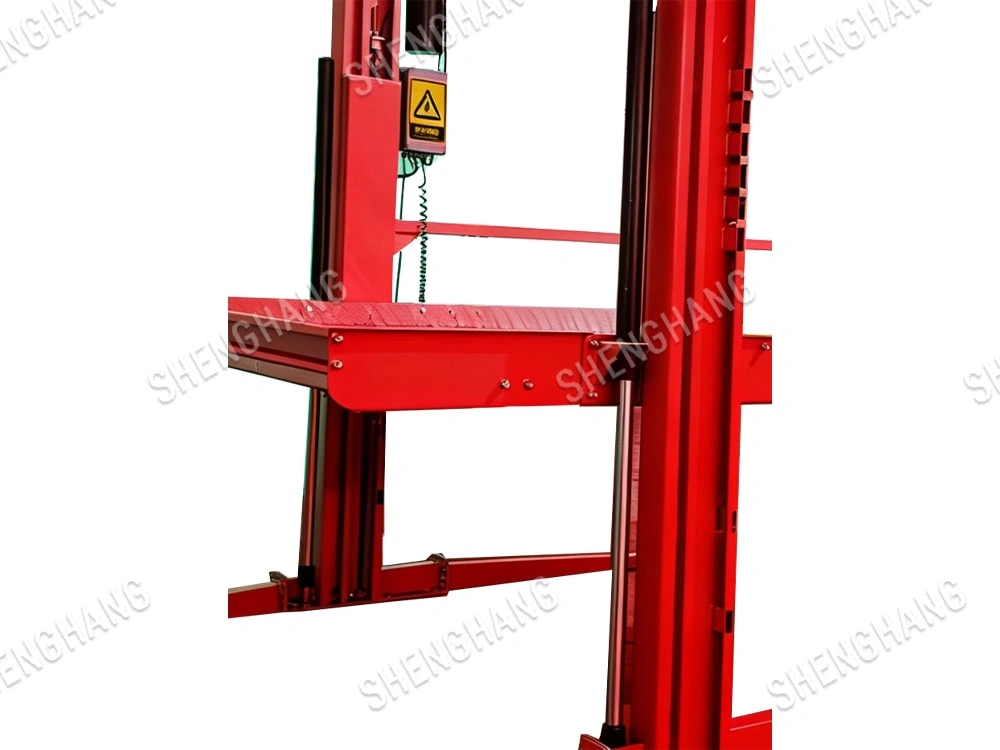

◆Using double cylinder drive, the cylinder is a multi-pole cylinder
◆Low equipment cost and maintenance cost.

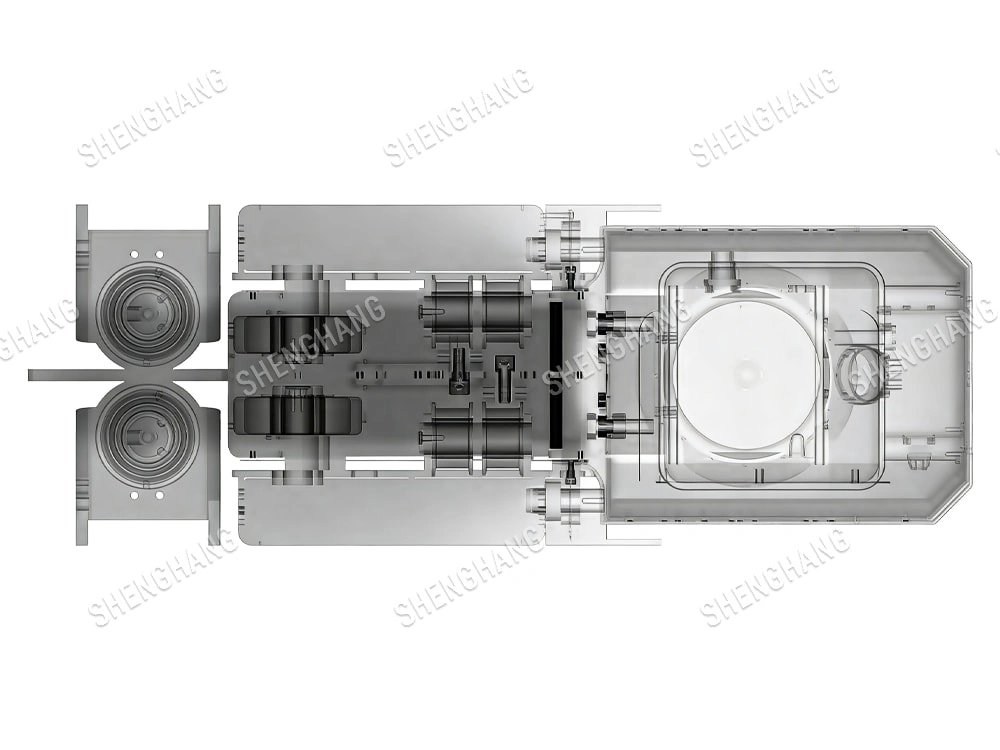

◆More than 2 sets can share the column
◆.Vertical lift and easy cooperation, lift smoothly with low noise, convenient for car goes in or out.
◆Comprehensive security protection system, such as safely ant-falling hook and emargency brake mechanism,

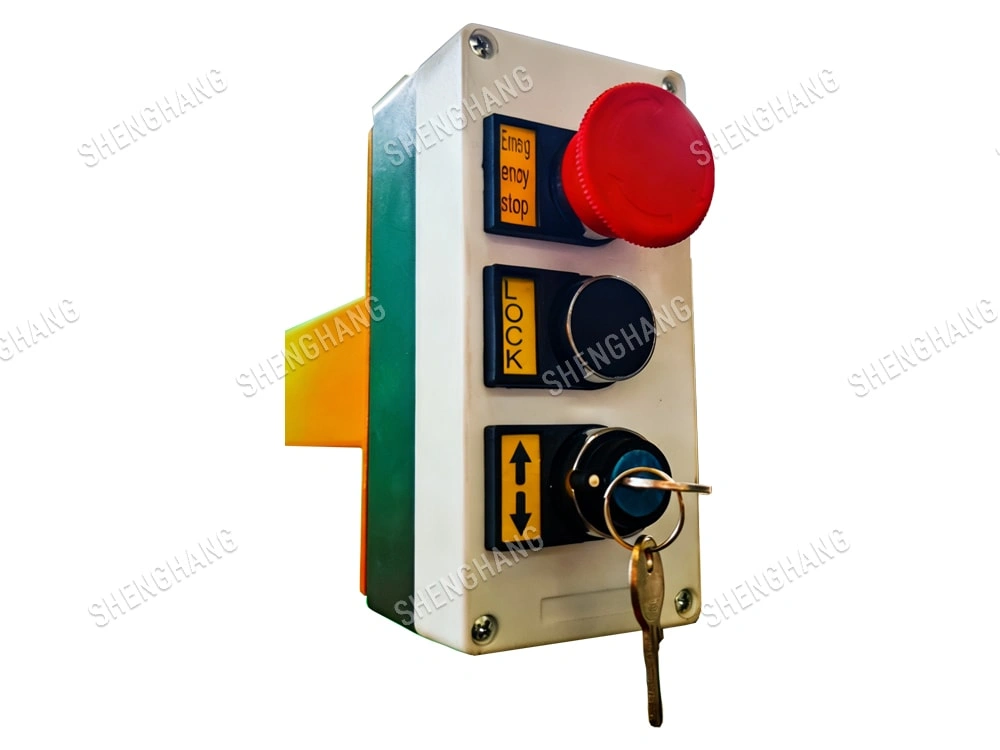

◆Adopt the control system with button and remote control, make operation very easy.
◆24V low-tension safety control
