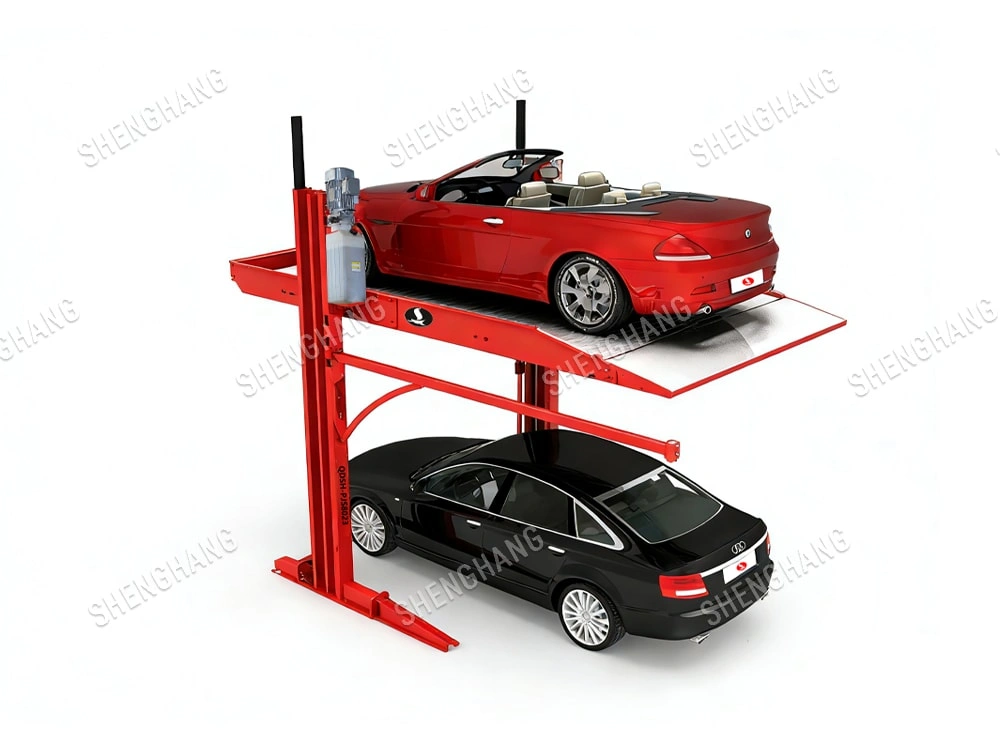

Two Post Parking Lift QDSH-PJS8023

BACK TO LIST
QDSH-PJS8023
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E
QDSH-PJS8023
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E

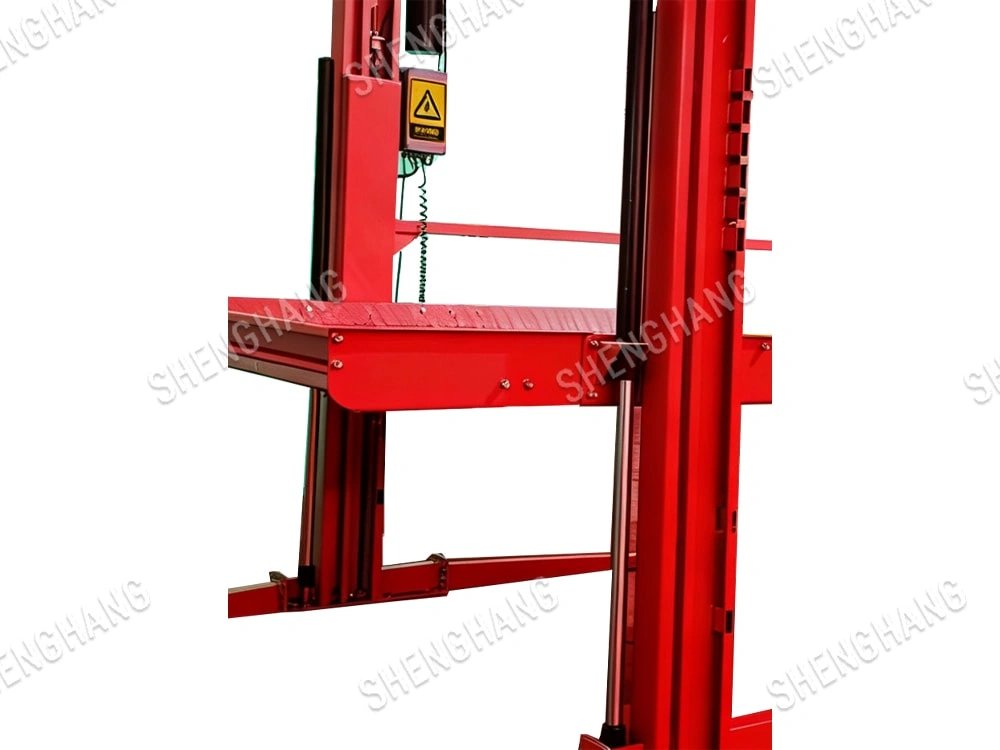

High-Quality Dual Cylinders (Inverted Pull-Type) — Ensuring Greater Equipment Stability
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E

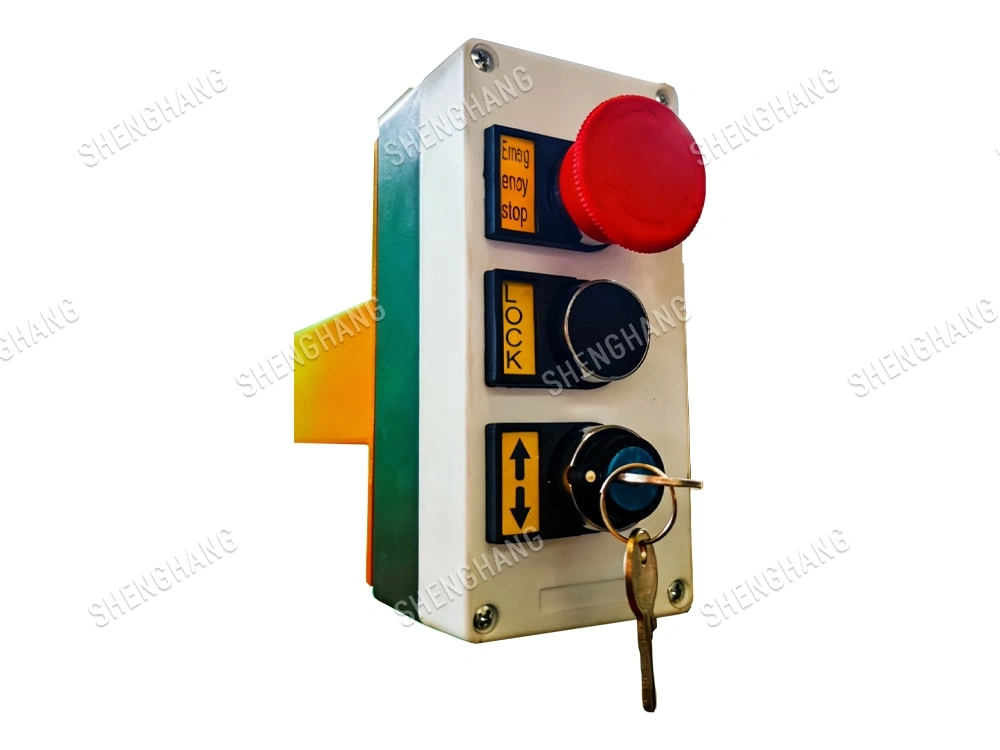

Key Button Switch (Can be designed for remote control)
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E

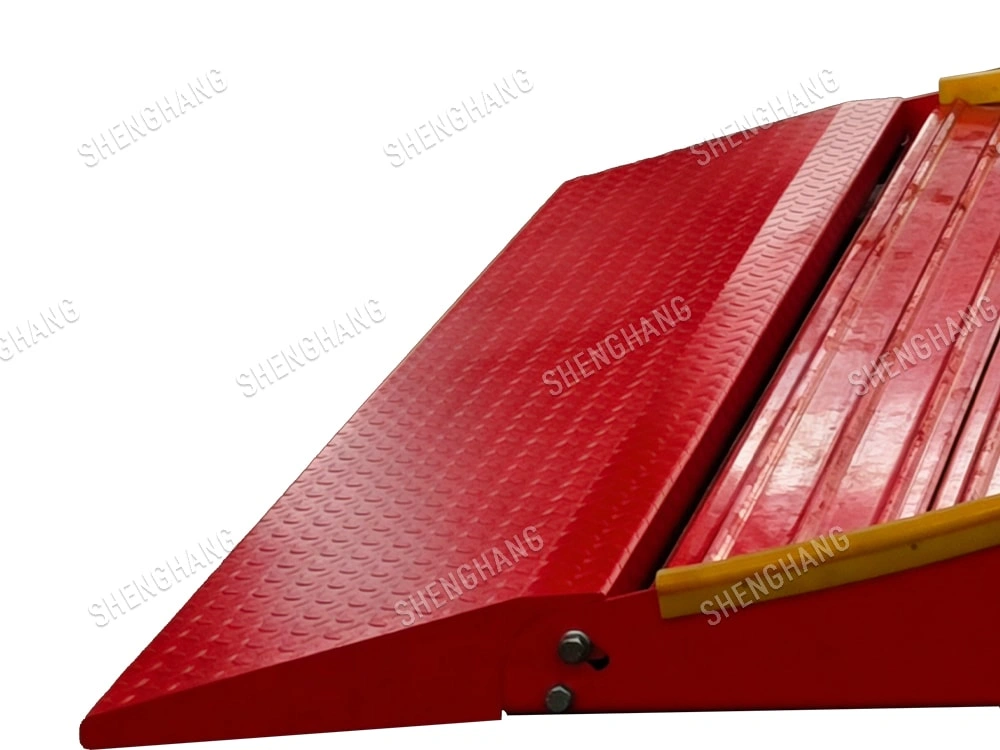

Adjustable ramp to adopt unleveled floor
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E

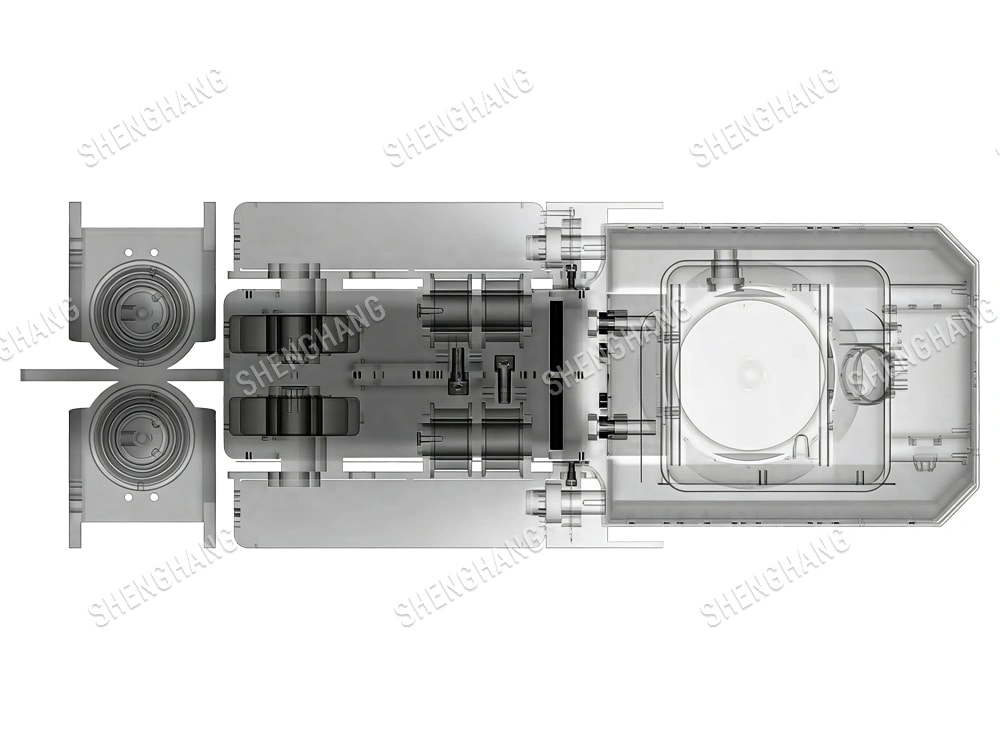

Symmetrical designed column can be shared by two units to save pre-cious space for your car
Floor Plate Two Post Lift QDSH-F400E/F450E/F850E
QDSH-PJS8023
QDSH-PJS8023
High-Quality Dual Cylinders (Inverted Pull-Type) — Ensuring Greater Equipment Stability
Key Button Switch (Can be designed for remote control)
Adjustable ramp to adopt unleveled floor
Symmetrical designed column can be shared by two units to save pre-cious space for your car

PARAMETER

  • Model No.QDSH-PJS8023

  • Load Capacity2300kg

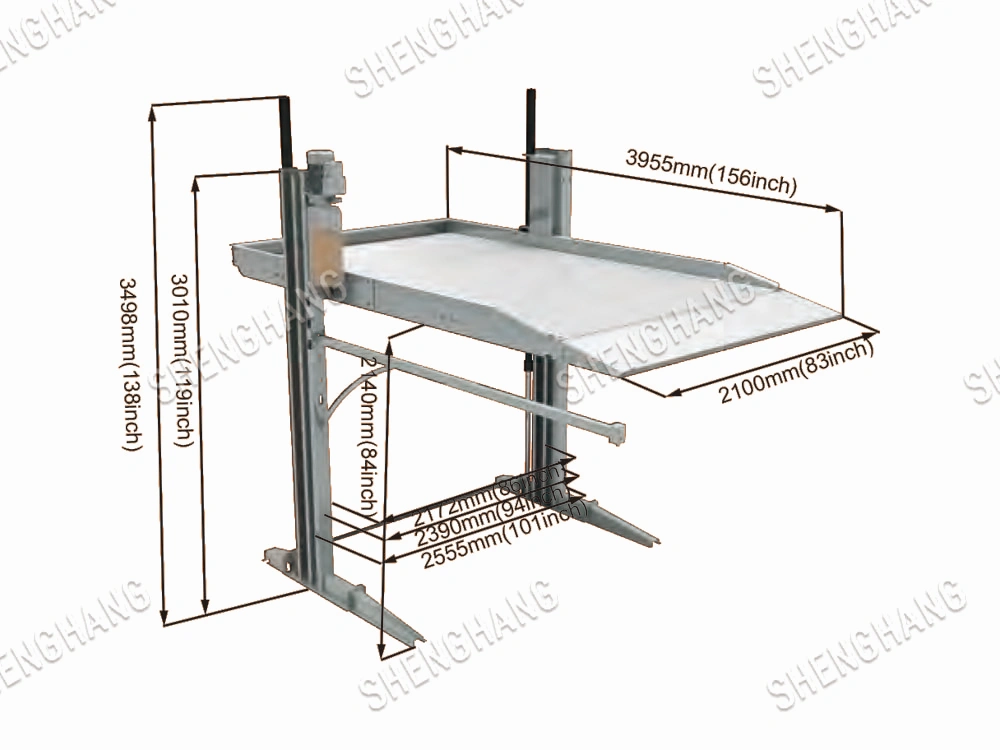

MACHINE SIZE

Model No. QDSH-PJS8023
Lifting Capacity 2300KG
Parking specification 5000*1850*1550mm
Max Lifting Height 0-2100mm
Platform width 2263mm
Platform length 4173mm
Column height 2900mm
Lifting Time ≤50S
Overall width 2558mm
Overall height 3500mm
Motor voltage 380V/220V
Motor Power 2.2KW
Package size 3800*1000*800mm

FEATURES

◆Save land area and take full use of space, columns can be arranged according to your requirements.

◆According to custmer's requirement;whole packhalf pack,or simple pack awning for the equipment can be adopted

◆Using double cylinder drive, the cylinder is a multi-pole cylinder

◆Low equipment cost and maintenance cost.

◆More than 2 sets can share the column

◆Vertical lift and easy cooperation, lift smoothly with low noise, convenient for car goes in or out.

◆Comprehensive security protection system, such as safely ant-falling hook and emargency brake mechanism,

◆Adopt the control system with button and remote control, make operation very easy.

◆24V low-tension safety control

◆Accord with standard of European Union CE
