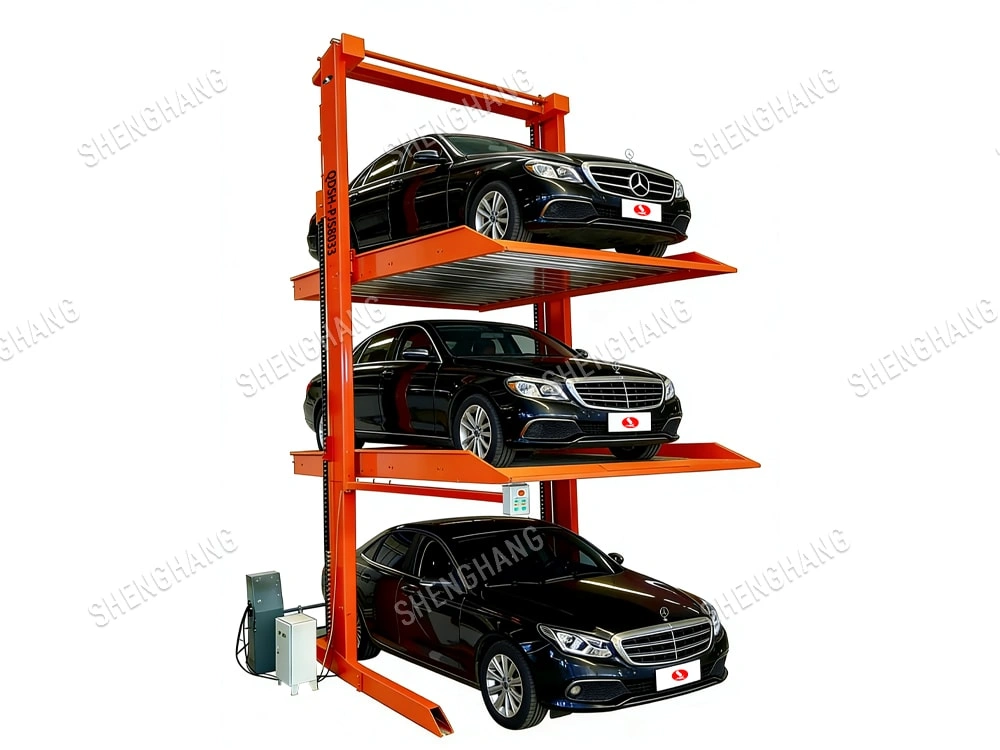

Two Post Parking Lift QDSH-PJS8033

BACK TO LIST

Floor Plate Two Post Lift QDSH-F400E/F450E/F850E

Floor Plate Two Post Lift QDSH-F400E/F450E/F850E

PARAMETER

Inquiry now Download

Model No.	QDSH-PJS8033
Lifting Capacity	2300KG
Parking specification	500018501550mm
Max Lifting Height (First Level)	2000mm
Max Lifting Height (Second Level)	1705mm
Max Lifting Height (Third Level)	1798mm
Platformlength(Second Level)	4285mm
Platform length(Third Level)	3610mm
Platform length	4173mm
Column height	5805mm
Lifting Time	≤60S
Overall width	2680mm
Overall height	5805mm
Motor voltage	380V/220V
Motor Power	3KW
Package size	58501100710mm
Device weight	2400kg

◆Save land area and take full use of space, columns can be arranged according to your requirements.

◆According to custmer's requirement;whole packhalf pack,or simple pack awning for the equipment can be adopted

◆Using double cylinder drive, the cylinder is a multi-pole cylinder

◆Low equipment cost and maintenance cost.

◆Vertical lift and easy cooperation, lift smoothly with low noise, convenient for car goes in or out.

◆Comprehensive security protection system, such as safely ant-falling hook and emargency brake mechanism,

◆24V low-tension safety control
